Compact Mobile Thermal Imager -15℃ to 600℃, Multi-Mode Temperature Detection, 6 Color Palettes

Introducing the Advanced Mobile Thermal Imager

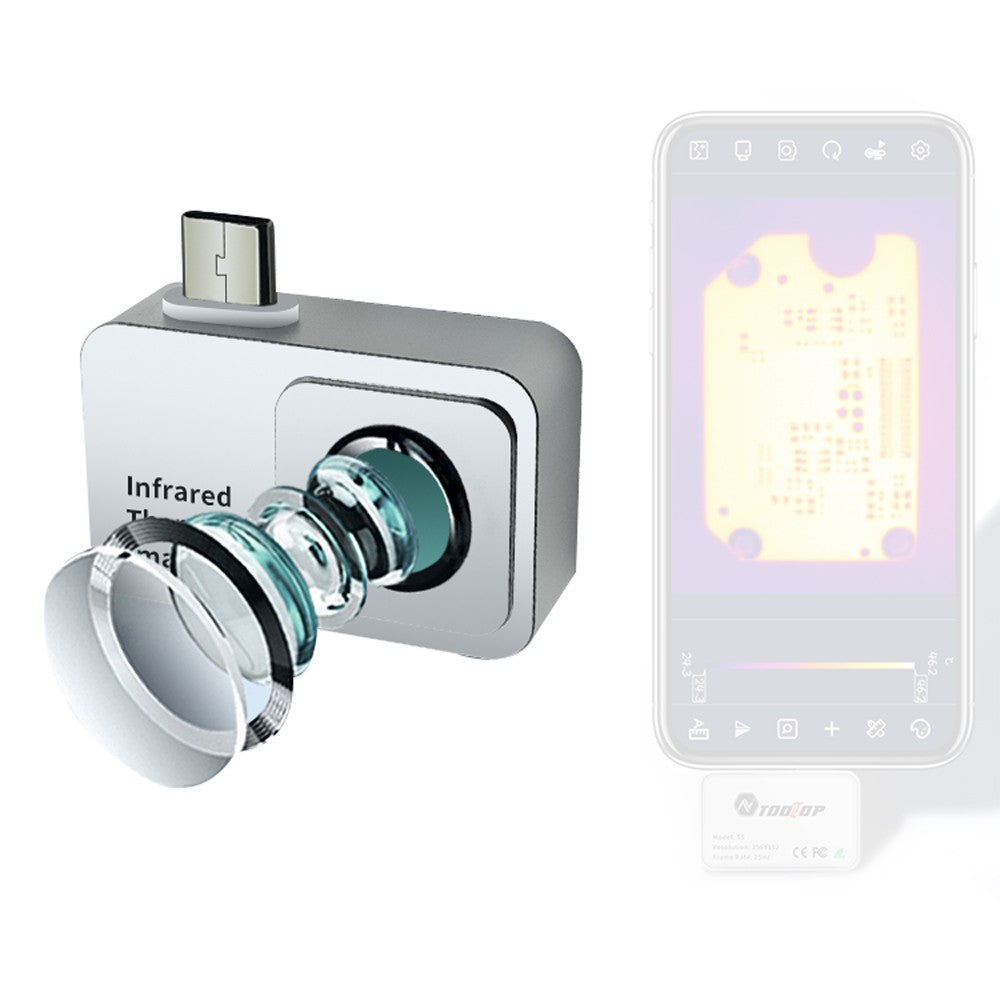

Transform your smartphone into a powerful diagnostic tool with our mobile thermal imager. This compact device measures and displays the temperature distribution on any surface by detecting infrared radiation and converting it into a clear thermal image. It’s an invaluable device for monitoring equipment status, diagnosing faults, and is widely applicable across industries such as power, chemical, construction, and firefighting.

Key Features:

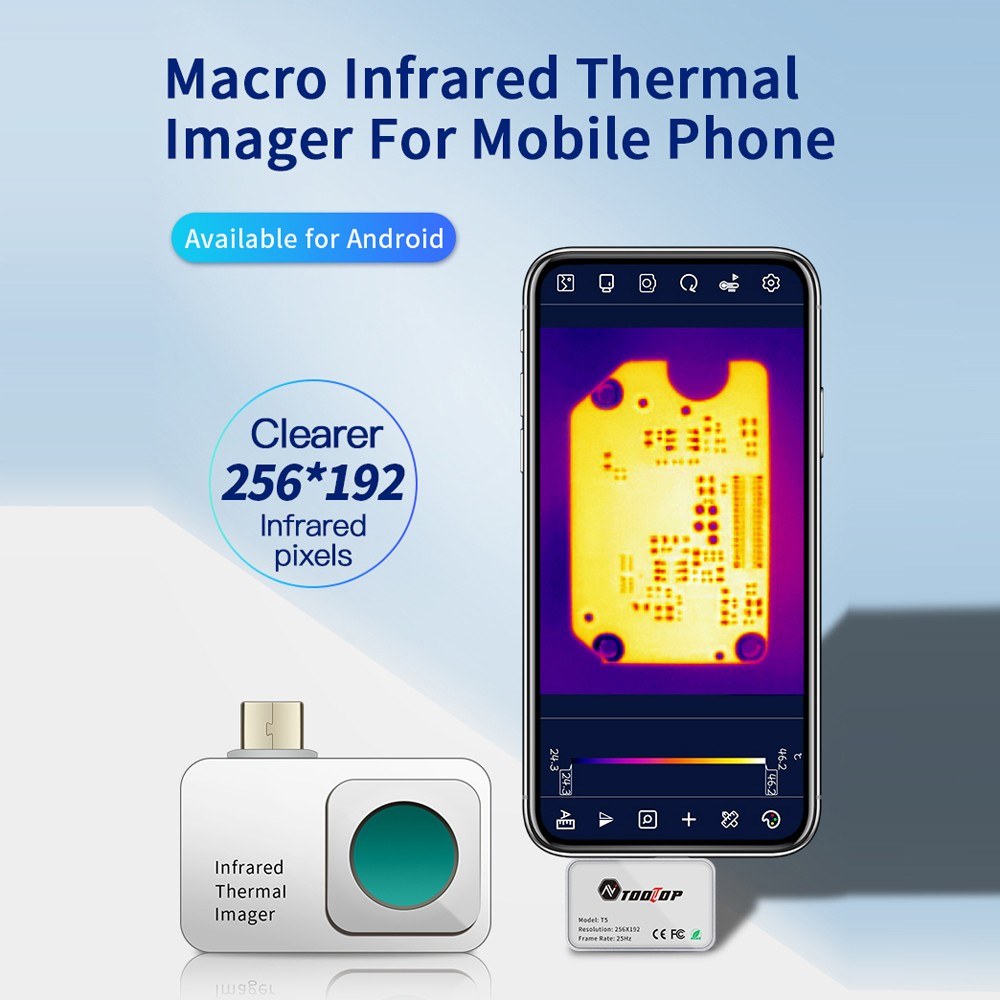

• High-Resolution Imaging: Capture detailed thermal images with 256x192 infrared pixels. With a high frame rate of 25Hz, it offers smooth and responsive image refresh rates, allowing you to quickly identify subtle temperature changes.

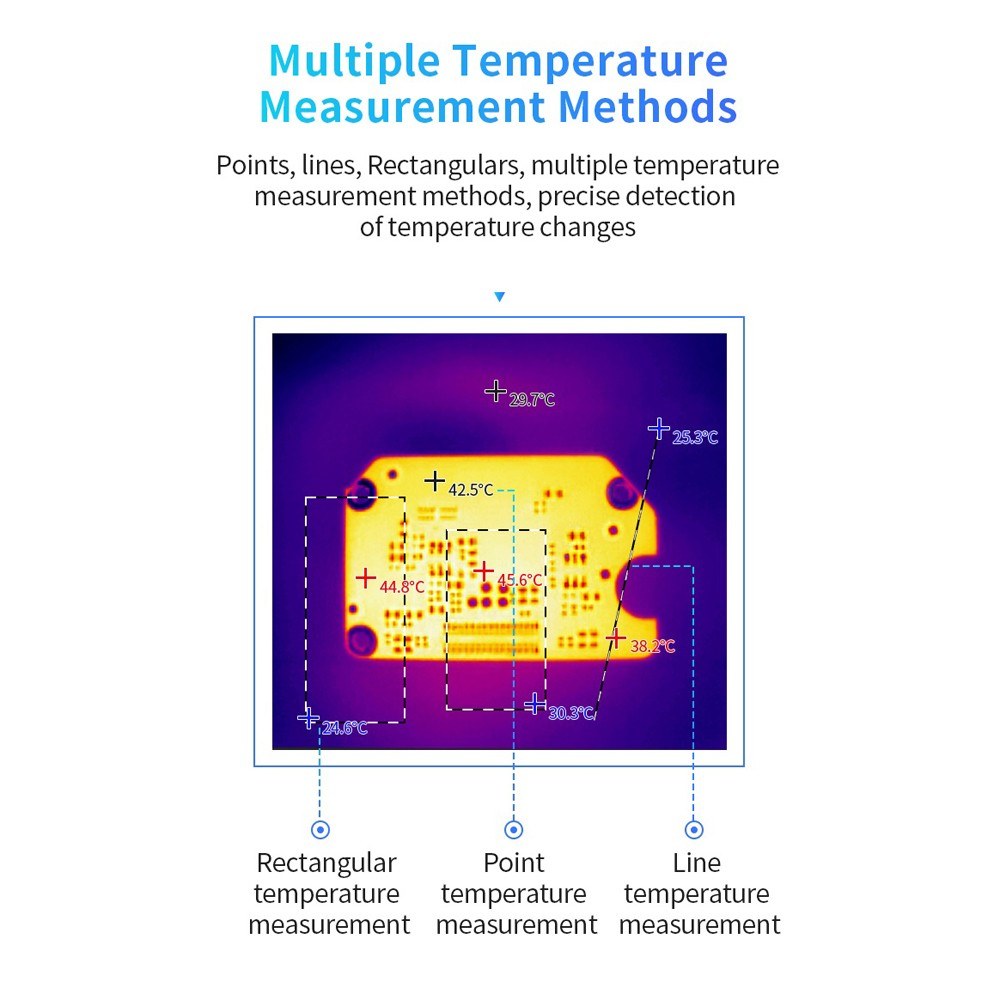

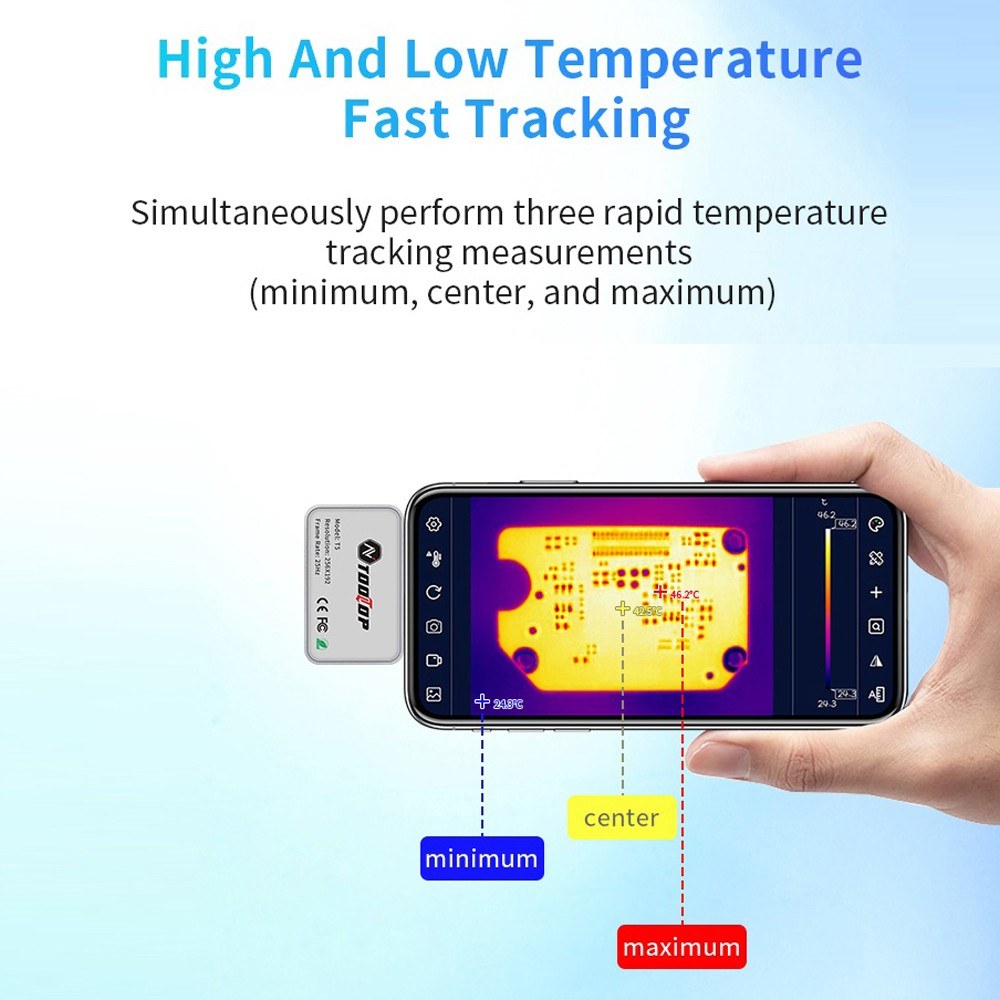

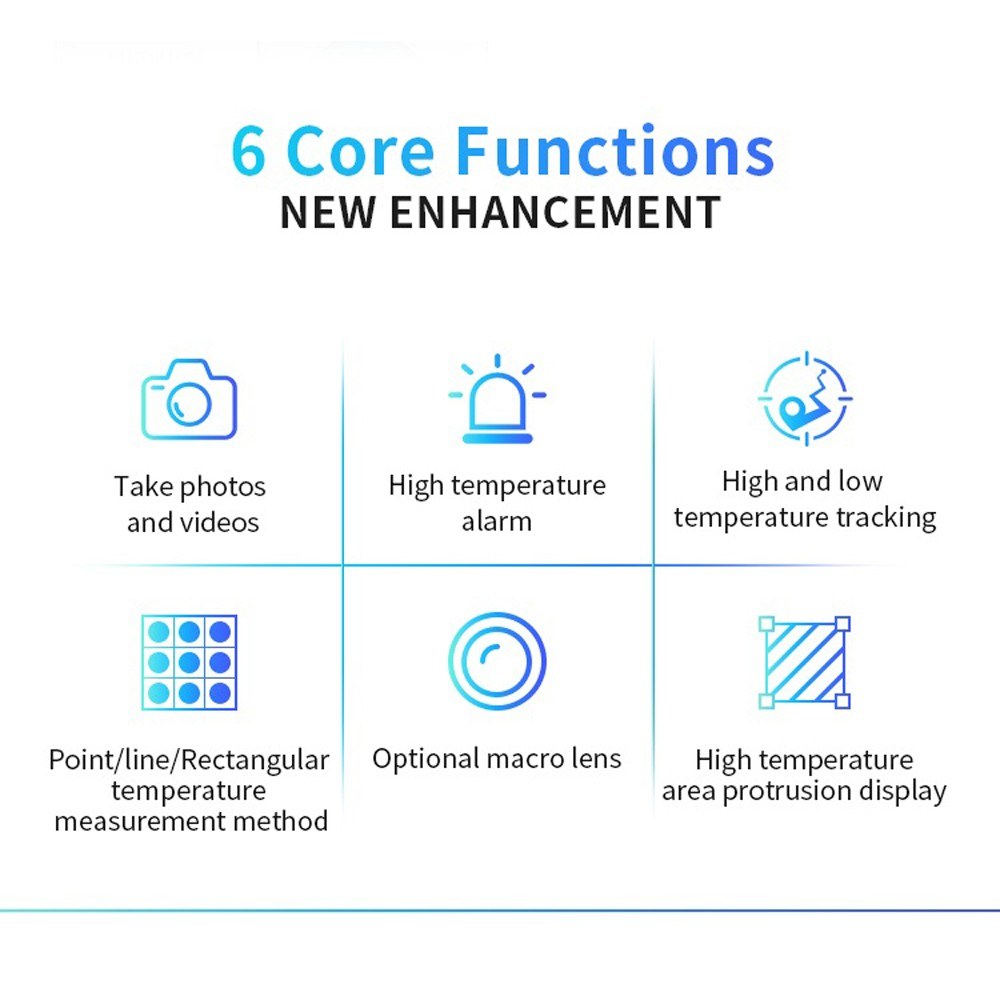

• Versatile Temperature Measurement: Adaptable measurement options including point, line, and rectangle methods. Features high/low temperature alarms and fast tracking to display minimum, center, and maximum temperatures simultaneously, essential for accurate analysis in complex environments.

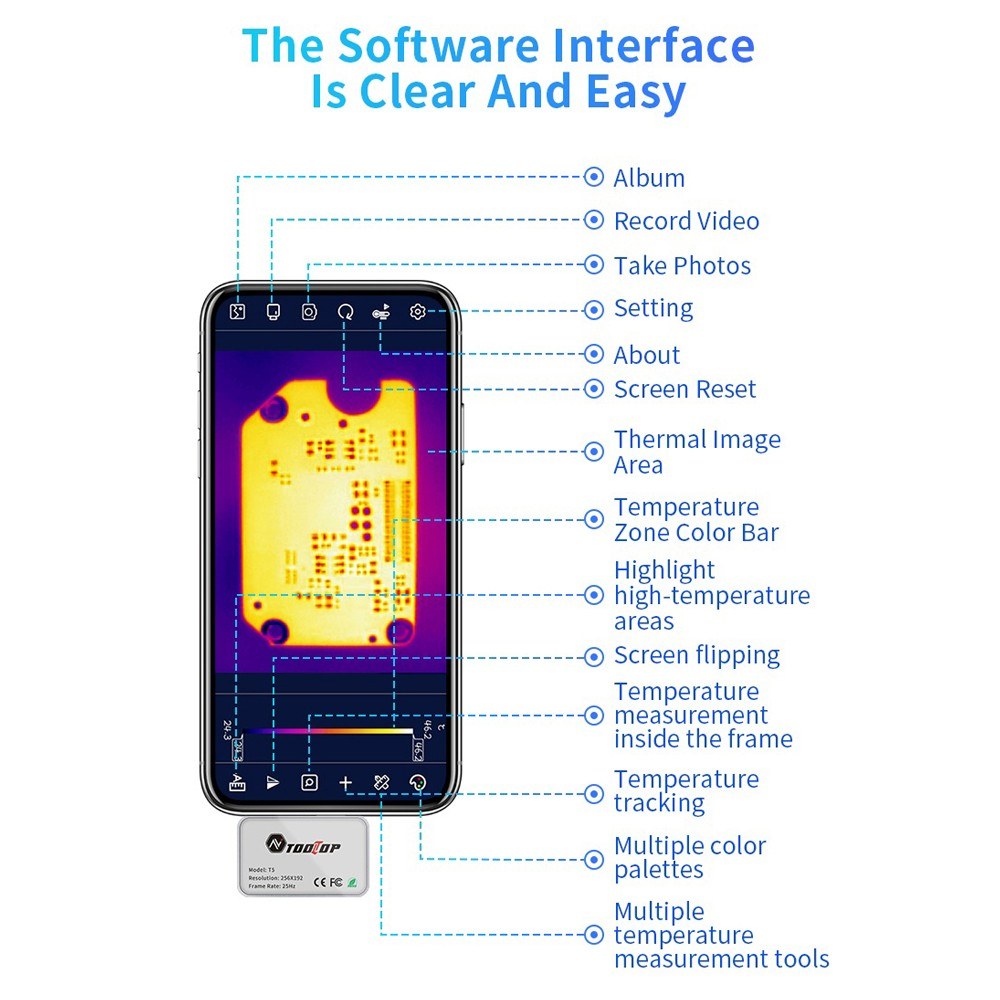

• User-Friendly Interface: Enjoy a simple and intuitive software interface with a plethora of functional modules like photo album, video recording, and photo settings. Benefit from multiple color palettes for diverse analysis needs, making operation and data assessment straightforward.

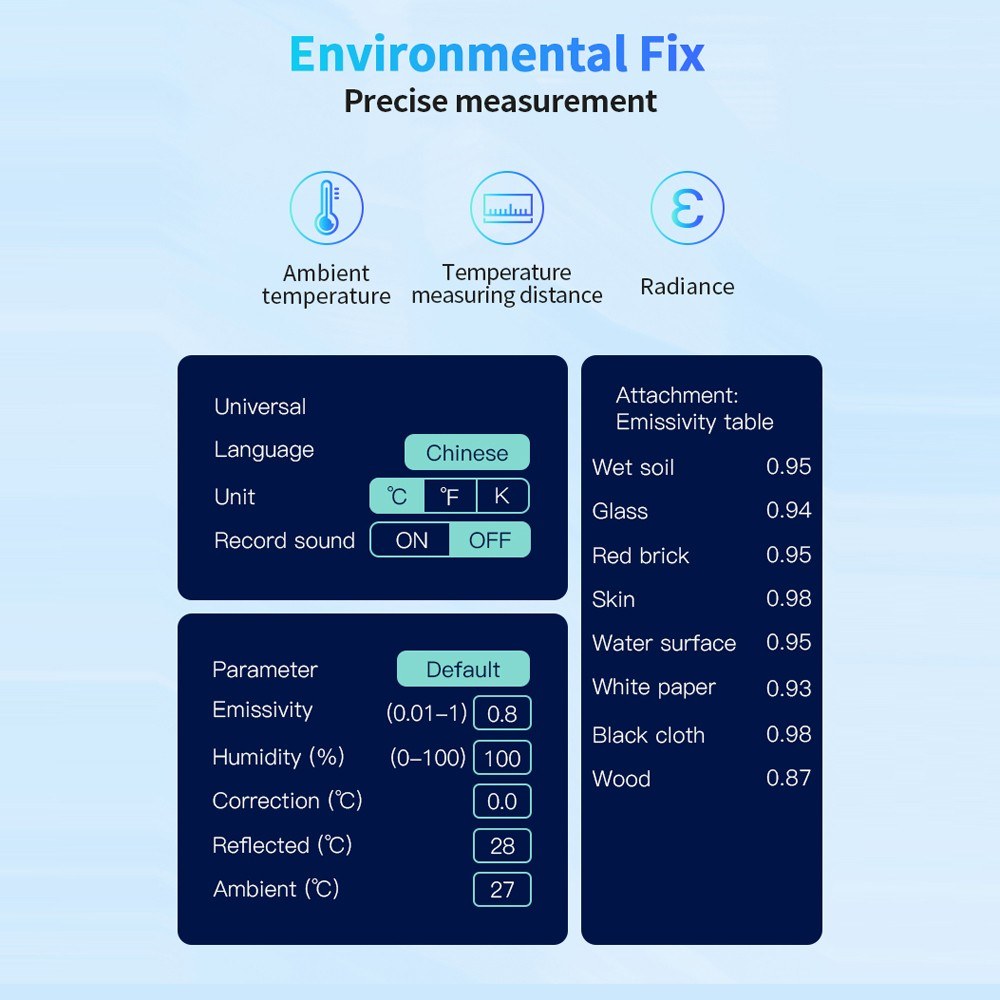

• Customizable Parameters: Personalize settings, such as temperature units, default emissivity, and environmental factors adjustments, to cater to global users’ habits and industry-specific requirements, ensuring precise and reliable measurements.

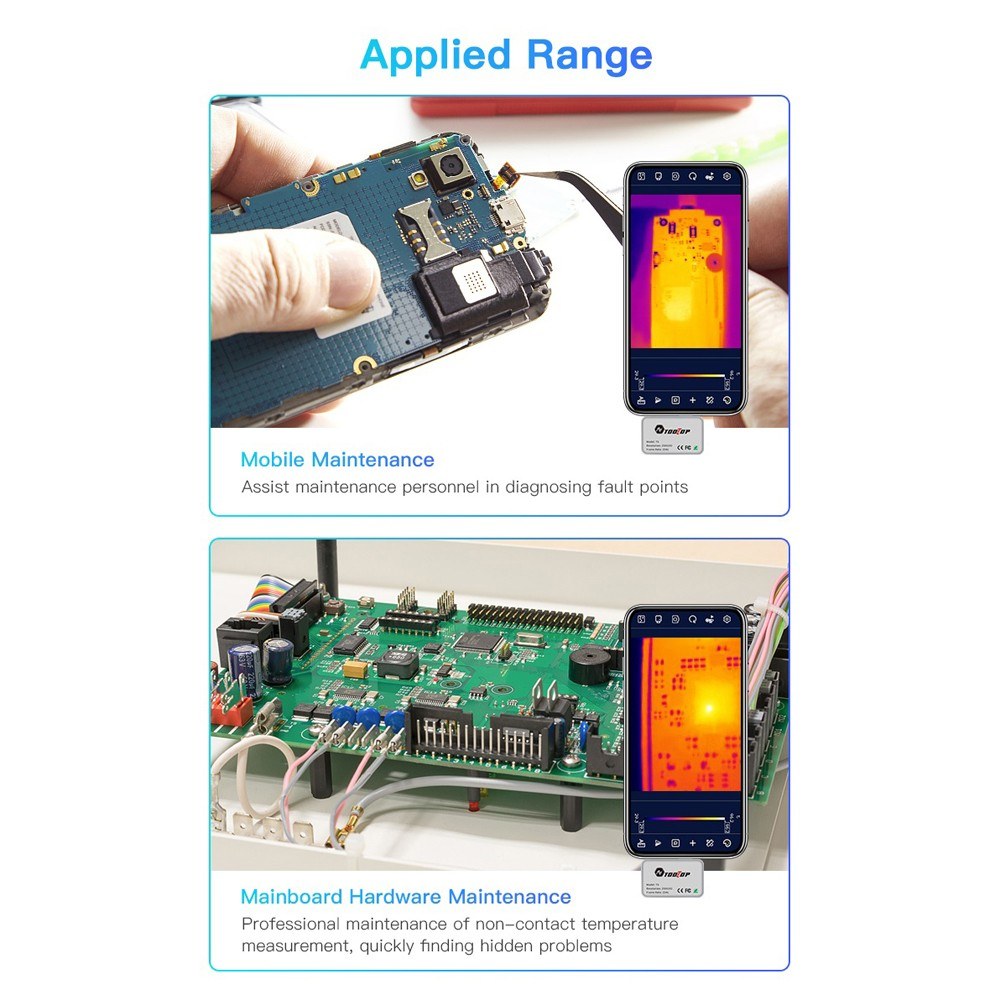

• Extensive Applications: Ranging from 15℃ to 600℃, this thermal camera is perfect for tasks from cellphone repairs to hardware maintenance, boosting technicians’ efficiency in troubleshooting and resolution.

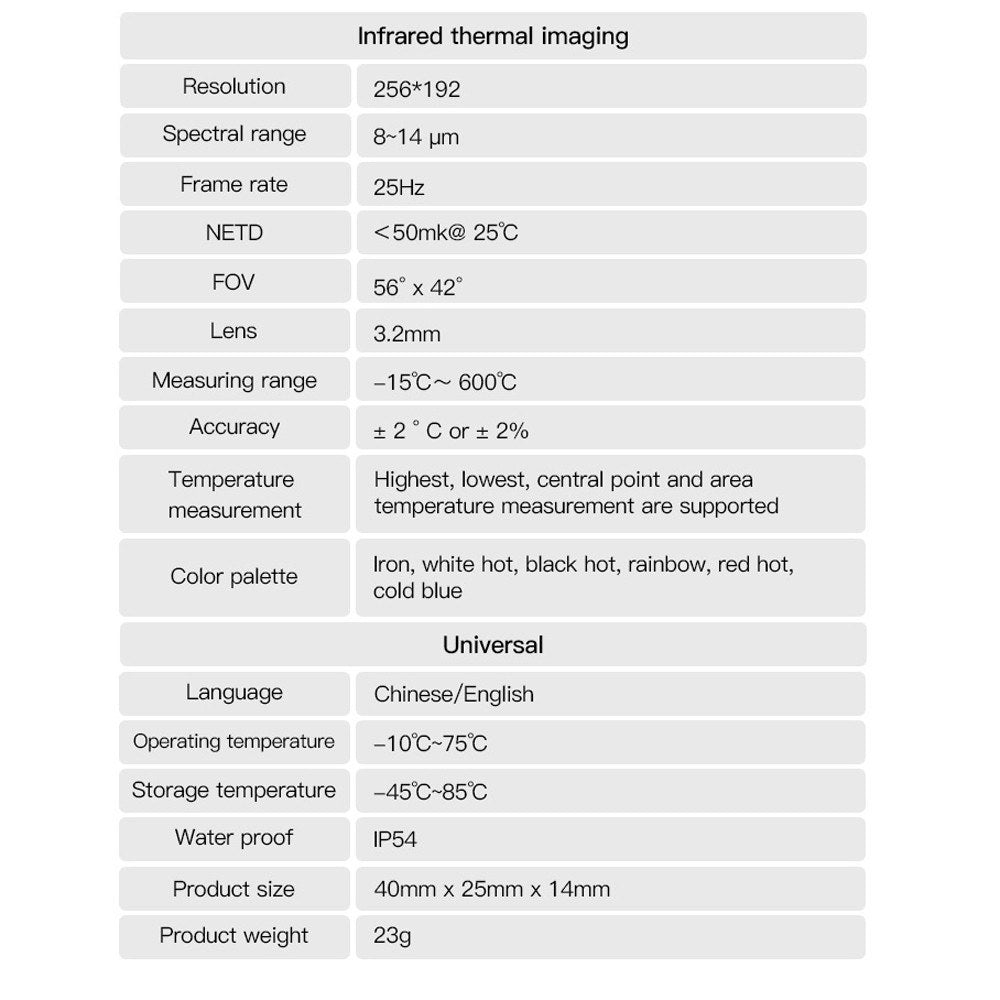

Specifications:

• Name: Thermal Imager
• Material: Metal + Plastics
• Resolution: 256x192
• Spectral Range: 8-14μm
• Framerate: 25Hz
• NETD: <50mk@ 25℃
• FOV: 56° x 42°
• Lens: 3.2mm
• Measurement Range: -15℃ to 600℃
• Accuracy: ±2℃ or ±2%
• Temperature Measurement: Supports highest, lowest, center, and area-based temperatures

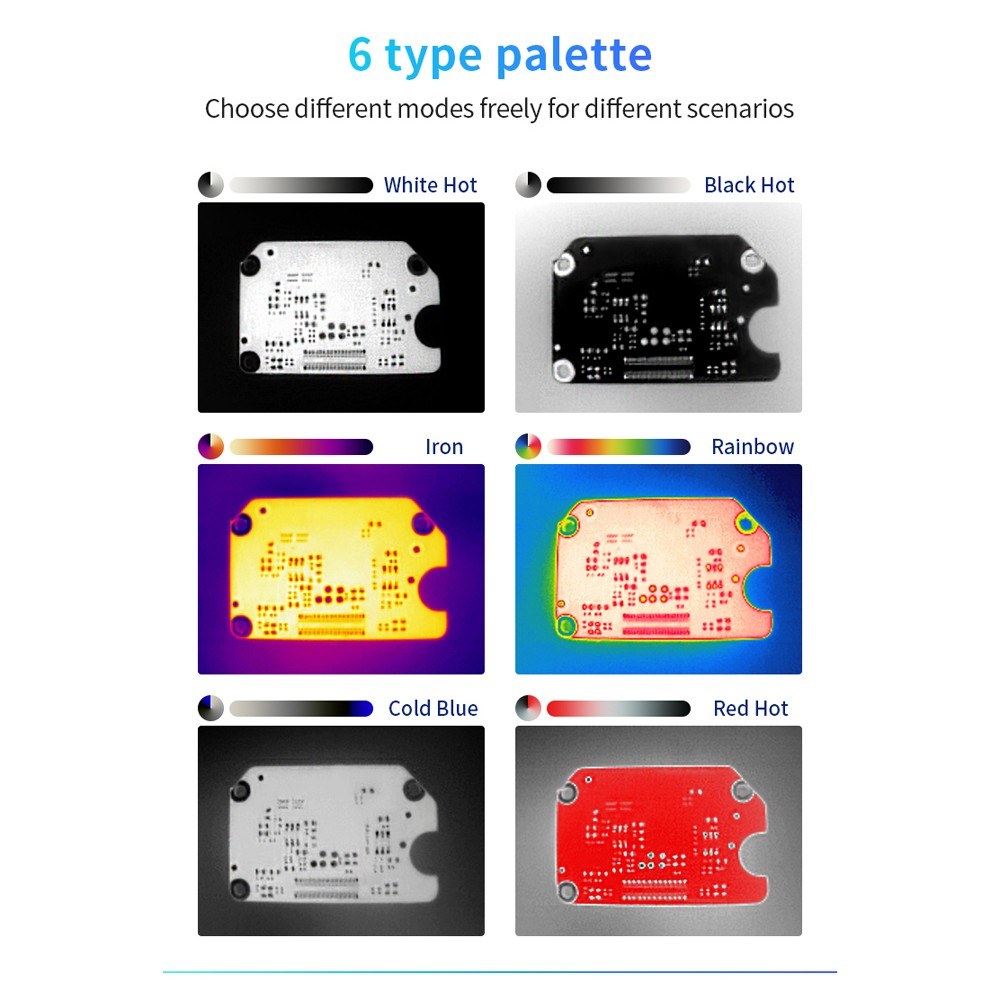

• Color Palette: Iron, white hot, black hot, rainbow, red hot, cold blue
• Operating Temperature: -10℃ to 75℃
• Storage Temperature: -45℃ to 85℃
• Waterproof Rating: IP54
• Item Size: 40 x 25 x 14mm / 1.57 x 0.98 x 0.55in
• Item Weight: 23g / 0.81oz
• Package Size: 111 x 79 x 53mm / 4.37 x 3.11 x 2.09in
• Package Weight: 160g / 5.64oz

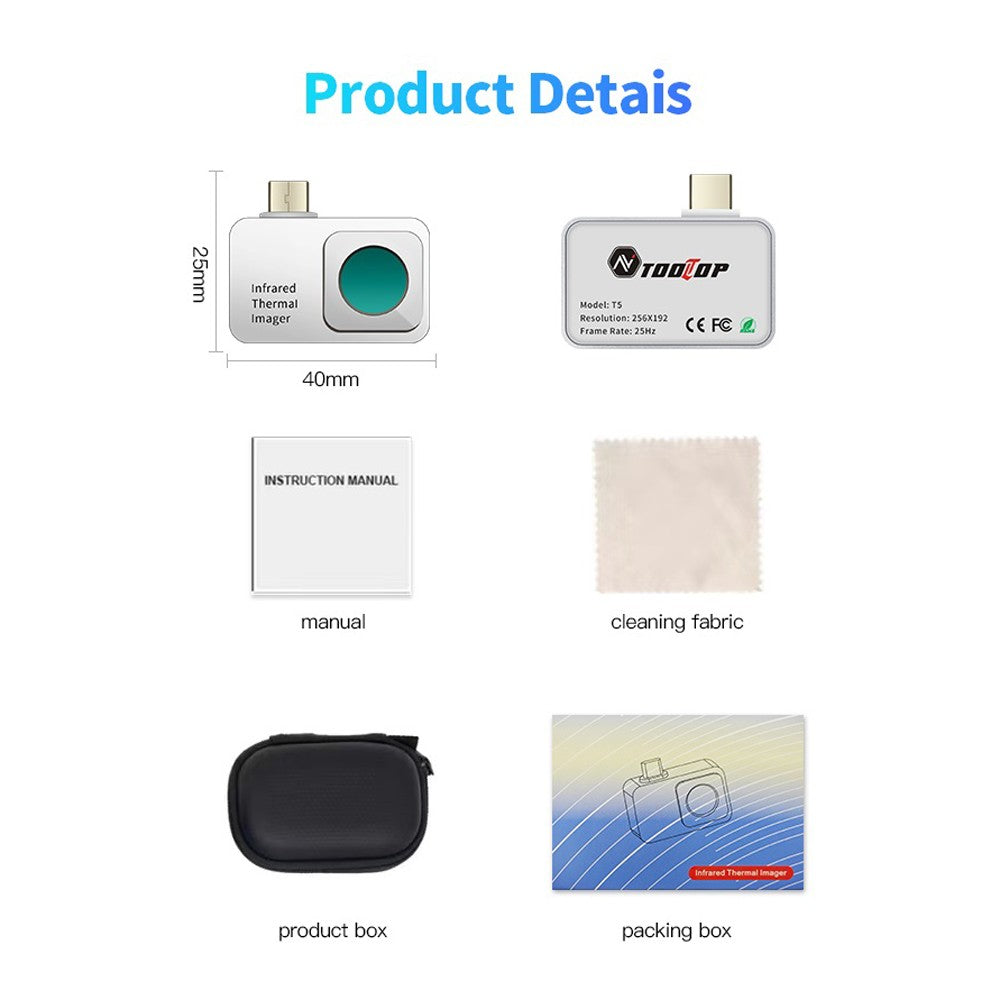

Packing List:

• 1 x Thermal Imager
• 1 x Cleaning Fabric
• 1 x Manual
• 1 x Storage Box
