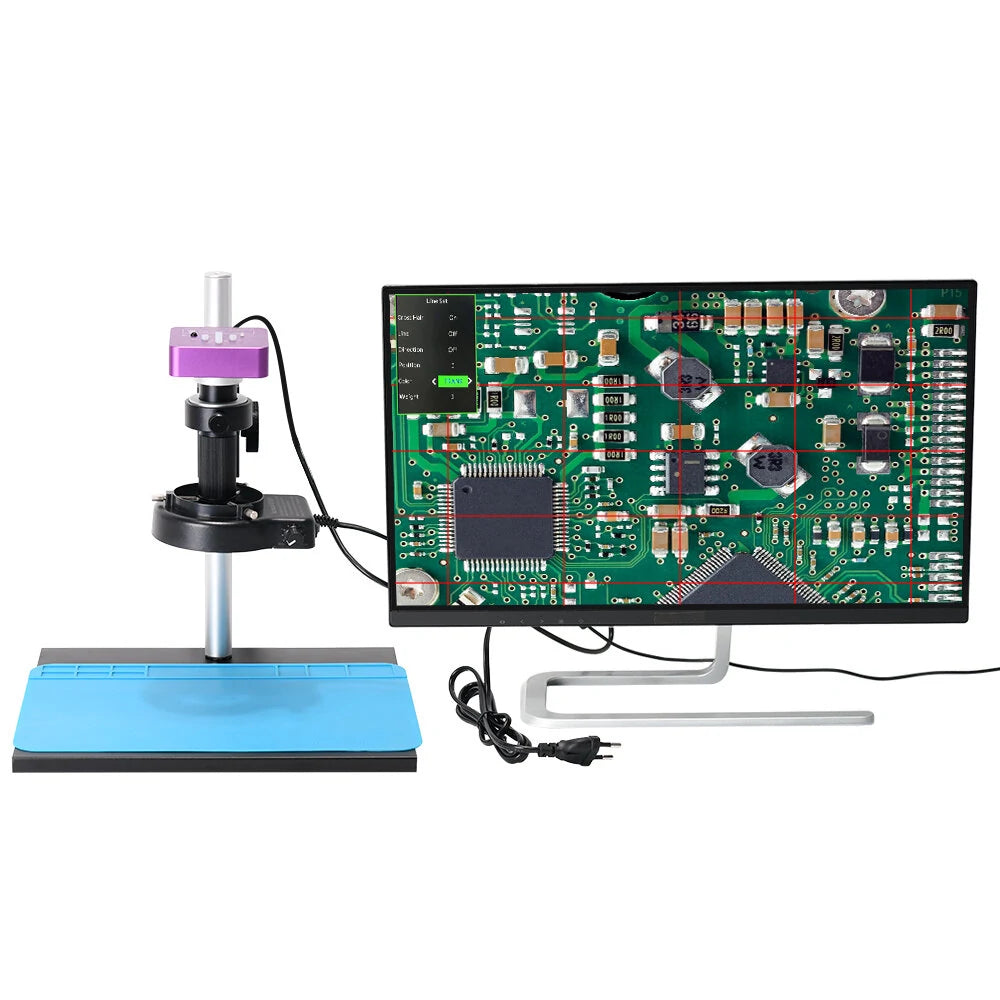

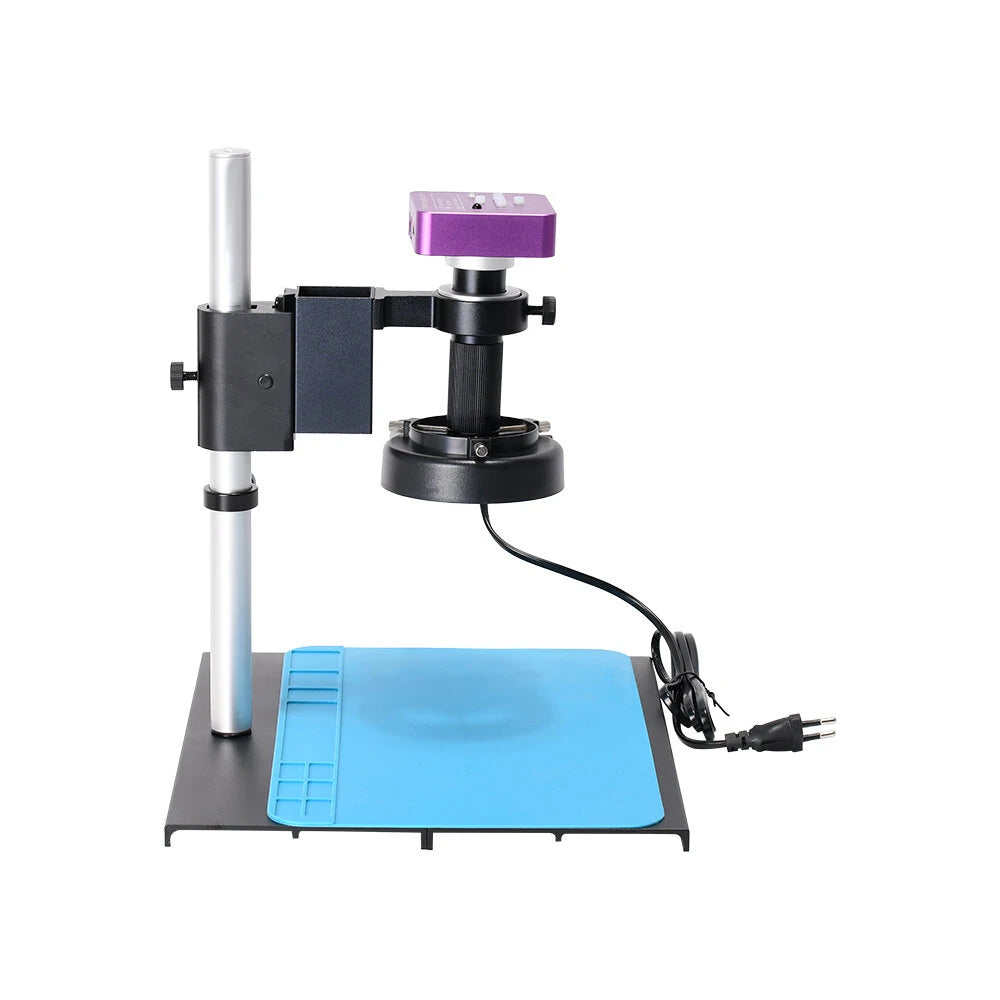

HAYEAR 51MP Digital Microscope Camera with 130X C-Mount Lens, 56 LED Ring Light & Stand for PCB Repair

Features

• Compatible with multiple systems, supporting Windows XP, 7, 8, and 10.
• Equipped with a powerful 130X C-mount zoom lens ideal for industrial microscope cameras.
• Perfect for the repair industry with a robust 51MP industrial microscope camera.
• Constructed with a high-quality metal housing for durability and longevity.
• Offers high resolution and dual output for enhanced convenience.

Specifications

• Condition: 100% Brand New
• Item Type: Microscope Camera
• Model: High Definition Multimedia Interface USB2.0 Dual Output Camera
• Image Format: jpg
• Image Resolution: 51MP
• Video Format: MP4 (for Memory Card)
• Video Recorder: 1080P at 60FPS
• High Definition Multimedia Interface Video Resolution: 1920 x 1080 at 60FPS (For HDMI)
• USB Video Resolution: 1920 x 1080 at 30FPS; 1280 x 720 at 30FPS; 640 x 480 at 30FPS; 320x240 at 30FPS
• White Balance: Automatic / Manual
• Light: Automatic / Manual
• Exposure: Automatic / Manual, Value Adjustable
• Direction: Left / Right, Up / Down
• Freeze: Support
• OSD Languages: English, Chinese, French, Spanish, Japanese, German
• Horizontal and Vertical Lines: 5 programmable lines in different colors, any position
• Image Sensor: 51MP CMOS Sensor 1/2.33 Inches
• Effective Pixels: 51MP
• Pixels Size: 1.335μm x 1.335μm
• Frame Rate: 60fps
• Definition: Full High Definition
• Housing: Metal
• Lens: C/CS
• Video Format: MOV
• Digital Zoom: Support
• Brightness Control: Automatic / Manual
• Color: Adjustable (R / G / B)
• Film and Records: Support
• Cross Cursor: Multi-color, adjustable size
• Memory Card Interface: Supports up to 128G (Not Included)
• High Definition Multimedia Interface: Standard HDMI Output (Type A)
• USB Interface: Standard USB2.0 Interface (Type B)
• Input Voltage: DC 12V

130X C-MOUNT Lens

• Working Distance: 50mm - 250mm
• Zoom Ratios: 10:1
• Objective Magnification: 0.1-1.3X (approximately 10-130X on display)
• Size: 130mm(L) x 40mm(DIA)

56 LED Adjustable Compact Microscope Ring Light

• Provides intense, focused, shadow-free illumination with 56 bright white LED bulbs.
• Lighting direction is changeable with variable intensity control.
• Ensures 100,000 hours of life.
• Power Input: 100-240V, 50-60HZ, auto switching
• Inside Diameter of Ring Light: 27mm
• Overall Outside Diameter: 45mm
• Working Distance: 27mm-45mm

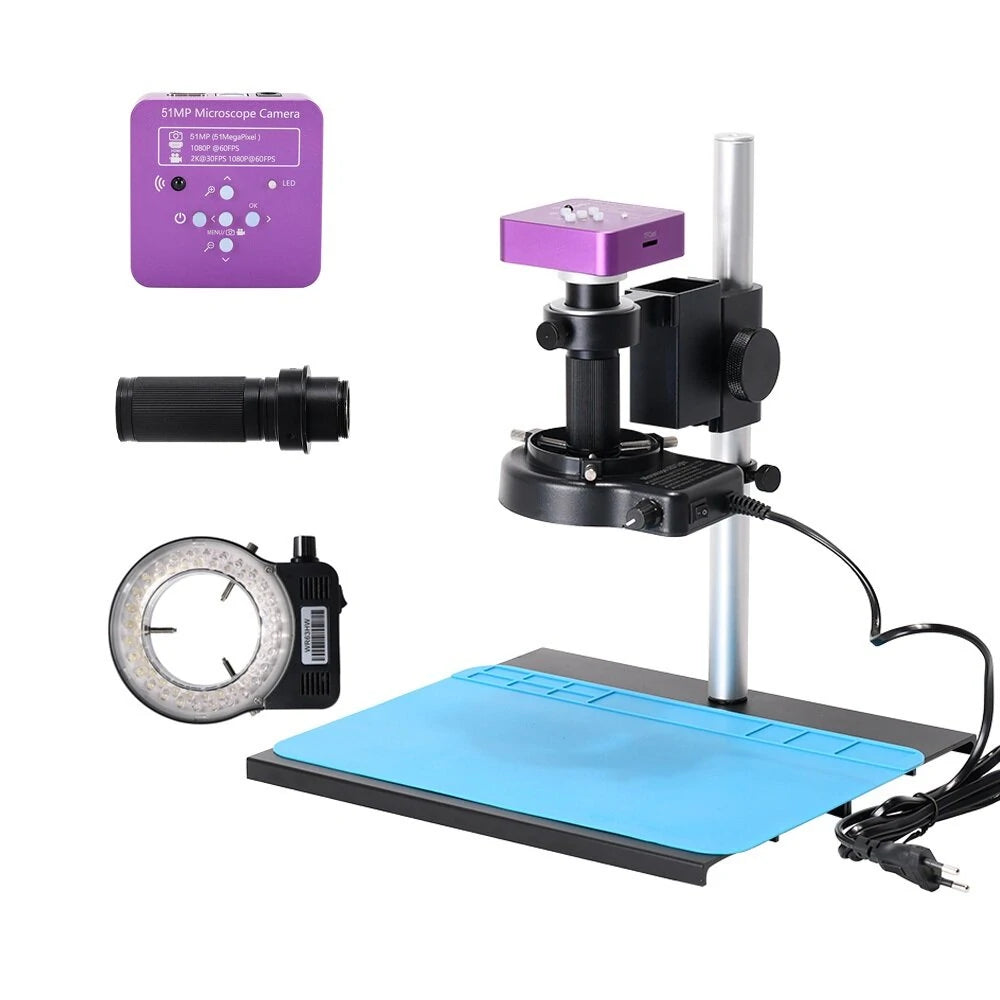

Package Includes

• 1 x 51MP Microscope Camera
• 1 x Power Supply Adapter
• 1 x USB Cable
• 1 x High Definition Multimedia Interface Cable
• 1 x Software CD
• 1 x Remote Control
• 1 x 130X Lens
• 1 x Microscope Light Source
• 1 x Camera Stand
• 1 x High Temperature Resistant Working Pad

Note

1. PC Support: Compatible with Windows XP/7/8/10 system.
2. For USB output, use the software to adjust white balance, exposure, and color. Camera keys and remote control are not available.
3. For HDMI output, adjustments can be made when connected to a monitor. Camera keys and remote control are operable.
4. Ensure the memory card is not in the camera when using USB connection; storage for HDMI output only. USB output is stored on PC.
5. For computer connection, use only the USB cable (no power supply needed).
