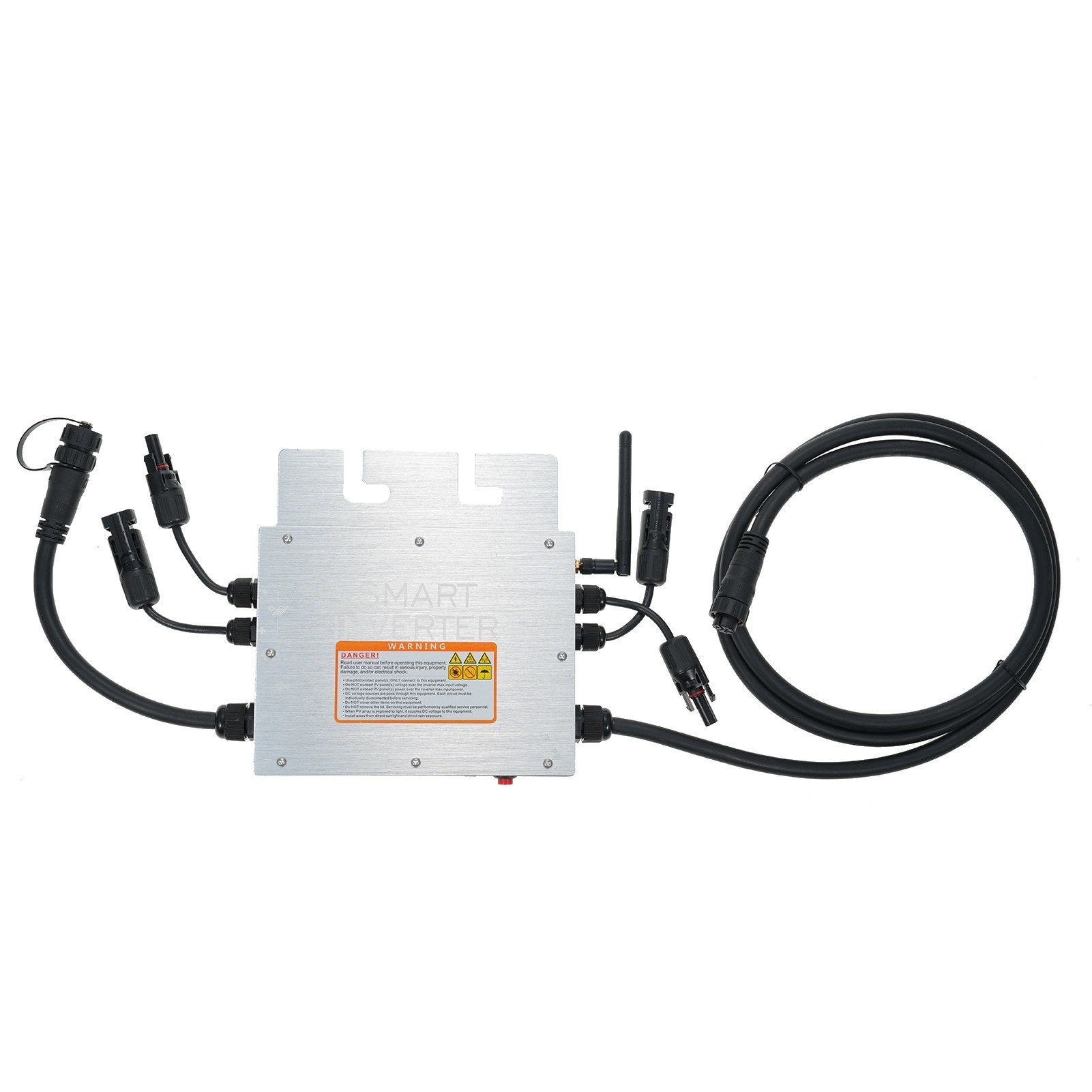

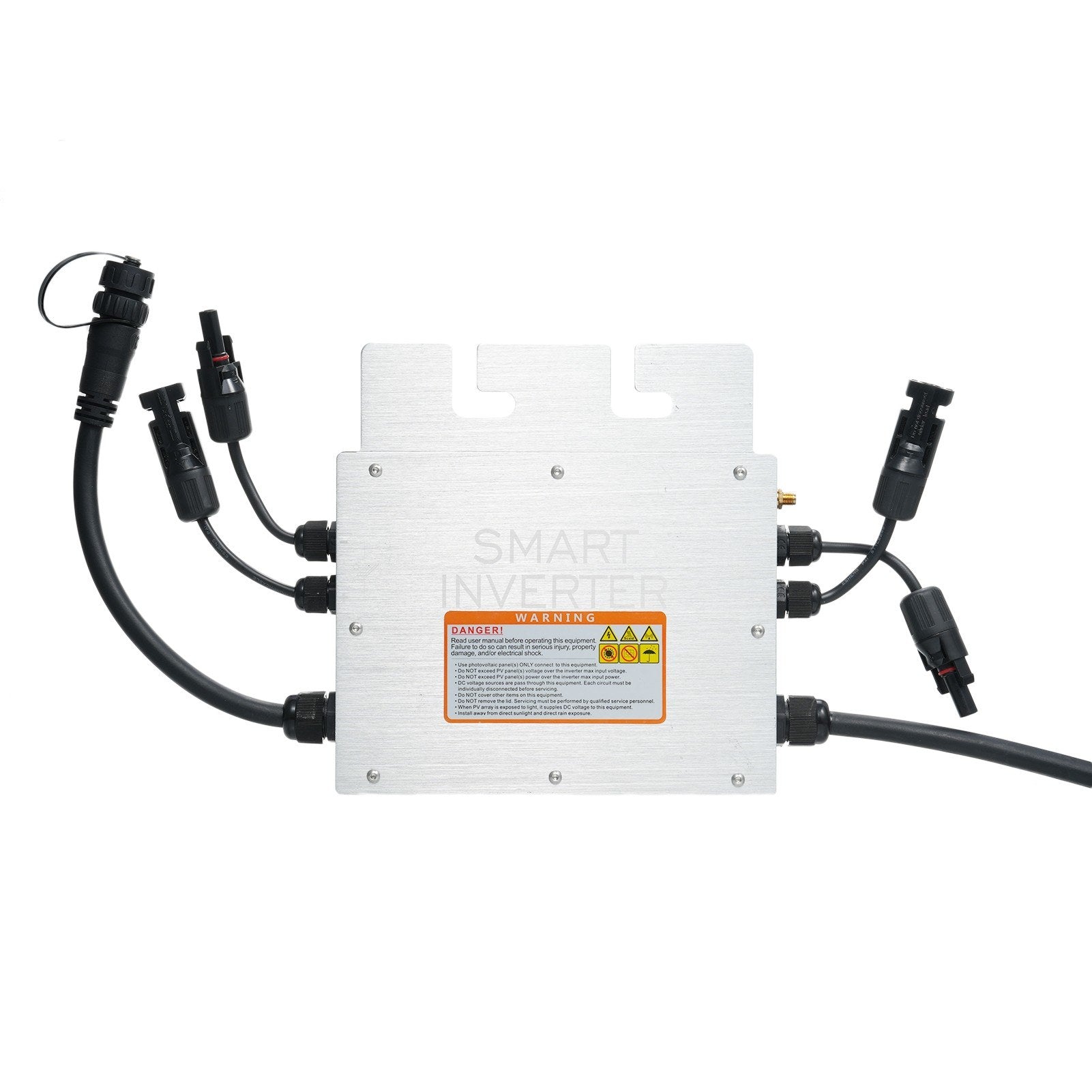

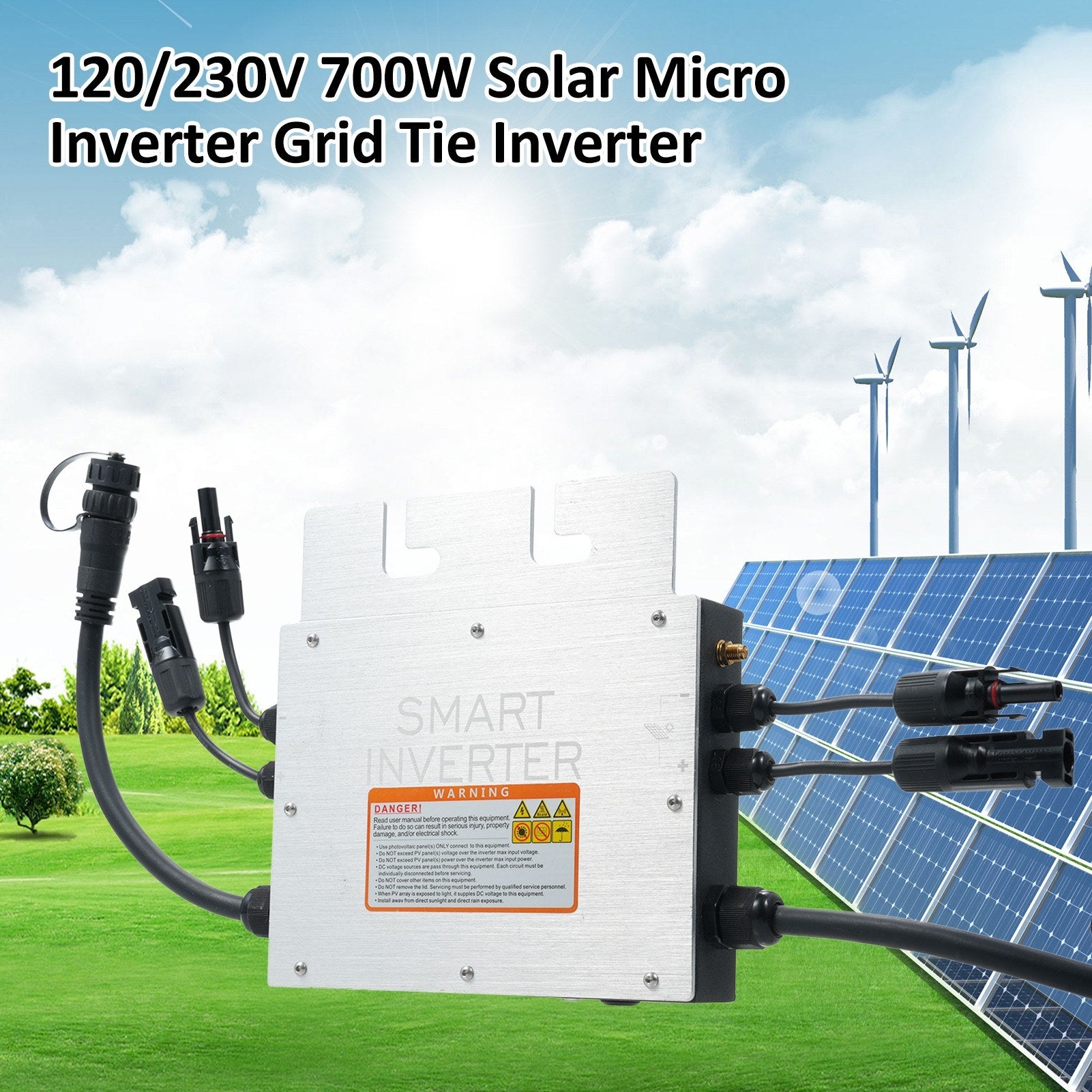

700W Solar Micro Inverter Grid Tie, Waterproof IP65, WiFi Control, Automatic DC to AC Identification, 120/230V

Specifications

• Model: SG700MD

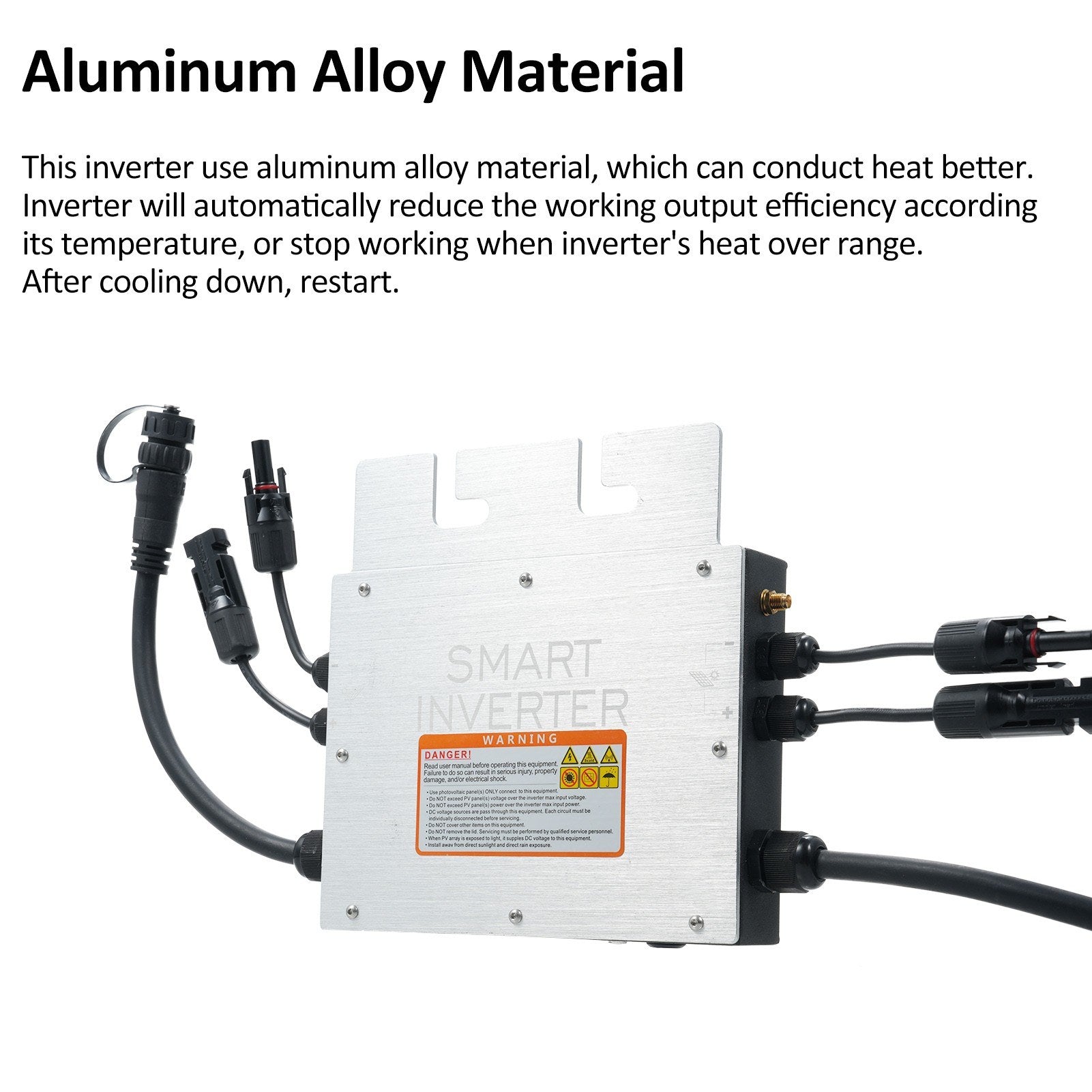

• Material: Metal + ABS
• Input Data (DC, PV):

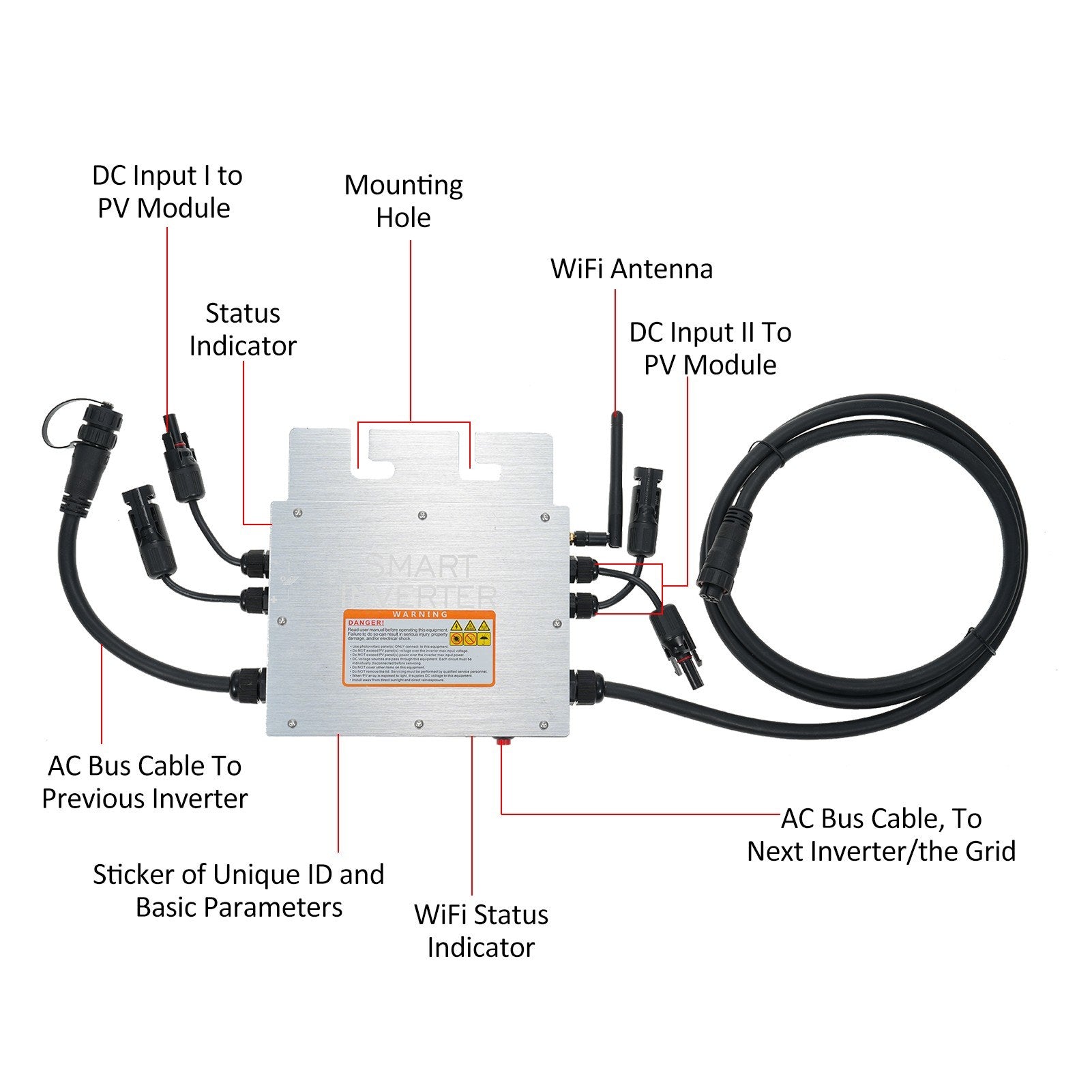

• Number of Input MC4 Connector: 2 sets
• MPPT Voltage Range: 28V-55V
• Operation Voltage Range: 20V-60V
• Maximum Input Voltage: 60V
• Startup Voltage: 20V
• Maximum Input Power: 2 * 350W
• Maximum Input Current: 2 * 11.66A
• Output Data (AC):
• Single-Phase Grid Type: 120V & 230V
• Rated Output Power: 650W
• Maximum Output Power: 700W
• Nominal Output Current: @120VAC: 5.41A / @230VAC: 2.82A
• Nominal Output Voltage: 120VAC / 230VAC
• Default Output Voltage Range: @120VAC: 80V-160V / @230VAC: 180V-280V
• Nominal Output Frequency: 50Hz / 60Hz
• Default Output Frequency Range: @50Hz: 47.5Hz-52.5Hz / @60Hz: 57.5Hz-62.5Hz
• Power Factor: ＞0.99
• Total Harmonic Distortion: THD＜5%
• Maximum Units per Branch: @120VAC: 4 units / @230VAC: 7 units
• Efficiency:
• Peak Efficiency: 95%
• CEC Weighted Efficiency: @120VAC: 92.5% / @230VAC: 93.5%
• Nominal MPPT Efficiency: 99.9%
• Night Power Consumption: ＜700mW
• Mechanical Data:
• Operating Ambient Temperature Range: -40℃~60℃
• Storage Temperature Range: -40℃~85℃
• Max Current of AC Bus Cable: 20A
• Waterproof Grade: IP65
• Cooling Mode: Natural Convection - No Fans
• Other Features:
• Communication: WIFI with Cloud Monitoring
• Transformer Design: High Frequency Transformers, Galvanically Isolated
• Integrated Ground: Provided by the PE in the AC cable, no additional ground required.

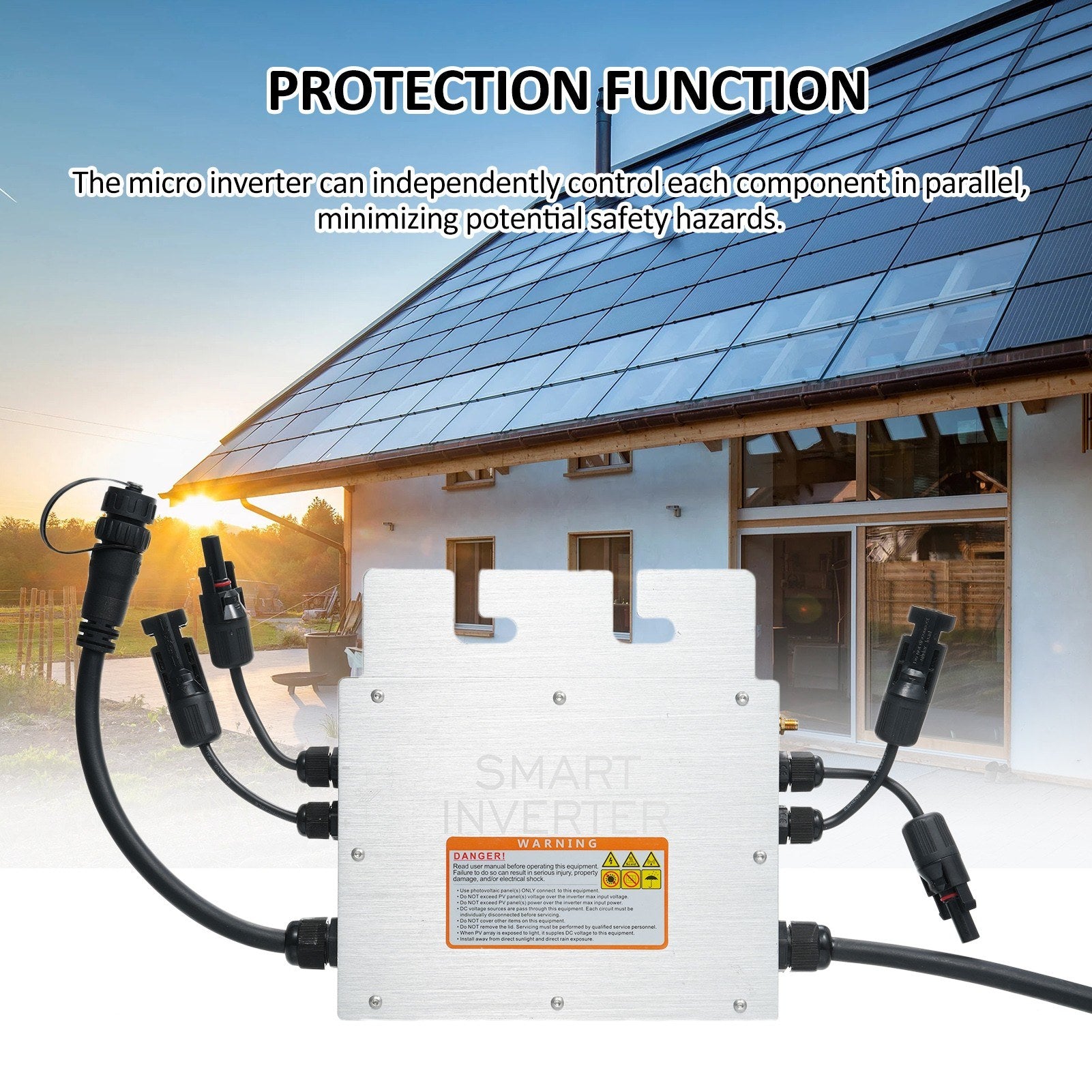

• Protection Functions: Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection
• Design Compliance: CE, etc.
• Dimensions and Weight:

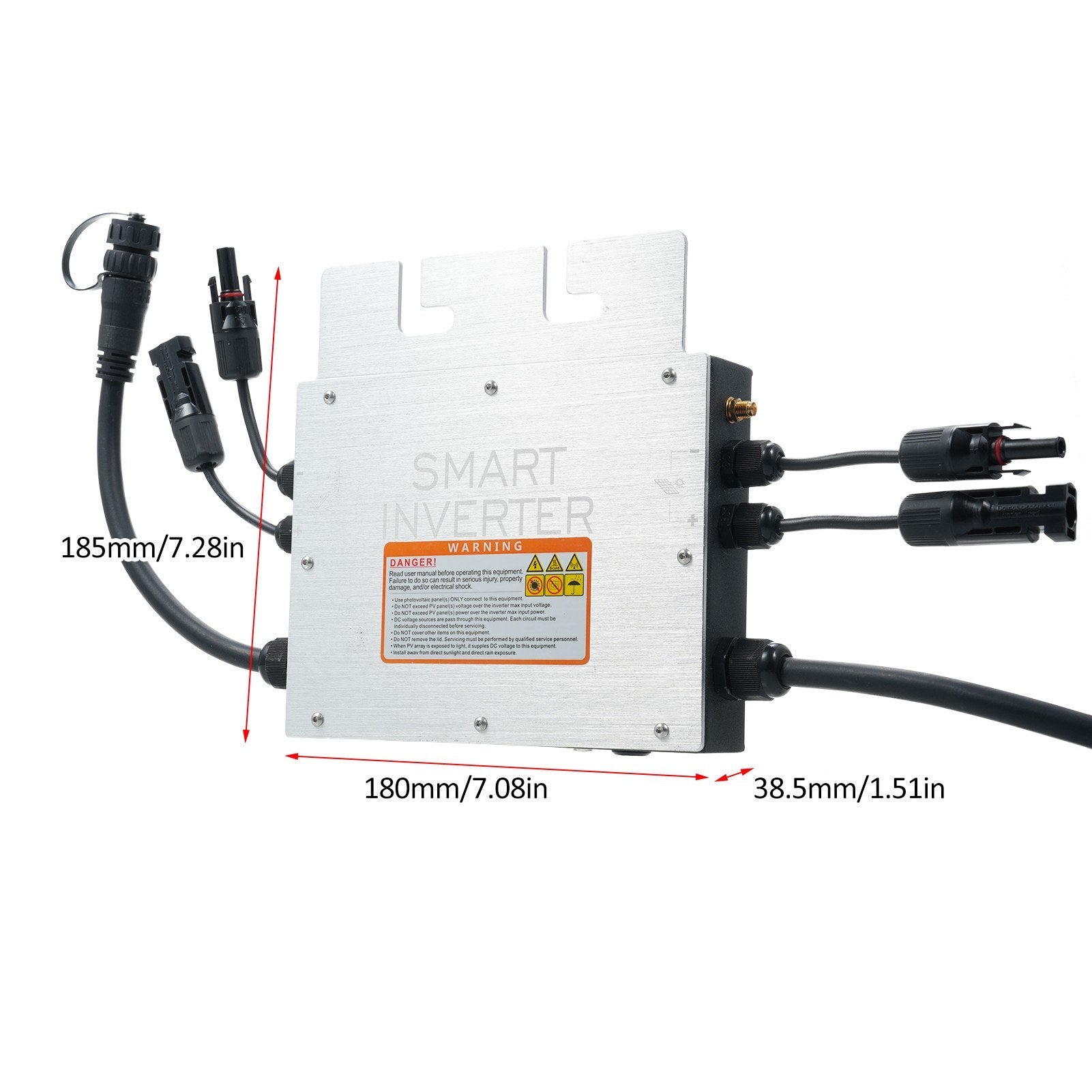

• Item Size: 185 * 180 * 38.5mm / 7.28 * 7.08 * 1.51in
• Item Weight: 1495g / 3.29lb
• Package Weight: 1729g / 3.81lb
• Package Size: 34.5 * 20.5 * 6cm / 13.58 * 8.07 * 2.36in
