2.4 TFT LCD Biometric Fingerprint Time Attendance Clock with Password Access

Fingerprint Attendance Machine

Efficiently manage attendance in various environments such as offices, factories, hotels, schools, restaurants, retail stores, and hospitals with our advanced fingerprint attendance machine. Utilizing both fingerprint and password capabilities, this device is designed for easy integration and operation.

Key Features:

• No additional software needed - pre-loaded with sophisticated attendance software.
• User-friendly - learn to operate in just 5 minutes.
• Export attendance reports in Excel format via USB flash drive.
• Less than 1-second identification time with high precision fuzzy identification.

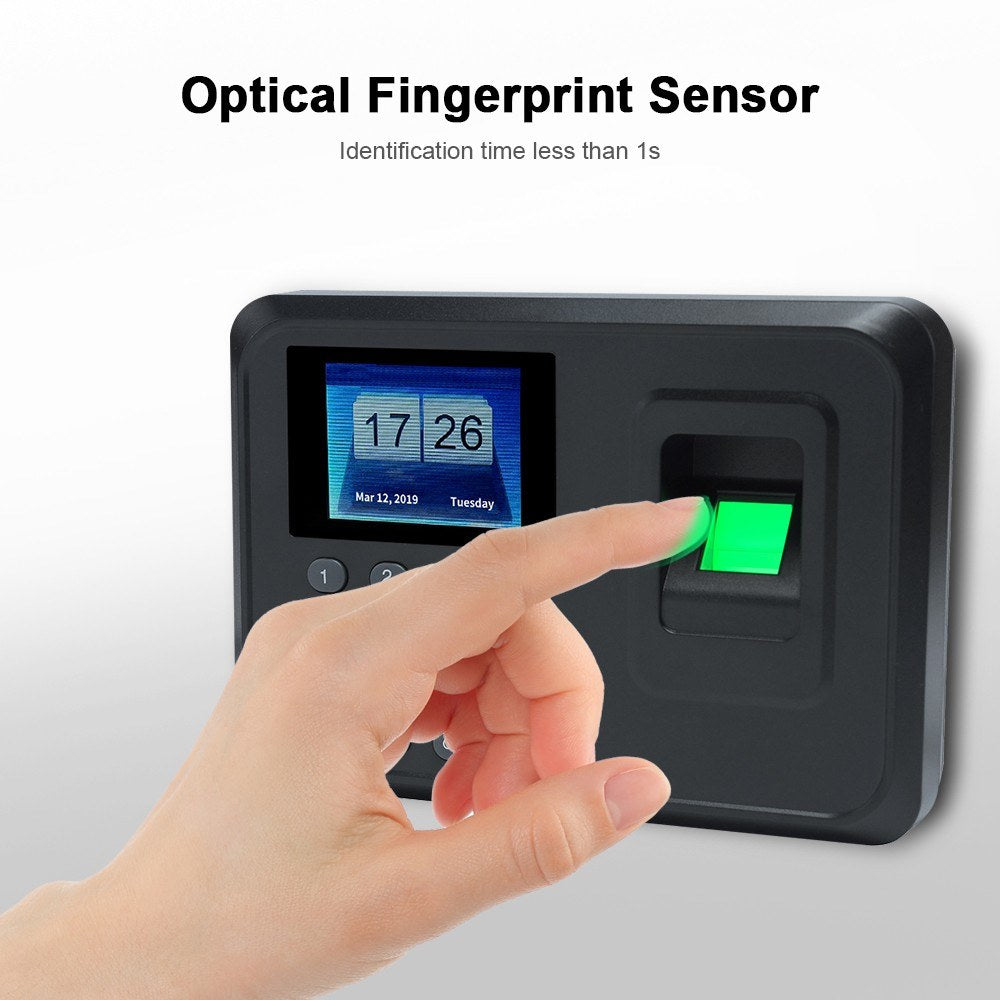

• High-grade total reflection optical fingerprint sensor.
• Supports T9 input for easy editing of user details like name, department, and frequency.

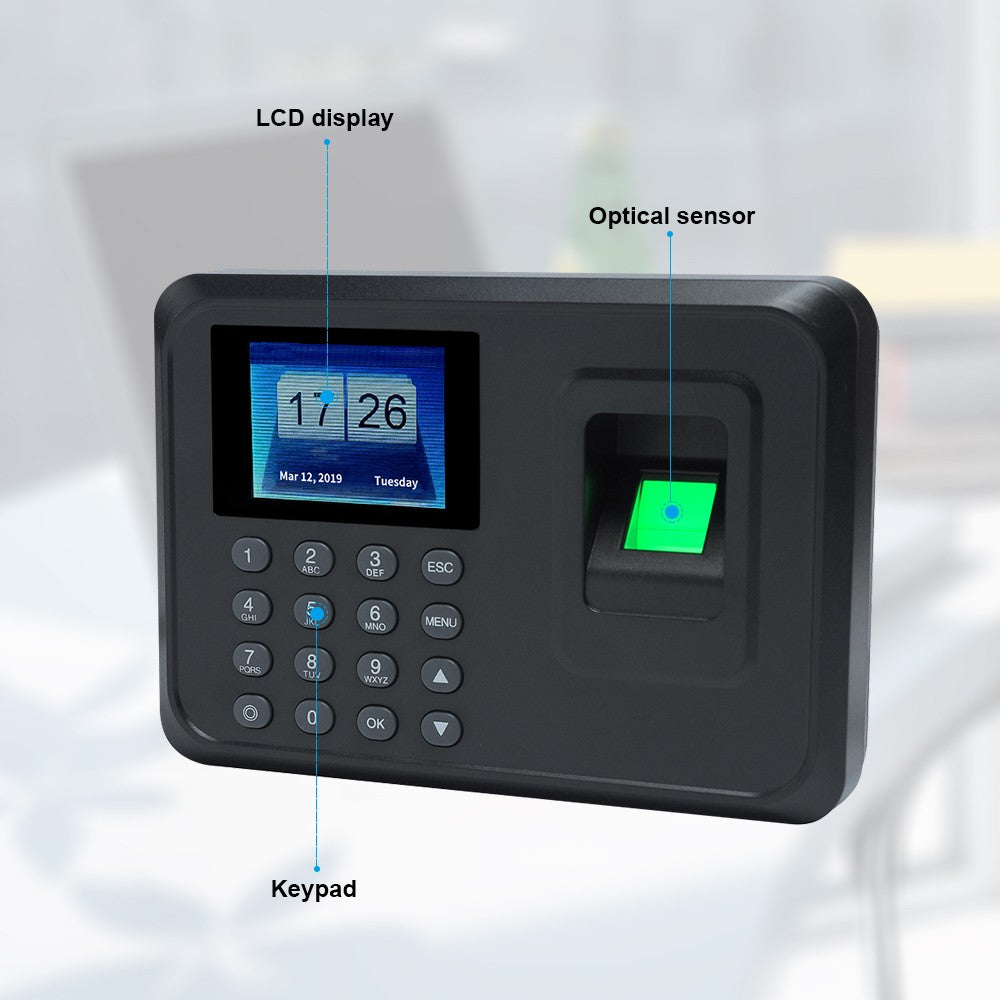

• Modern design featuring an HD screen and sleek aesthetics.

USB Flash Drive Requirements:

• Must be formatted to FAT32.
• Capacity not exceeding 16GB; supports USB 1.1 and some USB 2.0 (USB 3.0 not supported).
• Ensure no GHOST files; formatting the drive beforehand is recommended.
• Downloadable data includes:
  • MONTHLY.XLS: Monthly attendance reports.
  • GLOG.TXT: User punch records with ID, name, time, and method.
  • INFO.XLS: Punch and shift schedules.
  • AFP.DAT: User info and fingerprint data for cross-machine use.

Specifications:

• Model: A5

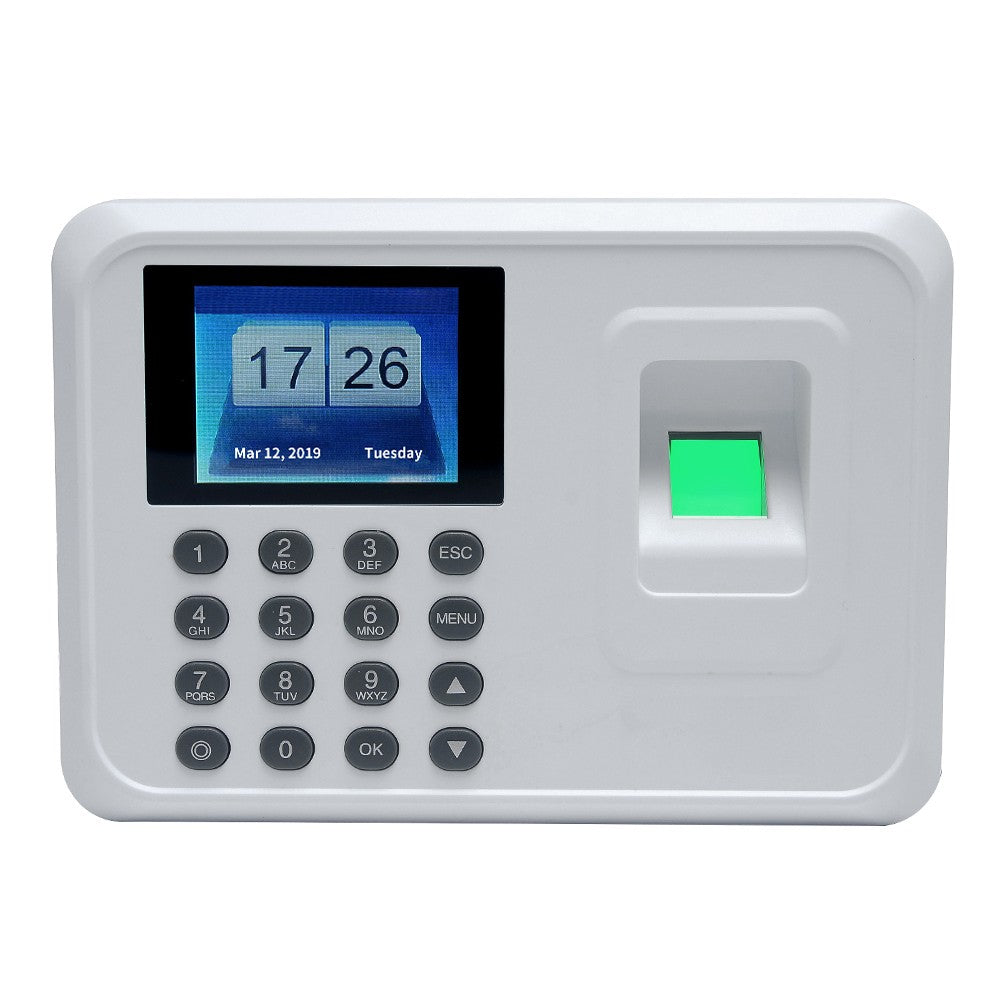

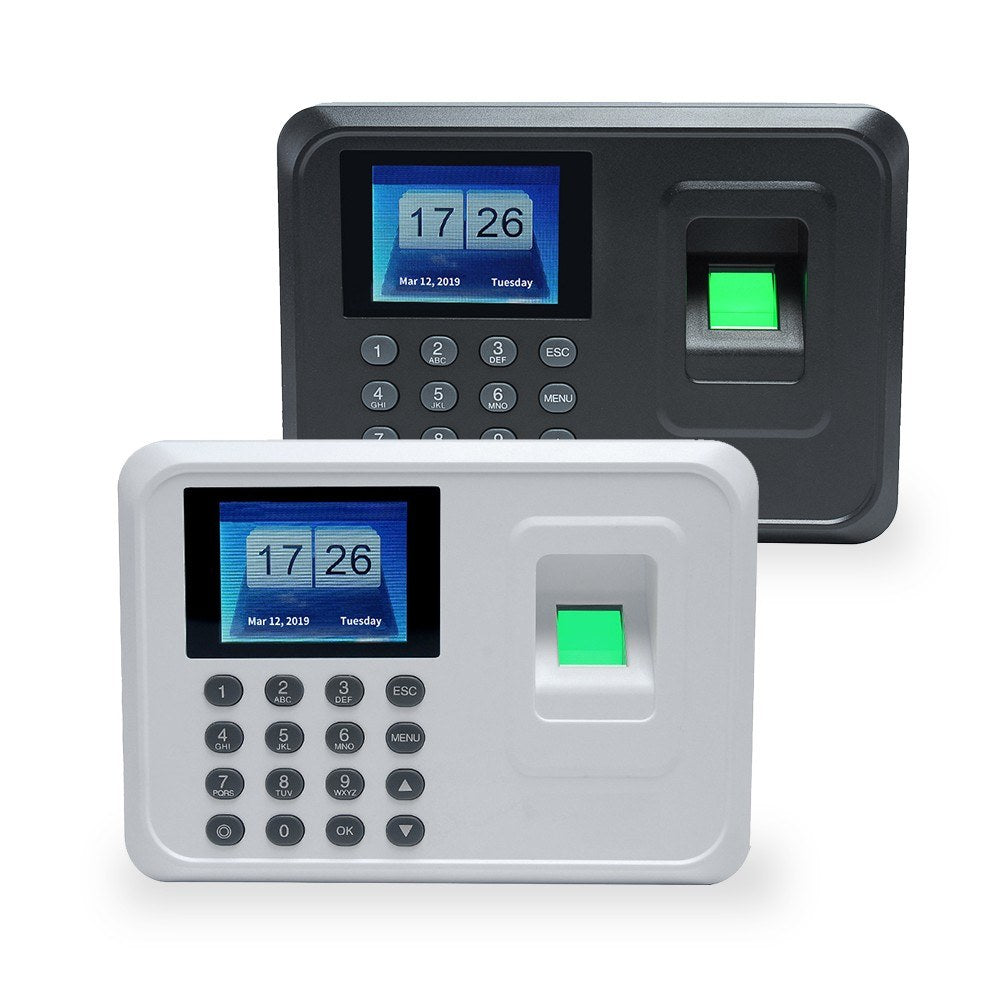

• Color: Black, white (optional)
• Screen: 2.4-inch HD LCD
• Language Support: Chinese, English
• Fingerprint Capacity: 1000
• Record Capacity: 100,000
• Working Mode: Off-line
• Identification Methods: Fingerprint, password
• Authentication Mode: 1:N, 1:1
• Recognition Speed: <1s
• FAR: ≤0.0001%
• FRR: ≤0.01%
• Communication Mode: USB flash drive, USB
• Sensor: High precision total reflection optical sensor
• Effective Sensing Area: 16x16mm (360° recognition)
• Resolution: 500DPI
• Working Voltage: DC 5V
• Operating Temperature: 0-60°C
• Working Humidity: 20%-80%
• Battery: 1 * 3V CR2032 button battery for time display (included)

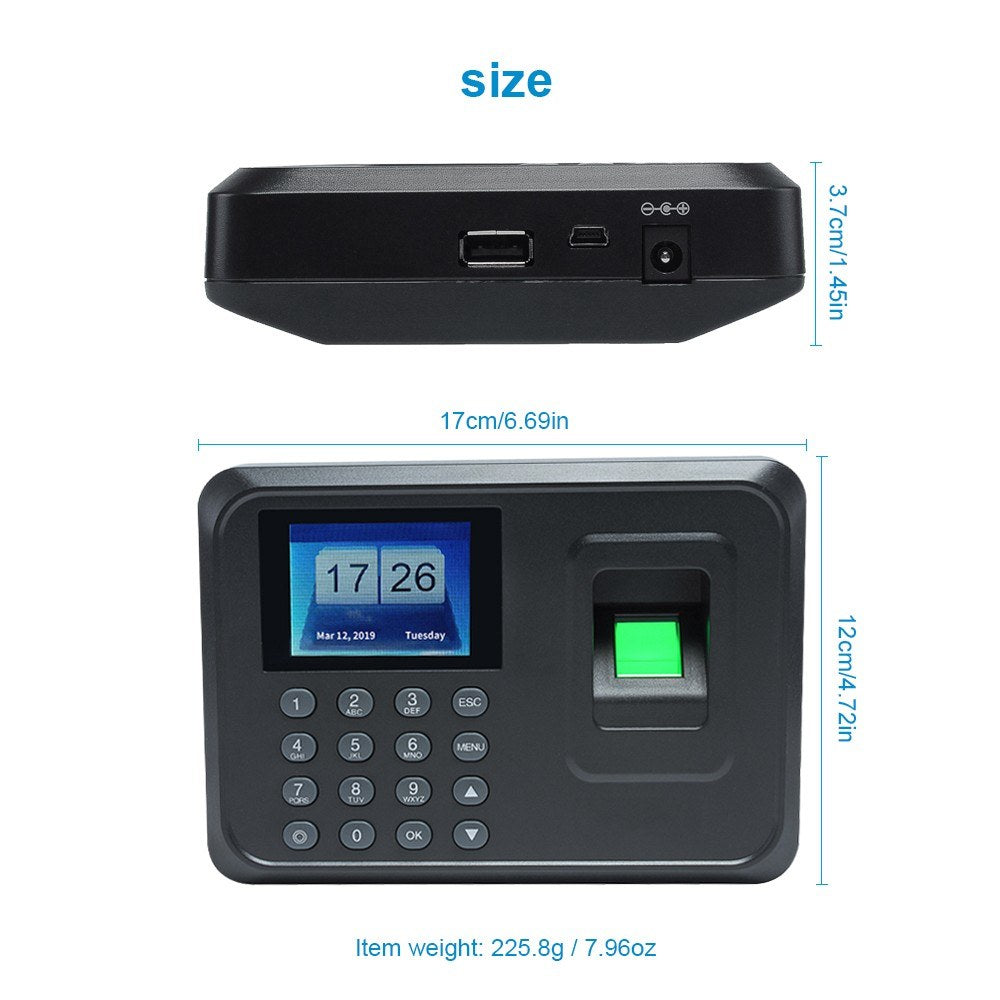

• Item Dimensions: 17 x 12 x 3.7 cm / 6.69 x 4.72 x 1.45 in (L x W x H)
• Item Weight: 225.8g / 7.96oz
• Package Dimensions: 29 x 14.5 x 5 cm / 11.41 x 5.70 x 1.96 in (L x W x H)
• Package Weight: 432.8g / 15.26oz

Please Note:

• Format your USB before downloading data.
• Compatible with USB 1.0 or 2.0, and the USB should be 8GB or smaller.
• Supports FAT32 format.

Package Includes:

• 1 x Fingerprint Attendance Machine
• 1 x Power Adapter (EU plug)
• 1 x User Manual (Chinese, English)
• 1 x Bag of Screws
