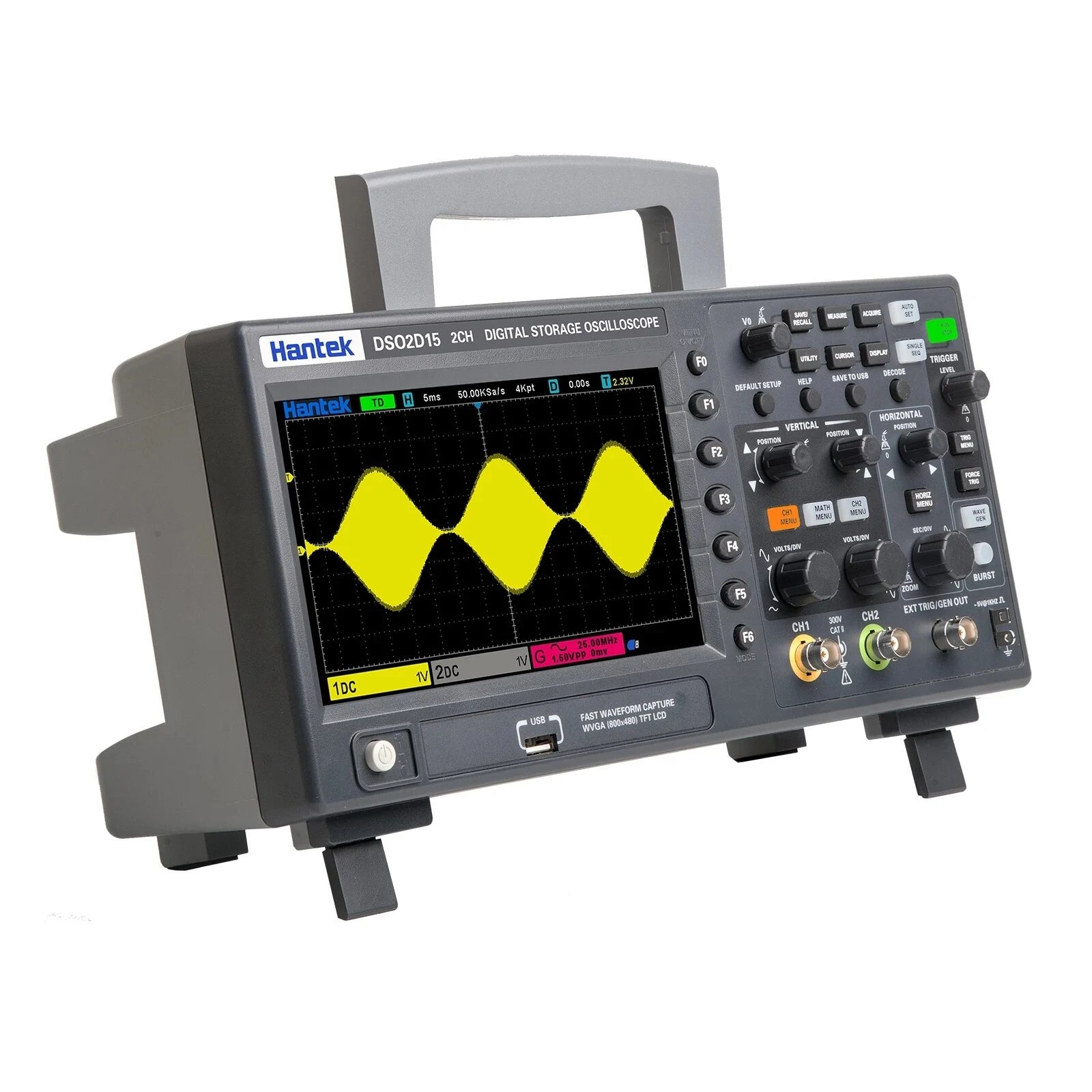

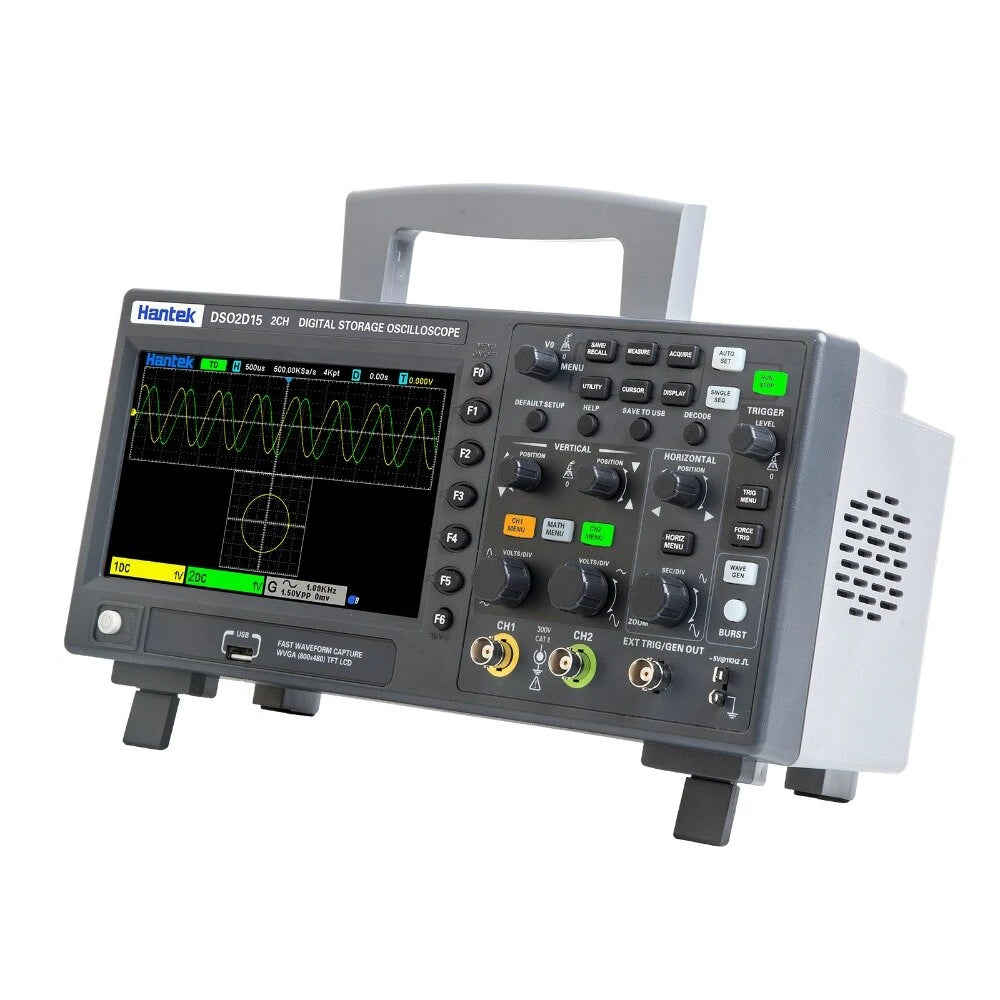

MUSTOOL DSO2D15 Oscilloscope

Special Offer:

The MUSTOOL DSO2D15 is currently on promotion. Switch to this model and save an extra $5! Indicate your choice by leaving us a message when placing your order or contacting customer service.

Features

• 2 channels, independently controlled with separate knobs
• 150MHz analog channel bandwidth
• 1 GSa/s real-time sample rate
• 8M memory depth
• Vertical range: 2mV/div ~ 10V/div
• Built-in single channel 5MHz waveform generator
• Vertical resolution: 8-bit
• Trigger modes: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC
• Protocol analysis and CAN decoding capabilities
• Supports multiple data format savings: settings, waveforms, reference waveforms, CSV, pictures
• Features digital voltage meter (5 bits) and hardware frequency indicator (6 bits)
• 32 kinds of auto measurements with real-time statistics including maximum, minimum, standard deviation, etc.
• Digital voltmeter functionality
• Supports threshold testing and free measurements within the screen
• Extensive SCPI remote command control

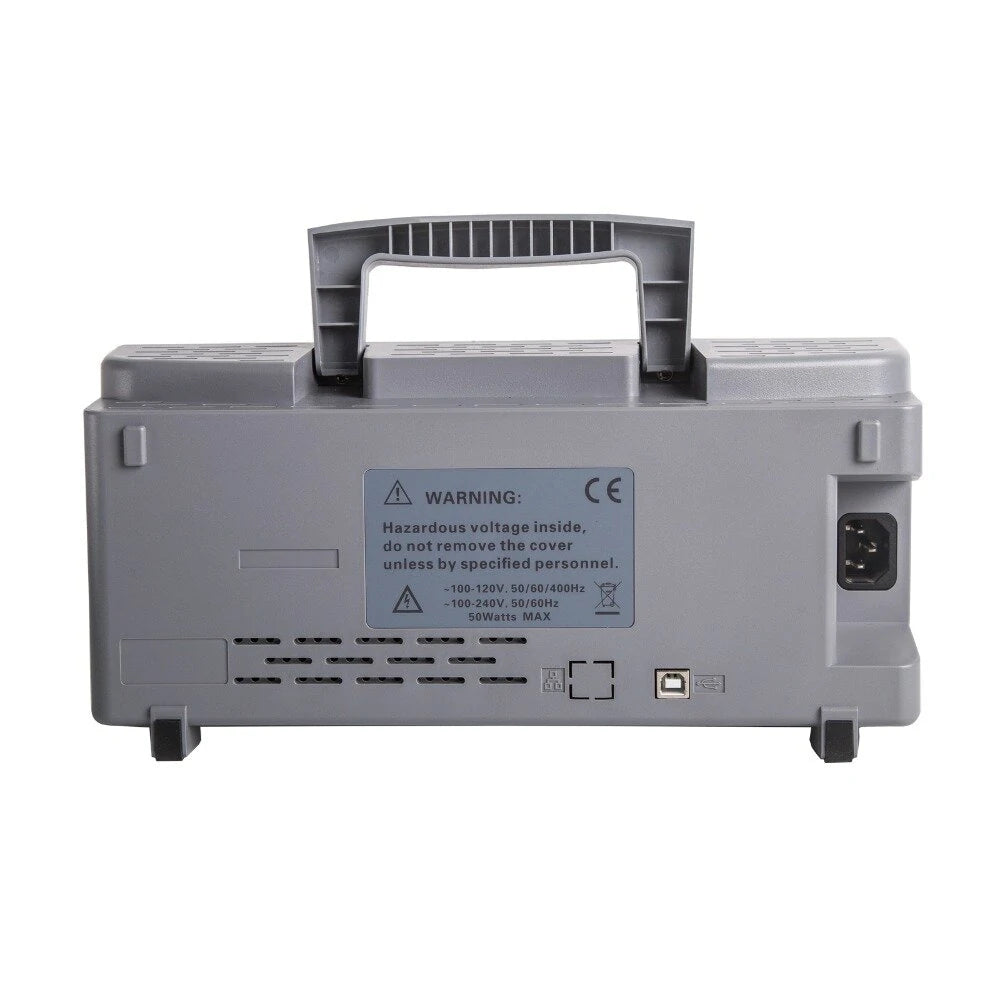

• Multiple external interfaces: USB Host/Device

Available Models

Full Specifications

General Specifications

• Dimensions: 318 x 140 x 150mm
• Weight: 2900g
• Display Type: 7'' TFT LCD
• Resolution: 800 x 480 pixels
• Power Supply: 100-240V AC, 50Hz to 440Hz CAT II
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to +71°C (-40°F to 159.8°F)
• Humidity: Up to 90% relative humidity at ≤40°C
• Altitude: Up to 3,000m (10,000 feet)
