MUSTOOL MDS9208 3-in-1 Portable Oscilloscope Multimeter & Signal Generator - 12MHz, 50Msps, High Storage, Low Power
MUSTOOL MDS9208 3-in-1 Portable Oscilloscope Multimeter & Signal Generator - 12MHz, 50Msps, High Storage, Low Power
Regular price
$47.99 USD
Regular price
$0.00 USD
Sale price
$47.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Product Features:
- 3-in-1 Functionality: Includes Oscilloscope, Multimeter, and Signal Generator.
- Vibrant Display: Features a 2.4 inches color screen for an outstanding visual experience.
- Enhanced Performance: Upgraded bandwidth to 12MHz with a 50Msps Sampling Rate for superior accuracy.
- Ample Storage: Store up to 100 sets of multimeter data and 10 waveforms with ease. Use the "SAVE" key to secure your current waveform.
- Long-lasting Battery: Powered by a built-in lithium battery, enjoy up to 6 hours of usage. Includes low battery reminder and automatic shutdown to conserve power.
Technical Specifications:
| Model | MT8208 / MDS9208 |
| Waveform Measurement Bandwidth | 1MHz / 12MHz |
| Sampling Rate | 2.5MHz / 50Msps |
| Signal Function | Yes |
| High-pressure Test | Up to 1600V without pressure pen |
| Battery | Lithium, low battery reminder |
| Display | 320*240 color LCM, white backlight |
| Usage Environment | 0℃~+40℃ |
| Dimensions | 153mm x 75mm x 30mm |
| Analog Bandwidth | ACV/DCV ≤ 12MHz |

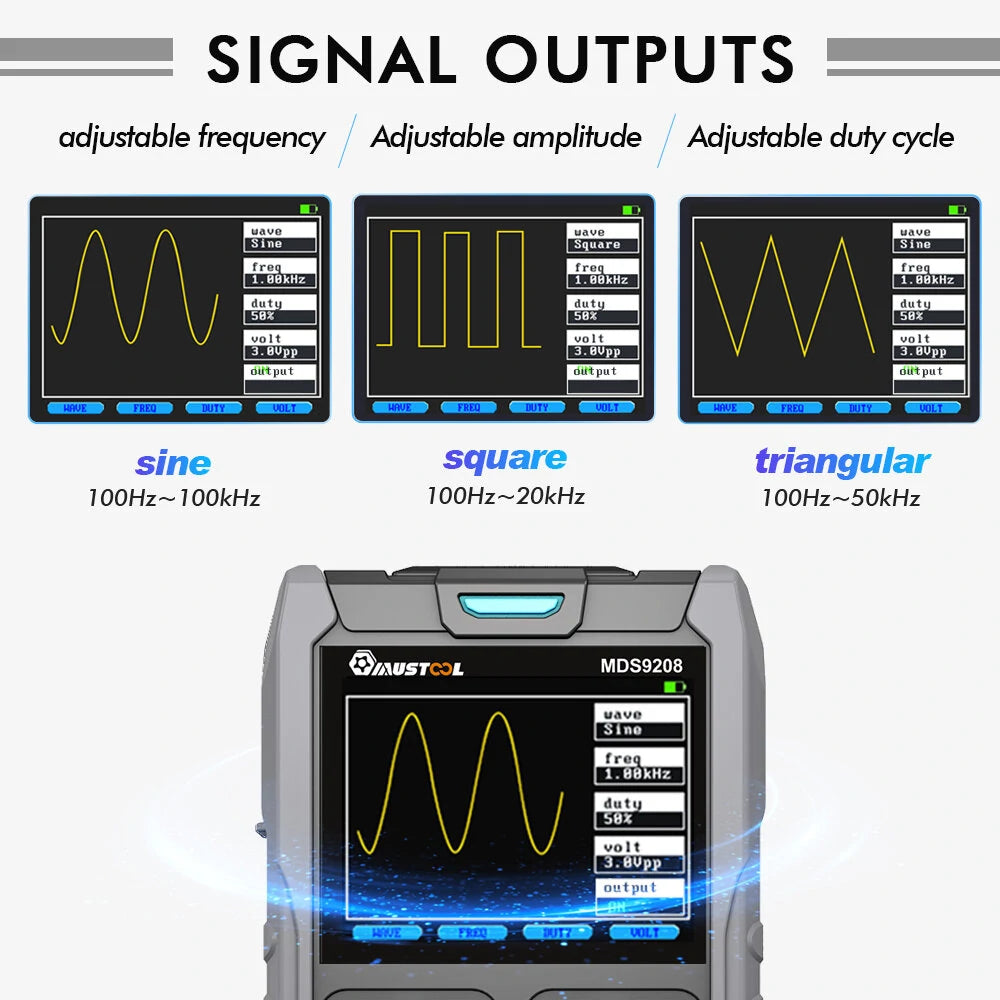

| Signal Source Output | Square wave, triangular wave, sine wave |
| Input Resistance | 10MΩ |
| Power Consumption | About 250mA |
| Storage Capacity | 100 sets of DMM data + 10 waveforms |
| Storage Conditions | -10°C~+60°C |
What's in the Box:

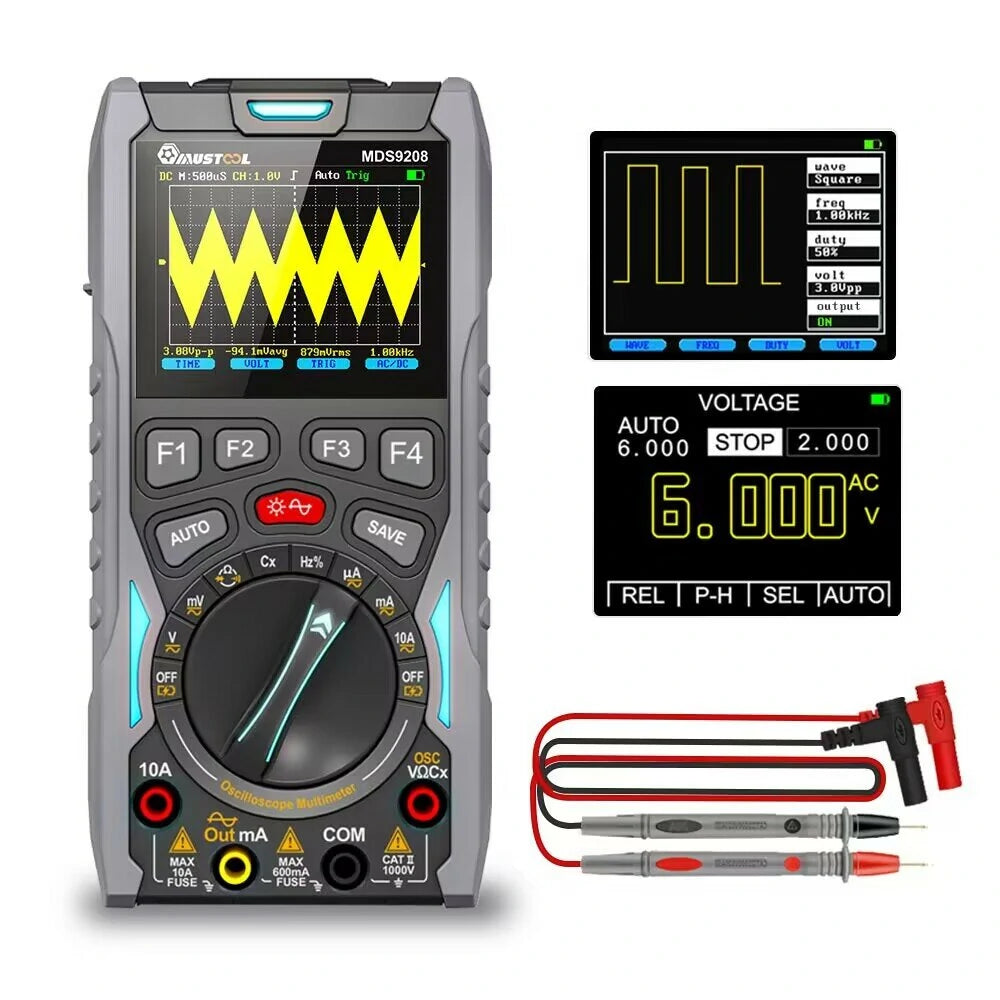

- 1 x 3-in-1 Oscilloscope, Multimeter, Signal Generator
- 1 x Test Probe
- 1 x USB Cable
- 1 x Manual
- 1 x Box
Note: Battery included!
