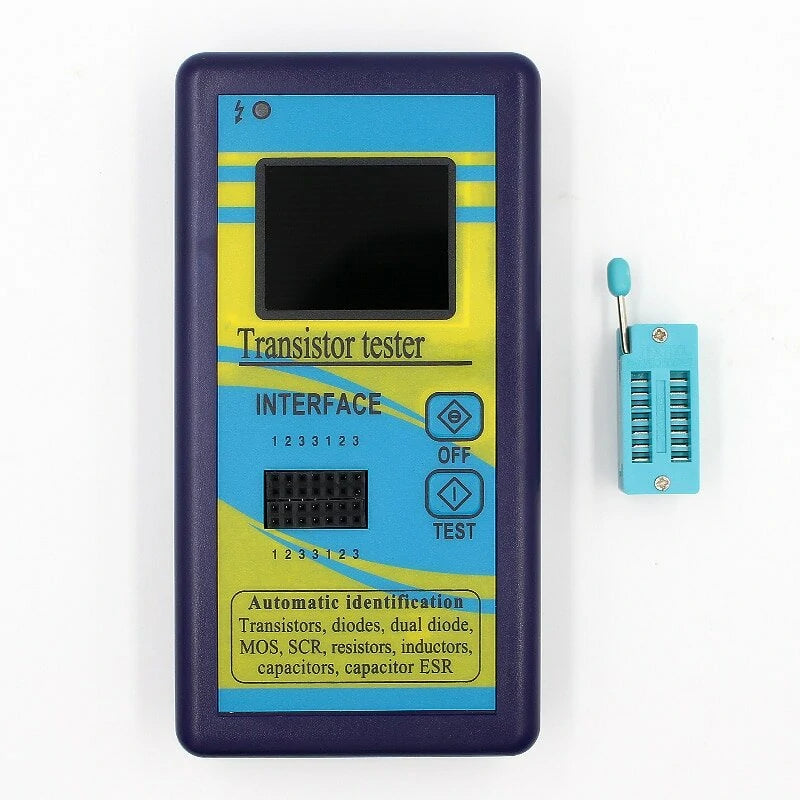

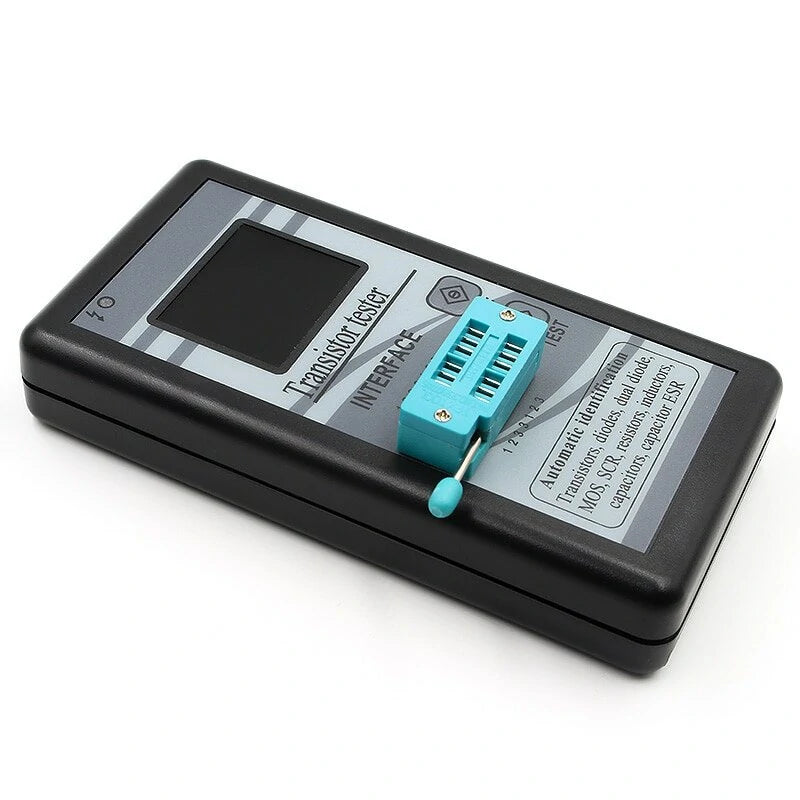

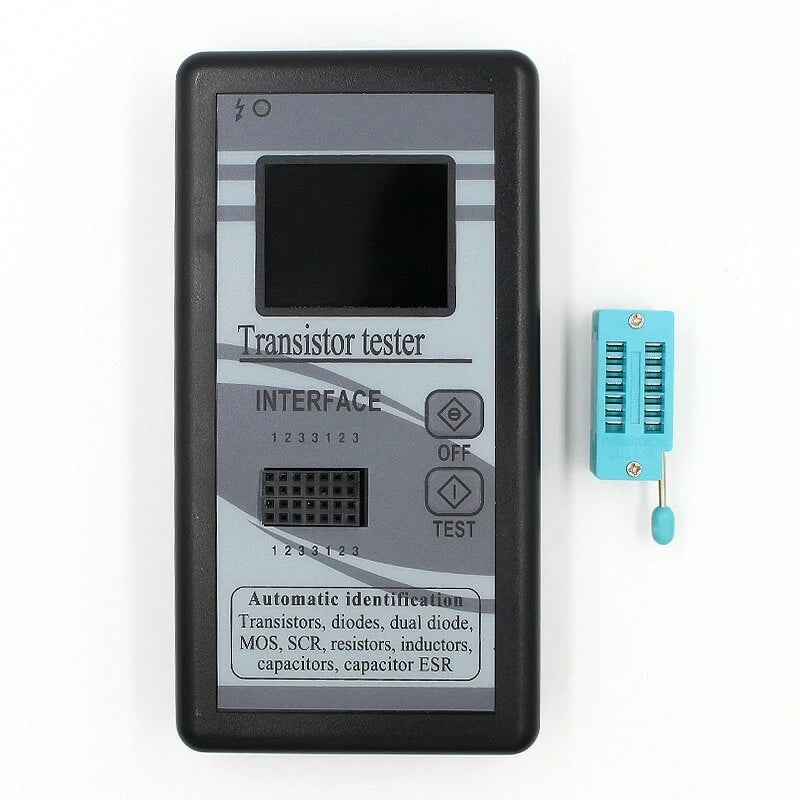

FNIRSI Multipurpose Transistor Tester 128x160 - Diode, Thyristor, MOSFET, ESR, LCR Meter

Package Includes:

• 1 x Transistor Tester (battery not included)

Available Models:

• Model 1: Case Color - Colorful
• Model 2: Case Color - Gray

Features and Specifications:

Key Features:

• 128 x 160 TFT color display for easy readings, capable of displaying measured data and graphics.
• Powered by a 9V battery (not included).
• All components protected by a plastic case, making it convenient to carry.
• Automatically detects NPN and PNP transistors, N-channel and P-channel MOSFET, diodes, thyristors, resistors, capacitors, and other devices.
• Automatically tests and displays the pins of a component on the LCD.
• Measures gate threshold voltage and gate capacitance of MOSFETs.
• Measures bipolar transistor current amplification factor and base-emitter threshold voltage.
• Two-button operation with automatic shutdown to conserve battery life.
• Short detection time of only 2 seconds (note: bulk capacitor detection may take up to 1 minute).

Notice: Please ensure capacitors are discharged before testing.

Specifications:

• Case Color: Gray/Colorful
• Display: 1.8" TFT color display
• Materials: PCB, Plastic
• Shutdown Current: 20nA
• Resistor Test Range: 0.5Ω – 50MΩ
• Inductor Test Range: 0.01mH – 20H
• Capacitor Test Range: 25pF – 100000uF
• Item Size: 13.5 x 7 x 2.2 cm (5.3 x 2.76 x 0.86 in)
• Item Weight: 99 grams (3.5 oz)
• Package Size: Approx. 16 x 8 x 2.5 cm (6.3 x 3.15 x 0.98 in)
• Package Weight: 102 grams (3.61 oz)
