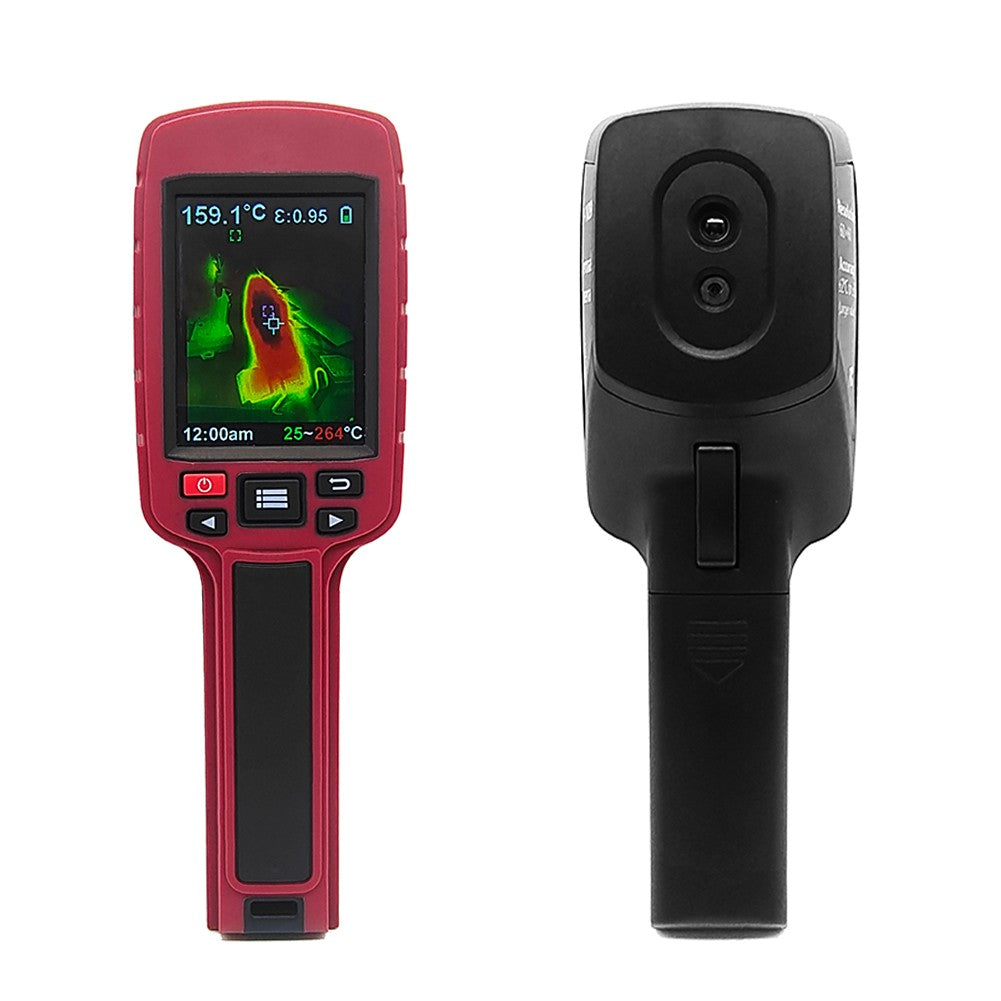

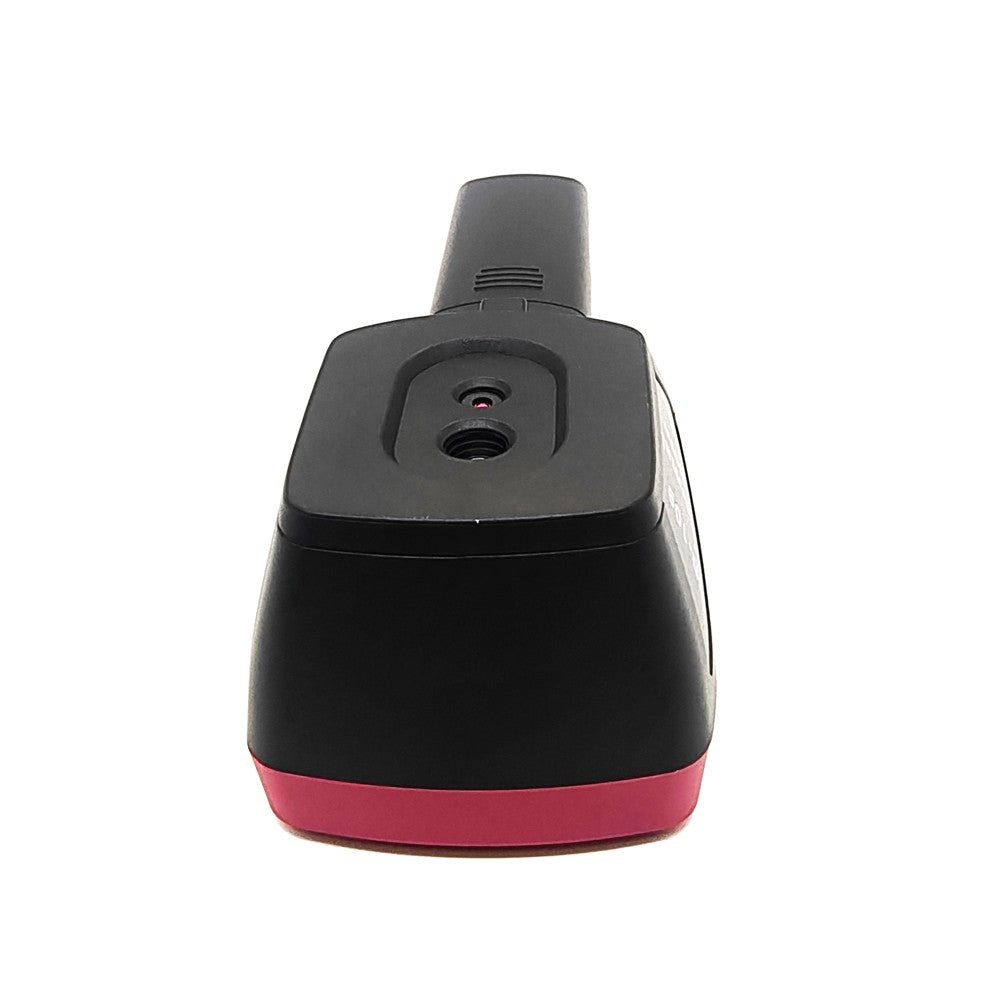

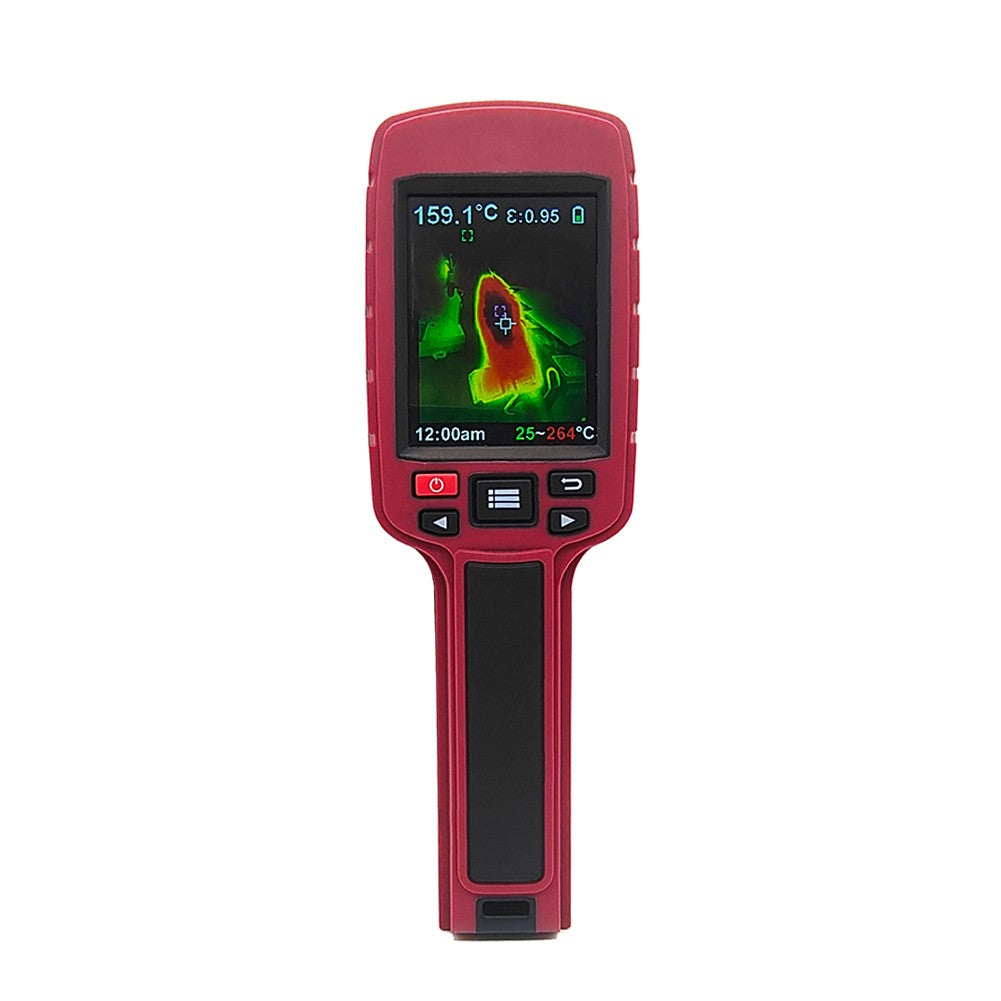

Handheld 60x60 Pixel Infrared Thermal Imager Camera with Clear Definition & Temperature Measurement

Enhance Your Vision with the JD-109 Thermal Imager

Experience real-time thermal imaging alongside precise surface temperature measurement with our state-of-the-art JD-109 Thermal Imager. Designed for various applications, this device offers exceptional functionality and versatility for all your temperature detection needs.

Key Features:

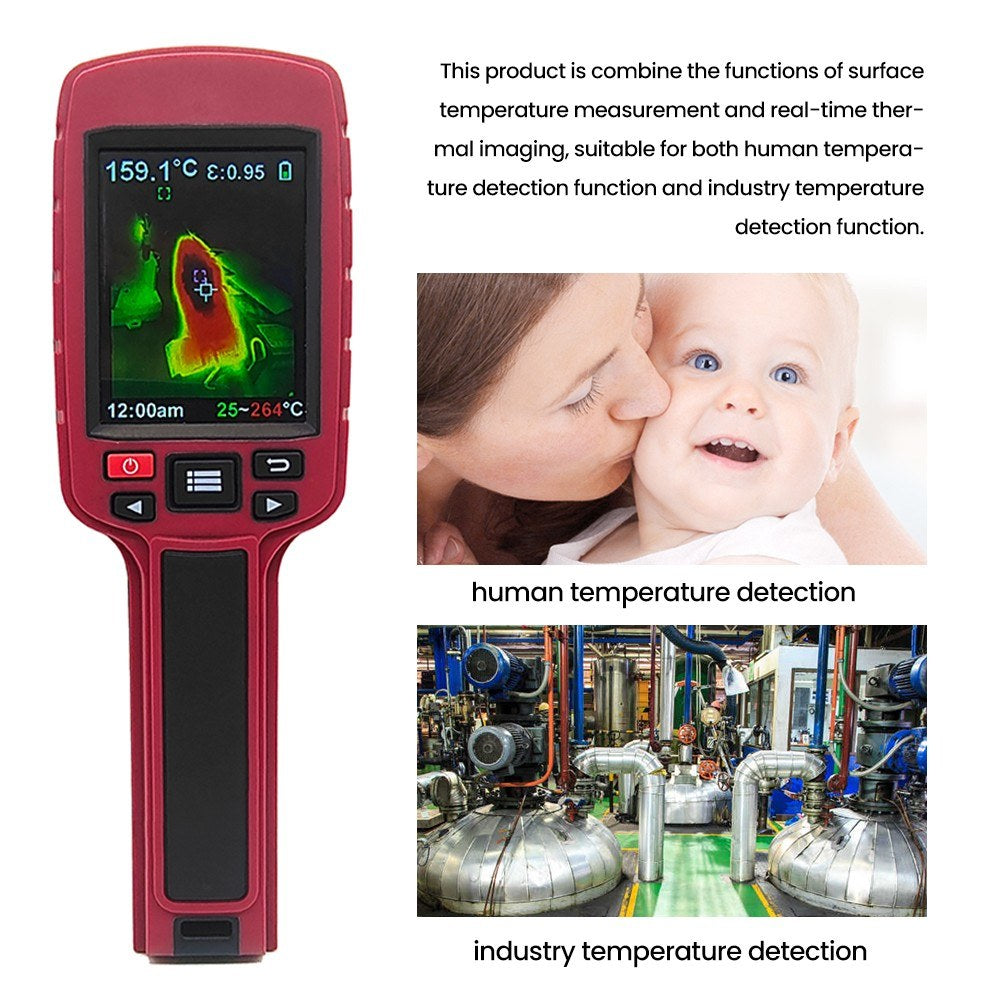

• Combines surface temperature measurement with real-time thermal imaging, suitable for both human and industrial temperature detection.

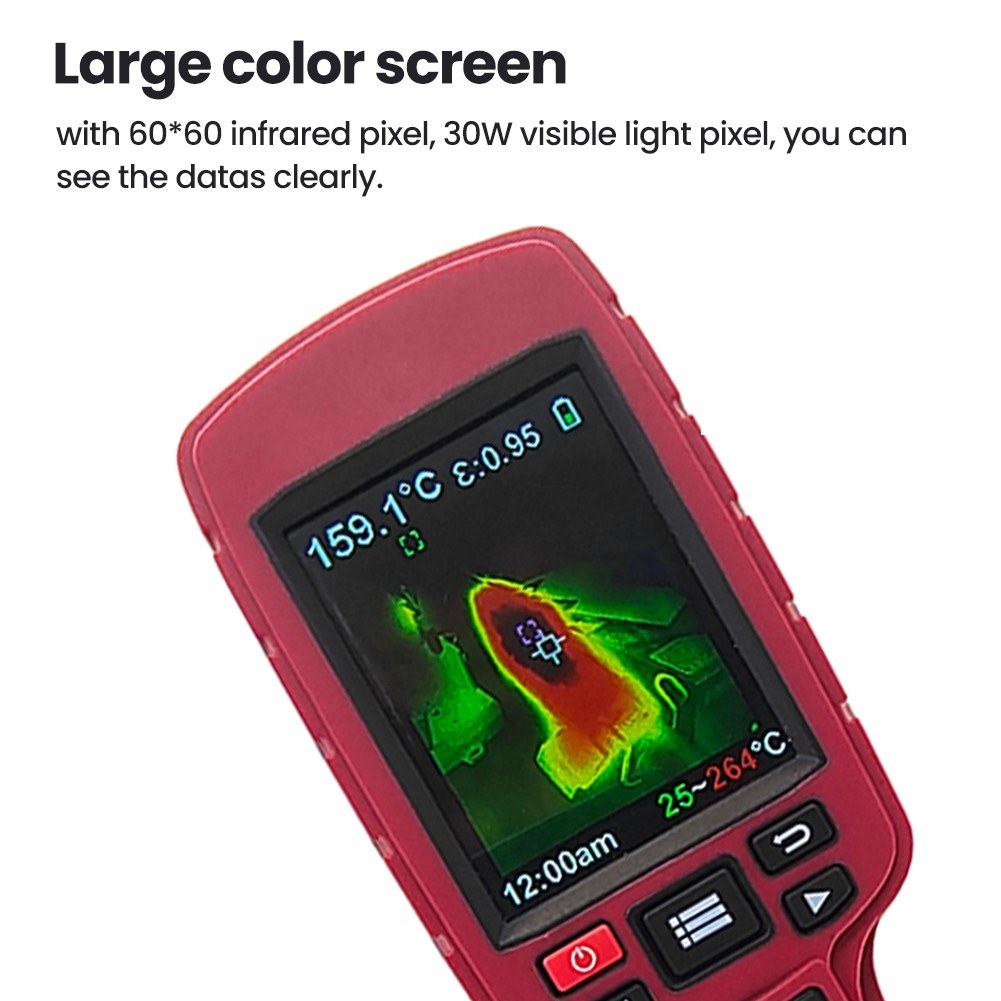

• Features a large 2.8-inch color display with 60x60 infrared resolution and 5-megapixel visible light resolution for clear data visualization.

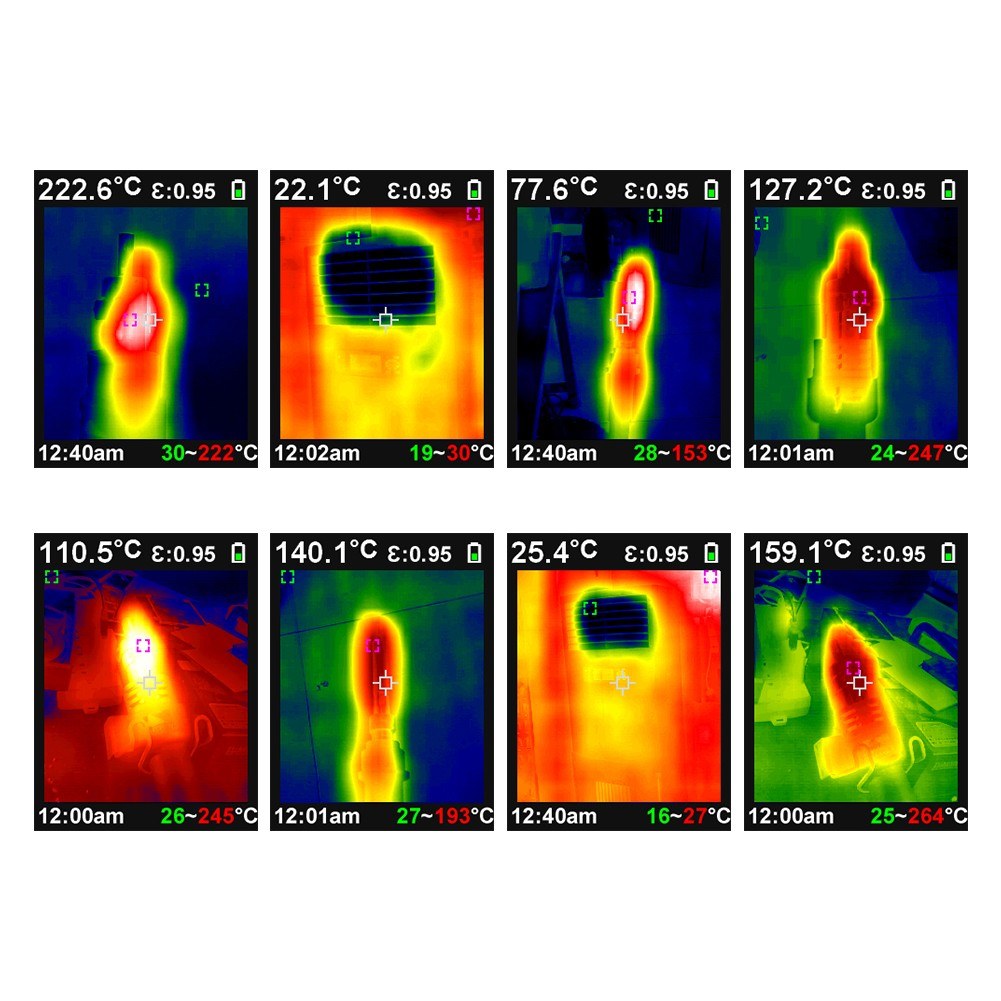

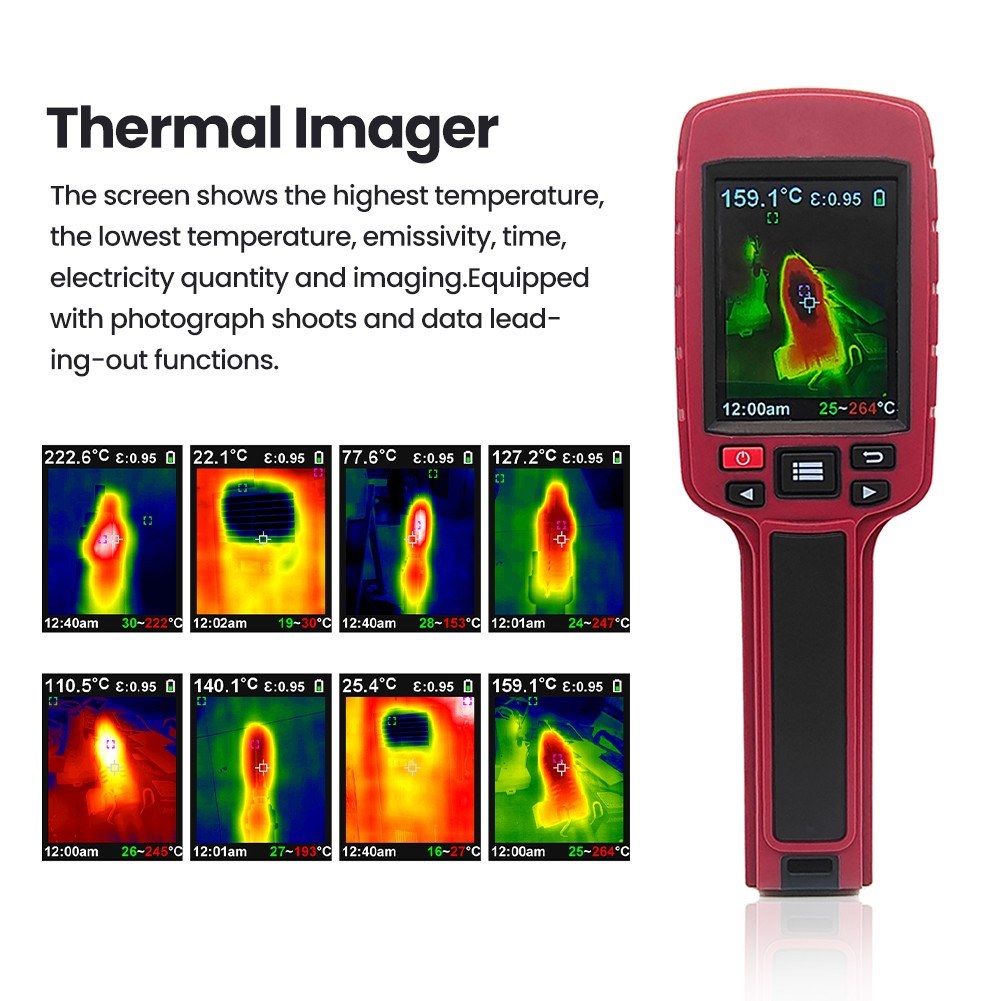

• Displays crucial data including highest and lowest temperatures, emissivity, time, battery level, and imaging.
• Five adjustable color palette modes: iron red, rainbow, high-contrast, white hot, and black hot to suit your needs.
• Equipped with photo capture and data transfer functions.
• Biological temperature measurement mode with a precision of ±0.4℃.
• Switchable temperature units (℃ or ℉).

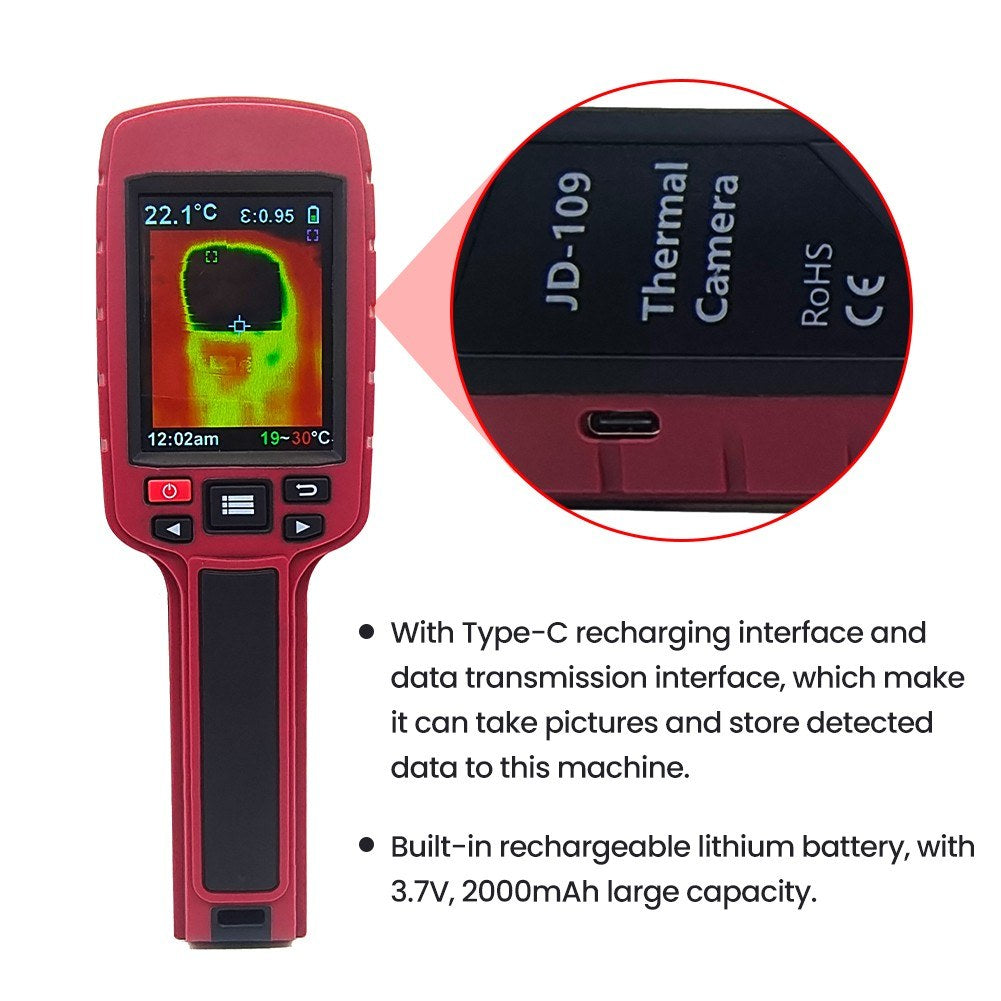

• Includes Type-C recharging and data transmission interface for convenient data storage and transfer.
• Customizable timer shut-off, time/date, and maximum/minimum temperature alarm settings.
• Built-in rechargeable lithium battery (3.7V, 2000mAh) for extensive usage.

Applications:

• Installation and maintenance of floor heating, radiators, and water heaters.
• Residential, office, and production electrical maintenance, including temperature detection of electrical switches.
• Small animal investigation in buildings, including termite control.
• Automotive repairs and maintenance checks, focusing on parts temperature detection.

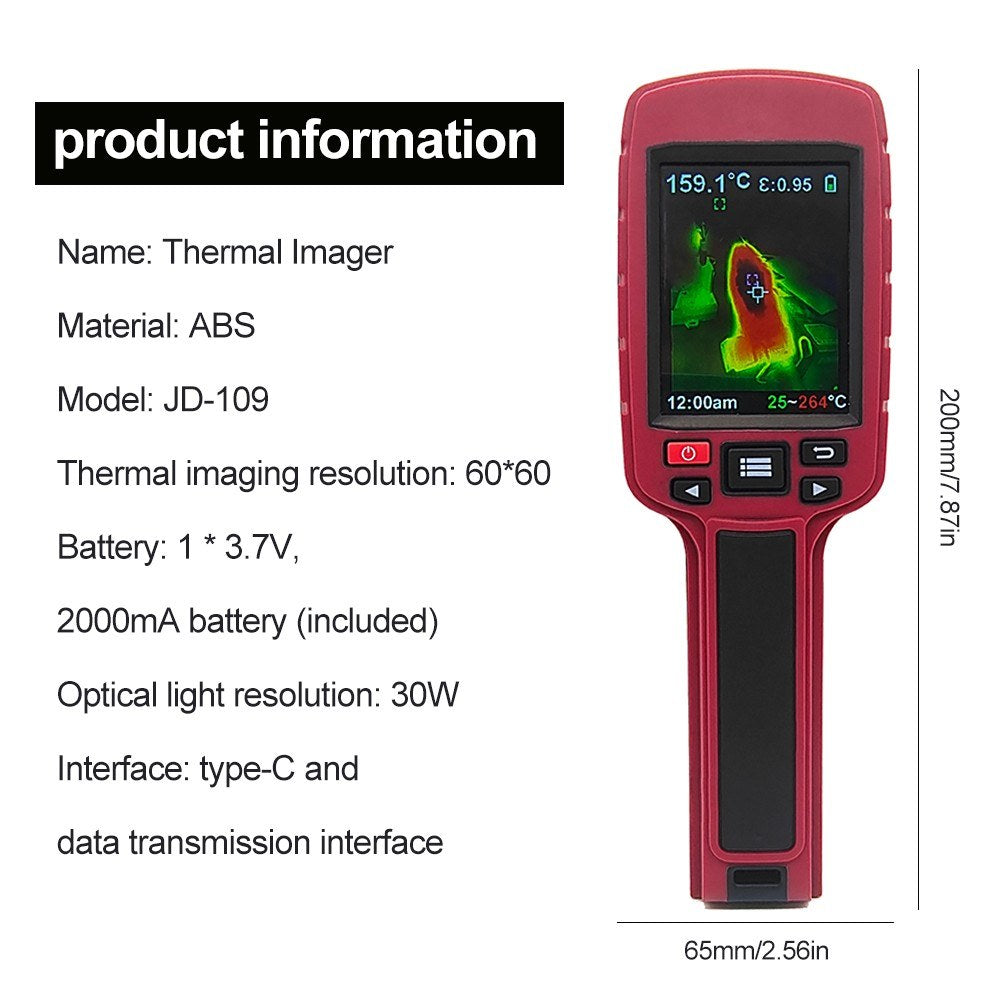

Specifications:

• Name: Thermal Imager
• Material: ABS
• Model: JD-109
• Display: 2.8 inches
• Battery: 1 x 3.7V, 2000mAh battery (included)
• Thermal Imaging Resolution: 60x60
• Visible Light Resolution: 5 megapixels
• Field of View: 66° x 66°
• Thermal Sensitivity: 0.15℃
• Temperature Measurement Range: -20℃ to 500℃
• Accuracy: ±2℃ or ±2%
• Emissivity: 0.1-0.99
• Capture Frequency: 9Hz
• Wavelength Range: 8μm-11.5μm
• File Format: BMP
• Operating Temperature: 0-40℃
• Storage Temperature: -20℃ to 60℃
• Storage Humidity: 10-85%RH
• Interface: Type-C and data transmission
• Item Size: 205 x 70 x 53mm / 8.07 x 2.76 x 2.09in
• Carrying Bag Size: 65 x 122 x 222mm / 2.56 x 4.80 x 8.74in
• Item Weight: 574g / 1.27lb
• Package Size: 247 x 137 x 75mm / 9.72 x 5.39 x 2.95in
• Package Weight: 865g / 1.91lb

Packing List:

• 1 x Thermal Imager
• 1 x Type-C Cable
• 1 x Manual
