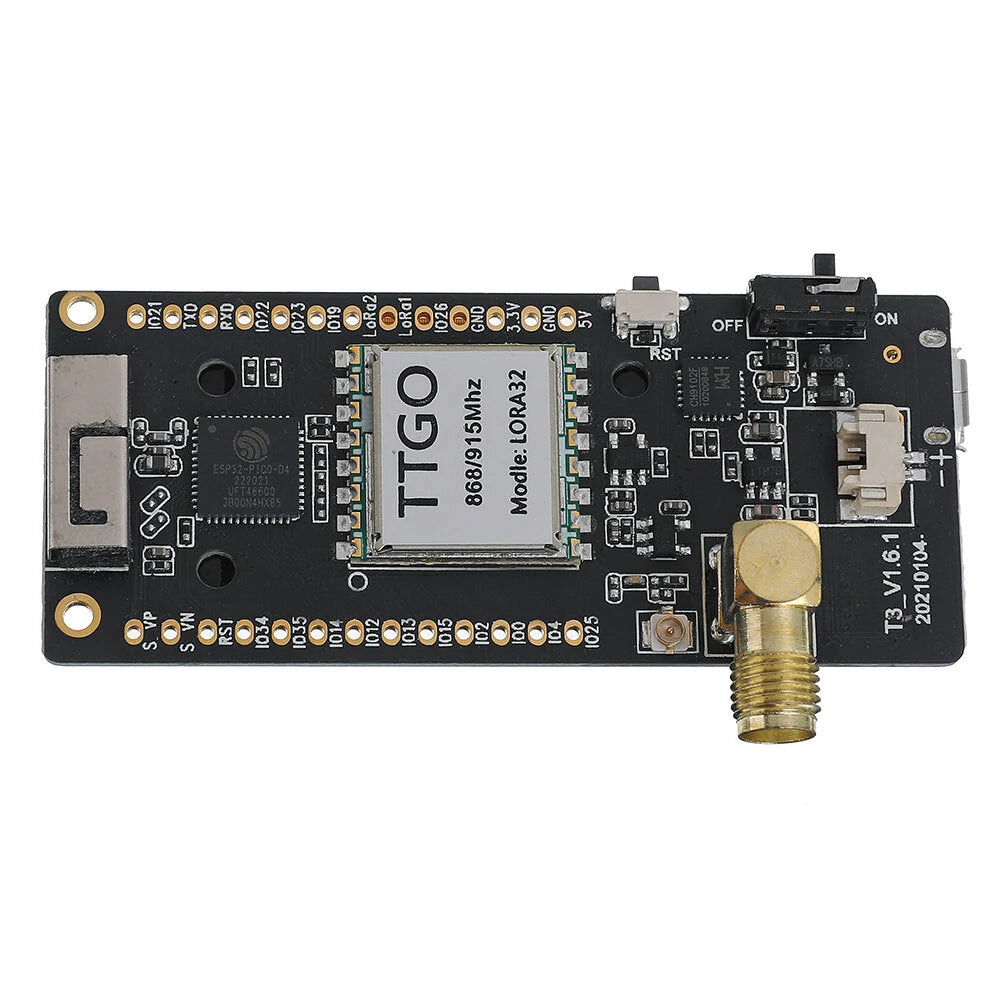

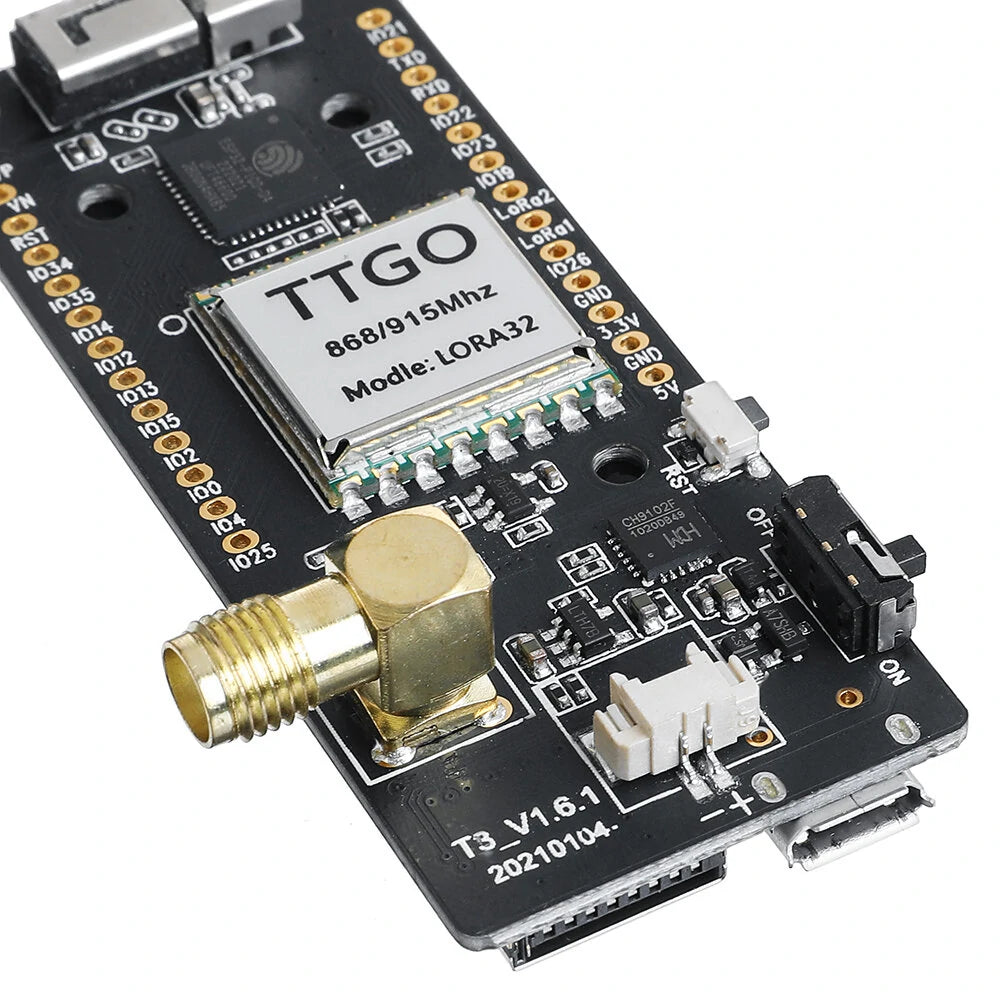

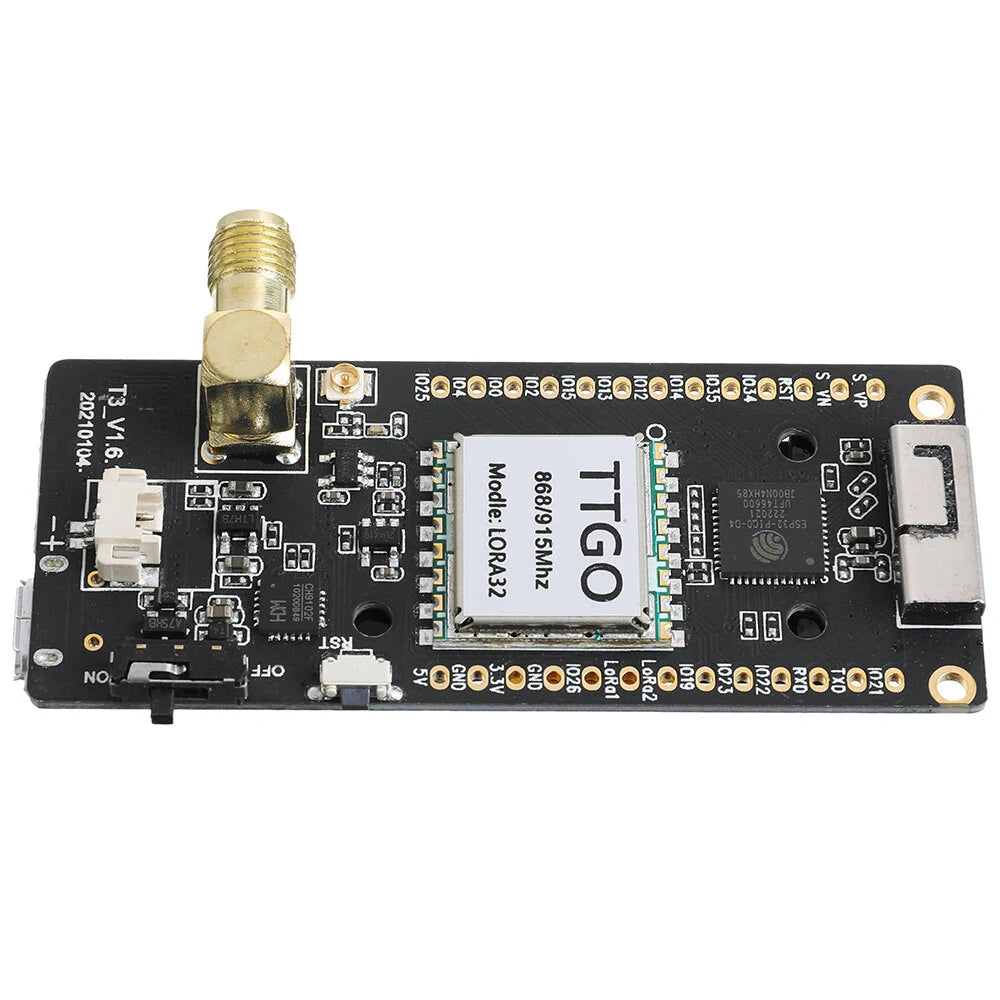

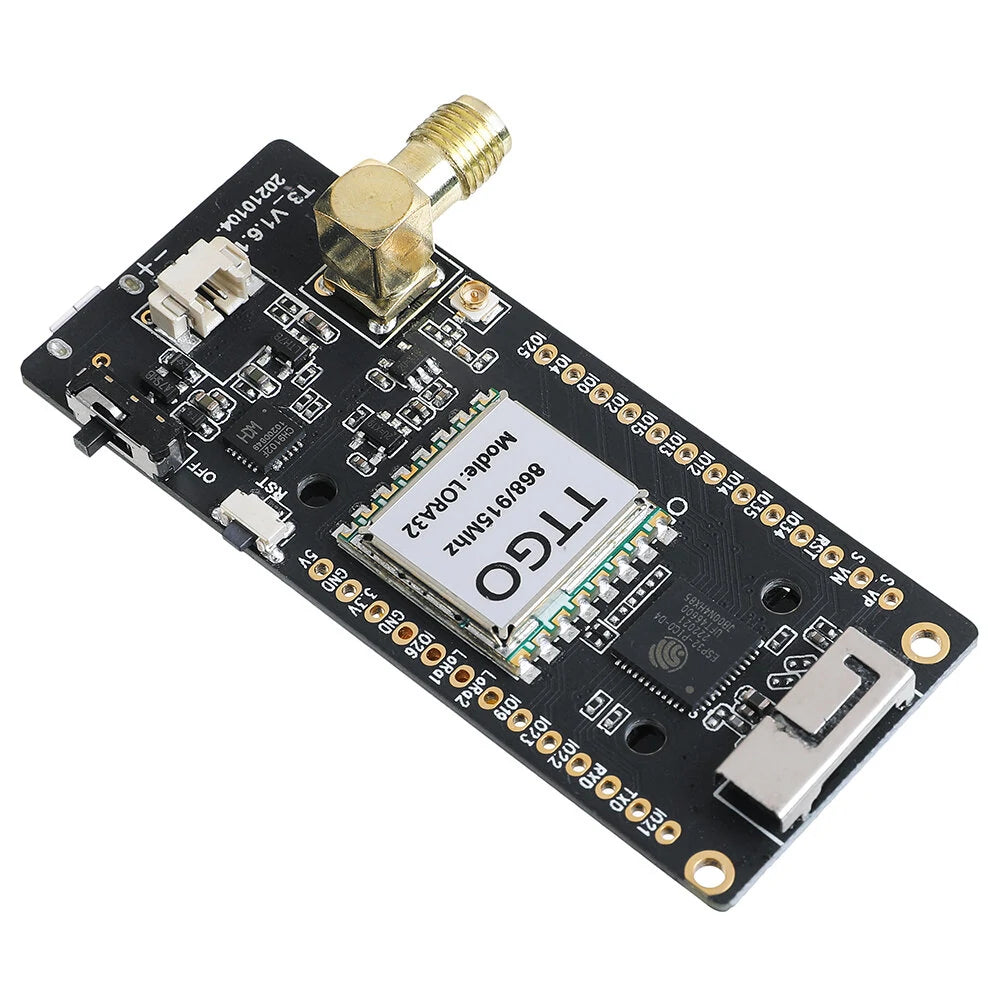

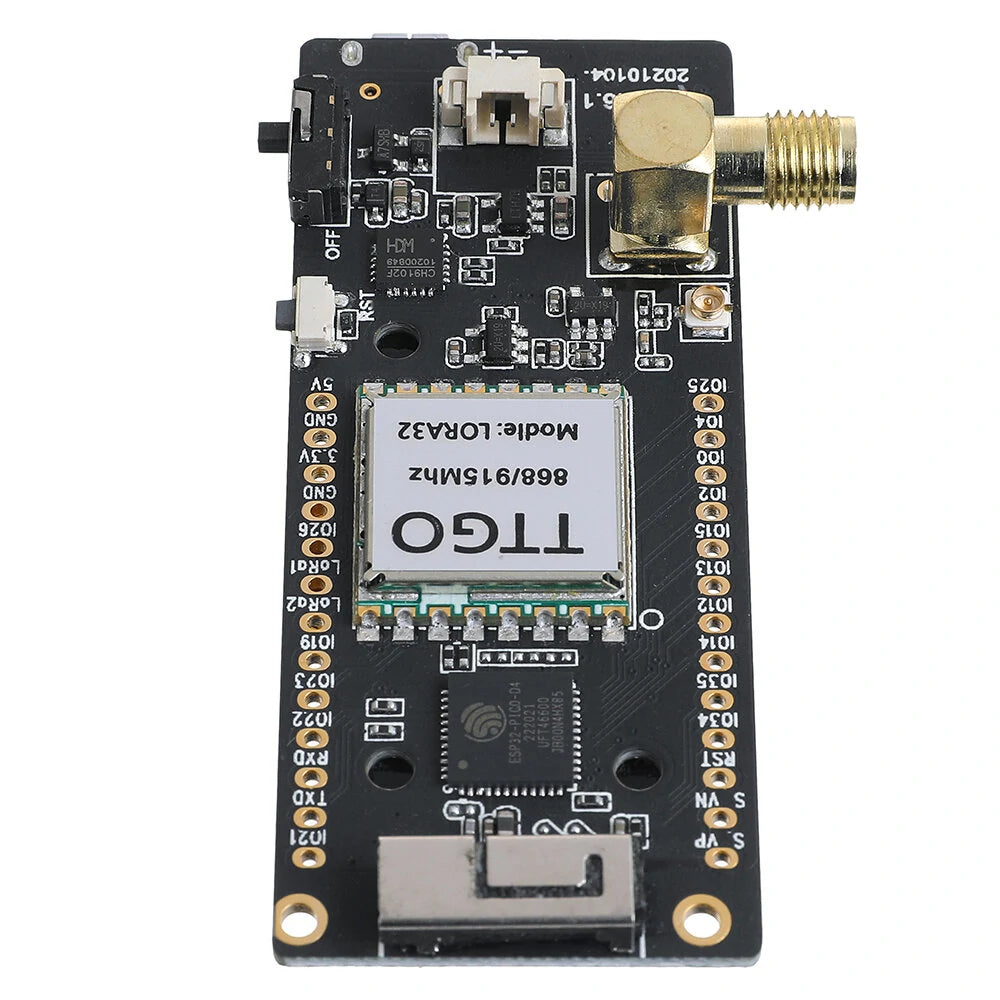

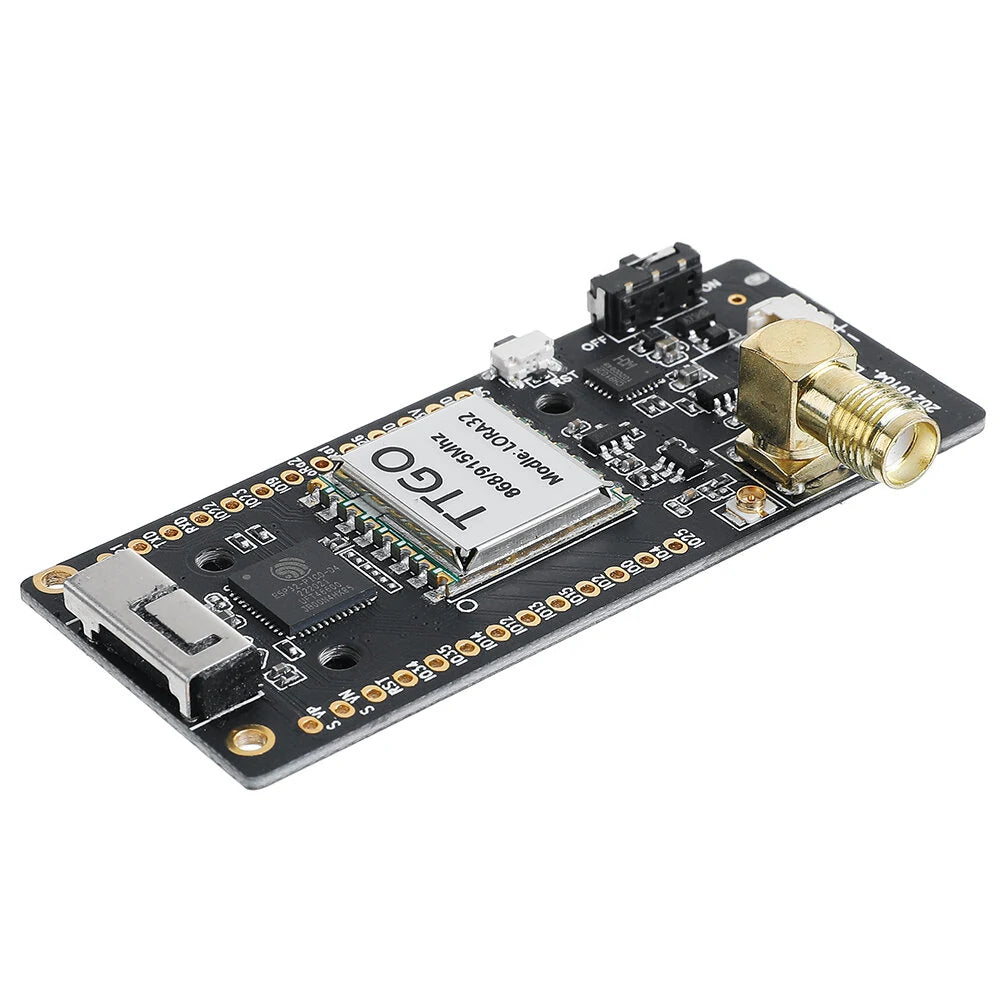

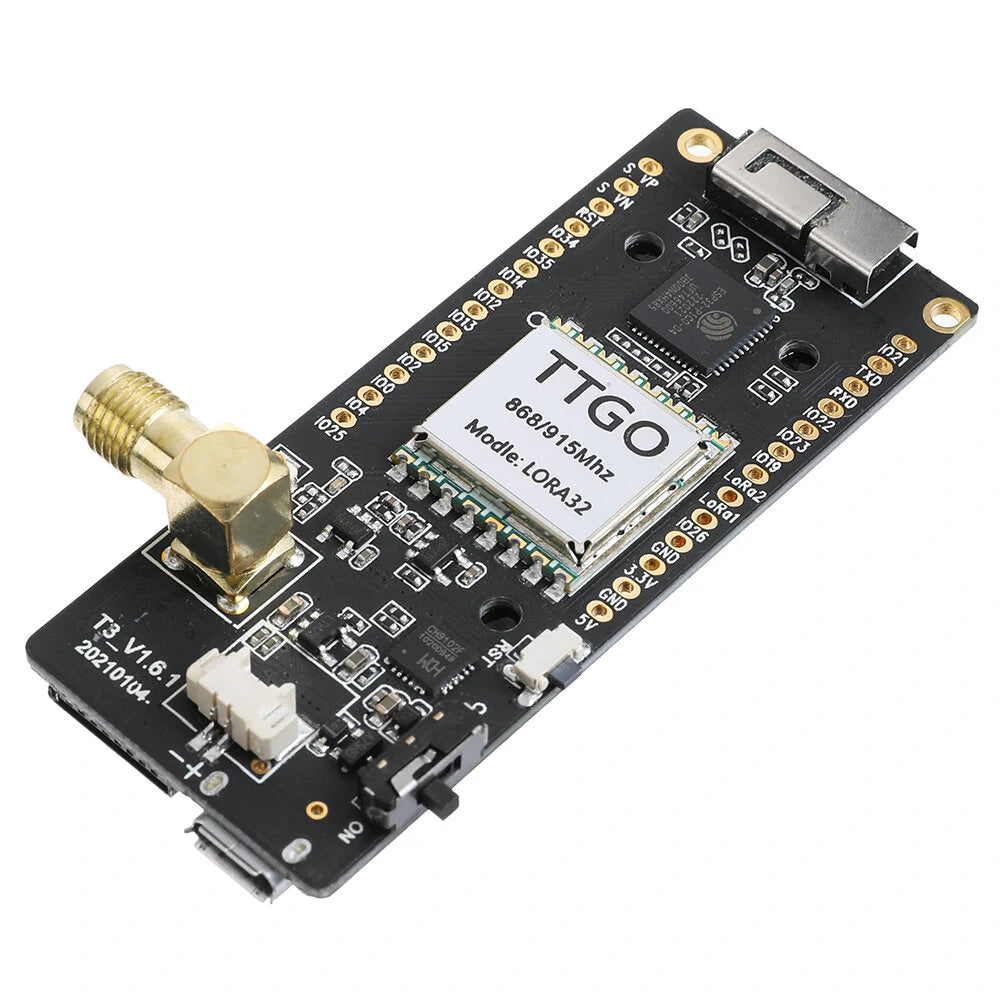

LILYGO® TTGO LoRa32 868MHz ESP32 Module with 0.96 OLED, SD Card Slot, Bluetooth & WiFi, SMA IP5306

Product Overview

The TTGO LoRa32 868MHz Module is a robust and versatile technology solution designed to meet your wireless communication needs efficiently. Delve into its features and specifications to explore what makes it a standout choice.

Key Features

• Working Voltage: 1.8 to 3.7V
• Transmit Power: +20dBm
• Operating Frequency: 433/868/915MHz
• Interface: SPI
• Operating Temperature: -40°C to +85°C
• Modulation Modes: FSK, GFSK, MSK, GMSK, LoRa™, OOK

Performance Specifications

• Current Range: 10 to 14mA for acceptable current, and transmit current levels of 120mA@+20dBm, 90mA@+17dBm, 29mA@+13dBm
• Receive Sensitivity:
  • -139dBm @ LoRa & 62.5KHz & SF=12 & 146bps
  • -136dBm @ LoRa & 125KHz & SF=12 & 293bps
  • -118dBm @ LoRa & 125KHz & SF=6 & 9380bps
  • -123dBm @ FSK & 5KHz & 1.2Kbps
• Frequency Error: ±15KHz
• FIFO Space: 64 Bytes
• Data Rate: 1.2K to 300Kbps @ FSK, 0.018K to 37.5Kbps @ LoRa

Advanced Capabilities

• Digital RSSI function
• Automatic frequency correction
• Automatic gain control
• Fast wake-up and frequency hopping
• Highly configurable data packet handler
• Includes an SMA antenna and IP5306 chip

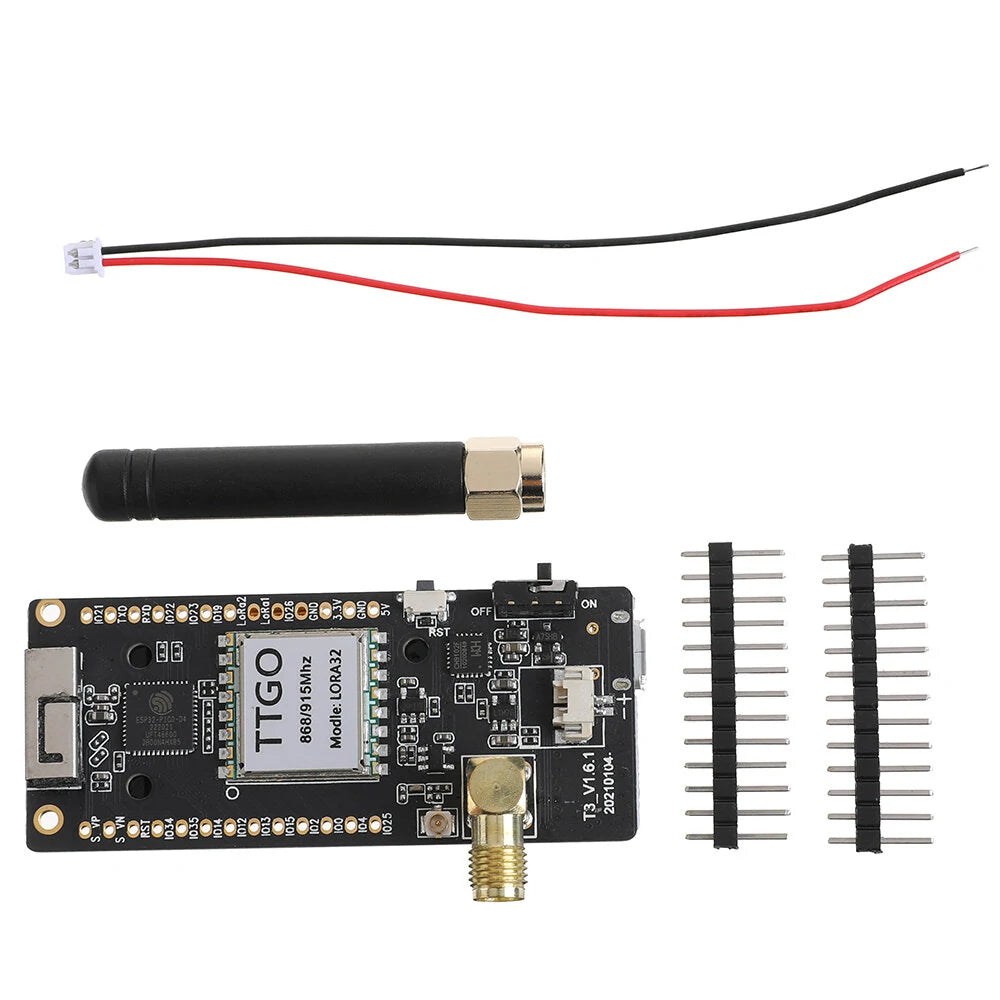

Package Contents

• 1 x TTGO LoRa32 868Mhz Module
• 2 x Pin Headers
• 1 x Antenna
• 1 x Power Cable

Note: Battery and SD card are not included in the shipping list.
