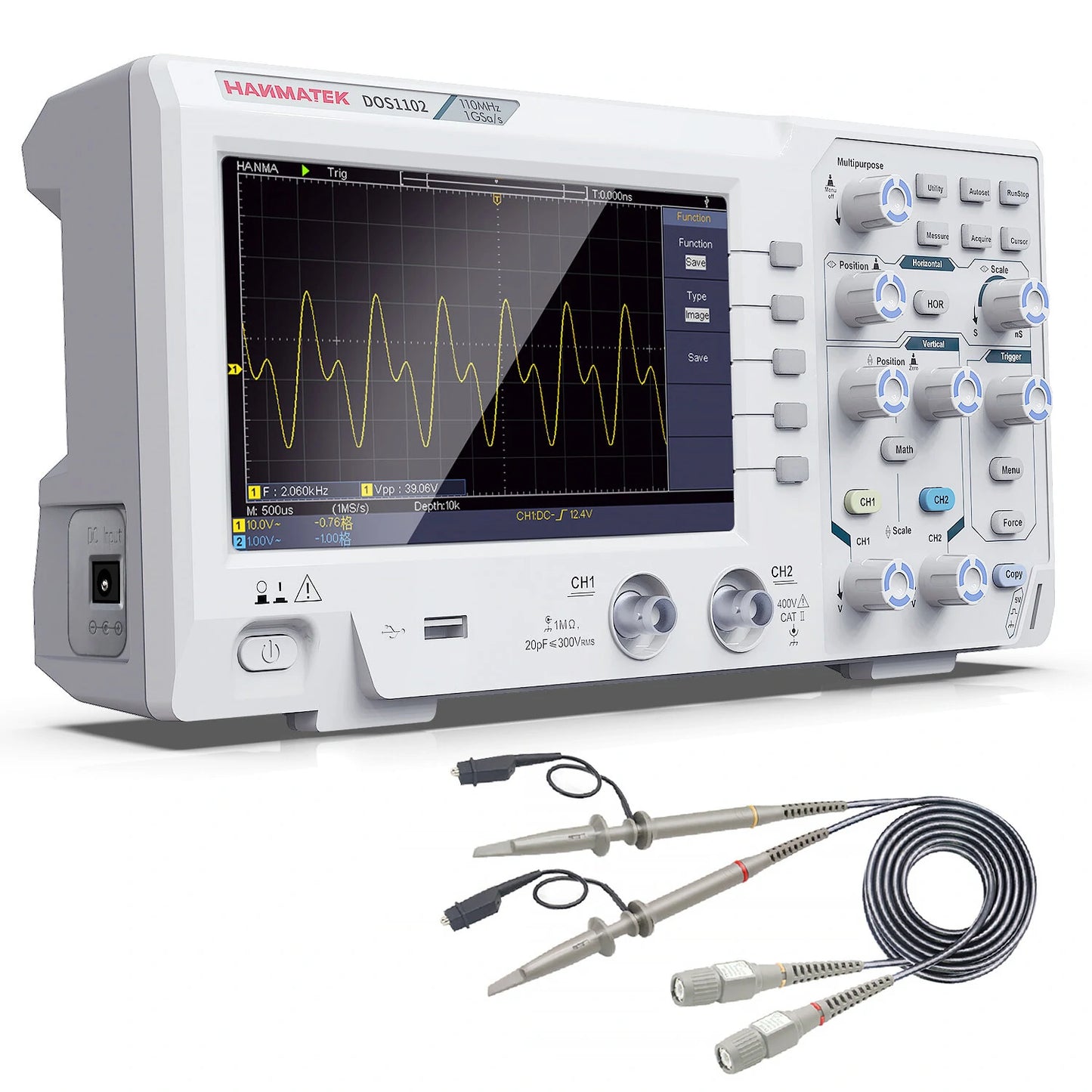

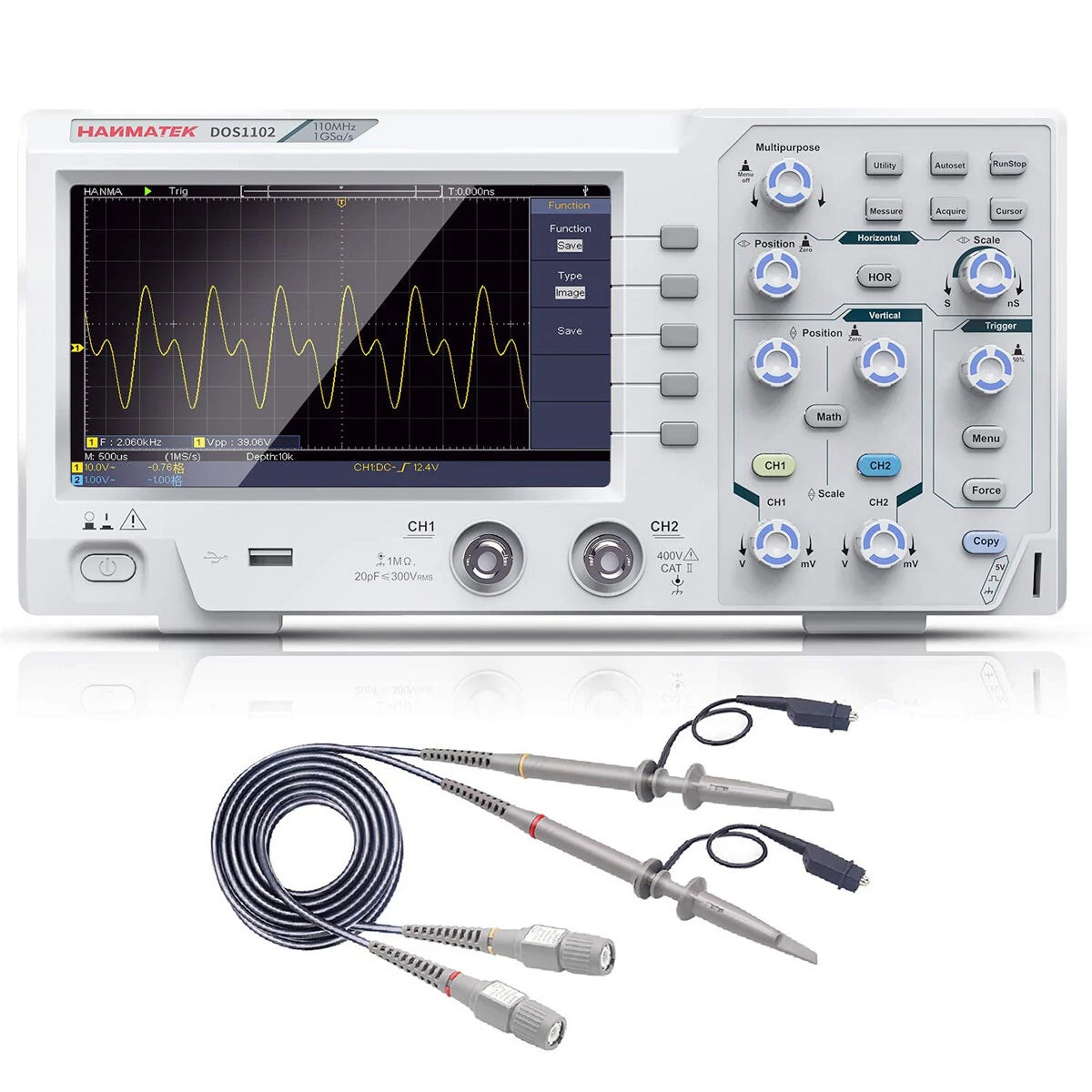

HANMATEK Digital Oscilloscope

Features:

• Robust Functionality: The HANMATEK digital oscilloscope features a 110 MHz bandwidth and a 500 MS/s *2 real-time sampling rate. It offers a fast 2 ns / Div ~ 1000s / Div time base range and can store not less than 16 groups of waveforms, making it a powerful tool for professional use.

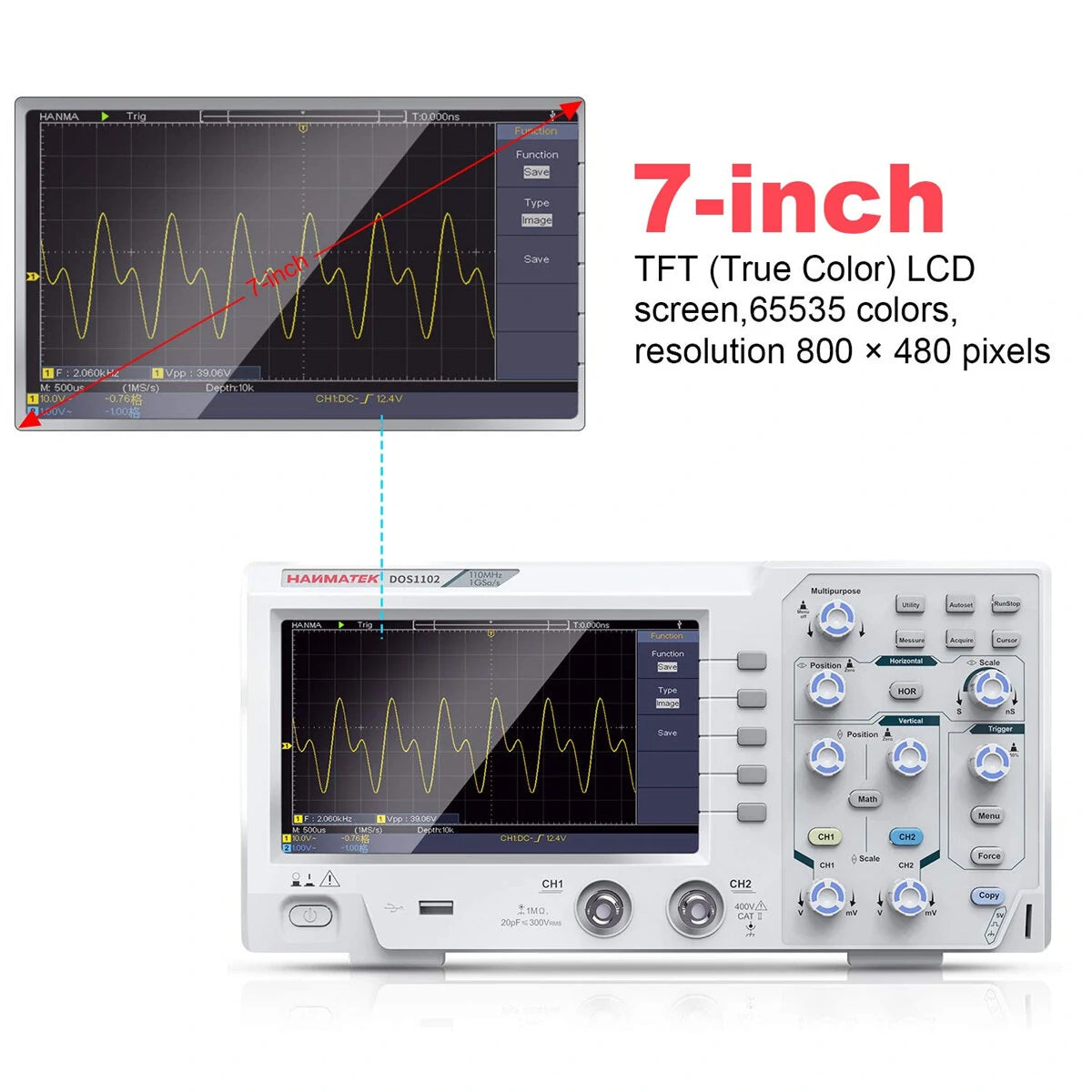

• Advanced Display: Equipped with a 7-inch TFT LCD true color screen, the oscilloscope provides a high-resolution display (800×480 pixels), supporting cursor measurement for precise tracking and examination of input signals.
• Intelligent Tracking and Range: This device supports horizontal, vertical, single waveform/multiple waveform tracking and includes an automatic range function. The four probe attenuation multiples: 1X, 10X, 100X, 1000X, allow for varied input signal ranges.
• Detailed Frequency and Current Measures: Along with a precise 6-digit hardware frequency meter, the oscilloscope incorporates a current measurement function with a range of 100.0 mA/V ~ 1 kA/V, ensuring detailed and accurate readings.
• Enhanced Features: From 30 automatic measurement functions to a built-in FFT spectrum analysis function, this oscilloscope is designed for efficiency. It supports LABVIEW communication and the SCPI standard, making it ideal for research and development environments.

Specifications:

• Brand: HANMATEK
• Screen Size: 7 Inches
• Connectivity Technology: USB
• Display Type: LCD

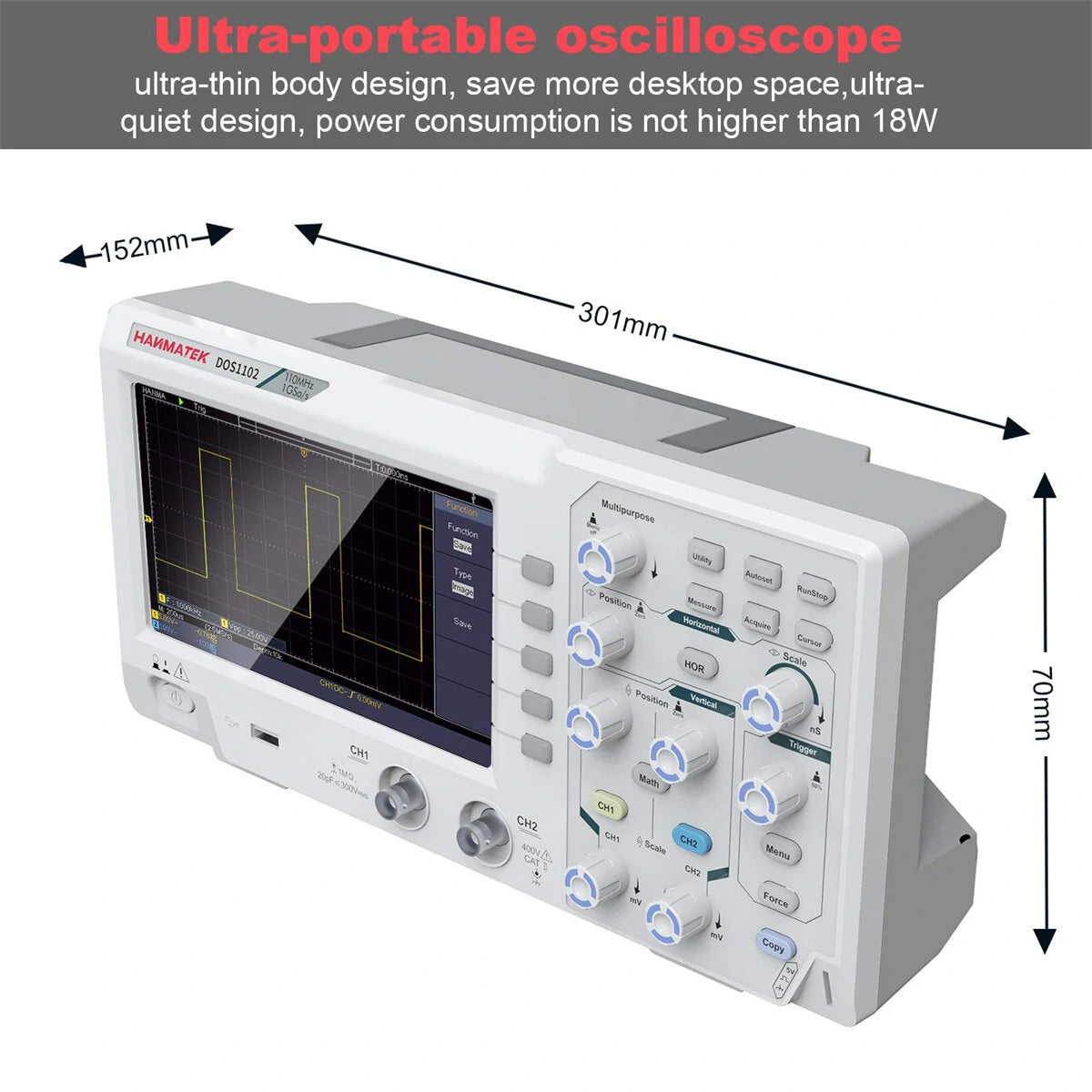

• Special Feature: Portable
• Bandwidth: 110MHz
• Channels: 2

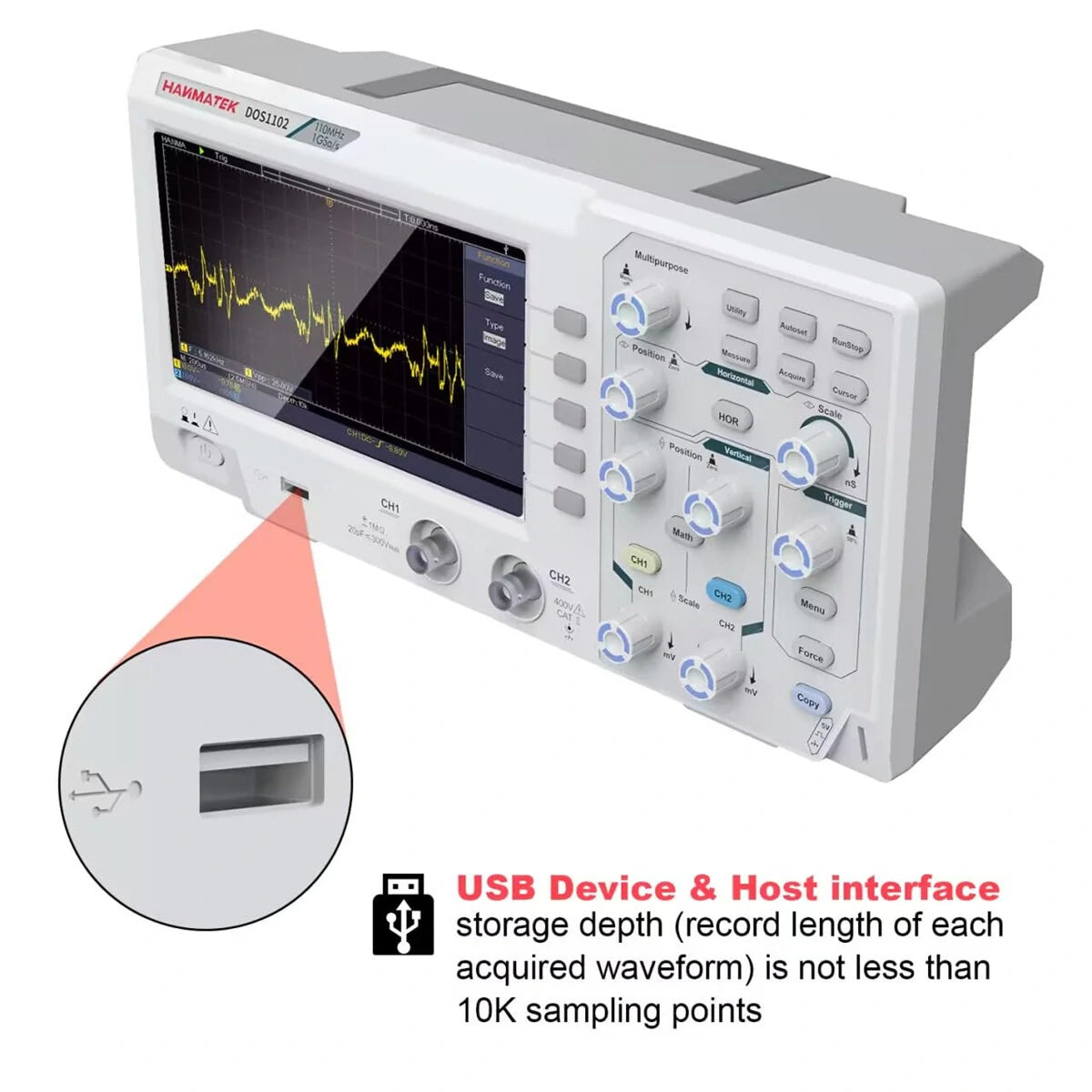

• Storage Depth: >10K
• Sampling Rate: 500 MS/s *2
• Built-in FFT Function
• Optional Plug Type: EU/US

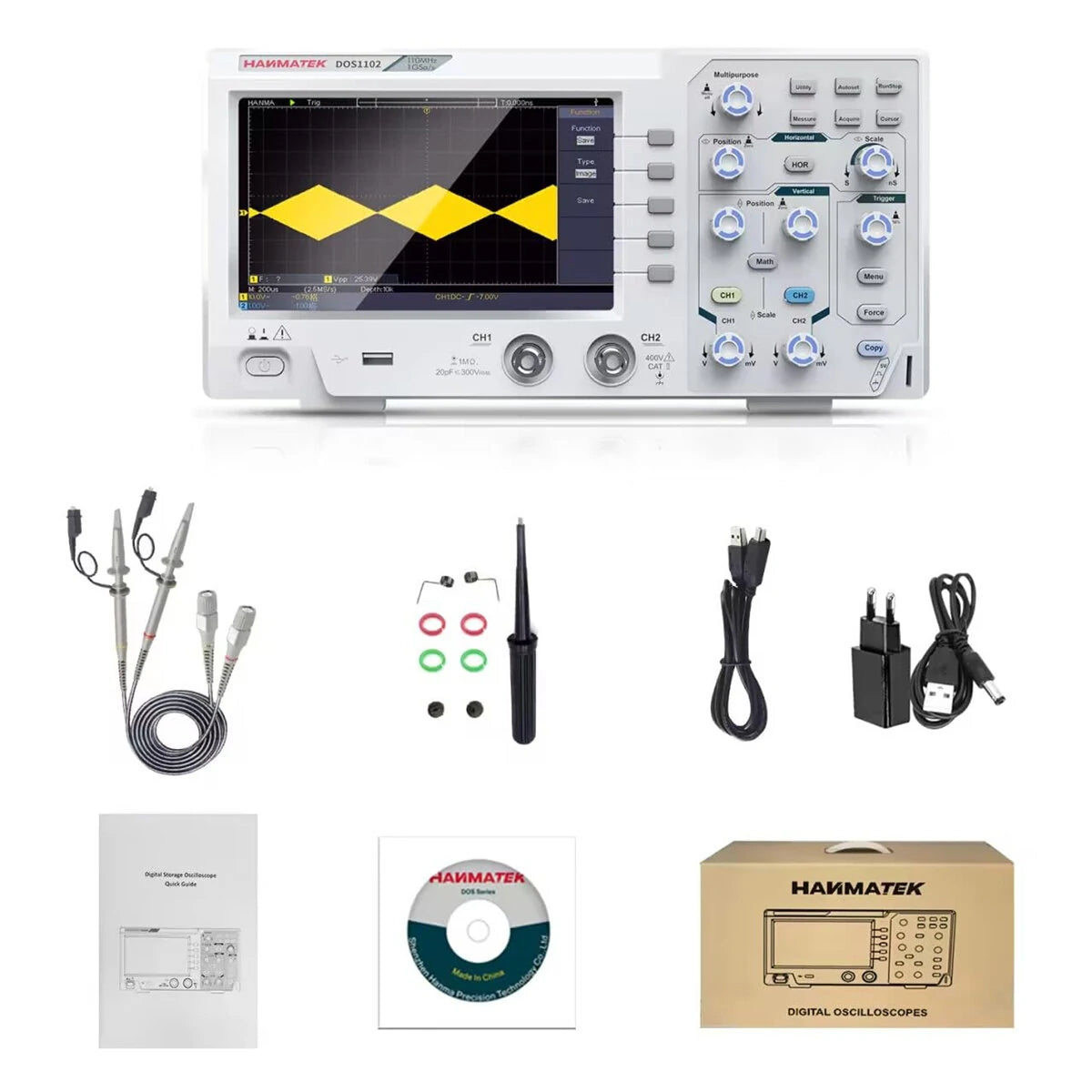

Package Includes:

• 1 x HANMATEK Digital Oscilloscope
• 1 x USB Cable
• 1 x Power Adapter (Plug Type as your choice)
• 2 x Probes
• 1 Pack x Accessories
• 1 x User Manual
• 1 x CD-ROM (Software manual)
