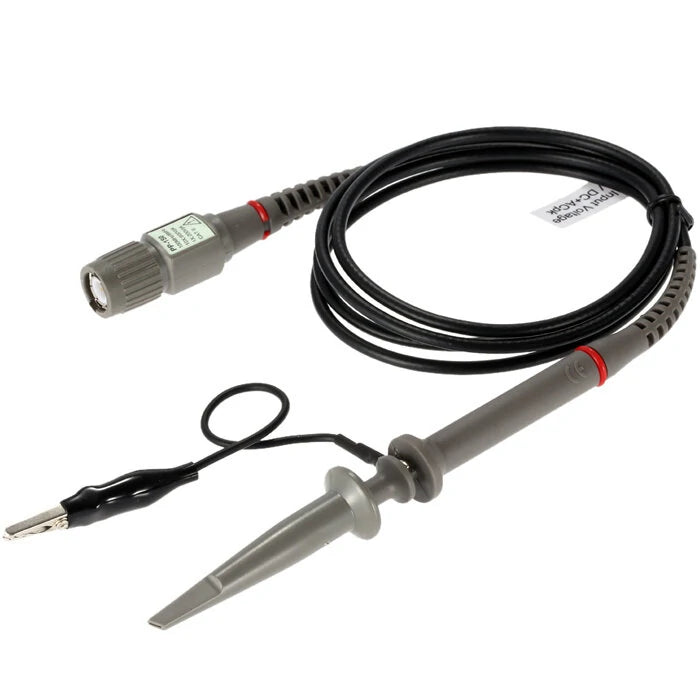

Hantek PP-150 Oscilloscope Probe 100MHz 1X/10X Digital Multimeter Clip

Compatibility

To confirm that this part fits your vehicle, please enter your vehicle's details below:

• Year: Select
• Make: Select
• Model: Select
• Submodel: Select
• Trim: Select
• Engine: Select

Clear All

This part is compatible with 0 vehicle(s).

Show all compatible vehicles

This part is compatible with 1 vehicle(s) matching your search.

This part is not compatible with.

Recent Searches:

• Year
• Make
• Model
• Submodel
• Trim
• Engine

Description

Integral injection molding offers flexibility, making the oscilloscope adaptable to various testing situations. The attenuation ratio is adjustable to 1× and 10×, compatible with both domestic and international digital and analog oscilloscopes in relevant frequency ranges.

Features

• High quality and reliable.
• Attenuation ratio: 1× and 10× adjustable.
• Portable design conforms to ergonomics.
• Integral injection molding enhances flexibility.
• CE certified safety standards.

Application Fields

• Compatible with domestic and international digital and analog oscilloscopes.
• Used for measurements in intermediate and low frequency signals.

Specifications

• Color: Black, Grey
• Type: PP-80 / PP-150
• Attenuation: x1, x10
• Input Resistance: 1MΩ / 10MΩ
• Input Capacitance: x1: 85pF-115pF, x10: 18.5pF-22.5pF
• Compensation Range: 15pF ~ 35pF
• System Bandwidth: x1: DC-5MHz, x10: DC-100MHz
• Operating Temperature: -10℃ ~ +50℃ / 14℉ ~ 122℉
• Non-Operating Temperature: -20℃ ~ +75℃ / -4℉ ~ 167℉
• Humidity: ≤85% Relative Humidity
• Cable Length: 120cm / 47.2in
• Item Size: Approx. 17 x 2 x 2cm / 6.7 x 0.8 x 0.8in (Probe Only)
• Item Weight: Approx. 49.1g / 1.7oz
• Package Size: Approx. 20 x 13 x 2cm / 7.9 x 5.1 x 0.8in
• Package Weight: Approx. 74g / 2.6oz

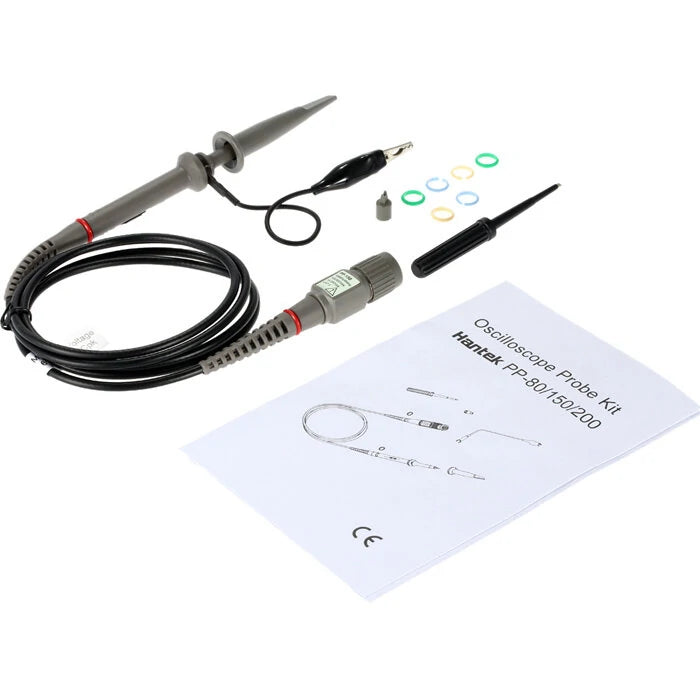

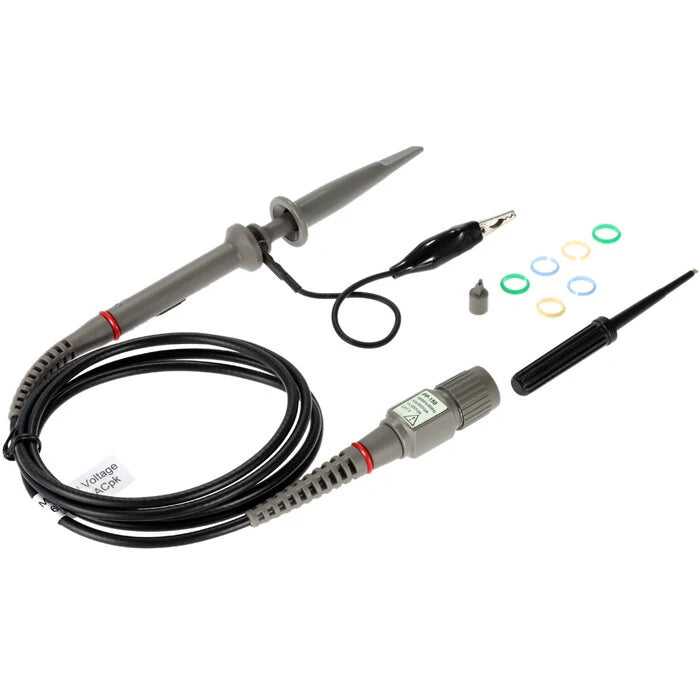

Package Includes

• 1 x Oscilloscope Probe

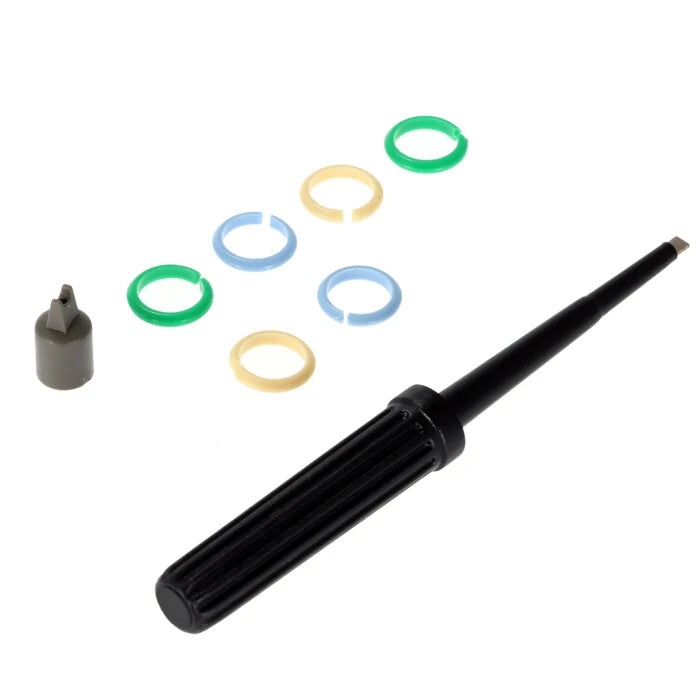

• 1 x Adjustment Tool
• 1 x Tip Locating Sleeve
• 6 x Color Circle (sent randomly)
• 1 x User Instruction
