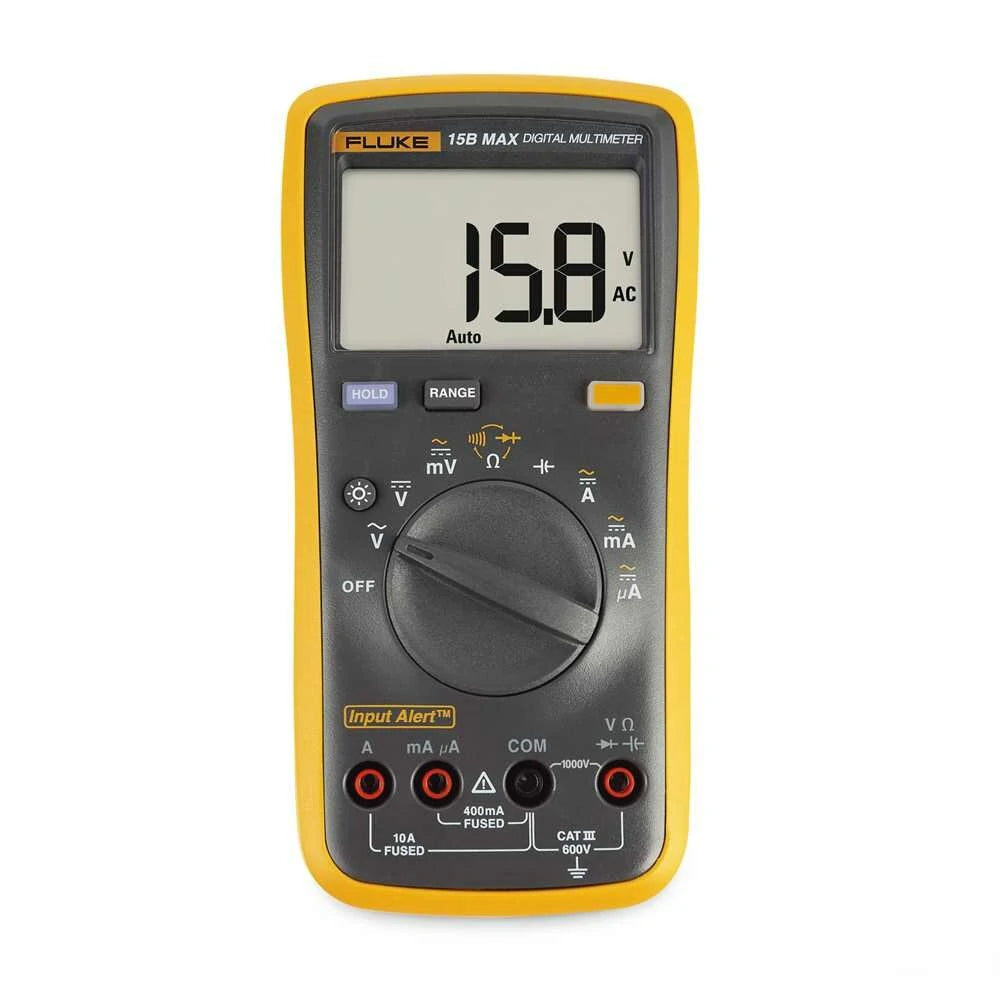

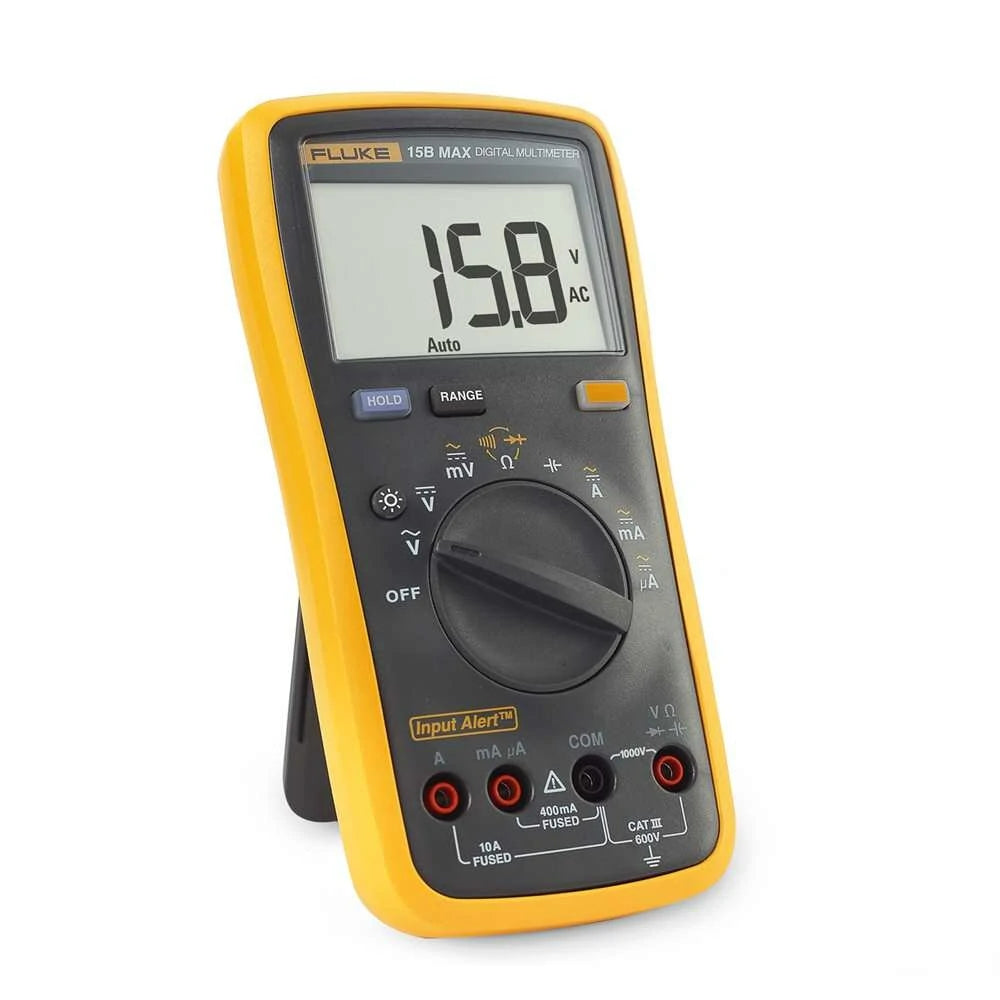

FLK-15B MAX-01 High Precision Digital Multimeter, 4000 Counts AC/DC Voltage Auto Portable Multifunction

Features:

• 600V Cat III safety design specifications
• Bright white backlight covering 50% of the display range
• Measures voltage, resistance, current, and capacitance
• 10 A AC/DC current measurement input terminal
• Diode test and data retention capabilities

Specifications:

Function, Range, Resolution, Accuracy

AC Voltage (40 Hz - 500Hz)

• 4.000 V / 0.001 V / 1.0%
• 40.00 V / 0.01 V / 1.0%
• 400.0 V / 0.1 V / 1.0%
• 1000 V / 1 V / 1.0%

DC Voltage

• 4.000 V / 0.001 V / 0.5%
• 40.00 V / 0.01 V / 0.5%
• 400.0 V / 0.1 V / 0.5%
• 1000 V / 1 V / 0.5%

AC Voltage (mV)

• 400.0 mV / 0.1 mV / 3.0%

DC Voltage (mV)

• 400.0 mV / 0.1 mV / 1.0%

Diode Test

• 2.000 V / 0.001 V / 10%

Resistance

• 400.0 Ω / 0.1 Ω / 0.5%
• 4.000 kΩ / 0.001 kΩ / 0.5%
• 40.00 kΩ / 0.01 kΩ / 0.5%
• 400.0 kΩ / 0.1 kΩ / 0.5%
• 4.000 MΩ / 0.001 MΩ / 0.5%
• 40.00 MΩ / 0.01 MΩ / 1.5%

Capacitance

• 40.00 nF / 0.01 nF / 2%
• 400.0 nF / 0.1 nF / 2%
• 4.000 μF / 0.001 μF / 5%
• 40.00 μF / 0.01 μF / 5%
• 400.0 μF / 0.1 μF / 5%
• 1000 μF / 1 μF / 5%

AC Current (μA) (40 Hz - 400 Hz)

• 400.0 μA / 0.1 μA / 1.5%
• 4000 μA / 1 μA / 1.5%

AC Current (mA) (40 Hz - 400 Hz)

• 40.00 mA / 0.01 mA / 1.5%
• 400.0 mA / 0.1 mA / 1.5%

AC Current (A) (40 Hz - 400 Hz)

• 4.000 A / 0.001 A / 1.5%
• 10.00 A / 0.01 A / 1.5%

DC Current (μA)

• 400.0 μA / 0.1 μA / 1.5%
• 4000 μA / 1 μA / 1.5%

DC Current (mA)

• 40.00 mA / 0.01 mA / 1.5%
• 400.0 mA / 0.1 mA / 1.5%

DC Current (A)

• 4.000 A / 0.001 A / 1.5%
• 10.00 A / 0.01 A / 1.5%

Additional Information:

Backlight feature included for improved visibility.

Package Includes:

• 1 FLK-15B MAX-01 (Batteries not included)
• 1 Set of Test Leads
