NanoVNA PCB 10kHz-1.5GHz Vector Network Analyzer with 32GB SD Card Support

NanoVNA PCB 10kHz-1.5GHz Vector Network Analyzer with 32GB SD Card Support

Regular price $44.99 USD
Regular price $0.00 USD Sale price $44.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Product Description

Key Features

  • Durable ABS casing and new packaging offer cost-effective protection compared to 3D printed alternatives.

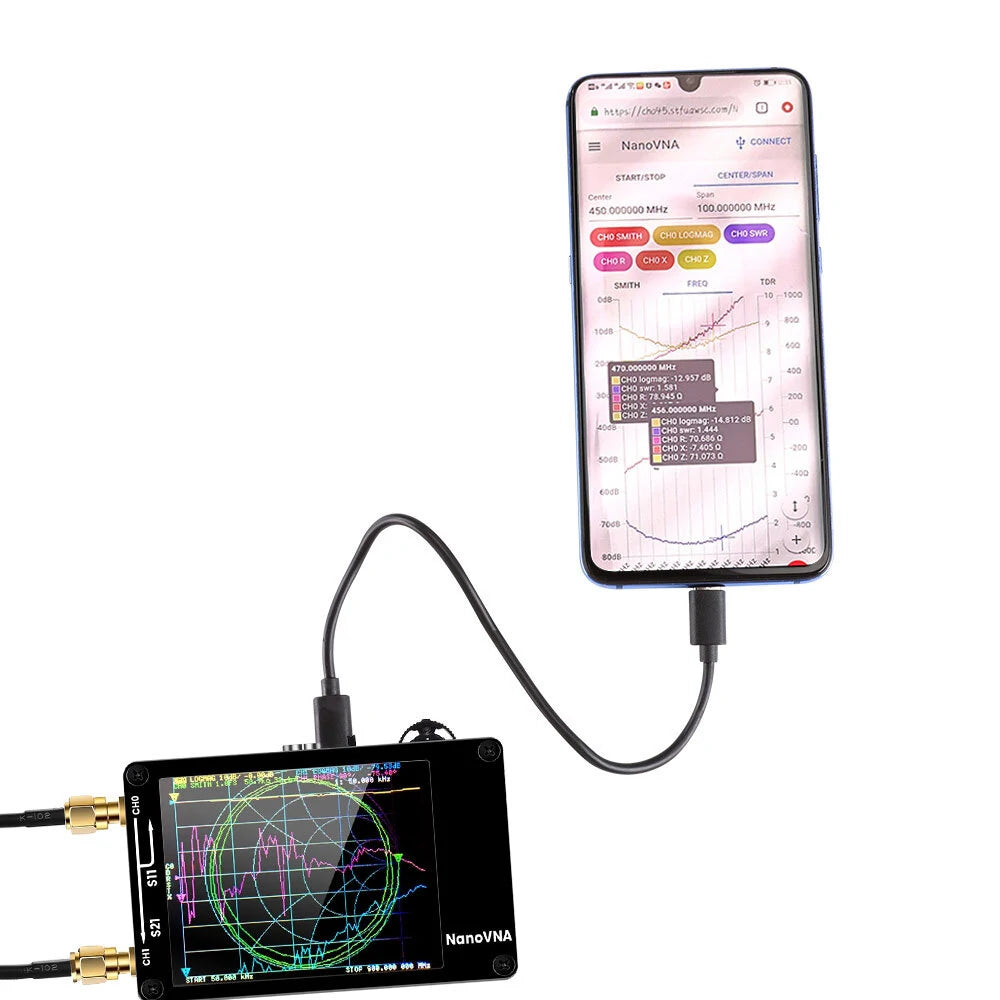

  • Supports Type-C to Type-C connection, enhancing convenience and compatibility with most Android phones for display sharing. (Not compatible with iPhone.)
  • Equipped with Time Domain Analysis (TDR) functionality.
  • On-screen battery usage display for easy monitoring.
  • Unique product serial number located on the back for easy identification.
  • Enhanced packaging with world-cover hot stamping and plastic inner protection to minimize transit-related issues.
  • Refined details for a superior user experience.

Specifications

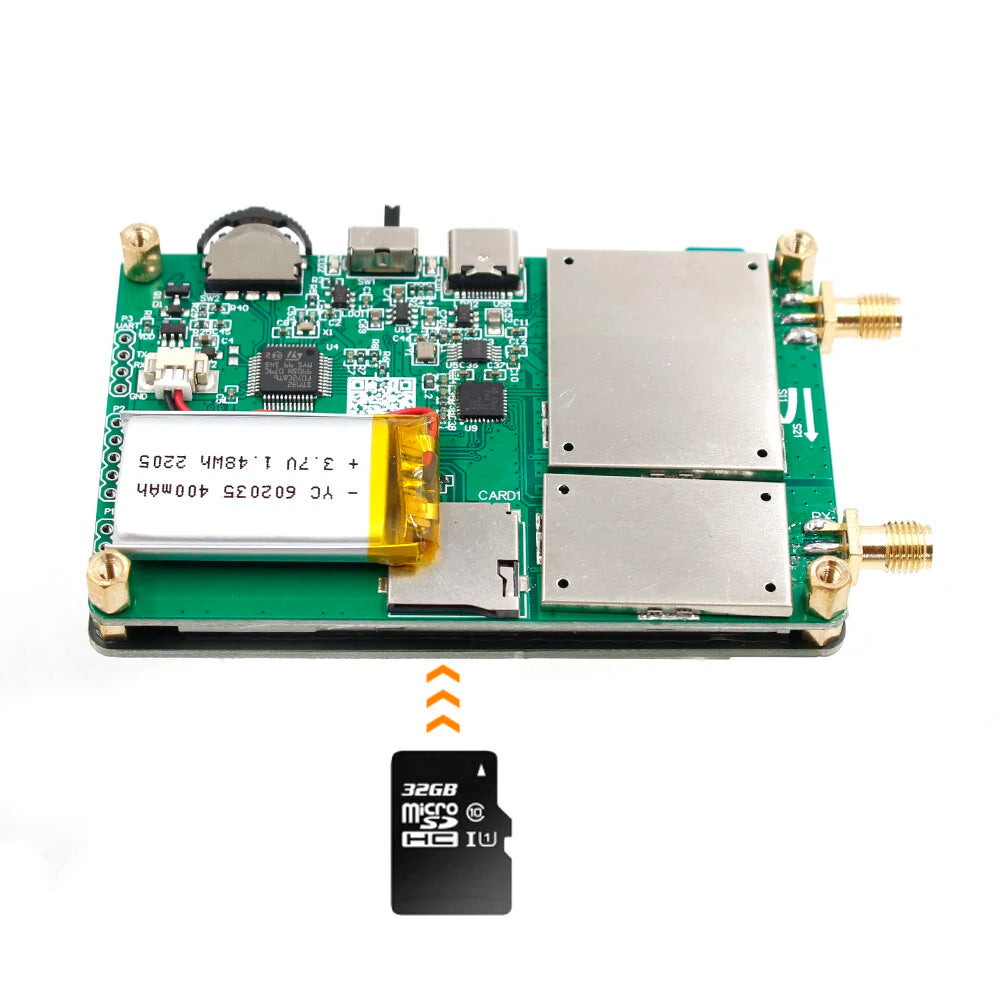

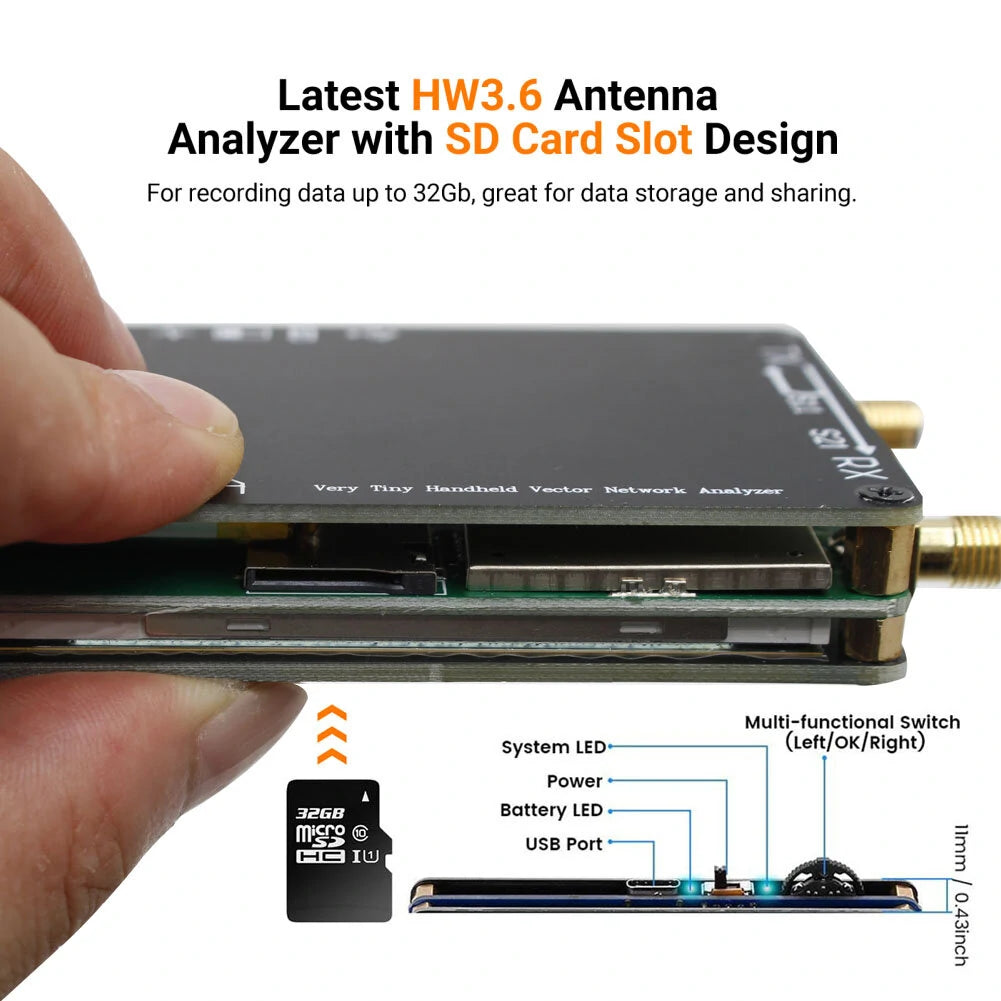

  • PCB Dimensions: 54mm x 85.5mm x 11mm (excluding connectors and switches)
  • Measurement Frequency: 10KHz - 1.5GHz
  • RF Output: -13dBm (maximum -9dBm)
  • Frequency Accuracy: High precision across ranges
  • Measurement Range: 70dB (50kHz-300MHz), 50dB (300M-600MHz), 40dB (600M-900MHz with extended firmware)

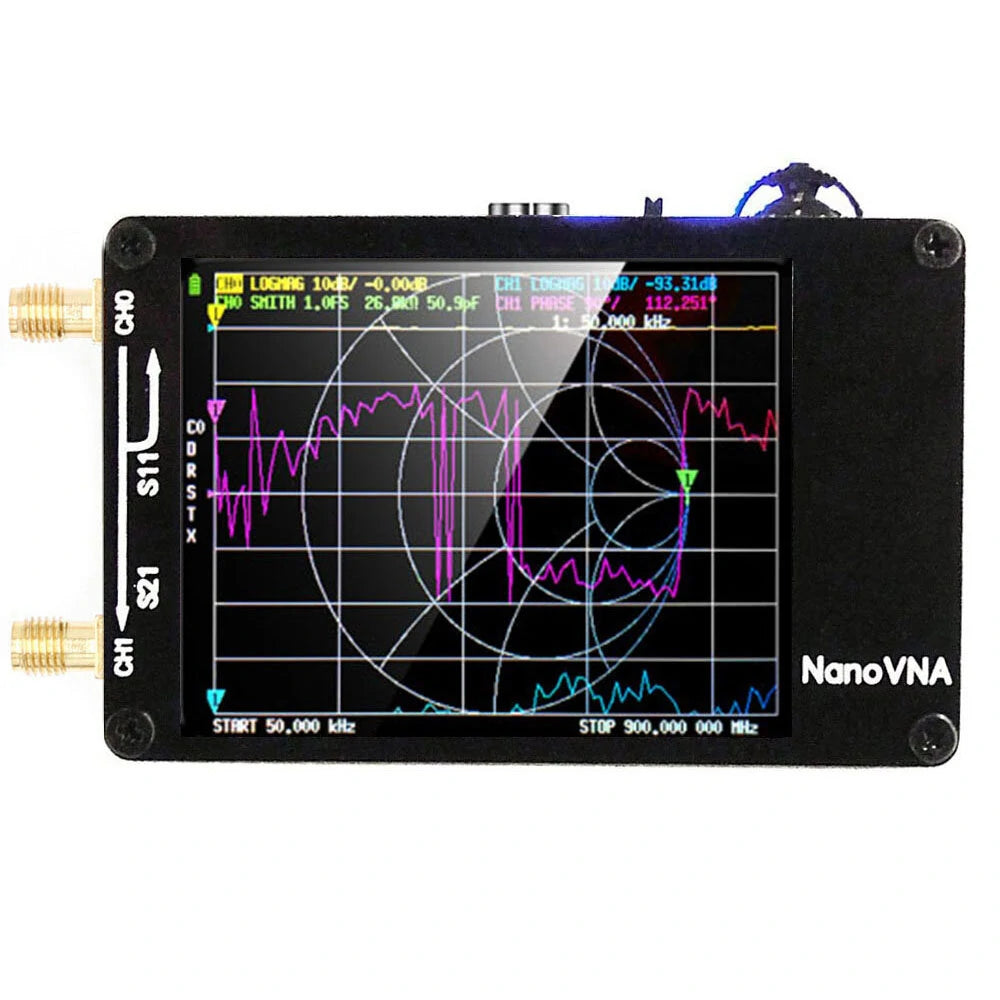

  • Display: 2.8 inch TFT (320x240 resolution)
  • USB Interface: USB Type-C; Communication Mode: CDC (Serial)
  • Power Supply: USB 5V 120mA with a built-in 650mAh battery, maximum charging current 0.8A
  • Calibration Points: Fixed at 101
  • Scanning Points: Fixed at 101
  • Tracking and Marking: 4 display tracking, 4 marking, and 5 settings save options
  • Measurement Capabilities: S parameters, voltage standing wave ratio, phase, delay, Smith chart, and more

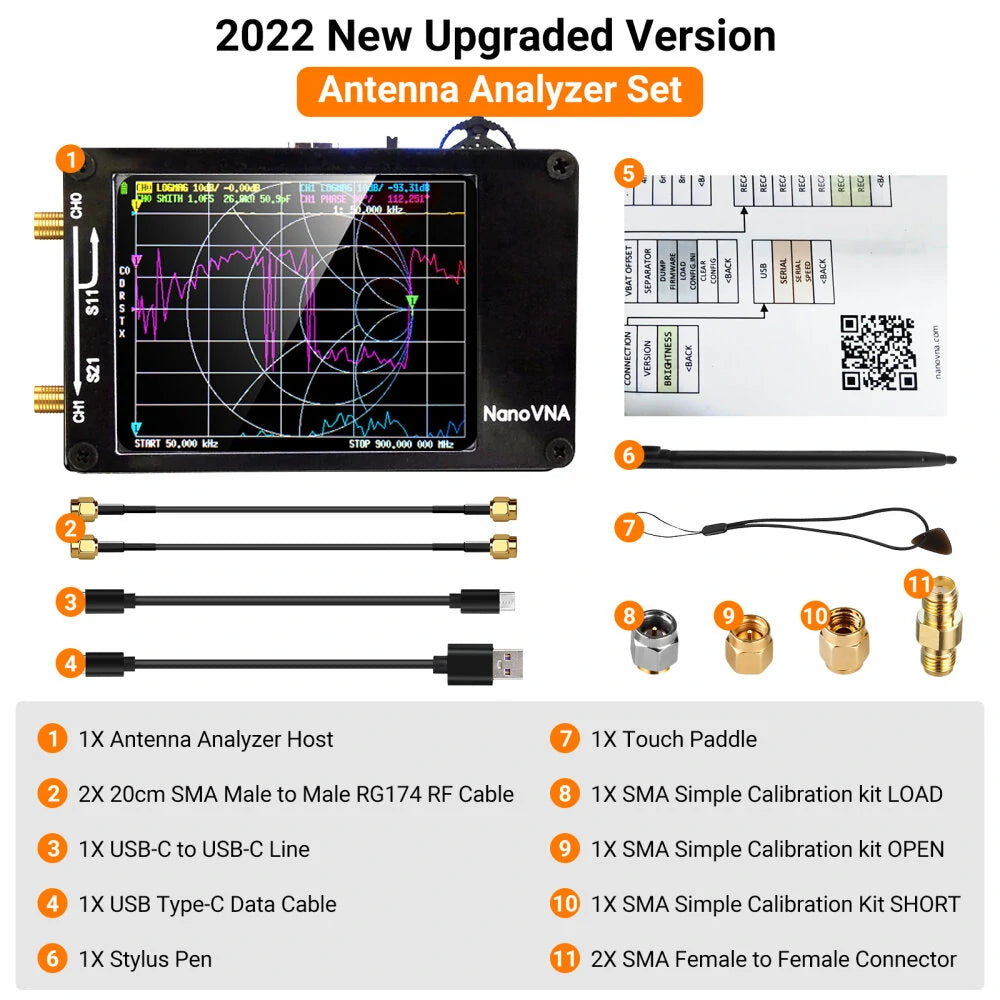

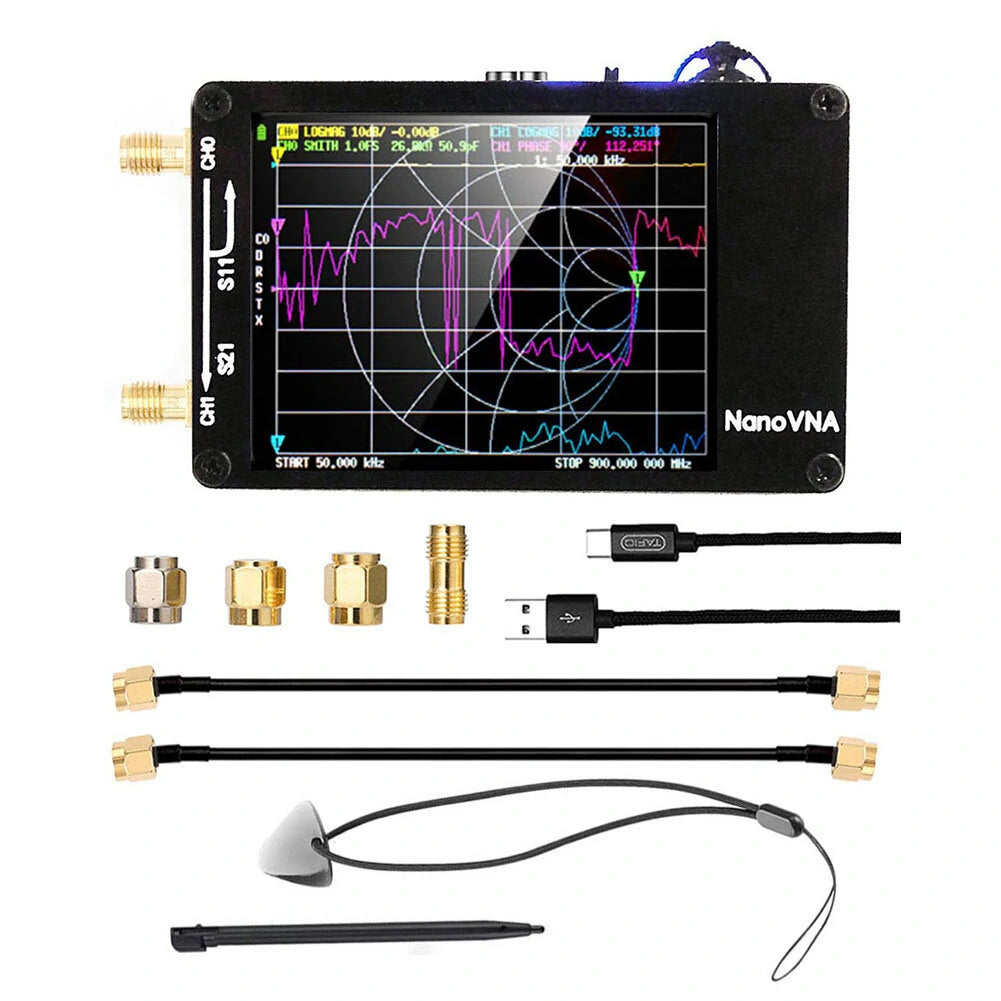

Package Includes

  • 1 x NanoVNA Host (includes 2.8-inch touchscreen and 650mAh battery)
  • 2 x 20cm SMA Male to Male RG174 RF Cables
  • 1 x USB Type-C Data Cable
  • 1 x Type-C to Type-C Line
  • 1 x Stylus Pen
  • 1 x Touch Paddle
  • 2 x SMA Female to Female Connectors
  • 1 x SMA Simple Calibration Kit SHORT
  • 1 x SMA Simple Calibration Kit OPEN
  • 1 x SMA Simple Calibration Kit LOAD
  • 2 x SMA Female to Female Connectors
