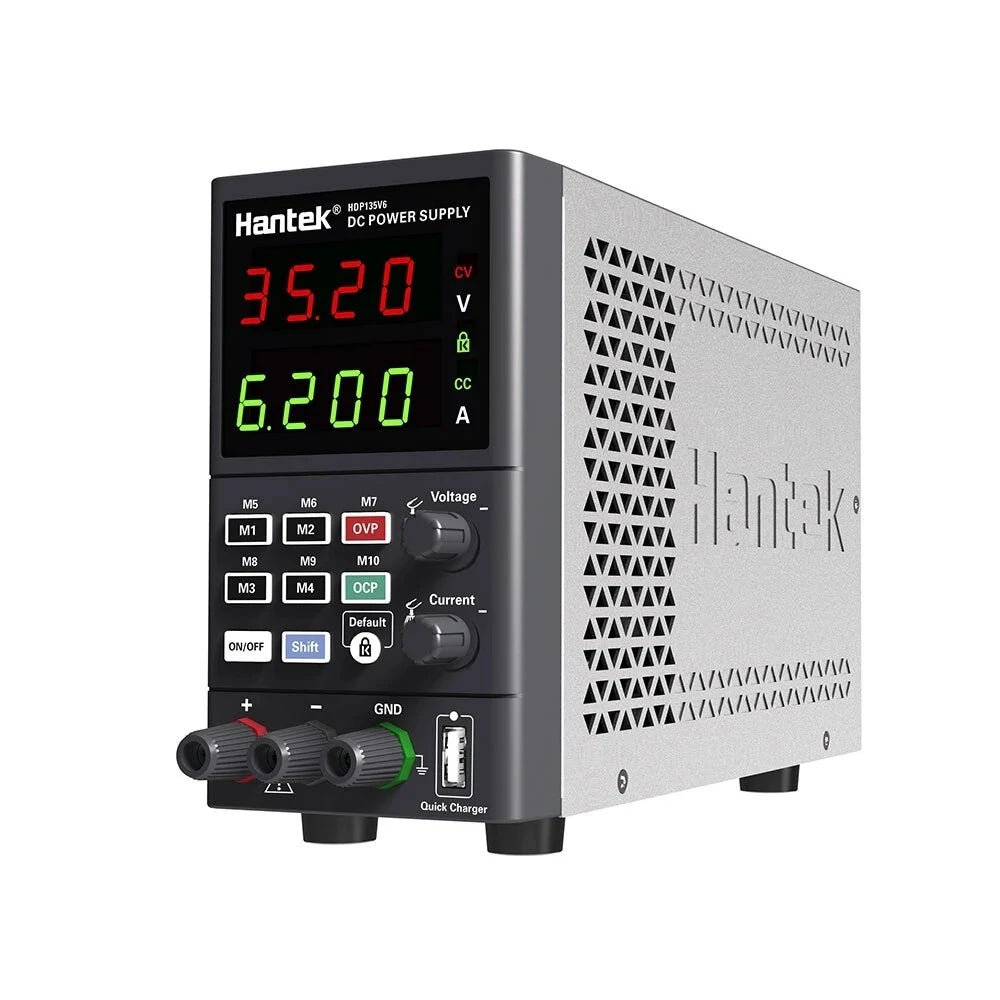

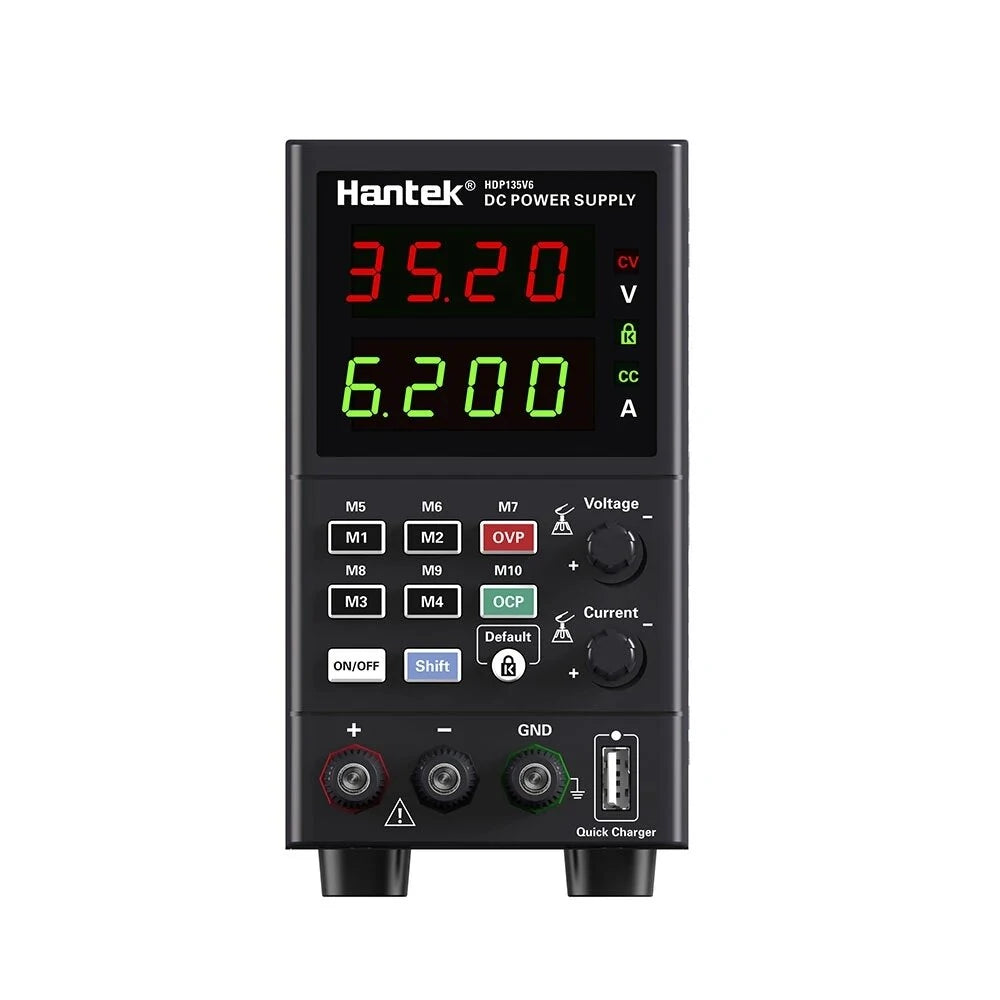

Hantek LED Digital Adjustable 35V/6A DC Power Supply Voltage Regulator Lab Bench

Description:

The HDP10000 Series is an advanced power supply solution, offering precision and versatility for various applications, including laboratory work, production lines, and home appliance maintenance. The unit features a four-digit display for both voltage and current, with a high resolution of up to 10mV/1mA.

This series includes a standard USB quick charge function that supports a range of quick charge protocols. It offers convenient storage for up to 10 data groups and supports multiple power supply control options via a fully isolated serial port and software, allowing for easy setup in measurement, control, or aging systems.

It is equipped with extensive protective functions such as over-voltage, over-current, overload, overheating, and short-circuit protection, ensuring reliable operation. The low-noise temperature control fan makes the device quietly efficient and durable. Additionally, the 35V/6A output remains stable and pure under different conditions.

Designed with user convenience in mind, the power supply features an On/Off output control and a one-button panel lock function to prevent accidental operation. The automatic switch between constant voltage (CV) and constant current (CC) modes protects connected circuits.

The two-stage adjustment topology minimizes load impact during power-on, and its ultra-thin, lightweight design enhances portability. Renowned for its excellent quality, stable performance, and durability, this power supply stands out in its category.

Features:

• Four-digit voltage and current display with resolution up to 10mV/1mA

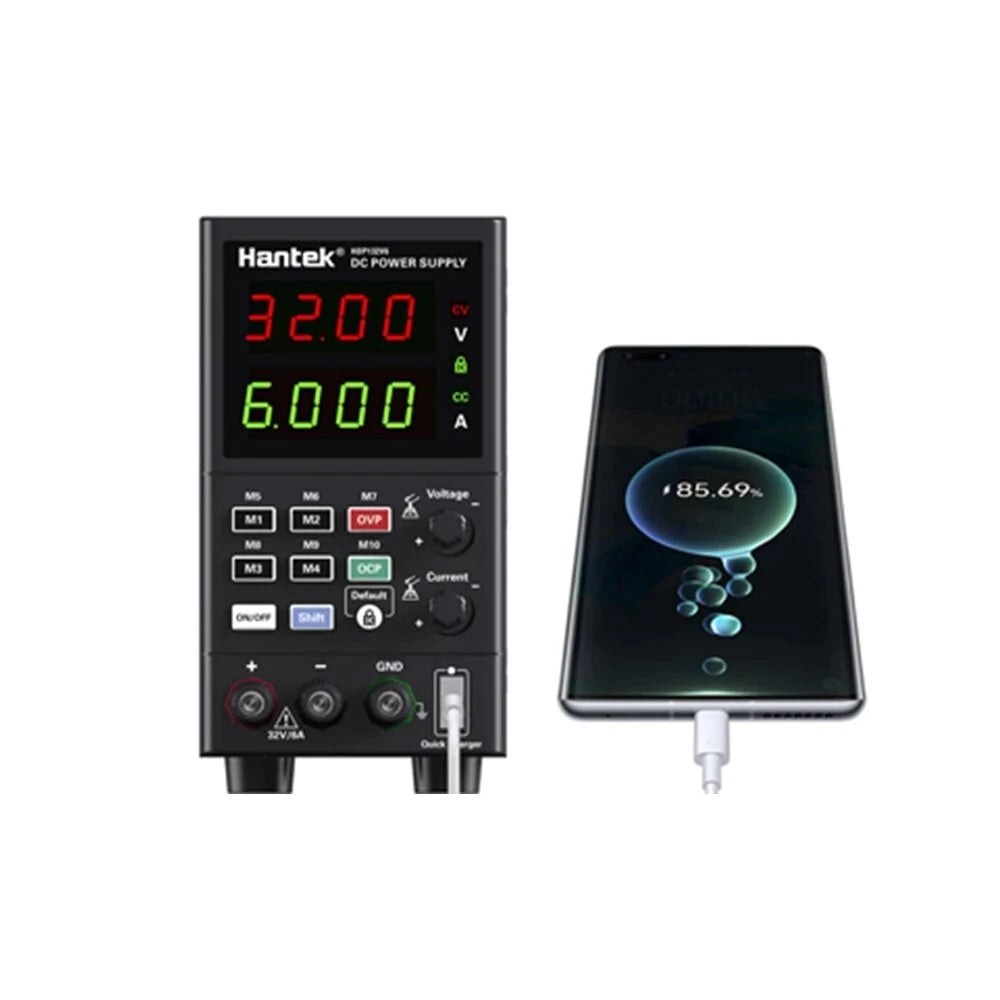

• Standard USB quick charging function supporting multiple protocols (5-12V output)
• 10 data group storage/retrieval capability

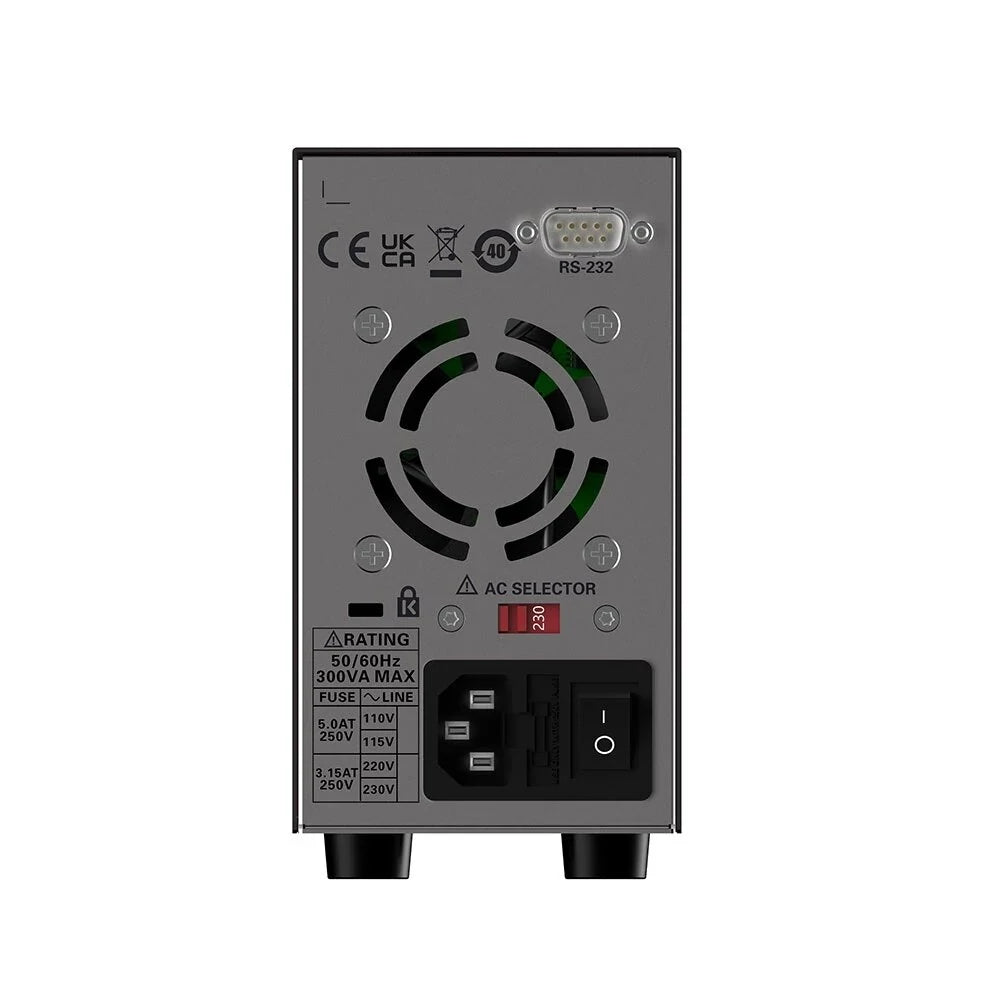

• Universal AC input voltage switch (230/115V)

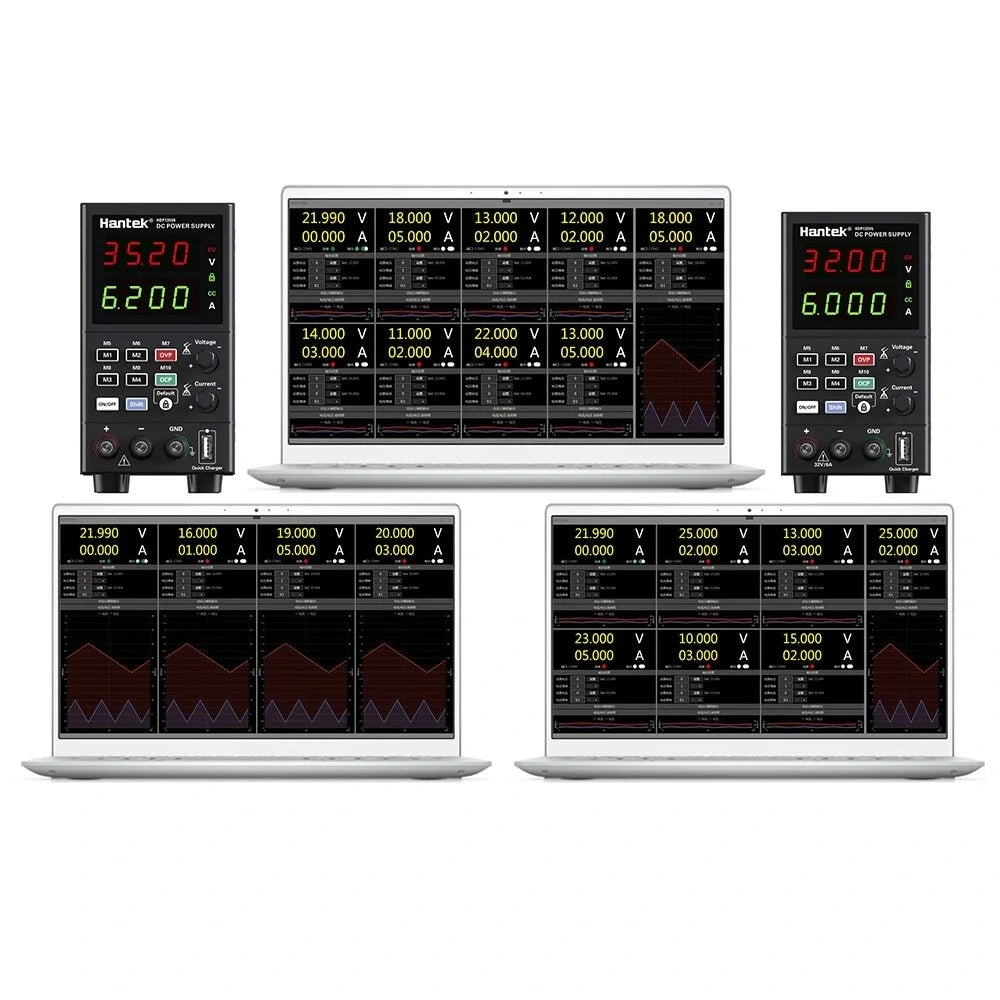

• Fully isolated serial port for multiple power supply control and easy system setup
• Comprehensive protection against over-voltage, over-current, overload, overheating, and short circuit
• Low noise, temperature-controlled fan for quiet and durable operation
• Stable and pure output: 35V/6A with On/Off and one-key panel lock functions
• Automatic CV/CC mode switch for effective circuit protection
• Two-stage adjustment topology for minimal load impact
• Compact and lightweight design for superior portability and performance

Specifications:

• Model Options: HDP135V6, HDP135V6S, HDP135V6A, HDP135V6B
• Channel: 1CH
• Storage Capacity: 10 data groups
• Output Voltage/Current: 35V/6A
• Input Voltage:
  • 120 Vac ± 10%, 220 Vac ± 10%, 50/60Hz
  • 220 Vac ± 10%, 50/60Hz
  • 110 Vac ± 10%, 50/60Hz
• Maximum Output Power: 210W
• Communication Interface: RS232 available in HDP135V6S model
• Voltage Load Regulation: ≤0.1%, 5mV
• Linear Regulation: ≤0.01%, 5mV
• Set Resolution: 10mV
• Set Precision: ≤0.1%, 1 digit
• Read Back Resolution: 10mV
• Read Back Accuracy: ≤0.1%, 1 digit
• Ripple: 10mVrms
• Current Load Regulation: ≤0.2%, 3mA
• Linear Regulation: ≤0.2%, 3mA
• Set Resolution: 1mA
• Set Precision: ≤0.2%, 3mA
• Read Back Resolution: 1mA
• Read Back Accuracy: ≤0.2%, 3 digits
• Ripple: 5mArms
• Overvoltage Protection (OVP): 0 ~ 35V ± 0.2%FS
• Maximum Voltage: 35V ± 0.2%
• Overcurrent Protection (OCP): 0 ~ 6A ± 0.2%FS
• Maximum Current: 6A ± 0.2%
• Quick Charge Output Voltage Range: 5V~12V
• Output Power: Maximum: 18W
• Supported Fast Charging Protocols: DCP (Apple, BC1.2), QC2.0/QC3.0, Huawei Quick Charge Protocol FCP, Samsung Quick Charge Protocol AFC
• General Features:
  • Working Conditions: Temperature -10℃ to 40℃, relative humidity ≤80%
  • Storage Conditions: Temperature -20℃ to 60℃, relative humidity ≤80%
  • Cooling: Air cooling
  • Weight: 2.2 Kg
  • Size: 85 x 150 x 230 mm

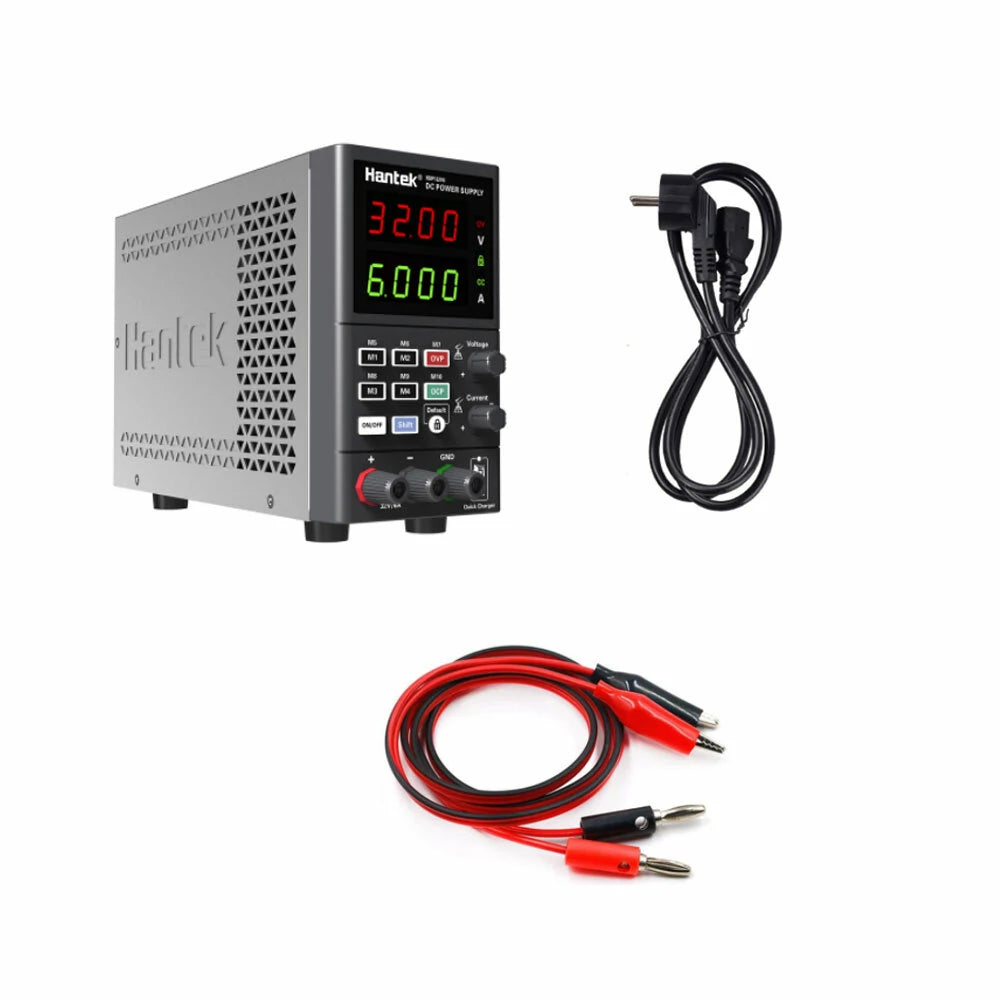

Package Includes:

• 1 x HDP135V6A/HDP135V6B DC Power Supply
• 1 x Adapter (EU/US Plug)
• 2 x Test Cable
