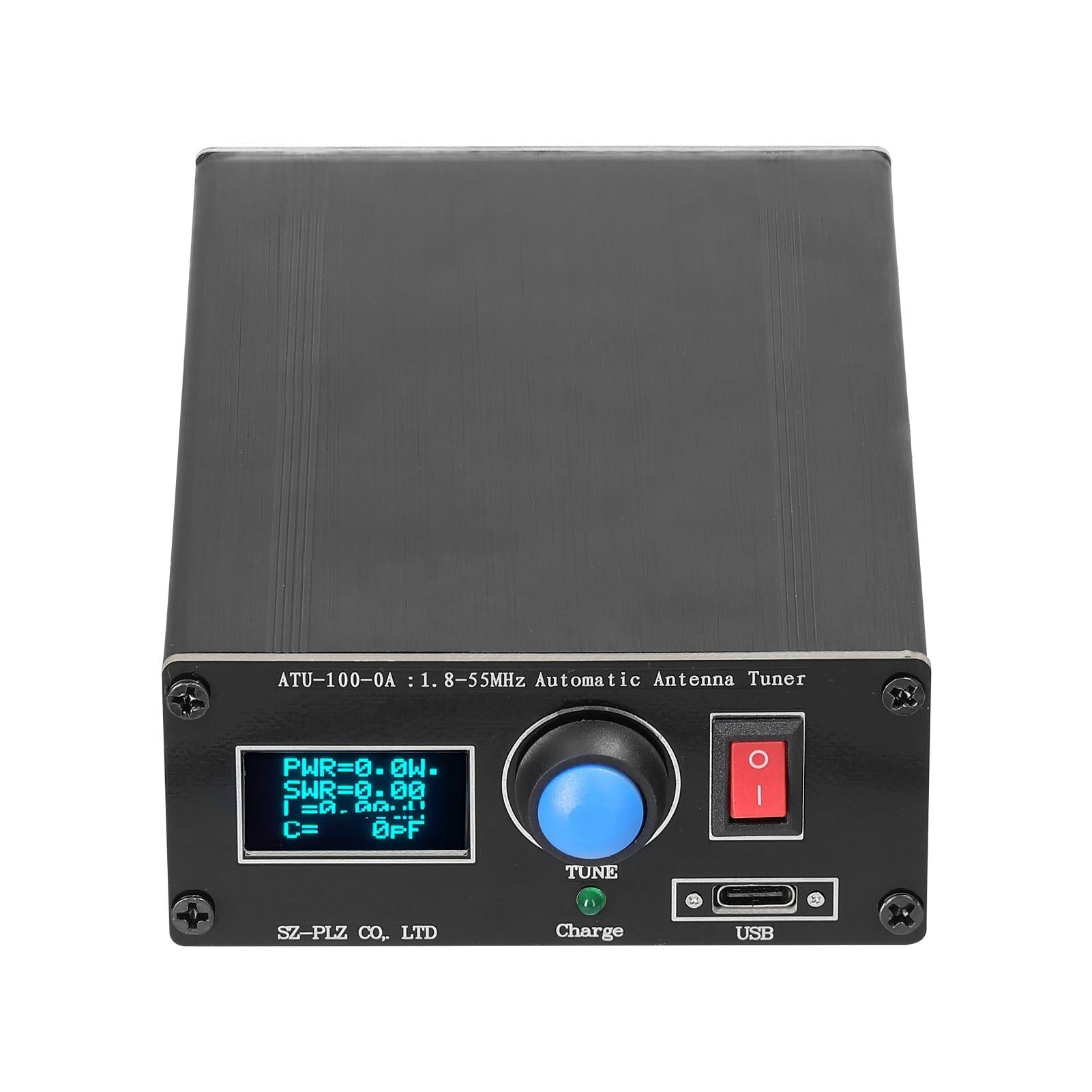

Mini Automatic Antenna Tuner ATU-100-0A, 1.8-55MHz, 0.91 OLED Display, Aluminum Alloy Case, 1800mAh Battery

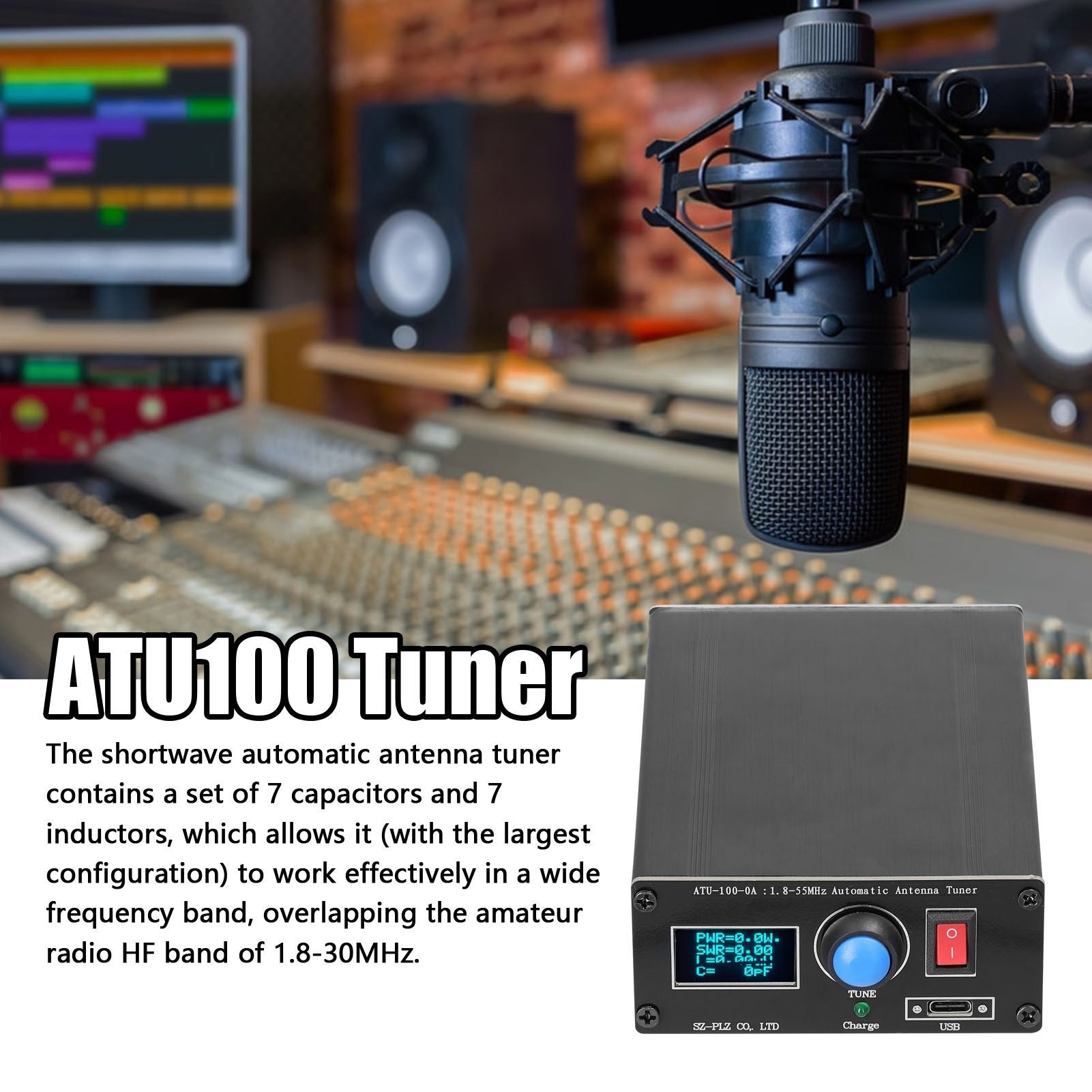

The Shortwave Automatic Antenna Tuner is an expertly engineered device designed for seamless and efficient performance across a broad spectrum of frequencies, covering the amateur radio HF band from 1.8 to 30MHz. Featuring a dynamic setup of 7 capacitors and 7 inductors, it ensures optimal functionality in diverse configurations.

Key Features:

• Versatile Frequency Range: Operates effectively across the HF band, providing reliable tuning for amateur radio enthusiasts.
• Quality Construction: Built from high-quality materials, it boasts wear resistance and stable, reliable performance.
• Rechargeable Power: Equipped with a built-in 3.7V, 1800mAh lithium battery that can be easily recharged via a Type-C cable.
• Clear Display: A 0.91-inch OLED display provides clear and easy-to-read data, enhancing user experience.
• Automatic Tuning: Automatically tunes without the need for control wires, making it suitable for most radio stations.
• User-friendly Operation: Features a simple one-button on/off system for effortless use.

Operating Instructions:

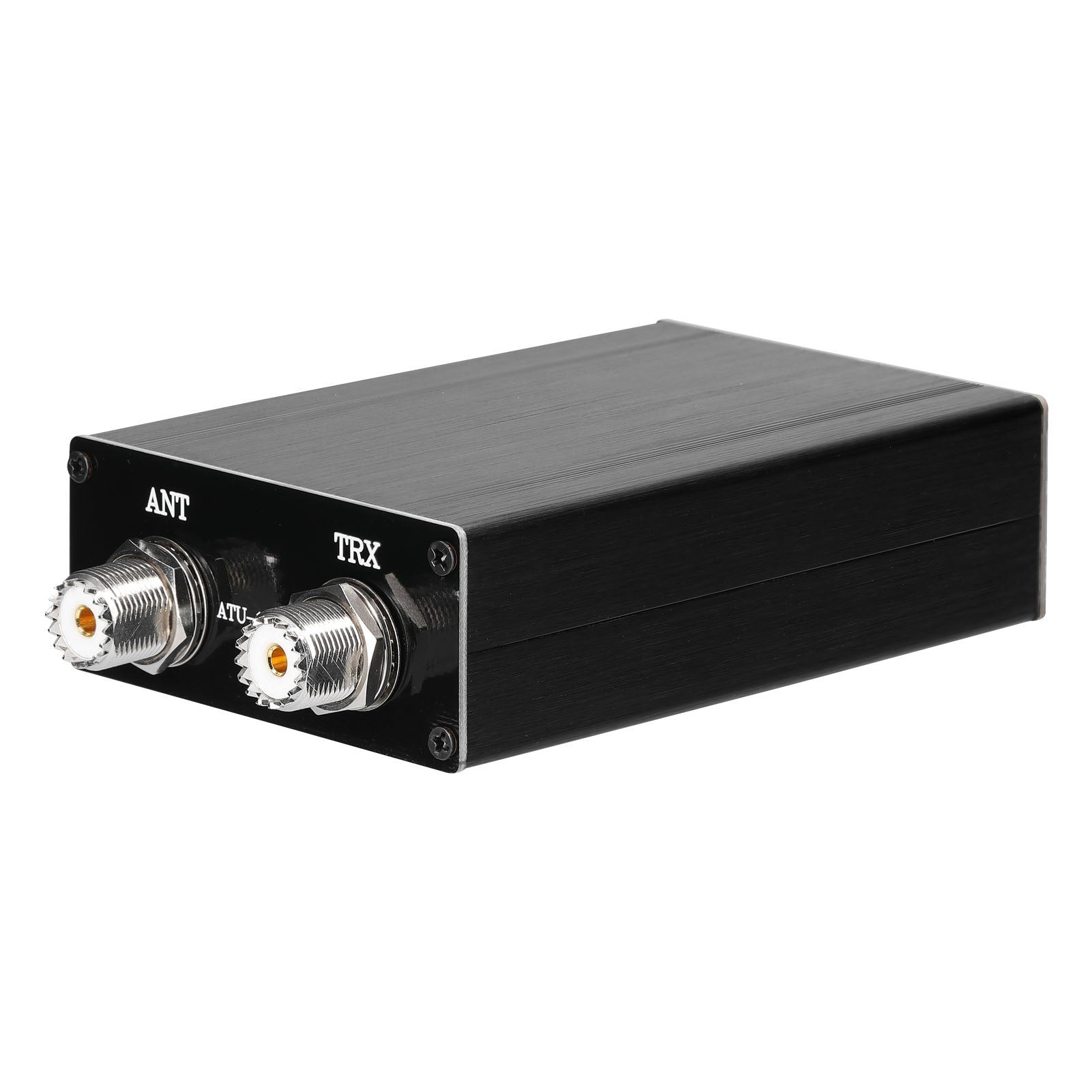

1. Connect the radio, antenna tuner, and antenna.
2. For initial use, set the radio or power amplifier output power between 20-30W to prevent potential damage from high-power tuning.
3. Set the radio mode to frequency modulation.
4. Select the antenna band and use 20-30W power in frequency modulation mode. Press the radio PTT and monitor the ATU antenna tuner's PWR and SWR.

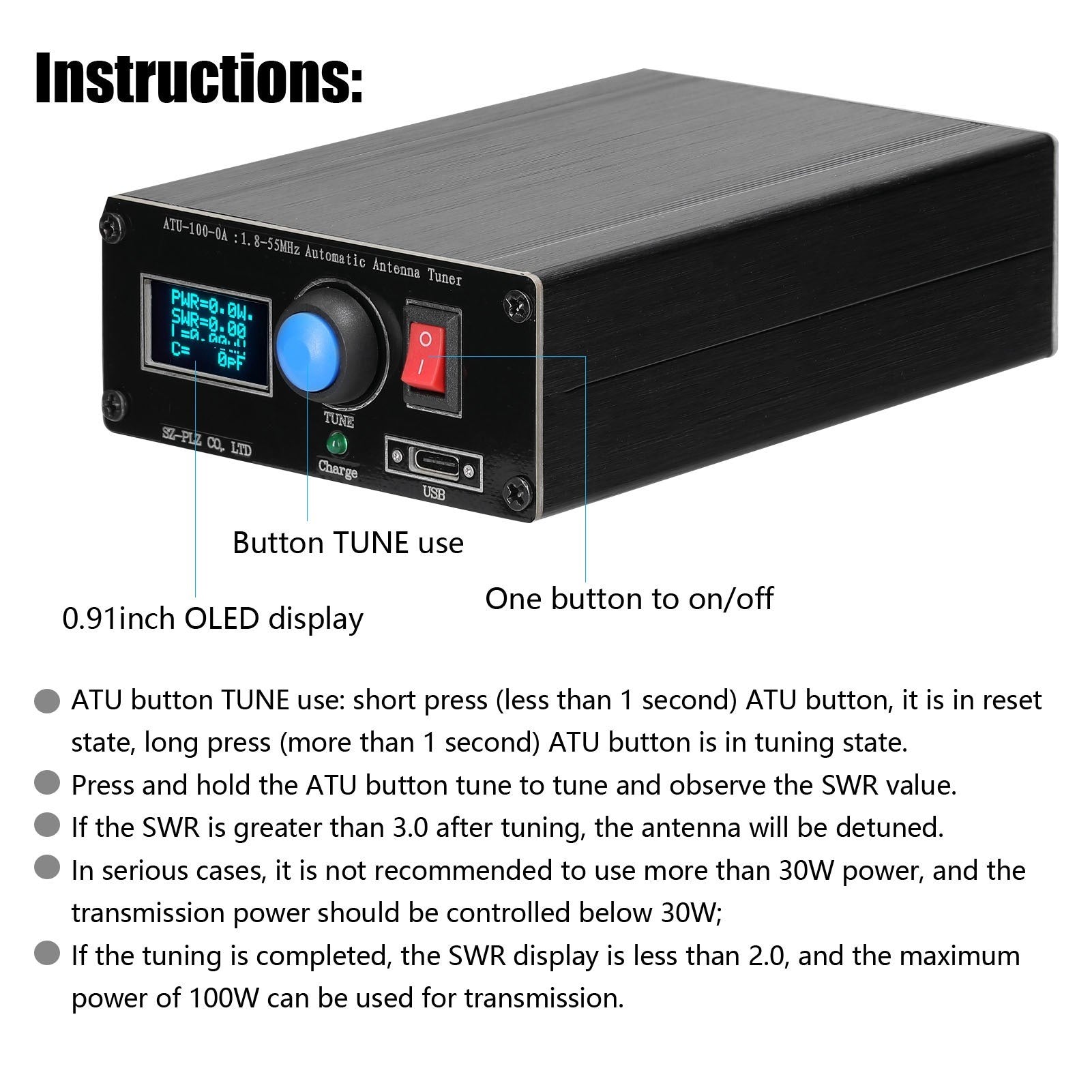

5. The ATU button has two functions: a short press (less than 1 second) resets it, while a long press (more than 1 second) initiates tuning.
6. If the SWR is greater than 2.0 during transmission, the antenna may be detuned. Use the antenna tuner by holding the ATU button to adjust, aiming for an SWR below 2.0 for optimal performance. If the SWR exceeds 3.0 post-tuning, limit transmission power to below 30W.

Specifications:

• Name: ATU100 Tuner
• Material: Aluminum alloy
• Color: Black
• Display: 0.91-inch OLED
• Charge: USB Type-C cable
• Battery: 3.7V, 1800mAh lithium battery
• Voltage: Typical +12V (DC10-15V, 13.8V)
• Working Frequency: 1.8-55MHz
• Maximum Current Consumption: 400mA
• Maximum Working Power: 100W
• Maximum Possible Measurement Power: 150W
• Minimum Power Required to Start Tuning: 5W
• Minimum Possible Measurement Power: 0.1W
• Measurement Steps: Up to 10W: 0.1W | Above 10W: 1W
• Power Measurement Accuracy: 10%
• Maximum Installation Inductance: 8.53uH
• Minimum Installation Inductance Step Length: 0.05uH
• Maximum Installation Capacitance: 1869pF
• Minimum Installation Capacitance Step Length: 10pF
• Panel Buttons: 3 (ON/OFF, AUTO, TUNE)
• Item Size: 160 x 90 x 40mm
• Item Weight: 413g
• Package Size: 175 x 122 x 55mm
• Package Weight: 465g

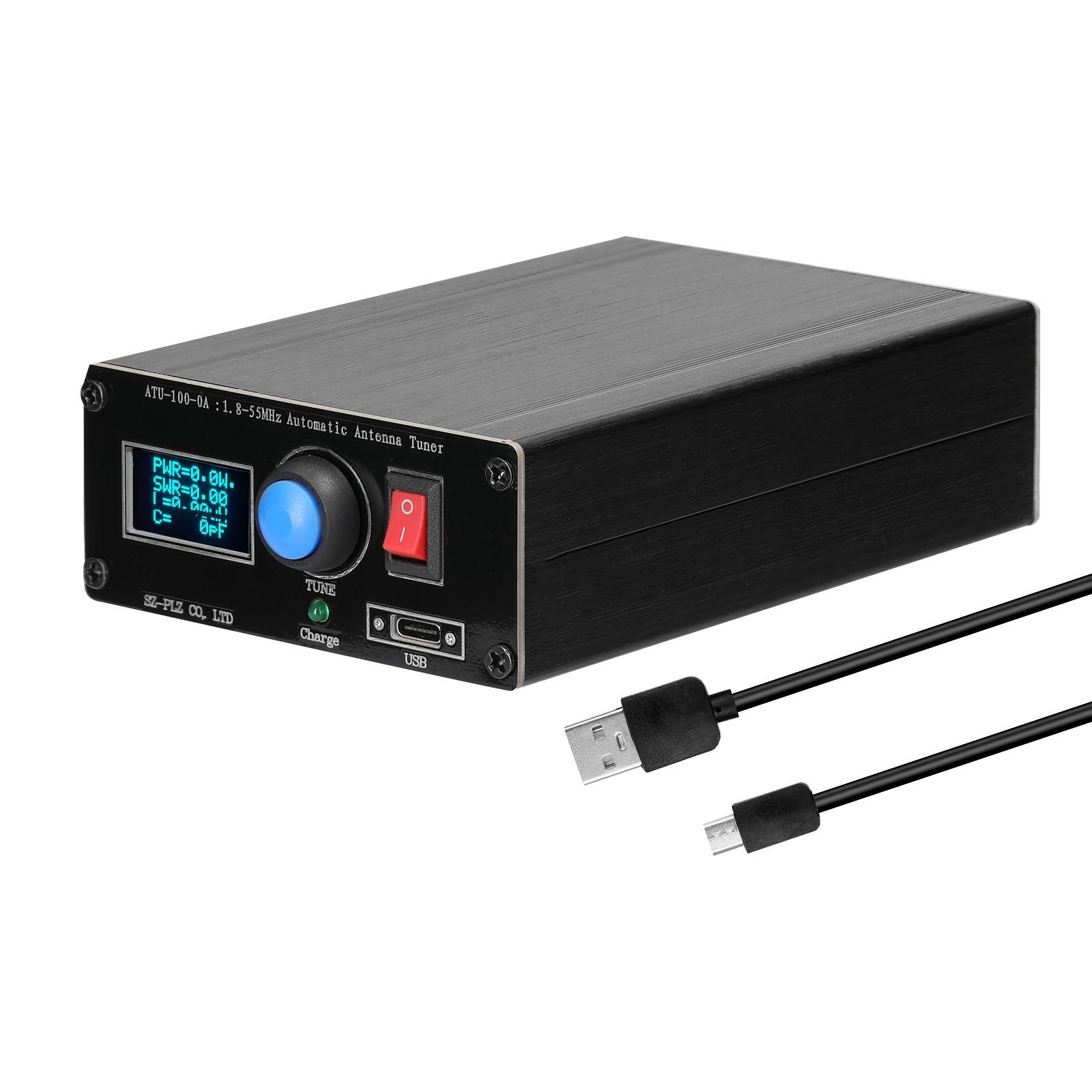

Packing List:

• 1 x ATU100 Tuner
• 1 x Type-C Cable
