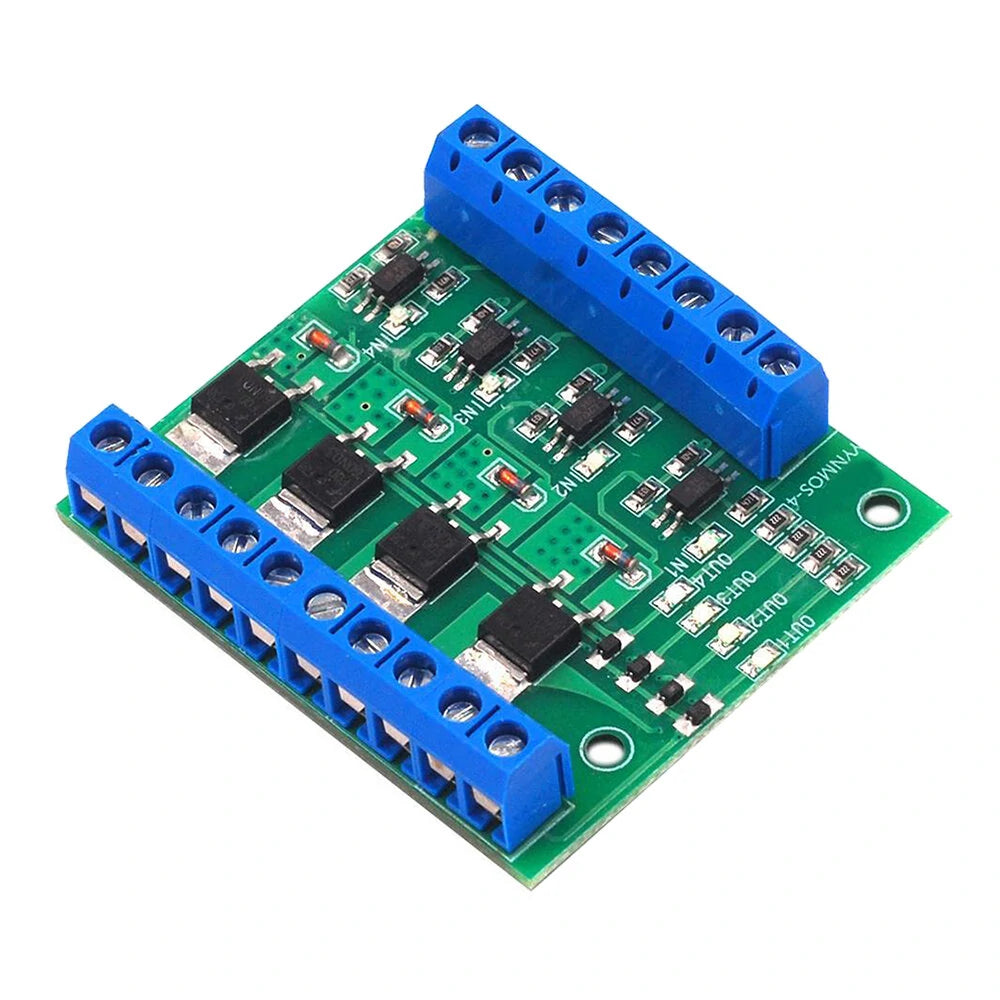

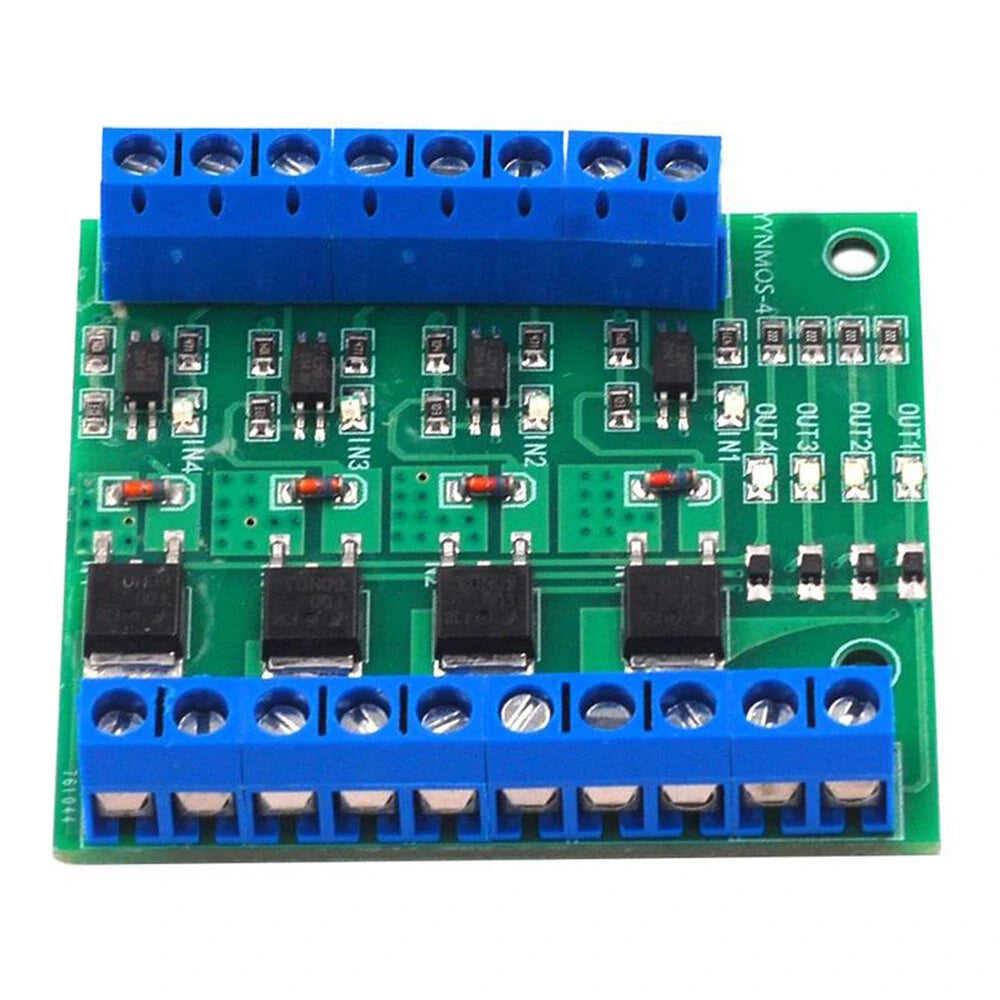

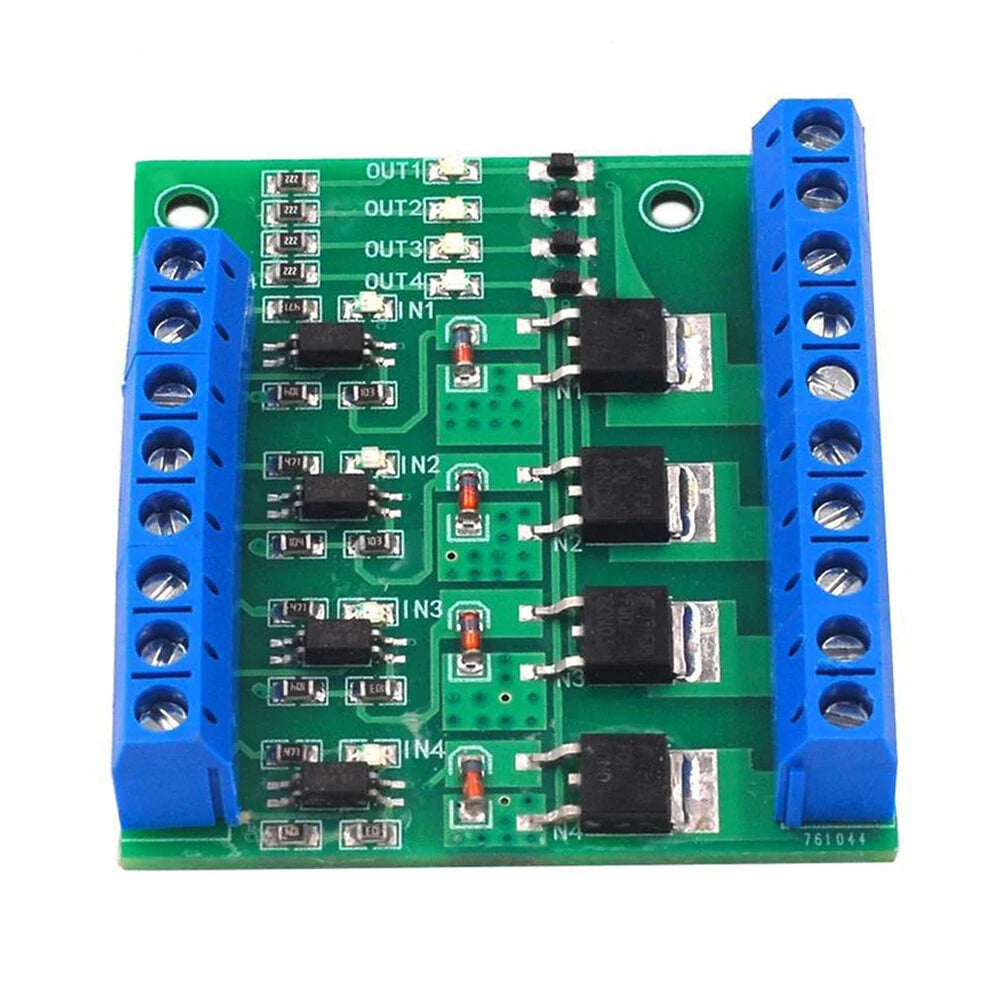

4-Channel MOSFET PLC Amplifier Driver Module PWM 3-20V to 3.7-27V DC 10A Optocoupler Isolation Accessories

Product Specifications

• Model: YYNMOS-4
• Weight: 27g
• Size: 56 x 50 x 10 mm

Features

• Strong anti-interference ability and stable performance with isolation between input signal and output.
• Compatible with input PWM signals ranging from 3V to 20V.
• Supports output voltage from DC 3.7V to 27V and current up to 10A per channel.
• Operates within a PWM frequency range of 0 to 200Hz.
• Equipped with indicator lights for both input signal and output status.

Application

This module is versatile in controlling high-power equipment such as motors, bulbs, LED strips, DC motors, miniature water pumps, and solenoid valves. It allows for precise control over motor speed and lamp brightness via PWM input.

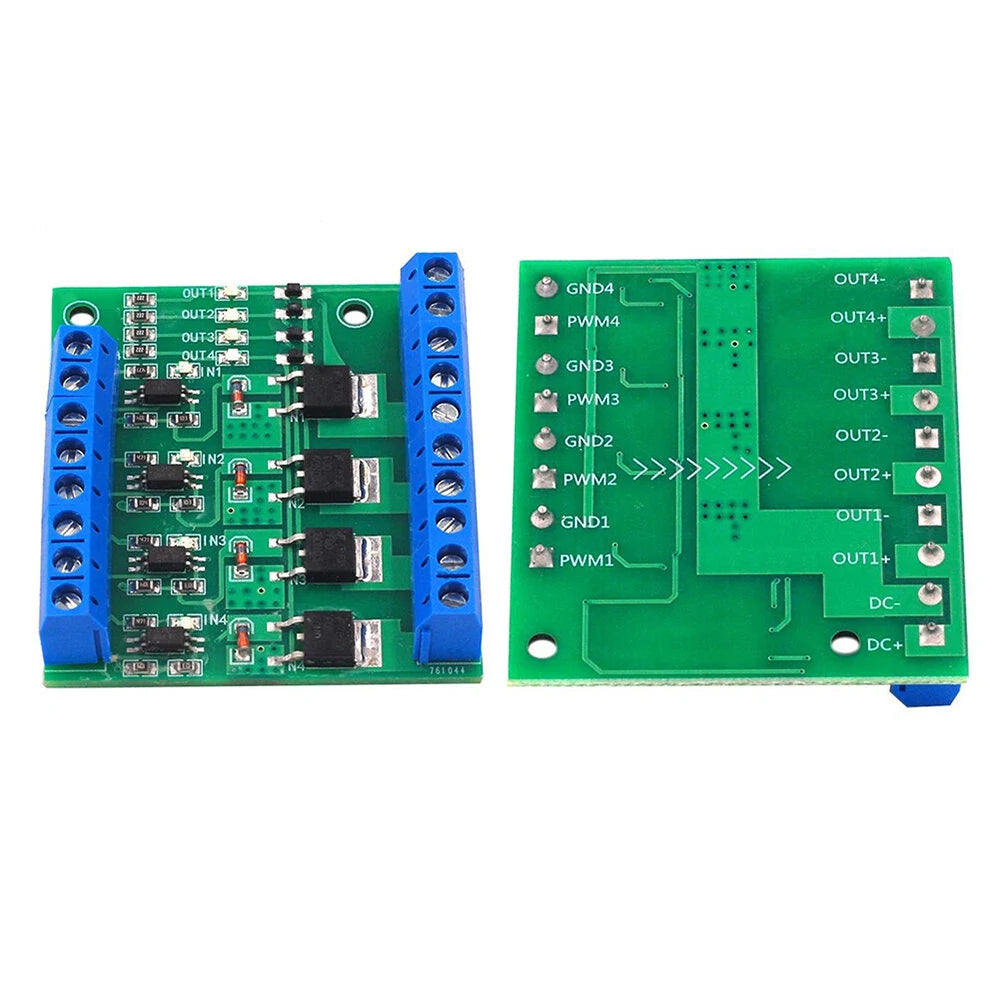

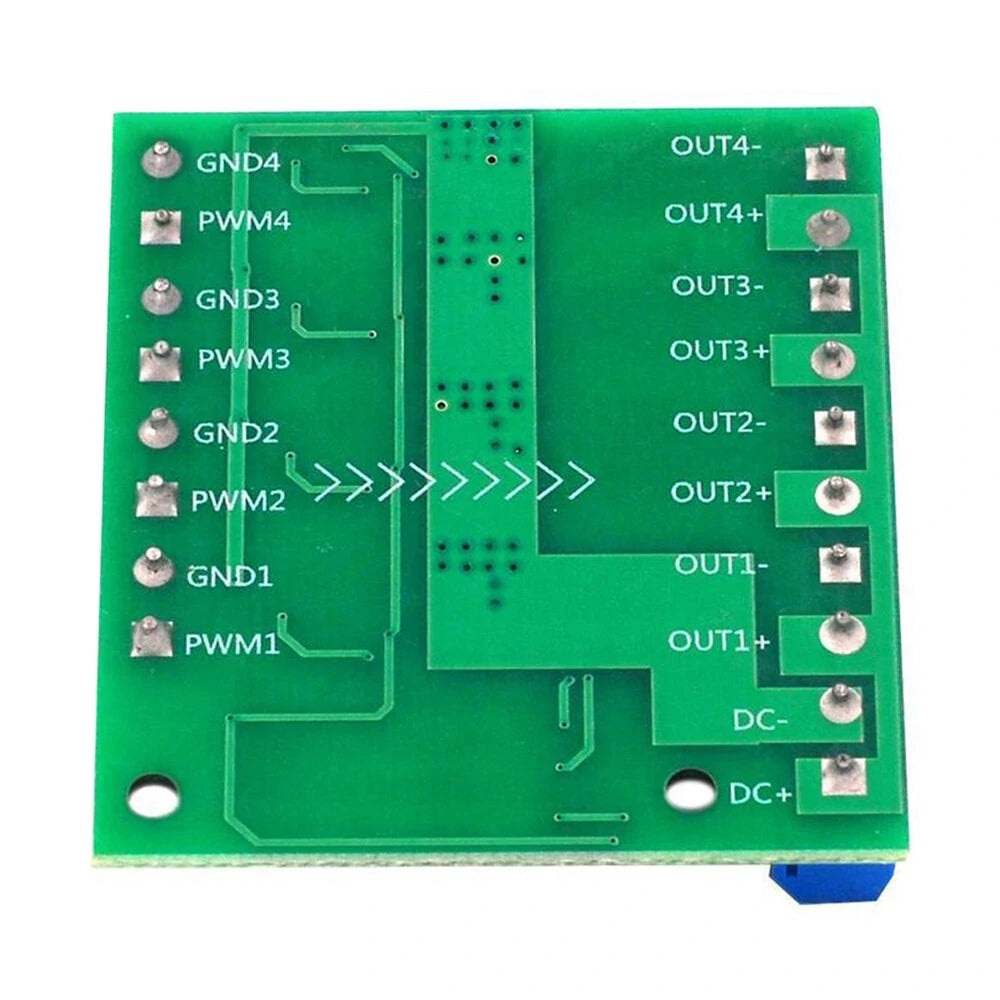

Module Interface Description

• DC+: Connect to the positive terminal of the device's DC power supply.
• DC-: Connect to the negative terminal of the device's DC power supply.
• PWM: Signal input terminal (compatible with MCU IO port, PLC interface, etc.).
• GND: Signal negative terminal.
• OUT+: Positive output terminal (connect to the positive pole of the device).
• OUT-: Negative output terminal (connect to the negative pole of the device).

Package Includes

1× Module Board
