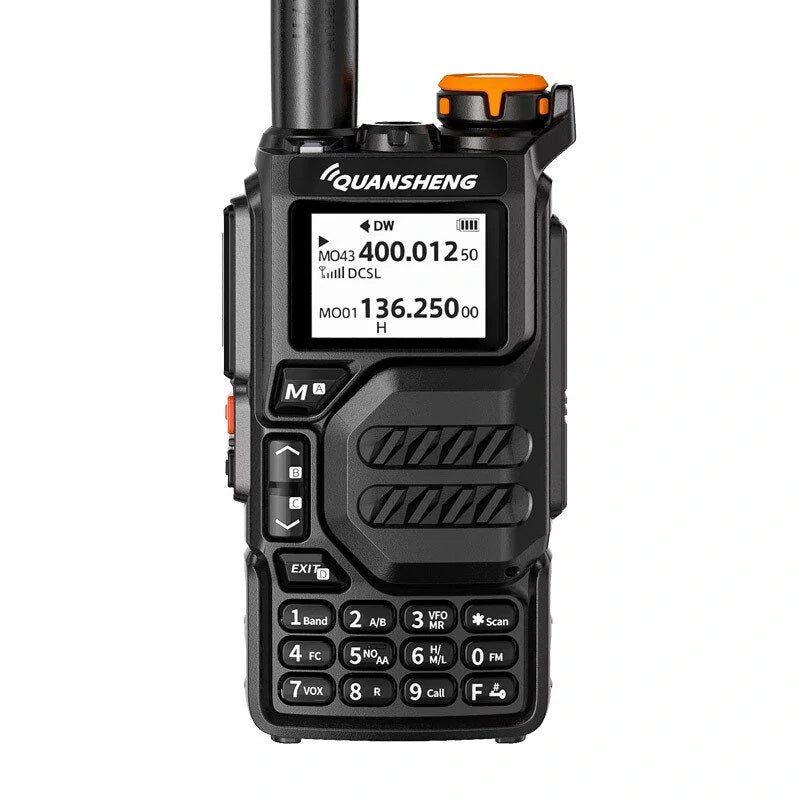

QUANSHENG UV-K5 5W High-Power Multi-Band Walkie Talkie with Air Band, NOAA, DTMF, Scrambler, and LED Flashlight

Product Details: UV-K6 Radio

Click here to open

Features:

• NOAA Weather Forecast
• VHF UHF Dual Band Transmit and Receiver, 50-600MHz Full Band Receiving
• FM Radio: 76.000-108.000MHz
• Air Band Receiving and Cross-band Communication
• Wireless Frequency Copy from Other Radios
• Wireless Radio Replication from Quansheng TG-K5 Radios
• Auto/Manual Emergency Alert
• 10 Group Scrambler
• Frequency/DCS/CTCSS Scan
• Digital Signal CTCSS/DCS

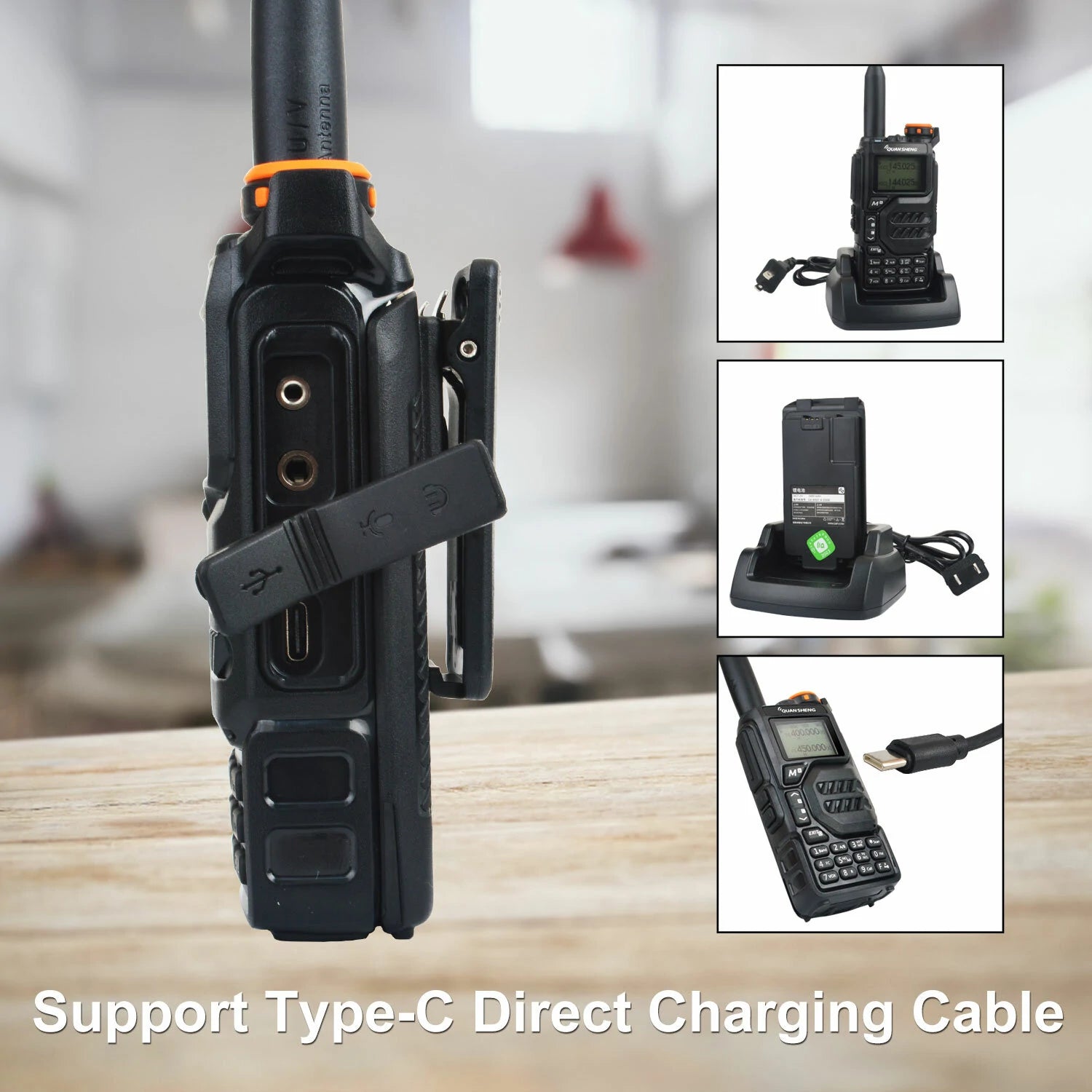

• Desktop Cradle Charging V0X (Voice Operated Transmission)
• Dual Band Standby
• DTMF and 1750 Tone
• 200 Memory Channels

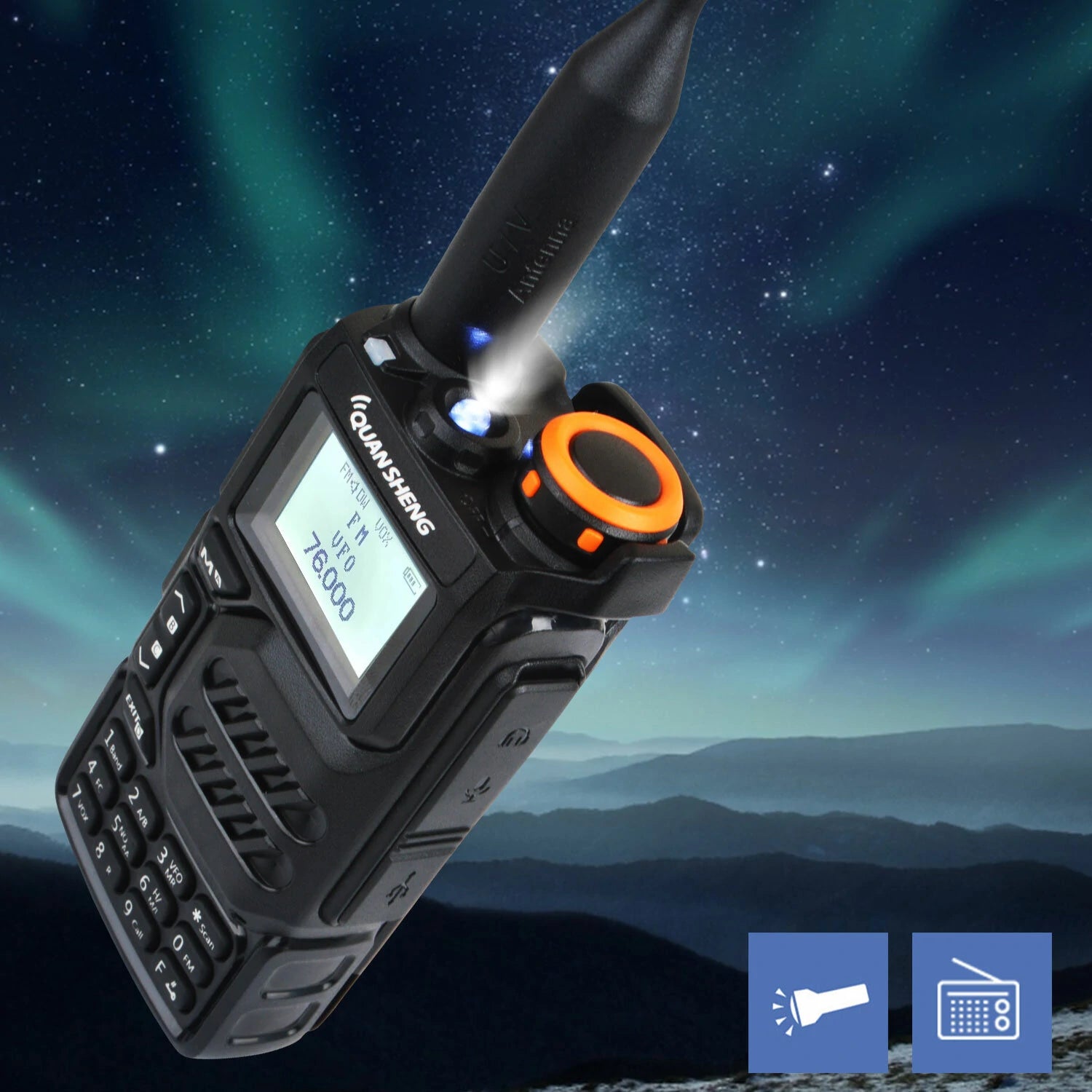

• Built-in High Light Torch

Specifications:

General
Memory Channel Number	200
Channel Number for FM Commercial Radio	20
NOAA Memory Channel Number	10
Frequency Stability	±1ppm
Dimensions & Weight
Dimensions	115mm x 60mm x 37.5mm
Weight	243g
Technical Details
Working Temperature	-20°C ~ +60°C
Antenna Impedance	50 ohm
Receiving Parts
Referenced Sensitivity (FM 12dB SINAD)	F1 (50-76MHz): -121dBm F2 (108-135.9975MHz): -121dBm F3 (136-173.997MHz): -123dBm F4 (174-349.9975MHz): -123dBm F5 (350-399.9975MHz): -123dBm F6 (400-469.9975MHz): -123dBm F7 (470-599.9975MHz): -121dBm
WFM (76-108MHz):	-110dBm
AM (F2 108-135.9975MHz):	-113dBm
Audio Rated Power	≥0.5W
Audio Distortion	≤10%
Transmission Parts
Frequency Range	136-173.9975MHz, 400-469.9975MHz
Output Power	5W / 4W
Working Current	≤1.5A
Max. Frequency Deviation	≤5KHz (25KHz), ≤2.5KHz (12.5KHz)
Modulation Distortion	≤5%
Spurious Radiation	≤7.5uW
Adjacent Channel Power	70dB (25KHz), 60dB (12.5KHz)
Inter-modulation	40dB

Note: Specifications are subject to change without notice due to technical improvement.
