UT502C Insulation Resistance Tester

The UT500 series digital insulation resistance testers feature a new design with a large scale integrated circuit and digital technology. These testers are ideal for measuring insulation resistance, alternating voltage, and other parameters. The series is known for its comprehensive functions, high accuracy, stable performance, and ease of use, ensuring a comfortable and reliable operation.

The tester is essential for maintenance, testing, and verification of various electrical equipment, including transformers, motors, cables, switches, and electric appliances.

Specifications

• Output Voltage Measurement Range
• Insulation Resistance Measurement:
• 250V: 0.00MΩ～500MΩ
• 500V: 0.00MΩ～2.00GΩ
• 1000V: 0.00MΩ～5.00GΩ
• 2500V: 0.00MΩ～20.0GΩ
• Accuracy:
• 0.00MΩ～99.9MΩ: ±(3%+5)
• 100MΩ～9.99GΩ: ±(5%+5)
• 10.0GΩ～20.0GΩ: ±(10%+5)
• Voltage Measurement Range: AC 30V～750V (50Hz/60Hz), ±(2%+3)
• Short-Circuit Current
• Power Supply Options:
• Adaptor (optional, without charging function)
• 6×1.5V AA alkaline batteries
• Auto Power Off: Yes
• Self-Lock Function: Yes
• Low Battery Indication: Yes
• Data Hold: Yes
• Auto Discharge: Yes
• Audible and Visual Alarm: Yes
• Overrange Indication: Yes

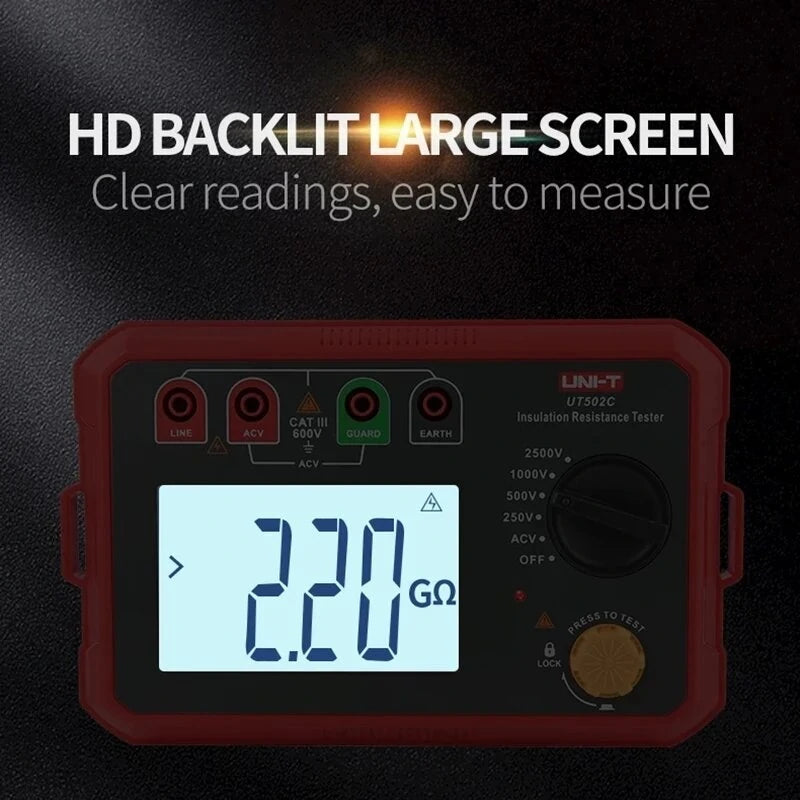

• Backlight function: Yes
• Altitude: ≤2000 m
• Operating Temperature and Humidity: 0℃~35℃
• Storage Temperature and Humidity: -20℃~60℃
• Rating: CAT III 600V
• Product Color: Red, Grey
• Product Size: 183.5mm x 115mm x 74mm

Key Features

• Insulation resistance measurement
• AC voltage measurement
• Buzzer alarm
• Backlight display
• Automatic shutdown
• Voltage reminder

Package Includes

• 1 x Meter (No batteries included)
• 1 x Cloth Bag
• 1 x Color Box
• 2 x Test Lead
• 2 x Alligator Clip
• 1 x Manual
