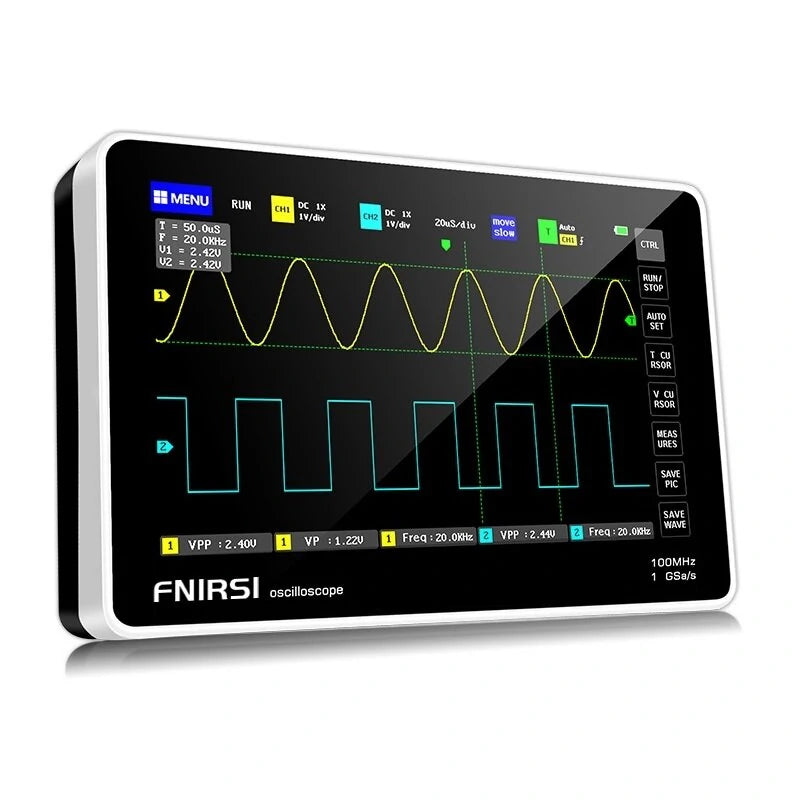

FNIRSI-1013D Oscilloscope

Description

The FNIRSI-1013D is a versatile and cost-effective dual-channel flat-panel oscilloscope, expertly designed for the maintenance and R&D industries. Boasting a real-time sampling rate of 1GSa/s and dual 100MHz analog bandwidth, it's equipped to handle both periodic analog and non-periodic digital signals with ease. The built-in high-voltage protection module ensures safety, tolerating continuous voltages up to 400V.

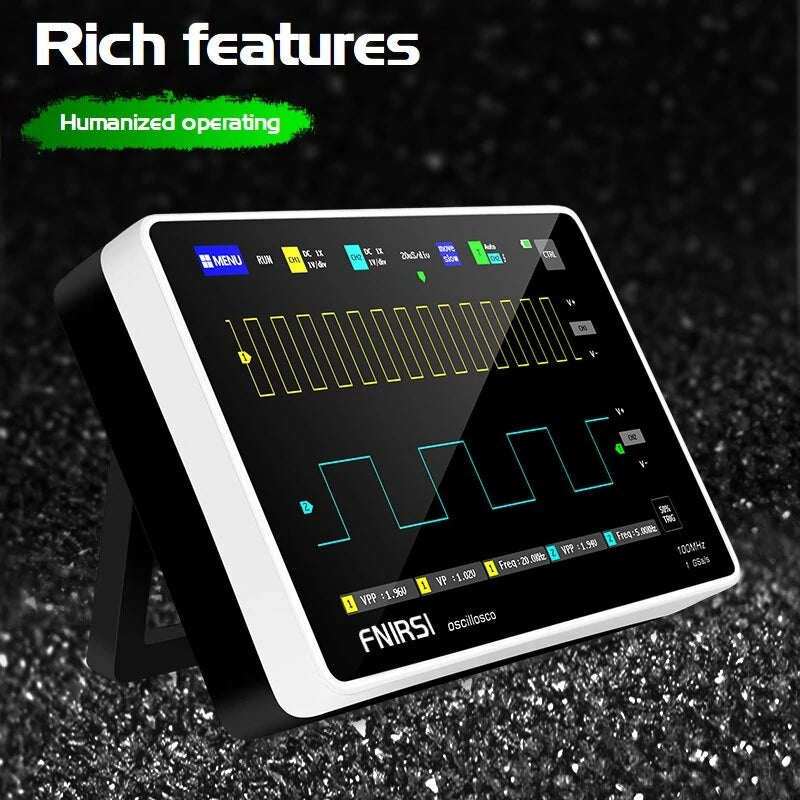

Features

• Intelligent anti-burn capability, with 1X capable of withstanding up to 400V.
• 100MHz analog bandwidth @ 1GSa/s sampling rate (1X = 5MHz, 10X = 100MHz).
• Vibrant 7-inch 800x480 resolution color TFT LCD display with high contrast.
• Modern capacitive touch screen, akin to contemporary smartphones.
• Extensive measurement voltage ranges: 1X for 0-40V, 10X for 0-400V, 100X for 0-4000V.
• Measure up to 12 parameters: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty+, Duty-, Time+, Time-, Period.
• Efficient cursor measurement for manual period, frequency, and voltage analysis.
• Comprehensive triggering options: single, normal, automatic.

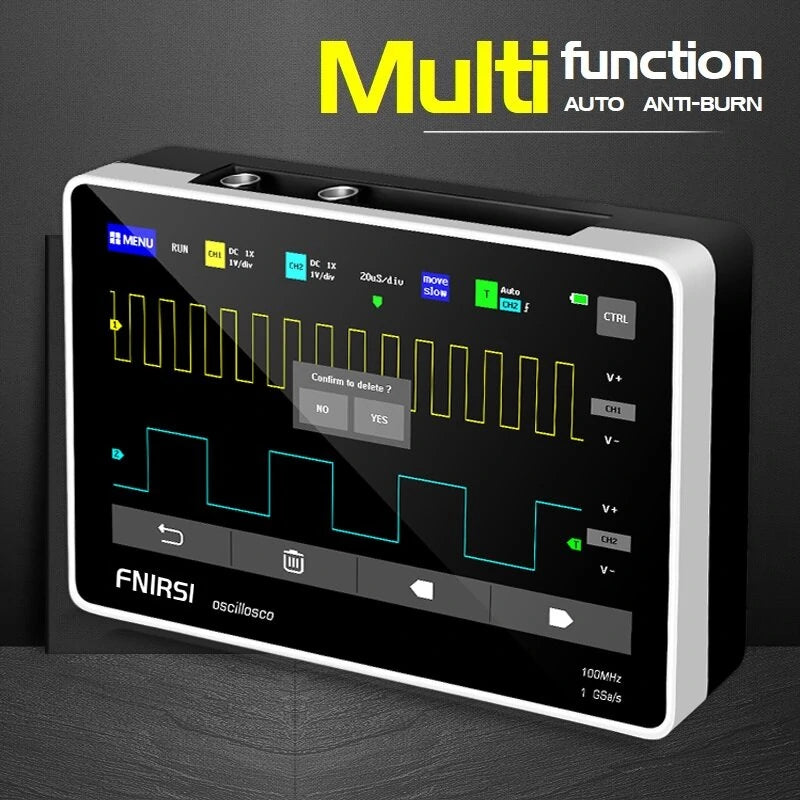

• Waveform freeze function for easy review and analysis.
• High-efficiency one-button AUTO function.
• One-touch waveform storage and screenshot capabilities.
• 1GB internal storage, accommodating up to 1000 screenshots and waveform data sets.
• Powerful waveform picture manager with thumbnail browsing, detailed viewing, page turning, deletion, and zooming capabilities.
• USB connectivity for easy screenshot sharing and secondary analysis on computers.
• Lissajous figure graphical display for signal amplitude, frequency, and phase comparison.
• FFT display for precise signal spectral characteristics analysis.
• Long-lasting 6000mAh rechargeable lithium battery for up to 4 hours of continuous use at maximum brightness.
• Advanced memory compression ensures flicker-free waveform refresh.
• Adjustable screen and background grid brightness.

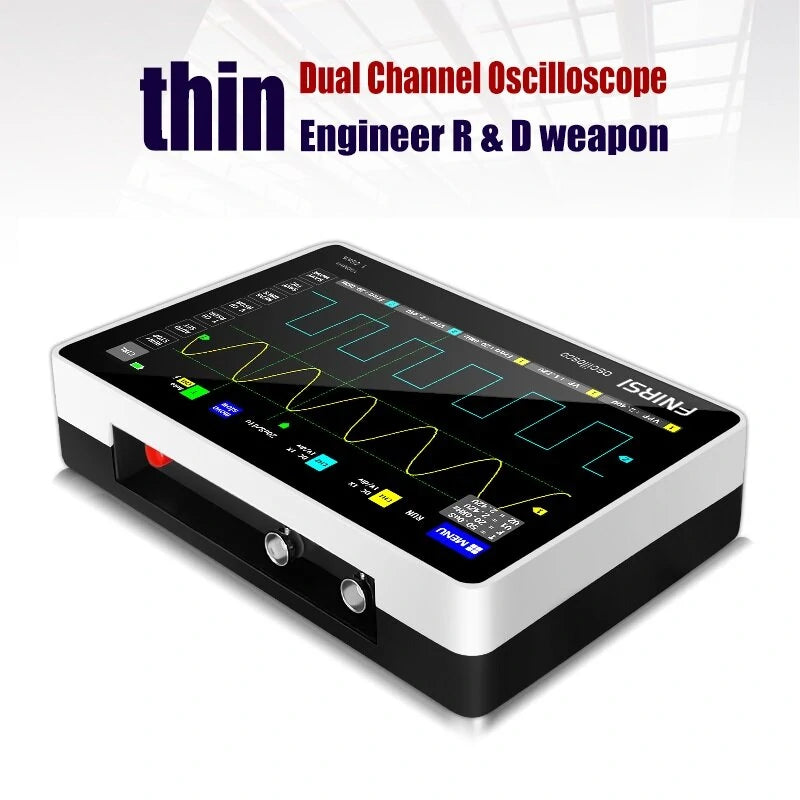

• Compact and portable design for ease of transport.

Specifications

• Analog Bandwidth: 100MHz x 2
• Number of Channels: 2 channels
• Maximum Real-Time Sampling Rate: 1GSa/s
• Vertical Sensitivity: 50 mV/div - 500 V/div
• Horizontal Time Base Range: 50S/div - 10nS/div
• Maximum Test Voltage: 40V (1X probe), 400V (10X probe)
• Storage Depth: 240Kbit
• Input Resistance: 1MΩ
• ADC Precision: 8 bits
• Coupling Mode: AC/DC
• Trigger Mode: Single, Normal, Auto
• Trigger Edge: Rising/Falling
• External Trigger Voltage: 0 - 40V
• Display: 7-inch, 800x480 resolution
• Operating Interface: Capacitive touch screen with gesture support
• Extension Ports: USB for picture export
• Power Supply: 6000 mAh lithium battery
• Size: 184mm x 124mm x 50mm
• Total Weight: 650g

Package Includes

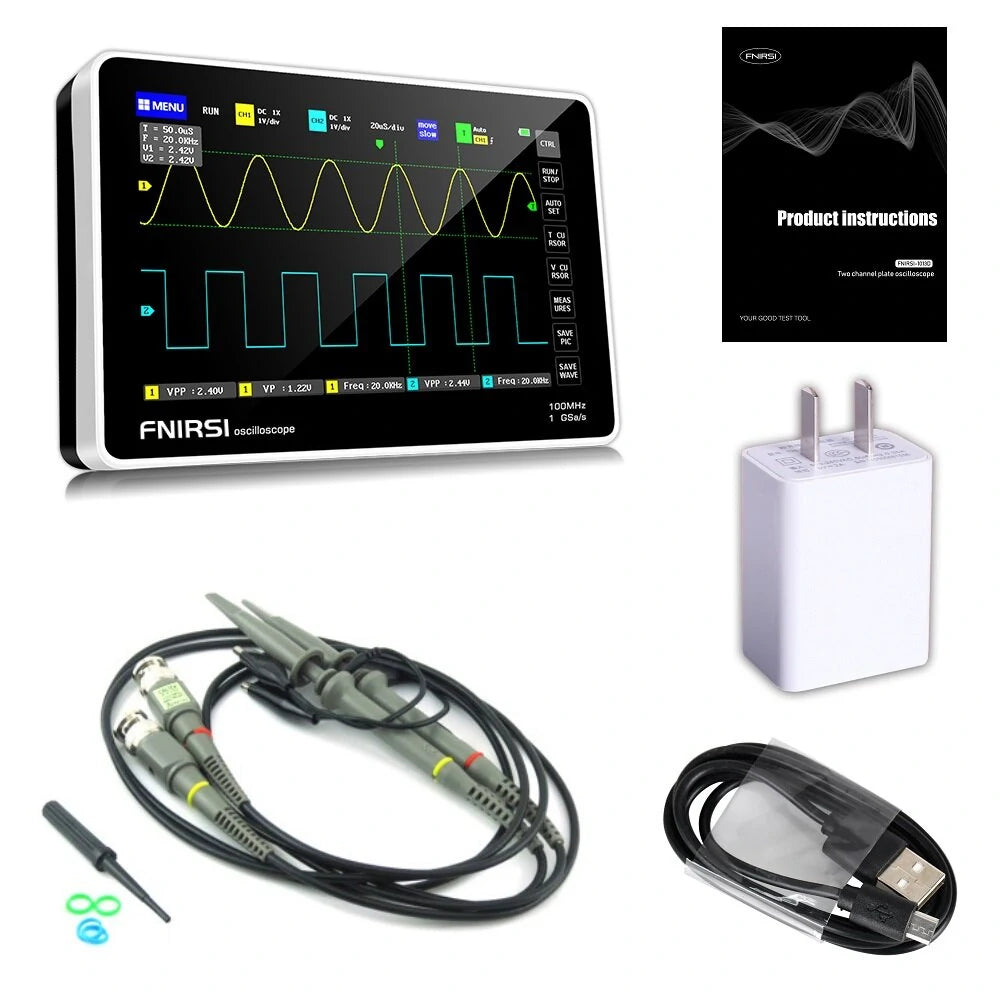

• 1 x FNIRSI-1013D Oscilloscope
• 2 x Matching 100MHz Probes (1X and 10X)
• 1 x 5V/2A Charger (including USB data cable)
• 1 x User Manual (English)
