Drillpro PTS200 V2 100W Portable Electric Soldering Iron, Quick Warm-Up, Open Source, PD3.0 Upgradeable, Battery Not Included, T12/TS100 Compatible with B2 Tip

Discover the PTS200 V2 Soldering Iron

Experience the perfect blend of power and portability with the PTS200 V2 soldering iron. Designed to deliver soldering efficiency equal to a desktop station, this compact marvel is your go-to tool for every soldering task.

Key Features

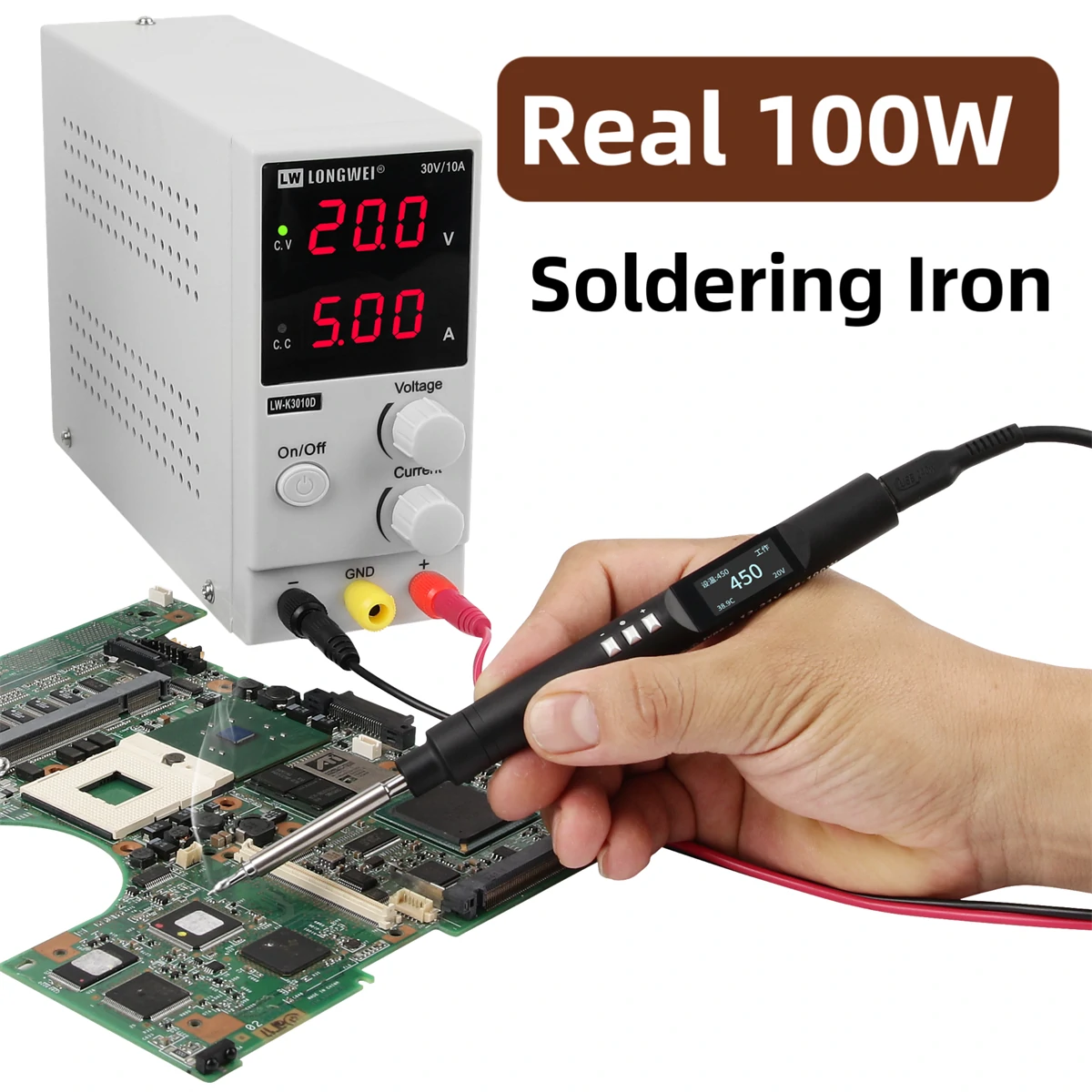

• Powerful and Portable: Enjoy a maximum power output of 100W in a compact form factor.
• Quick Heat-up: Reach temperatures up to 450°C in just 8 seconds for rapid soldering.

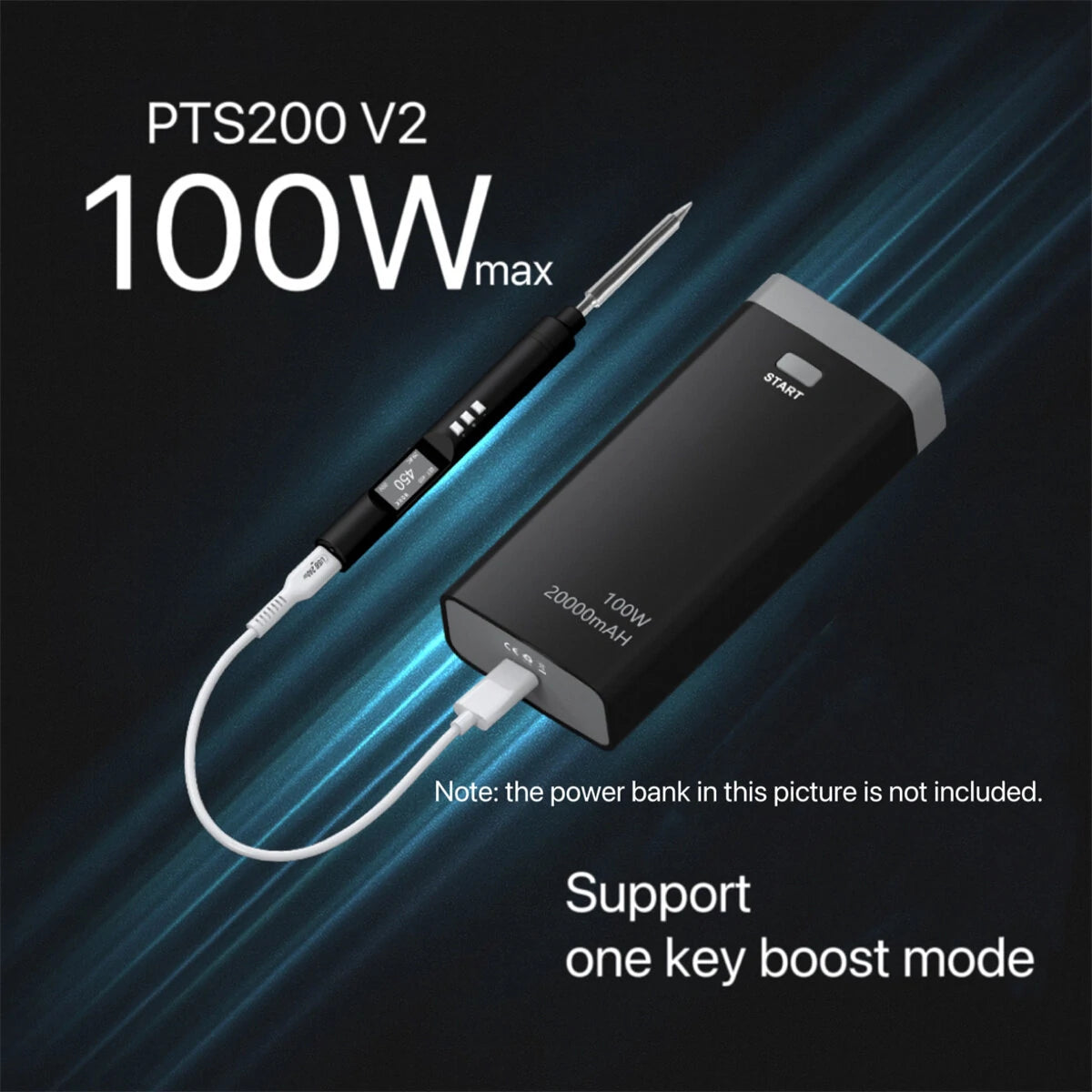

• Wide Compatibility: Supports PD3.0, QC2.0, and QC3.0 protocols for connection with fast charging adapters, power banks, and DC power sources. (DC to USB-C cable required)
• ESP32 MCU and Customizable Software: Equipped with an ESP32 MCU and open-source software, allowing for firmware customization and continuous updates.

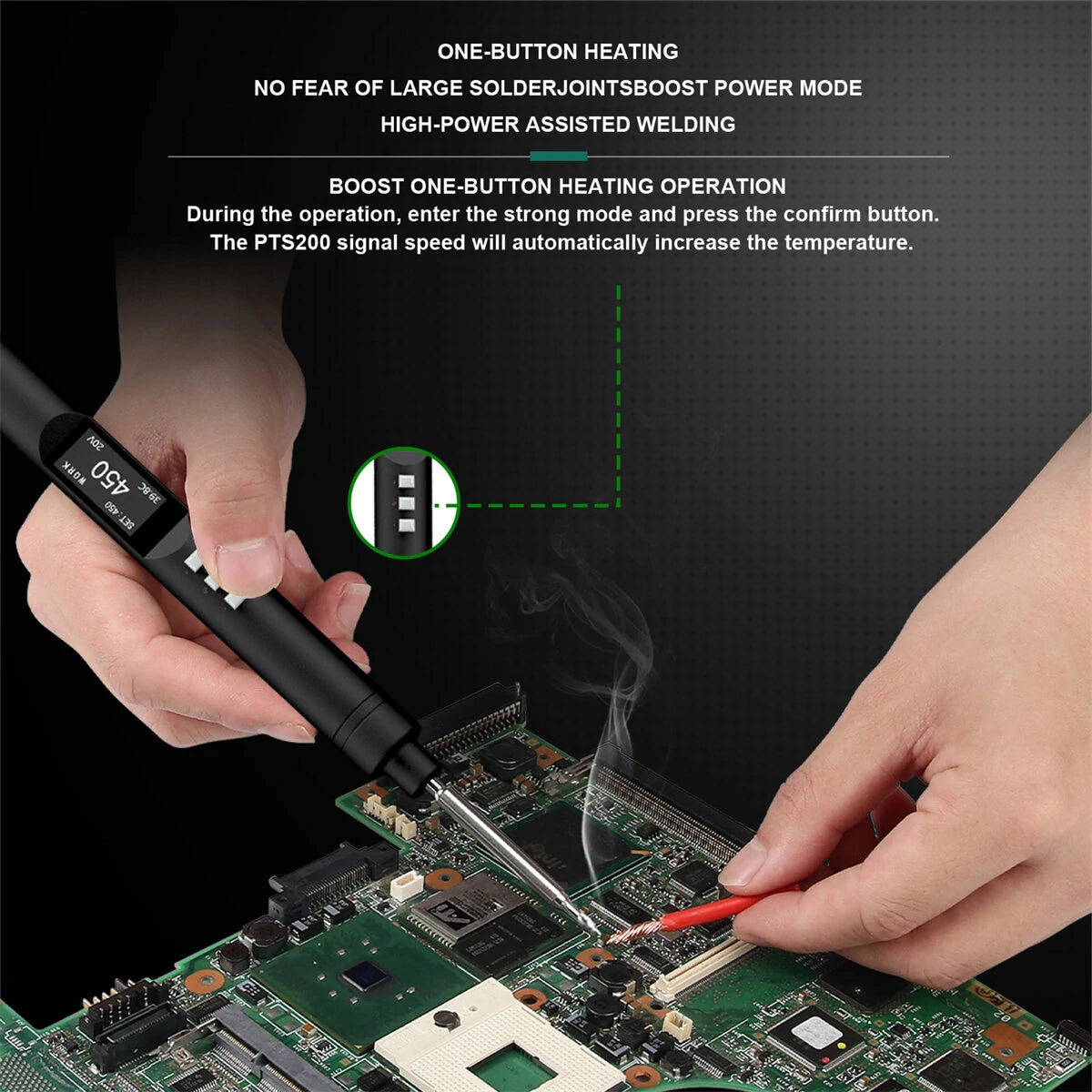

• One-button Heating Mode: Simplify your soldering process with easy and efficient heating.
• Durable CNC Metal Design: Features an ergonomic, heat-dissipating body for enhanced durability and reliability.
• Clear OLED Display: A 0.96-inch OLED screen provides clear and detailed information.
• Automatic Sleep Function: Built-in precision gyroscope offers a high-sensitivity sleep mode for power-saving.

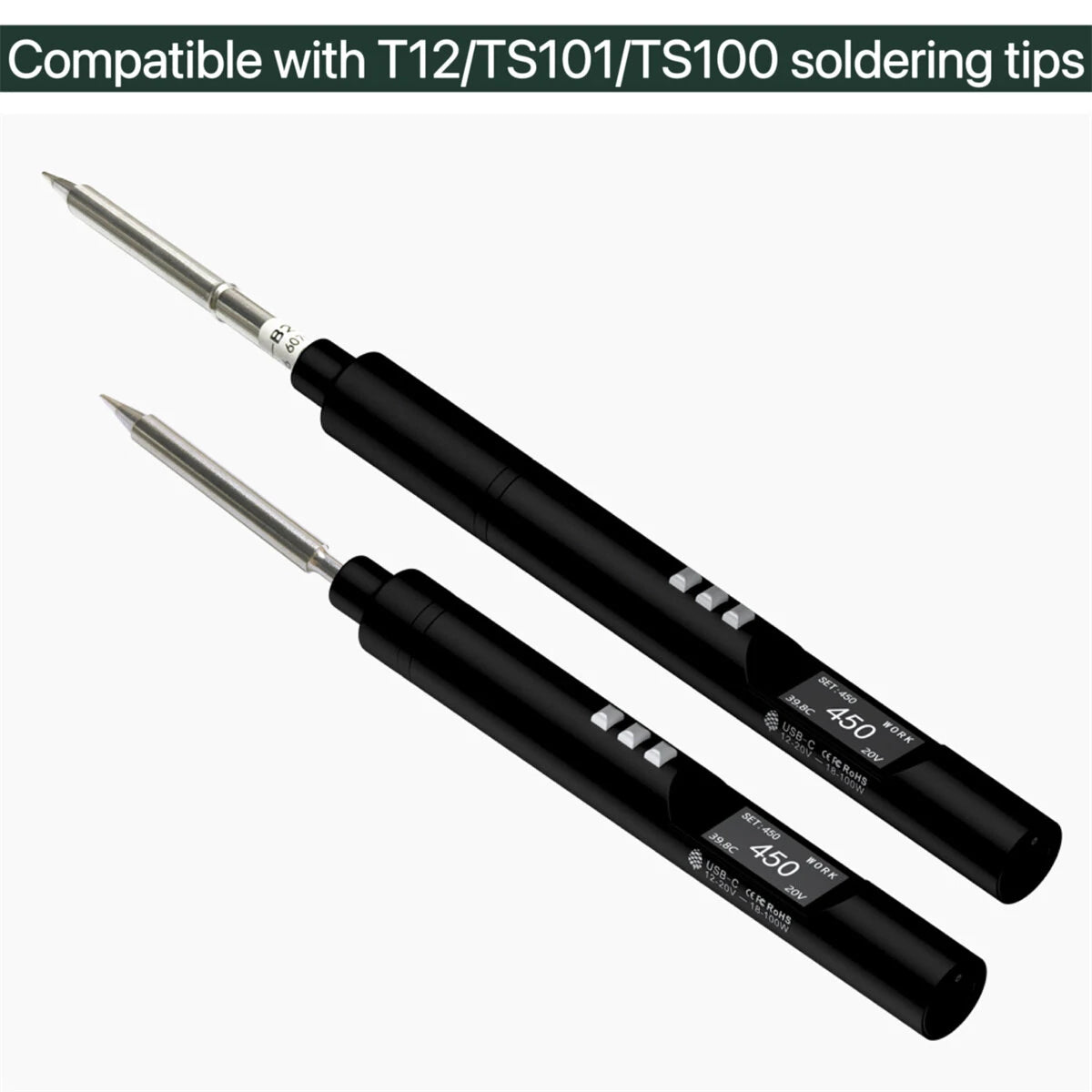

• Versatile Heating Core Compatibility: Compatible with T12/TS100/TS101 heating cores using various fasteners.
• Custom Settings: Customize soldering head names and temperature curves with multi-segment calibration.
• Adjustable Settings: Control inspiration levels and sleep times to suit your needs.
• Language and Font Options: Switch languages between Chinese and English, or use large font mode for better visibility.

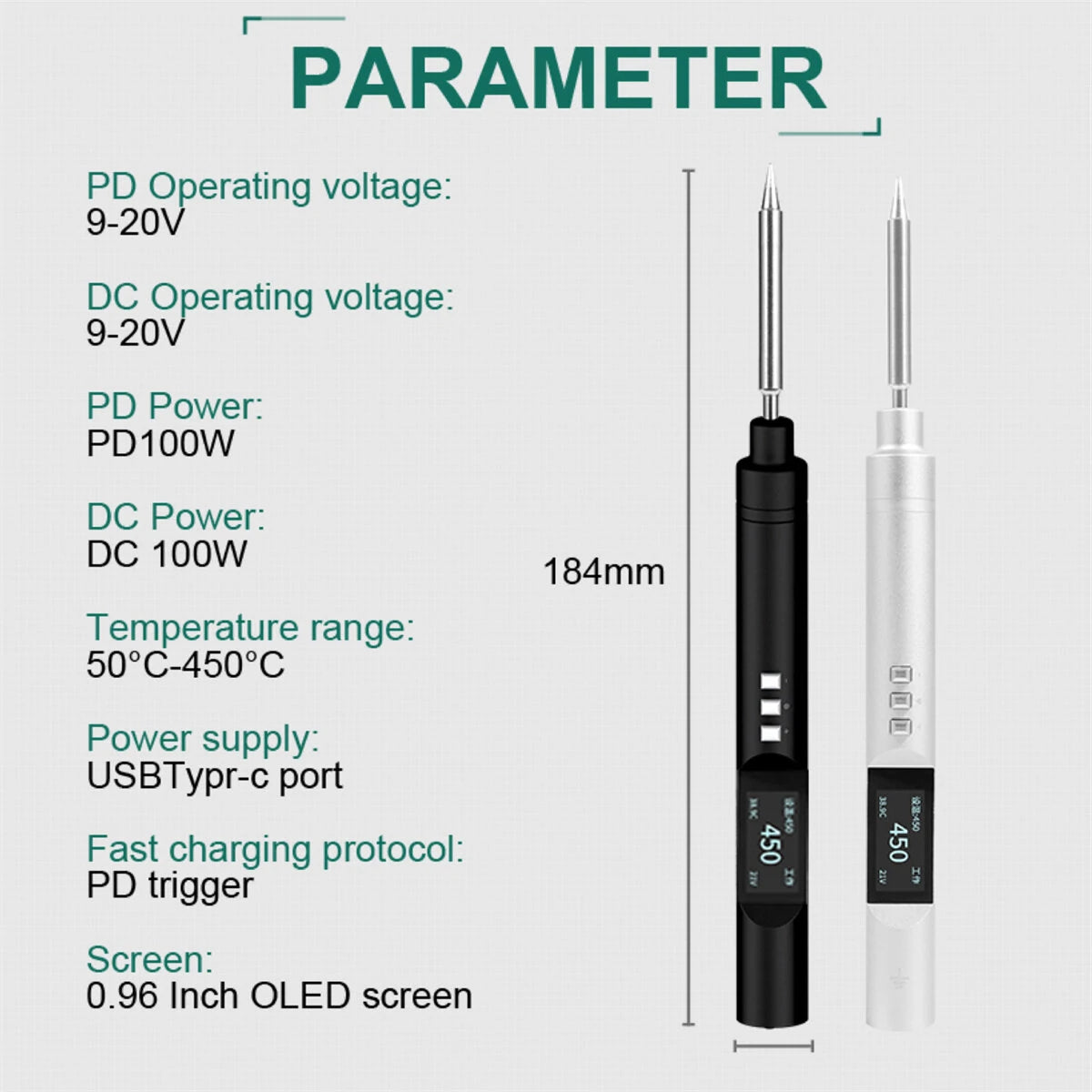

Specifications

• Screen: 0.96 inch OLED
• Power and Data Interface: Type-C
• Total Length: 188mm (TS-B2 welding head), 232mm (T12 welding head)
• Weight: Approximately 48g
• Maximum Output Power: 100W (varies with power supply)
• Temperature Control Range: 50-450°C
• Temperature Stability: ±5%
• Soldering Iron Head Resistance: 4 Ω (customized heating core)
• PD Input Voltage: 9V 2A/12V 1.5A/15V 3A/20V 5A

Package Includes

• 1 x PTS200 V2 Soldering Iron with Metal Protection Cap
• 1 x Fastener for T12 Heating Core
• 2 x Insulating Sheath
• 1 x 100W TS-B2 Soldering Tip
