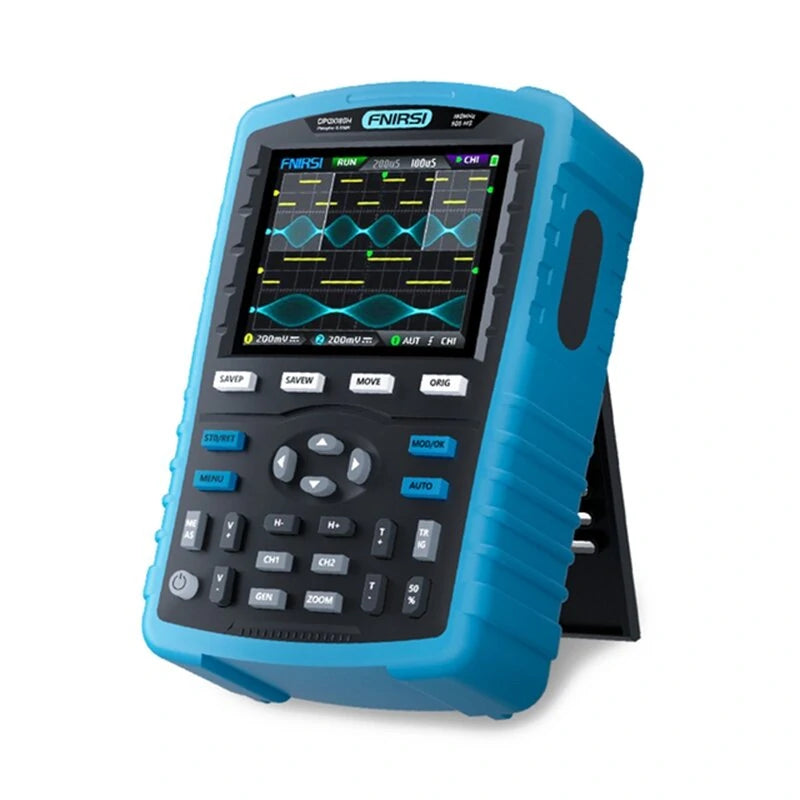

DPOX180H Digital Phosphor Oscilloscope

Tips:
The DPOX180H is now shipped with English as the default language, and the machine can be set to Chinese, English, Russian, or Portuguese. To change the language, press the power button and then long press the third button to set.

Features:

• Dual-Functionality: The DPOX180H is a cost-effective handheld dual-channel digital phosphor oscilloscope launched by FNIRSI, featuring both an oscilloscope and a signal generator.
• High Performance: The oscilloscope offers a real-time sampling rate of 500MSPS with an analog bandwidth of 180MHz, utilizing a high-contrast 2.8-inch IPS full-vision LCD screen and digital fluorescent technology for excellent waveform display.

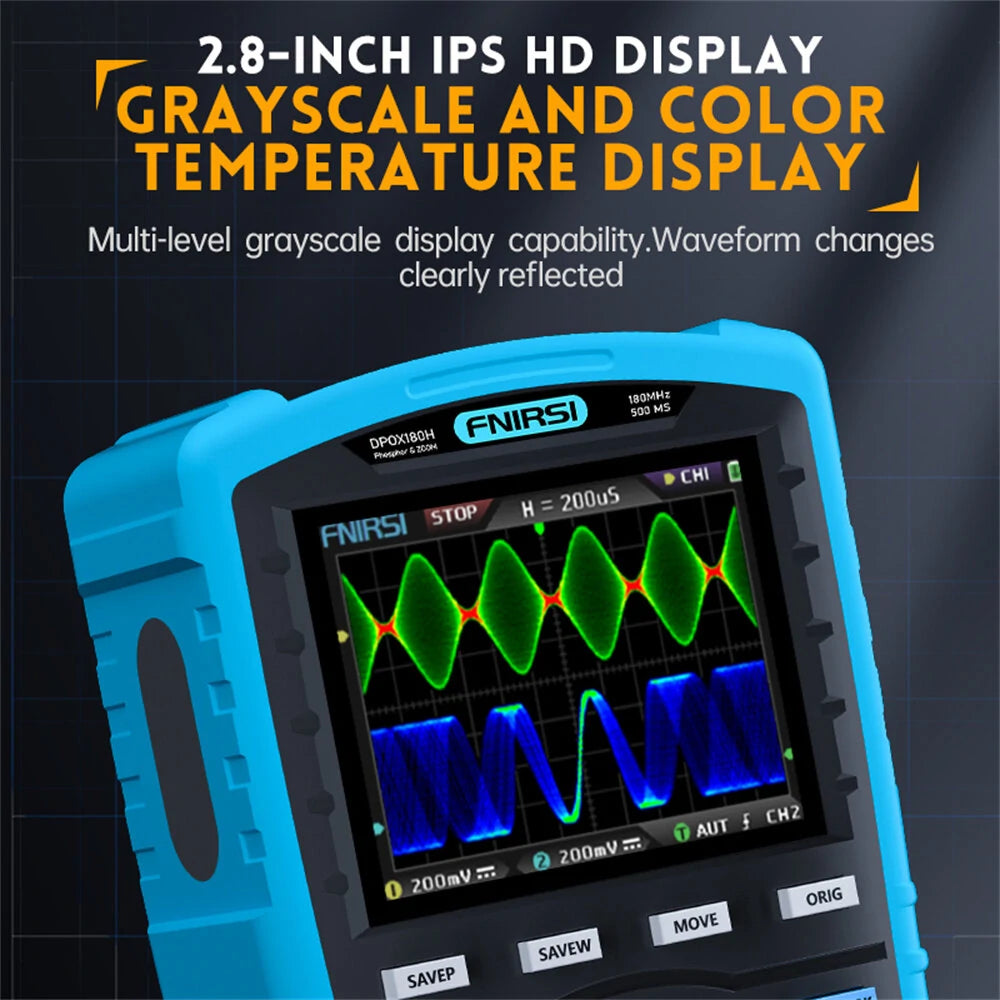

• Advanced Display: Features waveform refresh rates up to 50,000 wfm/s, with grayscale and color temperature options, making it easier to detect low-probability abnormal signals.

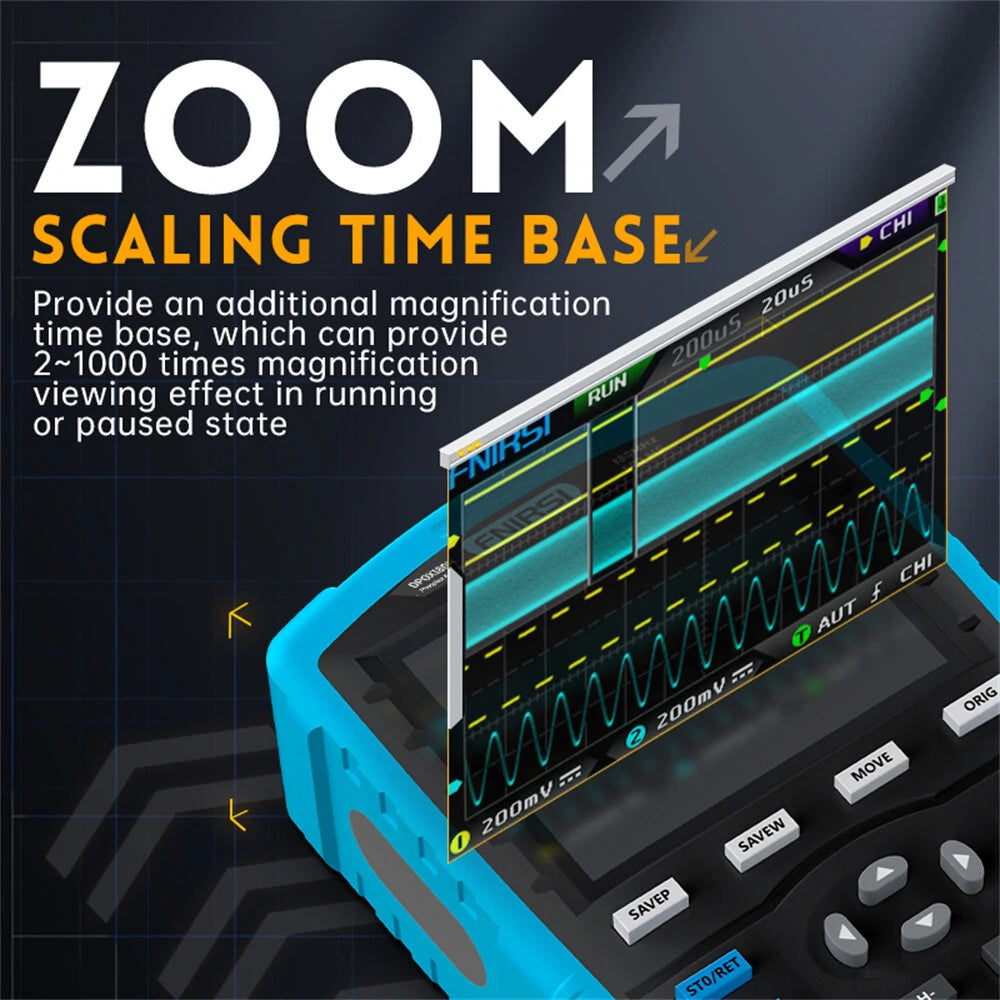

• Enhanced Analysis: The time base system includes a ZOOM time base, ideal for analyzing digital protocol signals with high precision.
• Measurement Accuracy: With a vertical sensitivity as low as 5mV, it's ideal for measuring small signals. It incorporates an ultra-high signal-to-noise ratio with a stable circuit feedback design, ensuring clean and clear waveforms.
• Noise Reduction: Features adjustable automatic bandwidth limit and adaptive trigger suppression to handle high-noise signals, with a 20MHz hardware bandwidth limit for filtering out noise.
• Precision Triggering: Employs digital trigger technology with automatic, single, and normal trigger modes, capable of effectively capturing periodic, burst, and protocol signals.

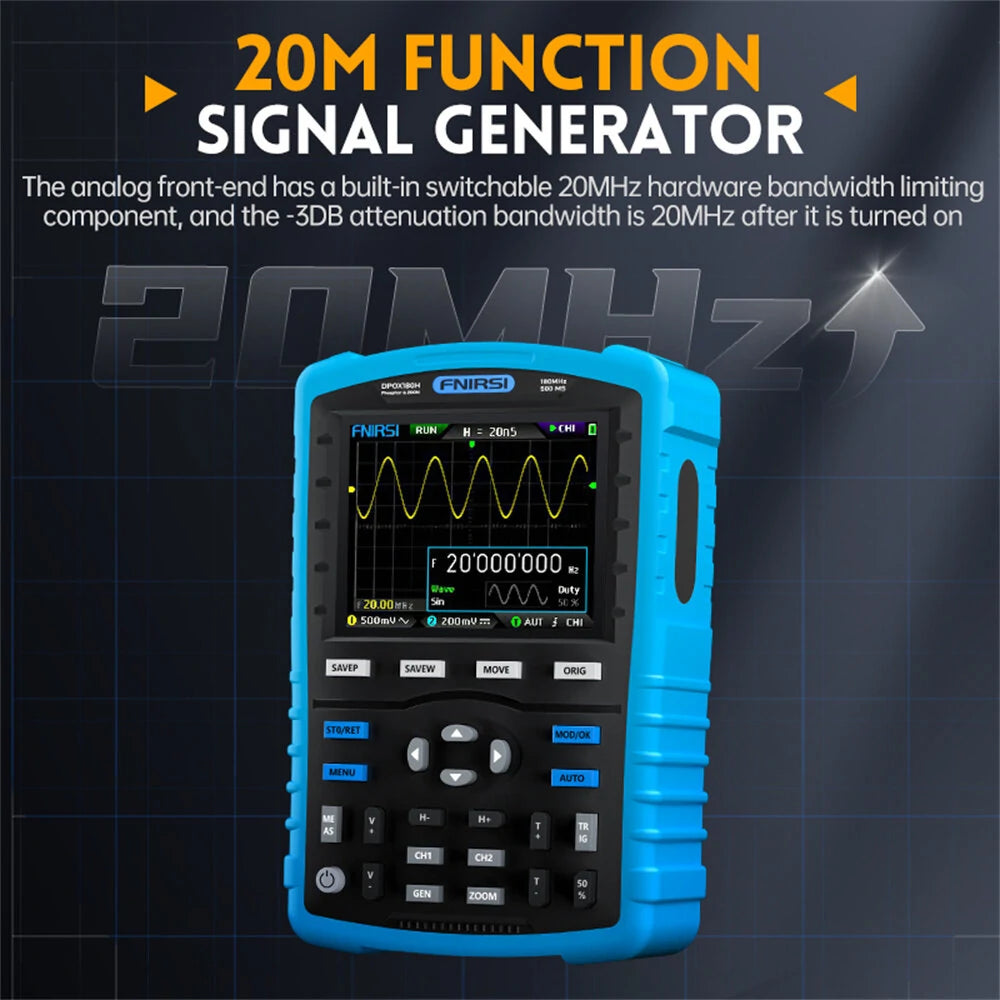

• DDS Signal Generator: Offers 14 different function signal waveforms and customizable chopping waveforms, with sine waves reaching up to 20MHz.
• Custom Storage: Original chopping output function supports storage of up to 500 customized signals, with YT, XY, and rolling time base modes available.
• Data Management: Save waveforms and screenshots easily, storing up to 250 waveform datasets or 90 pictures, with the capability for USB data export and system file updates.

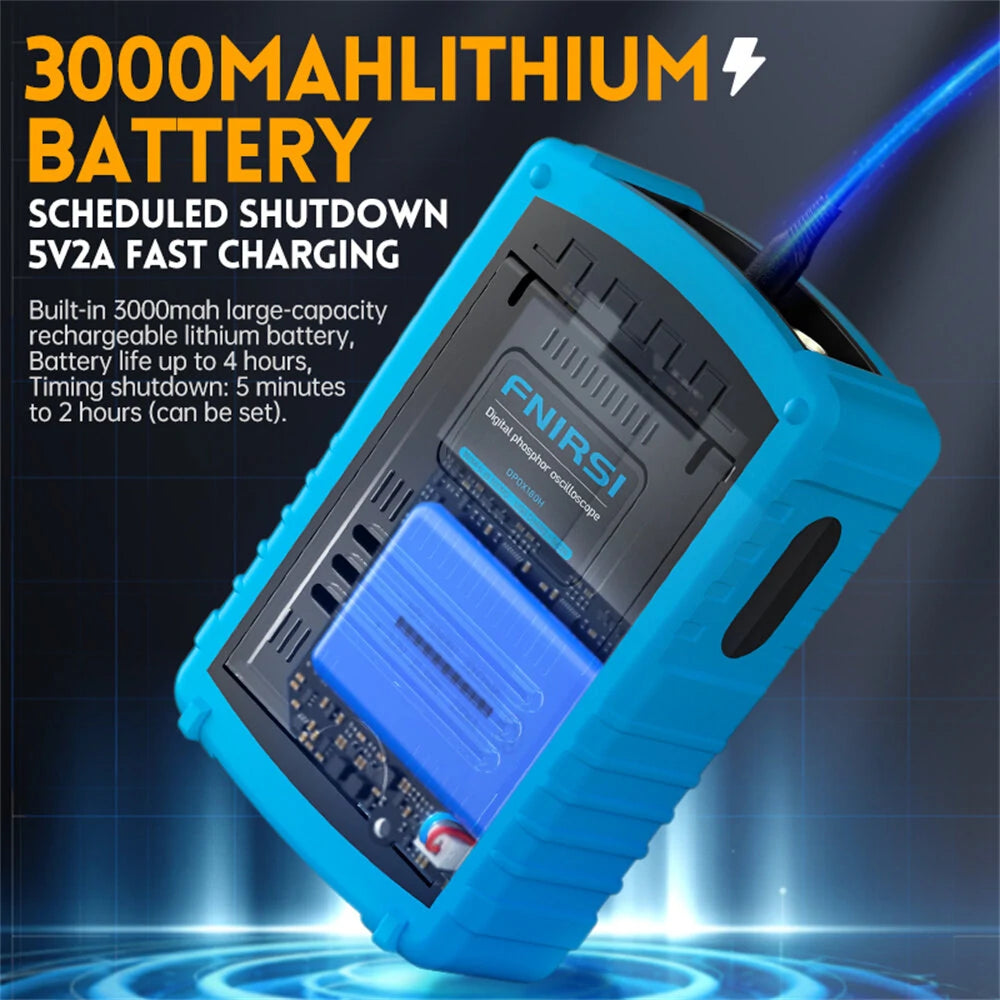

• Power and Protection: Includes high voltage anti-burning protection, supporting voltages up to 400V, and features 5V2A fast charging for quick power-ups.

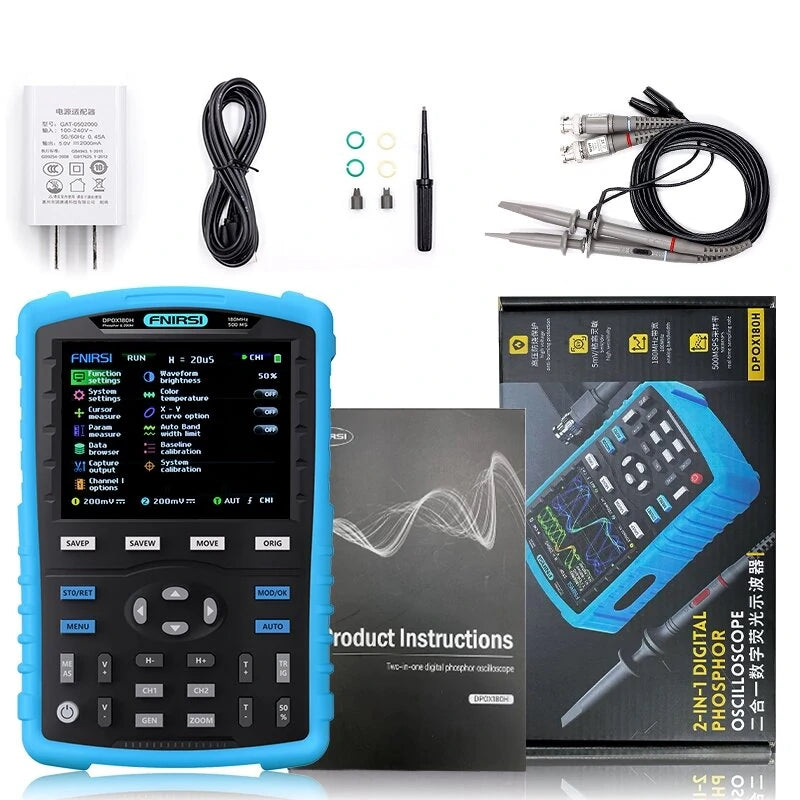

Package Includes:

• 1 x DPOX180H Digital Phosphor Oscilloscope
• 2 x Matching 200MHz Probes (1X & 10X)
• 1 x 5V2A Power Adapter
• 1 x USB Data Line
• 1 x User Manual
