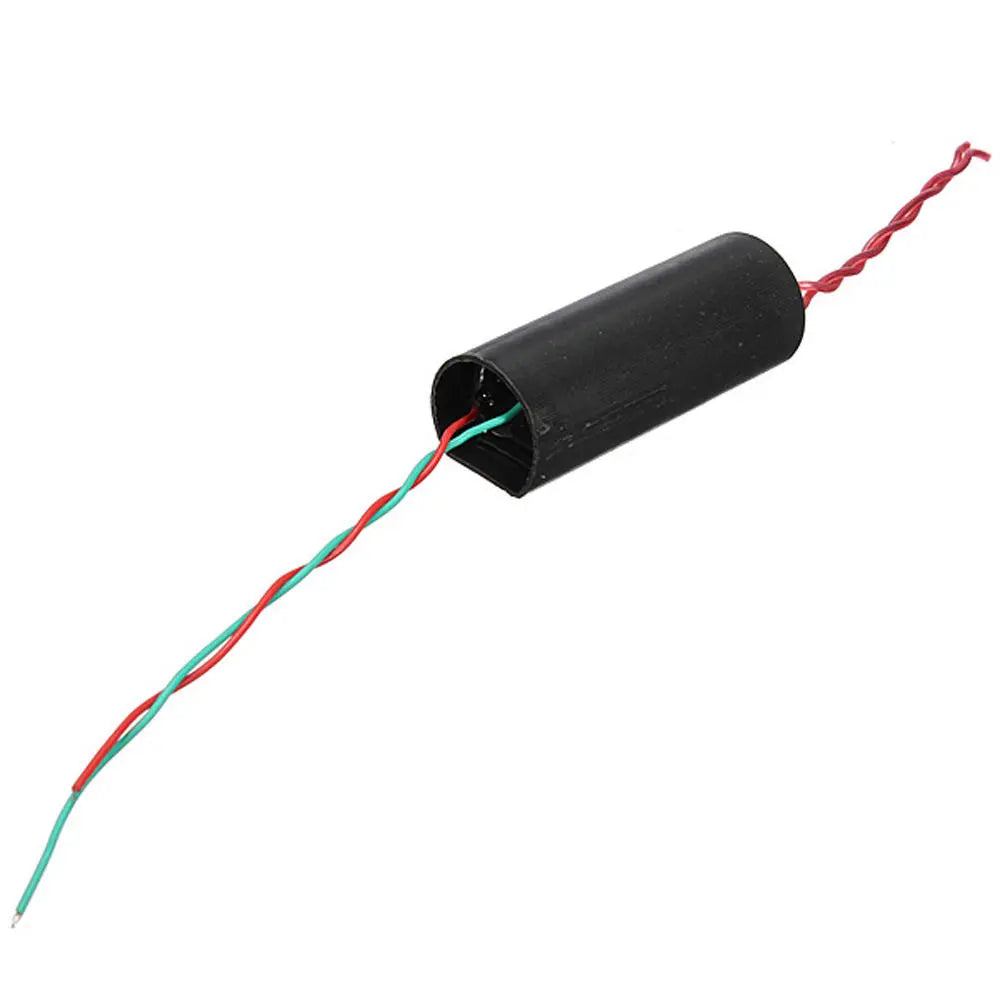

10-Pack DC 3.7-6V to 20KV High Voltage Boost Step-Up Power Modules

10-Pack DC 3.7-6V to 20KV High Voltage Boost Step-Up Power Modules

Regular price $29.99 USD
Regular price $0.00 USD Sale price $29.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Product Description

High-Voltage Generator Module

Our high-voltage module employs the Tesla coil principle to deliver a powerful pulse output with remarkable efficiency. Compact in size, this device is perfect for a variety of applications where high voltage is required.

Key Features

  • Efficient high-voltage pulse output
  • Compact and easy to use with a simple circuit connection
  • Can be used for educational and scientific experiments

Specifications

  • Model: MC-105
  • Dimensions: Length 65mm, Diameter 24mm (Cut surface diameter: 22mm)
  • Input Voltage: DC 3.7-6V
  • Output Voltage: DC 20KV (tested)
  • Input Current: 4A
  • Output Current: 0.5A
  • Input Length: Approximately 10 cm
  • Output Length: Approximately 8 cm
  • Polar Discharge Distance: Approximately 1.5 cm (maximum safe distance)

Power Requirements

This product is compatible with a variety of power sources:

  • Single or two series 3.7V Li-ion batteries (e.g., 18650)
  • 2000mAh or higher capacity is recommended
  • NiCd, NiMH battery pack, or 4-6V lead acid batteries

Applications

Ideal for use in high-voltage production, electronic DIY projects, high-voltage electronic security devices, and more.

Important Notes

  • Avoid using the module under load to prevent damage. Ensure suitable distance on the high-voltage side.
  • Operation time should be limited to one minute to prevent overheating.
  • Check battery capacity to ensure it can support maximum power output.
  • For optimal performance, use more than one 2000mAh lithium battery.

Package Includes

10 x High-Voltage Generator
