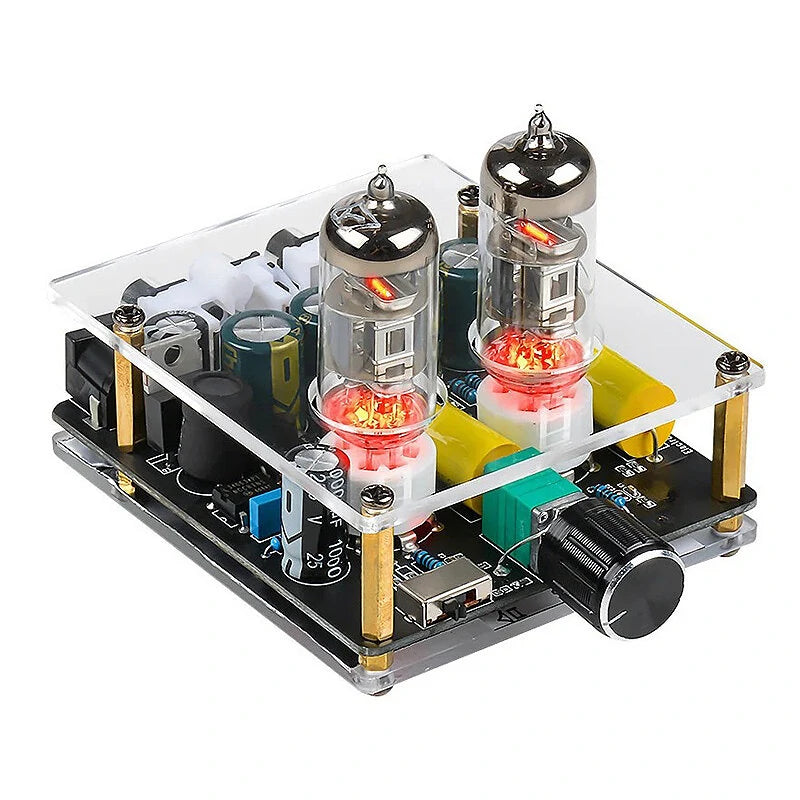

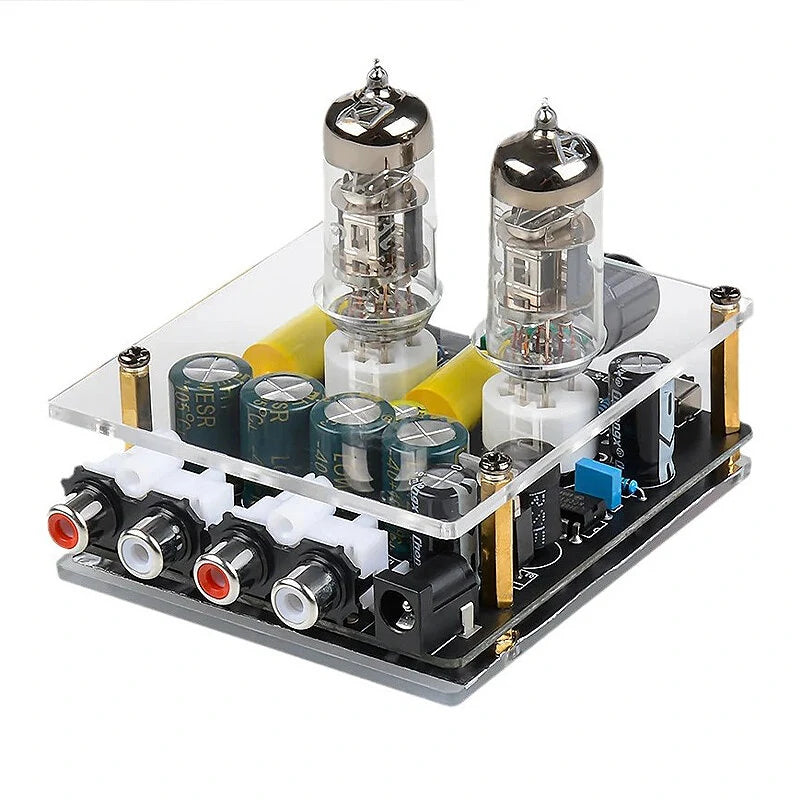

Upgraded HiFi 6A2 Tube Preamp Audio Amplifier for Home Theater

Product Description

This tube preamplifier is designed to elevate your audio experience when paired with an active speaker or power amplifier. Please note that it cannot be directly connected to passive speakers, headphones, phono amplifiers, or cars.

Specifications

• Product Name: Tube Preamplifier
• Compatible Tube: 6A2 (the tube is disassembled)
• Power Supply: DC12-16V, current 1A or more (DC12V 1.5A power supply is recommended, not included)
• Power Socket: DC3.5/5.5*2.1
• Tube Replacement Options: 6J1, 6J2, 6J3, 6J4, 6J5, 6A2, 6K4, 6K5, 6AK5, 6AU6, 6BA6, 6BD6, EF93, 6K7, GE5654, etc.
• Pre-stage Magnification: Voltage magnification 5 times
• Frequency Response: 5Hz-500kHz
• Pre-level Sensitivity: 3V
• Audio Input: Low-level signal input from devices like mobile phones, CDs, computers, TVs, MP3 players, etc.
• Audio Output: Connects to power amplifier or active speakers
• Size: 87mm x 75mm

Important Notes

1. The tube preamp operates in a Class A amplification state. For optimal performance, it's recommended to use shielded wires for the signal to prevent potential leakage or noise.
2. High-fidelity sound boost can be freely adjusted with a three-setting wave switch:
• Left position: "Hi-Fi"
• Center position: "Boost 1"
• Right position: "Boost 2"
3. Using unshielded signal lines or poorly filtered power supplies can cause noise. It's advisable to use shielded wires and a clean power supply for testing.
4. The tube buffer amplifies about 5 times. The pre-amp is designed to connect between the audio source, the pre-amp, and the power amplifier. Any noise from the audio source will be amplified, so a high-quality audio source is recommended for testing.

Package Includes

• 1x 6A2 Tube Preamplifier
