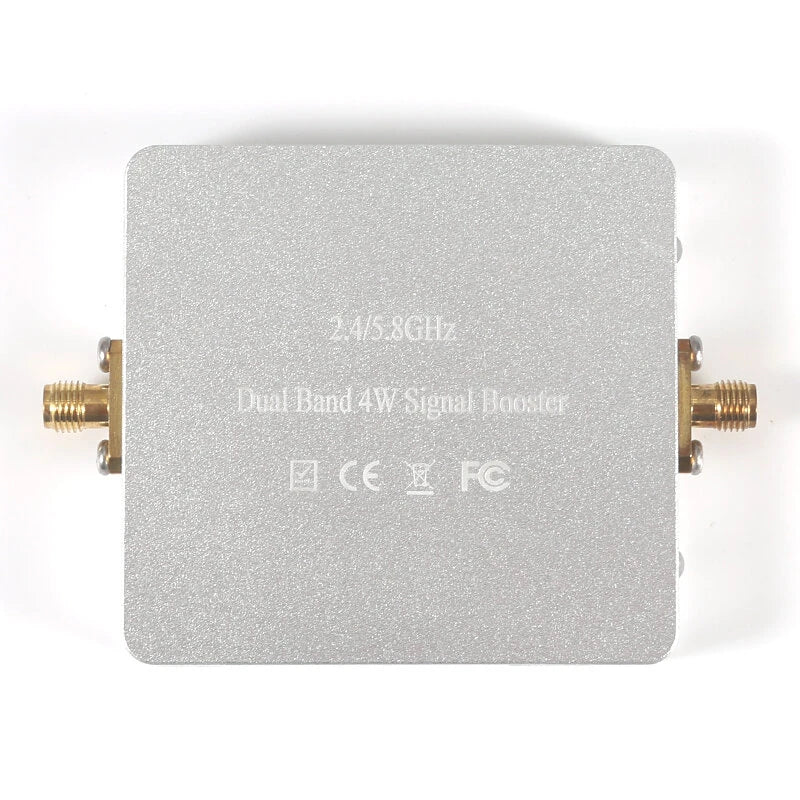

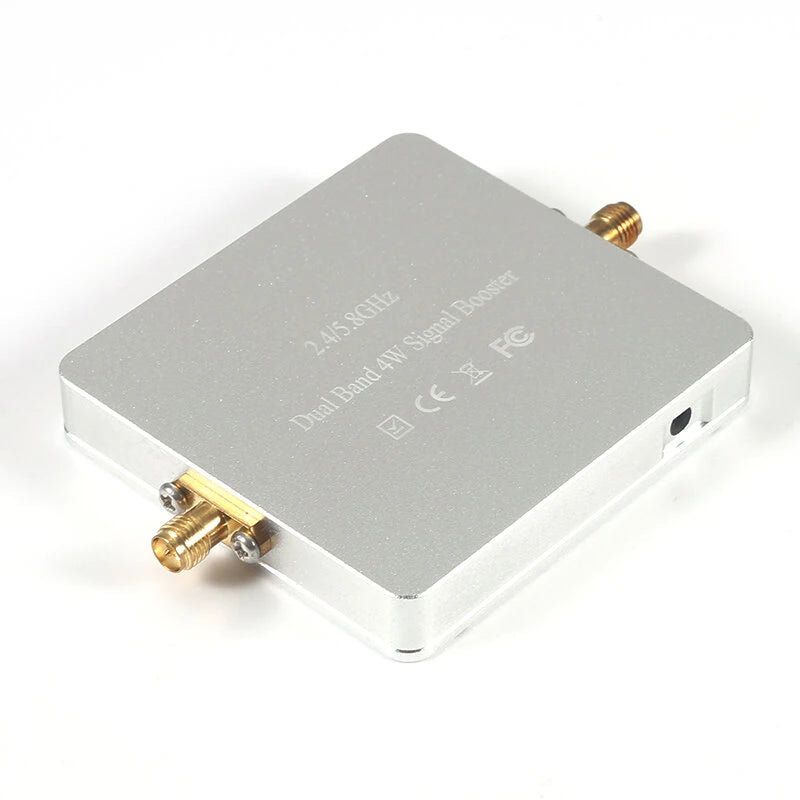

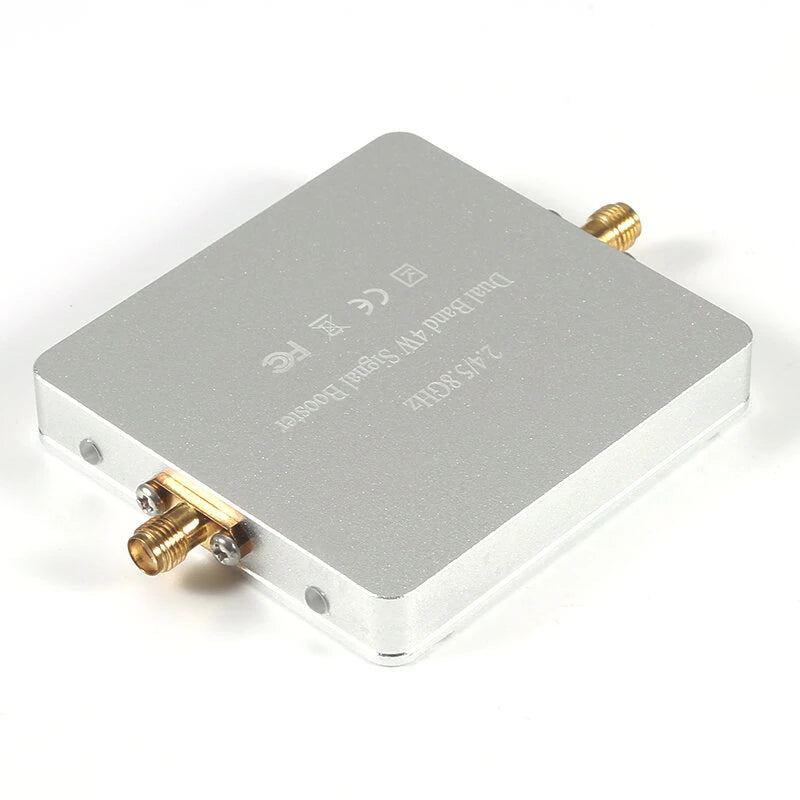

EDUP EP-AB015 Dual-Band WiFi Booster 4000mW, 2.4GHz & 5.8GHz, IEEE 802.11a/b/g/n/ac, CNC Aluminum, Plug & Play
EDUP EP-AB015 Dual-Band WiFi Booster 4000mW, 2.4GHz & 5.8GHz, IEEE 802.11a/b/g/n/ac, CNC Aluminum, Plug & Play
Regular price
$102.99 USD
Regular price
$0.00 USD
Sale price
$102.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
WiFi Booster Signal Amplifier
Features
- Dual-Band Capability: Supports both 2.4GHz and 5.8GHz frequencies with automatic switching, enhancing signal stability and range for diverse applications including smart home systems and UAVs.
- High Output Power: Provides an impressive maximum output power of 4000mW, ensuring strong and reliable signal transmission over long distances.
- Versatile Power Support: Operates within a wide voltage range of 6-16V, accommodating various power supply options and ensuring consistent performance.
- Robust Design: Encased in CNC-machined aluminum alloy for effective anti-interference properties and efficient heat dissipation, ensuring reliable operation even in challenging environments.
- Easy to Use: Plug-and-play functionality requires no software installation, allowing for quick and straightforward setup with certified IEEE 802.11a/b/g/n/ac Wireless LAN devices.
Specifications
- Booster Model: EP-AB015
- Operating Range: 2.4~2.5 GHz, 5.0~5.875 GHz
- Operating Mode: Bi-directional, half-duplex, time division duplex
- Connector Type: SMA Receptacle 50ohm, To radio SMA female (hole inside), To antenna RP-SMA female (pin inside)
- Input Power: 5~23 dBm
- Transmit Gain: 15~18dB
- Output Power: 4000mW (36dBm)
- Receiver Gain: 15~17 dB
- Noise Figure: ≤3.5 dB typical
- Frequency Response: ±1dB over operating range
- Supported Voltages: 6V~16V
- Operating Temperature: -30°C to 70°C
- Operating Humidity: Up to 75% relative humidity
- Material: Cast Aluminum
- Booster Weight: 100g
- Booster Size: 85x60x13(mm)
- Weight: 375g
- Package Size: 225x165x50mm
- Optional Plug Type: EU / US Plug

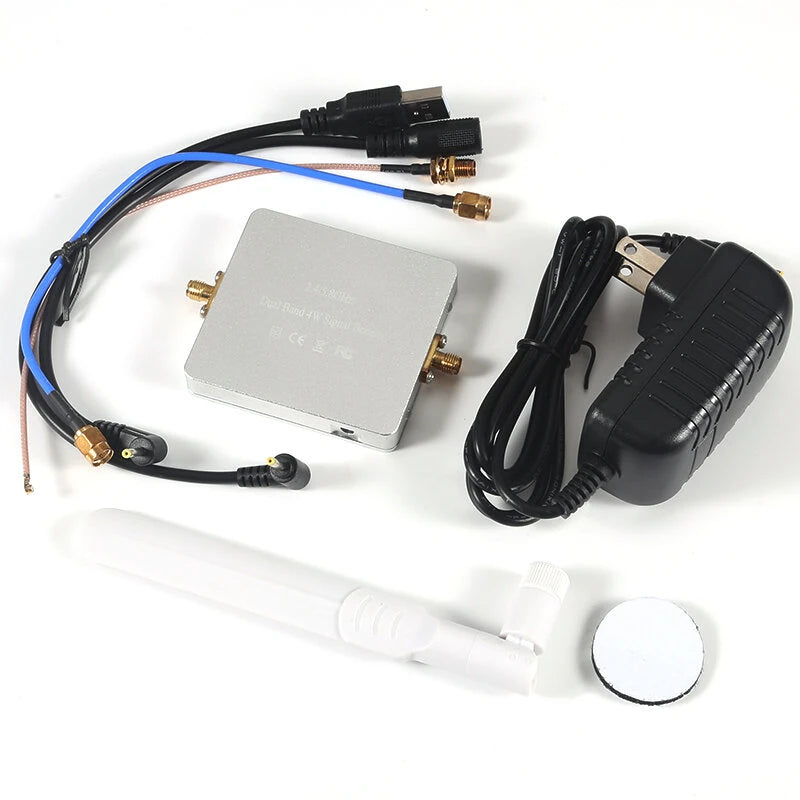

Package Included
- 1 x WiFi Booster Signal Amplifier (Plug Type As Your Choice)
- 1 x USB Cable
