4 Touchscreen 1.5GHz Vector Network & Antenna Analyzer with SD Card Slot

Overview:

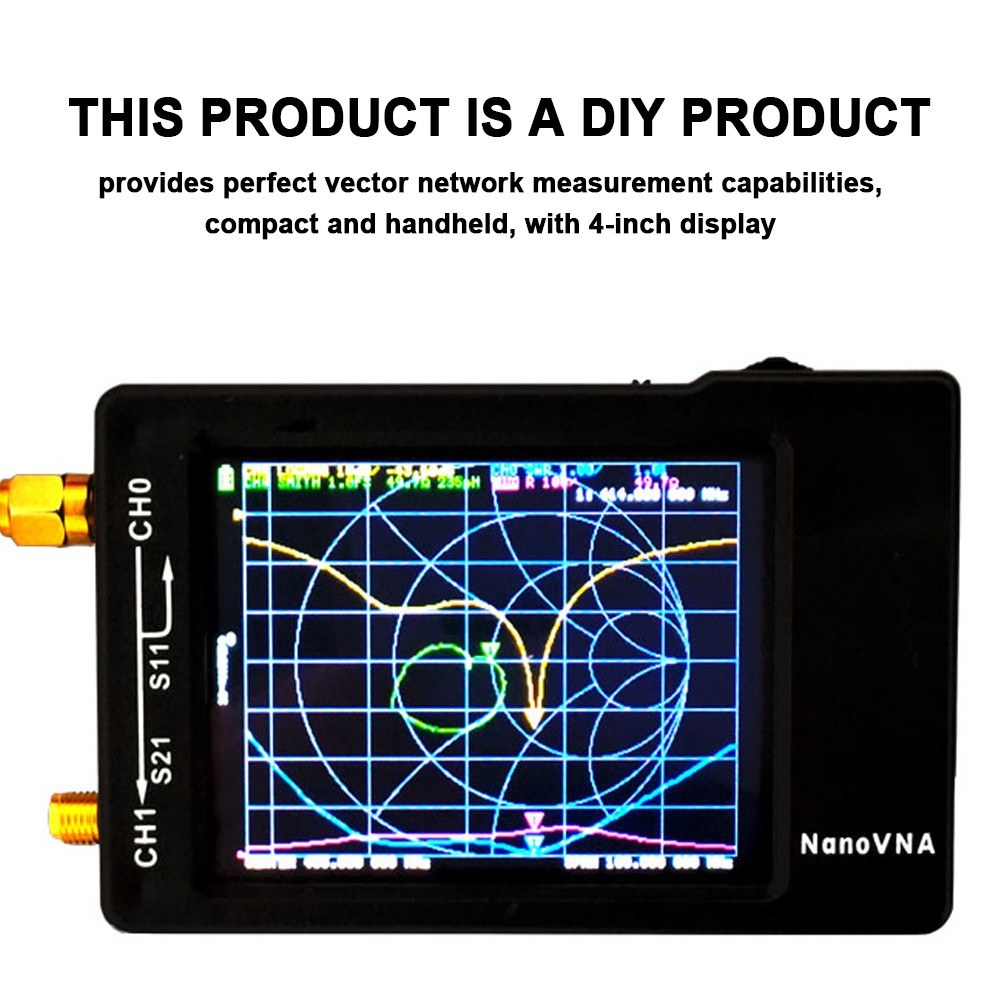

This DIY vector network analyzer combines compact size with comprehensive measurement functionalities, making it the perfect handheld tool for professionals and enthusiasts alike. Featuring a vibrant 4-inch display, it offers superior performance in a portable format.

Key Features:

• Advanced Frequency Capability: Enhanced frequency algorithm utilizing the odd harmonic extension of the SI5351, supporting measurements up to 1.5GHz.
• Dynamic Range:

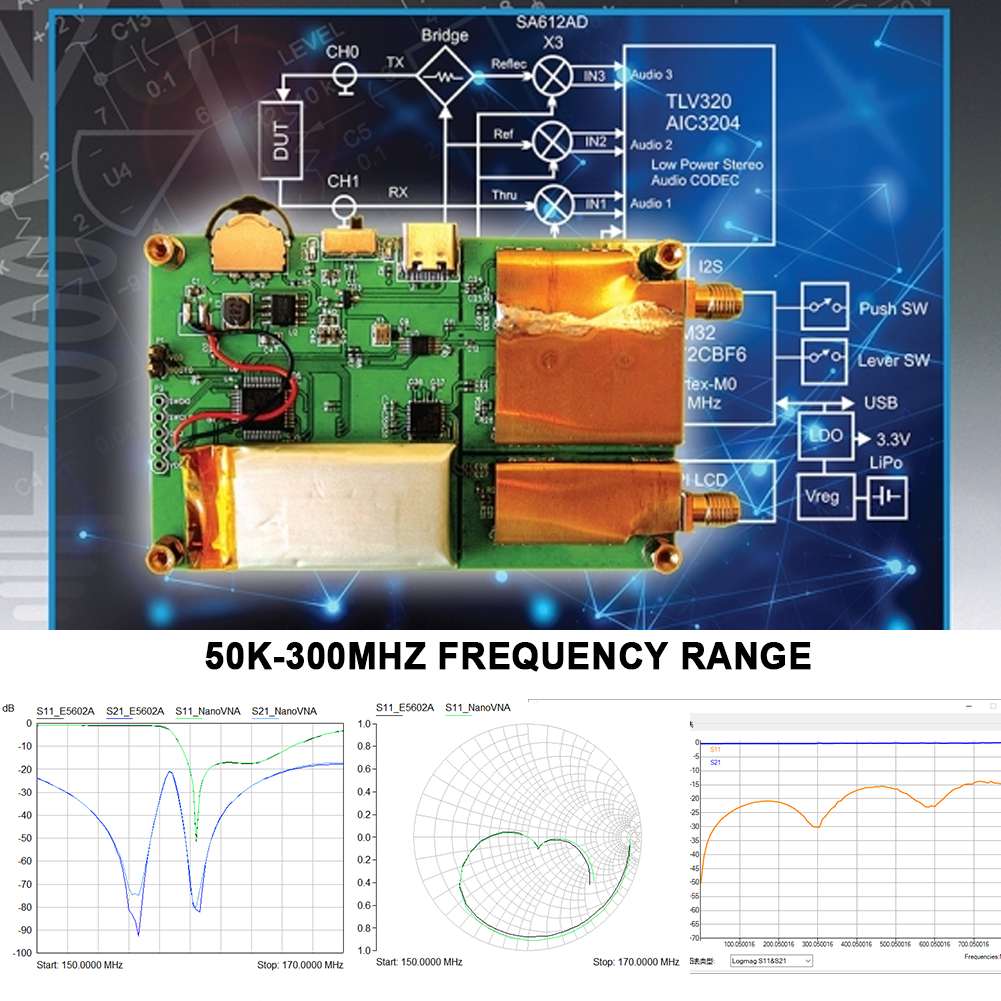

  • 50K-300MHz: Greater than 70dB
  • 300M-900MHz: Greater than 60dB
  • 900M-1.5GHz: Greater than 40dB
• Dual-Parameter Capability: Default firmware measures antenna performance, S11, and S21 parameters using TX/RX. S12 and S22 parameters are available with manual port modification.

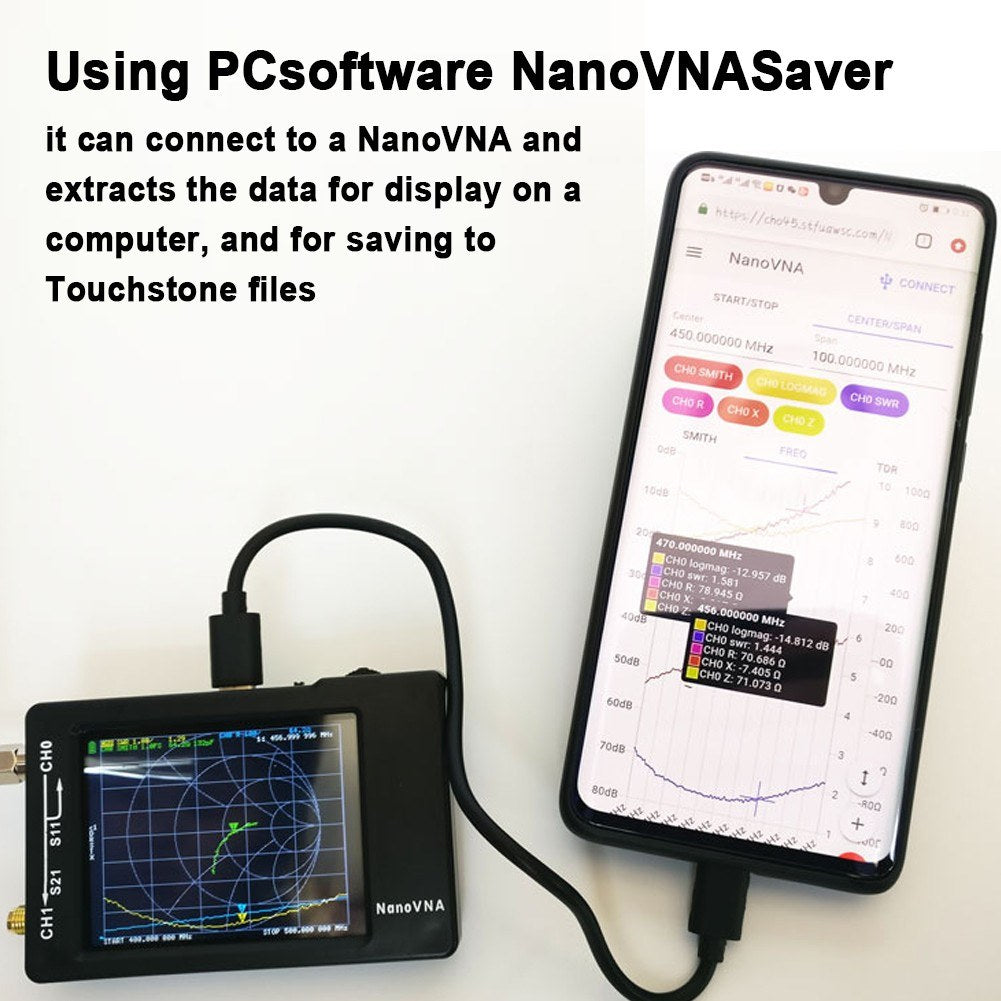

• PC Integration: Connects to the NanoVNA Saver for data extraction and Touchstone file export.
• Construction Excellence: Metal housing minimizes external interference, ensuring accurate measurement results.

Specifications:

• Color: Black
• Material: ABS
• Measuring Frequency: 10KHz-1.5GHz
• RF Output: 0dBm (± 2dB, fundamental)
• Frequency Accuracy: <2ppm
• Frequency Stability: <0.5ppm
• Port SWR: <1.1
• Display: 4-inch (320x480 resolution)
• Scanning Speed: >600 points/second (RBW=4000Hz)
• Tracking and Marking: Supports 4 display tracking, 8 markers, and 7 saved settings
• Battery: 3.7V, 2000mAh
• Item Dimensions: 133 x 75 x 18mm / 5.2 x 3.0 x 0.7in
• Package Dimensions: 240 x 140 x 30mm / 9.4 x 5.5 x 1.2in
• Package Weight: 370g / 13.1 ounces

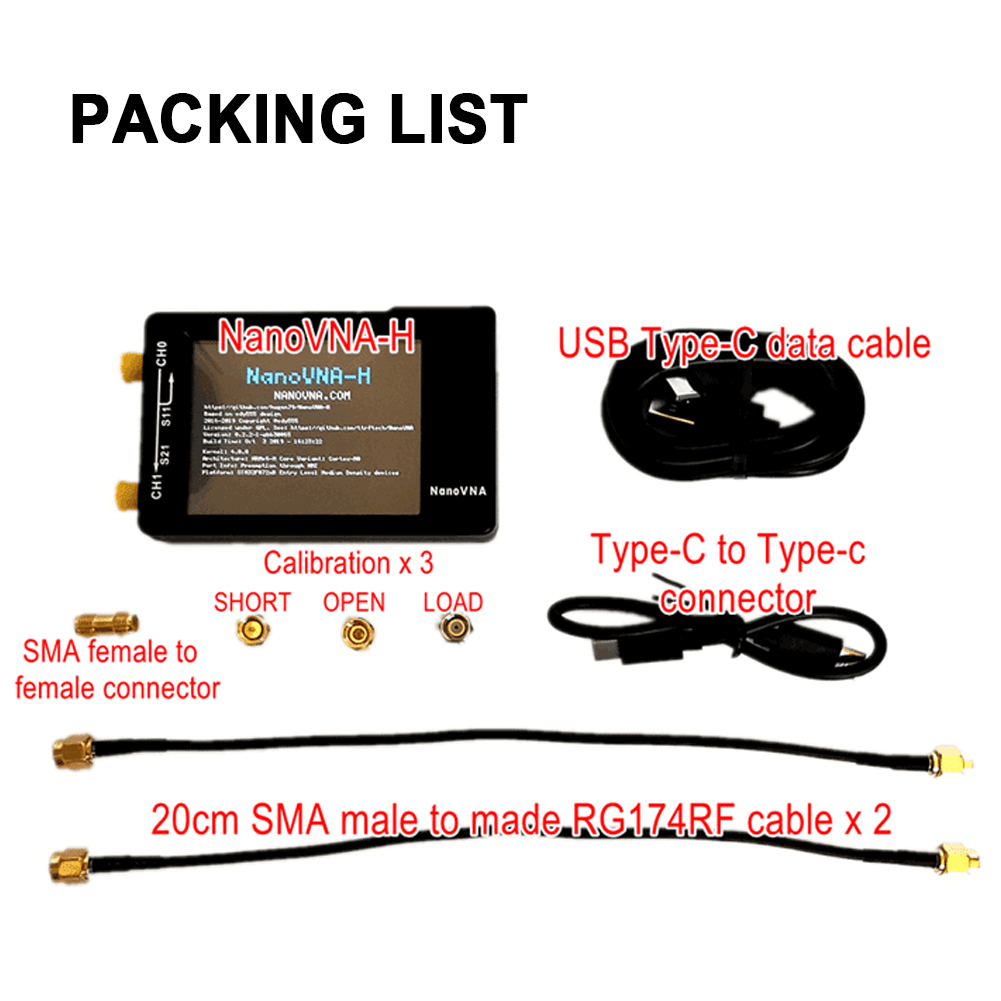

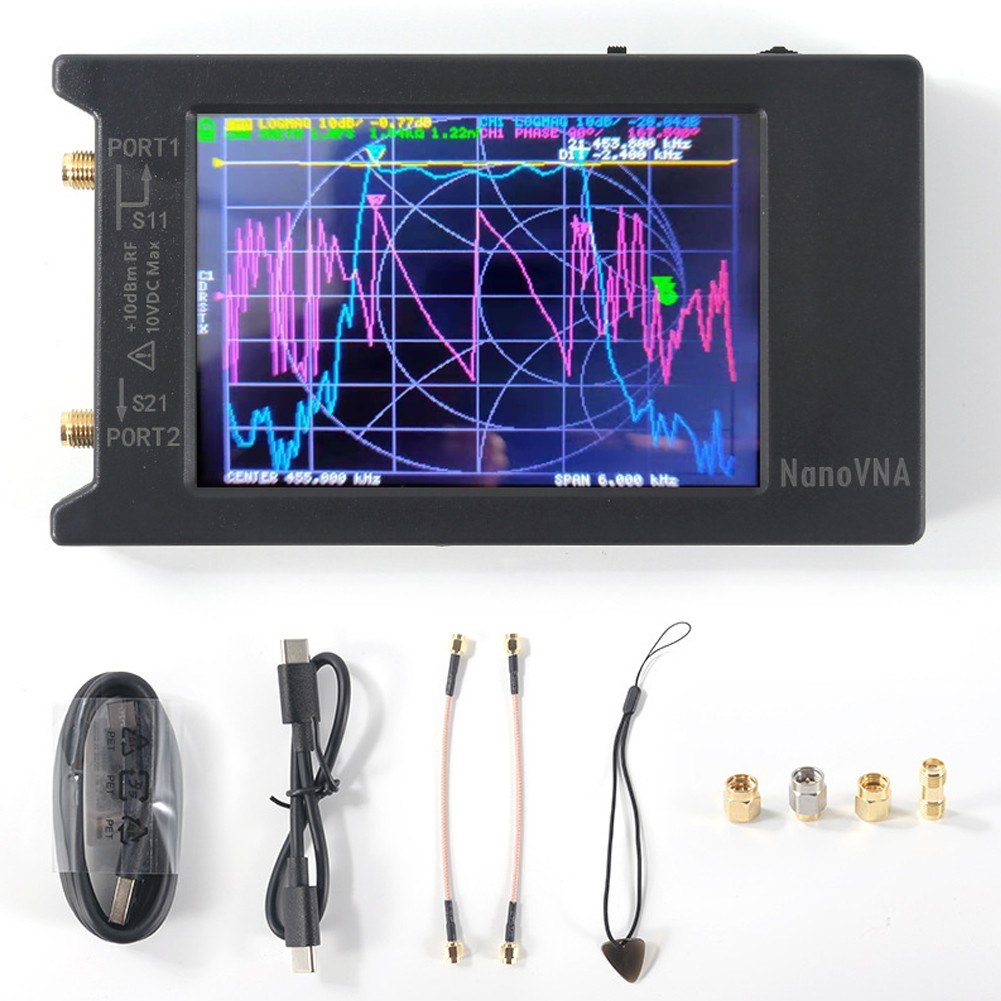

Package Includes:

• 1 x Host
• 2 x USB Cable
• 2 x 150mm Male-to-Male RG316 Radio Frequency Cable
• 1 x Set of SMA Calibration Accessory (Male)
• 1 x Female-to-Female SMA Connector
• 1 x Screen Pick
• 1 x Rope
