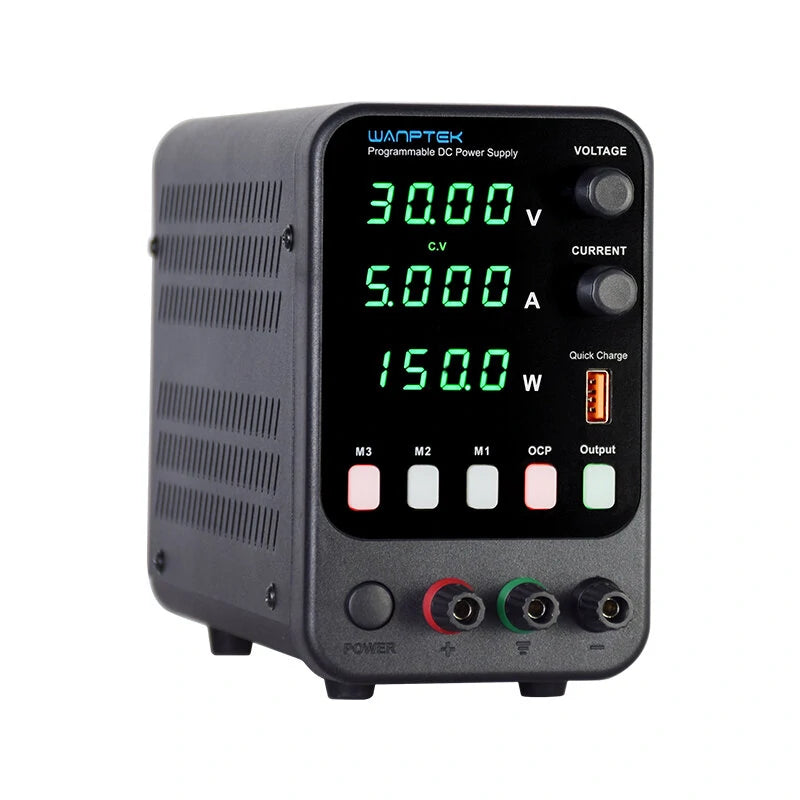

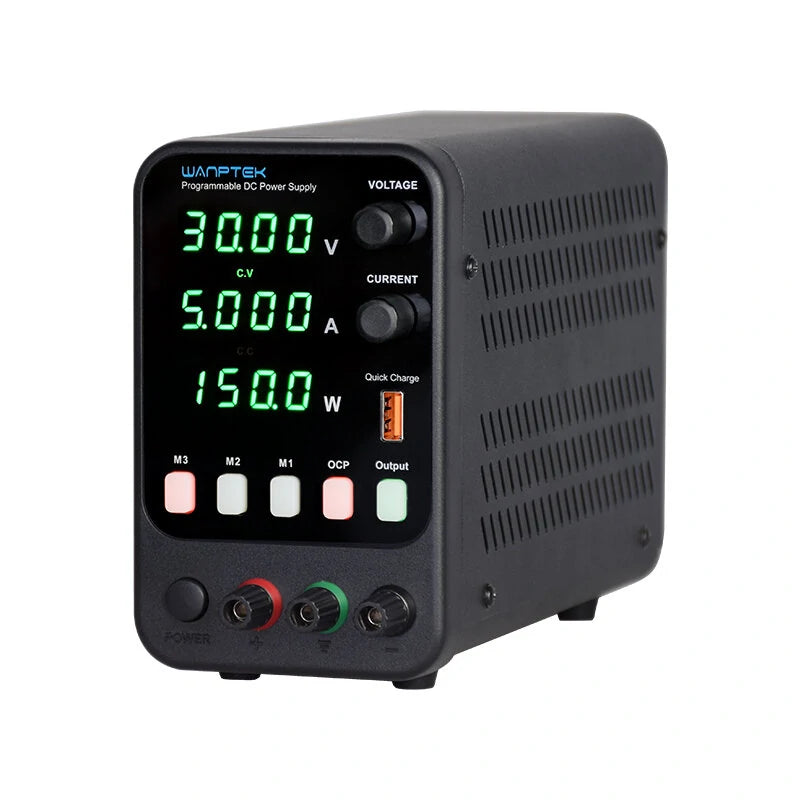

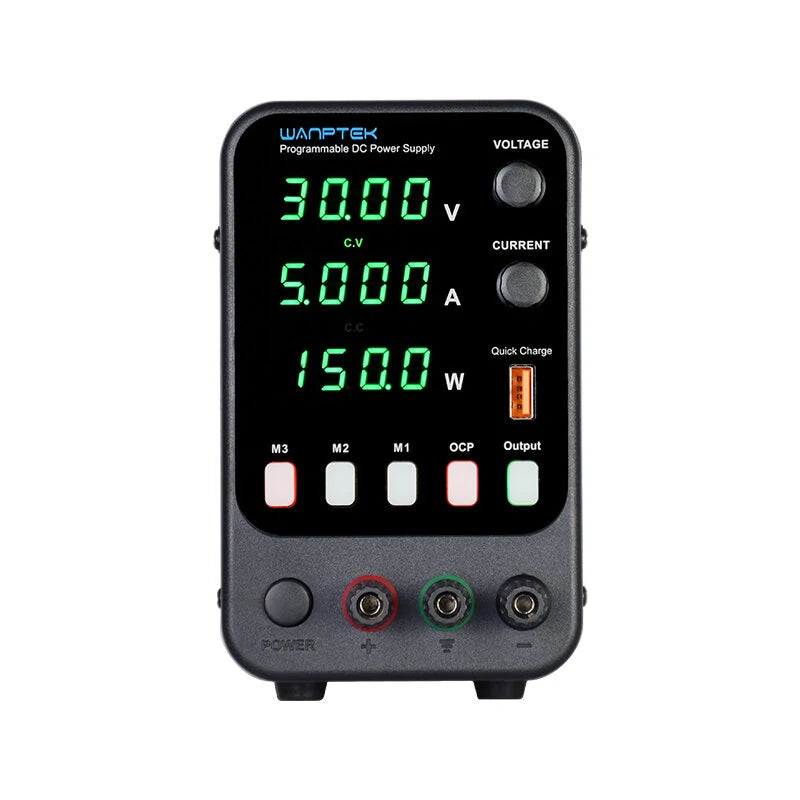

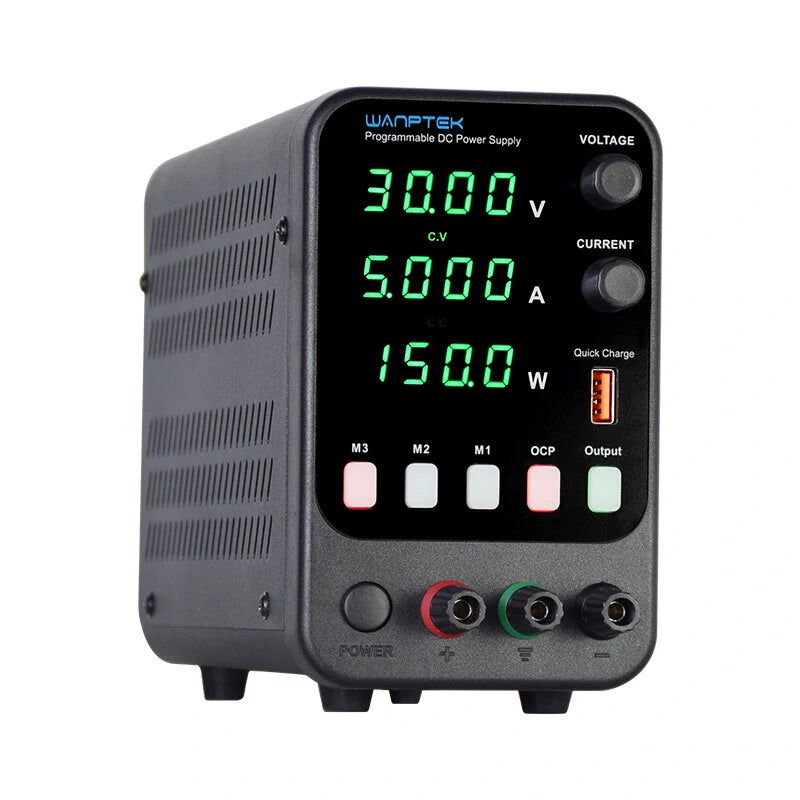

Wanptek DC Power Supply - New Series

Introducing the latest series of DC power supplies from Wanptek. Designed with precision and ease of use in mind, this model features miniature keys for configuration and enhanced control through a program-controlled encoder. Adjust voltage and current with precision using high-sensitivity digital displays that provide real-time visualization of key parameters.

Features

• Program-controlled encoder for accurate voltage and current adjustment.
• Digital display with three groups of four-digit LED tubes showing voltage, current, and power.
• Dedicated OUTPUT button for easy operation.
• OCP protection for short circuit alarms.
• USB fast charging interface supporting multiple protocols.
• Optional USB host computer communication interface for computer and PLC control.
• 3 sets of parameter storage for quick access to commonly used settings.
• High power density, lightweight, and compact design.
• Advanced protection features including OVP, OCP, and overheat protection.
• Temperature-regulated fan offers quiet operation and extended lifespan.
• Supports AC 110V and 220V, providing flexibility in operation.

Specifications

Model	Output Voltage	Output Current	Output Power

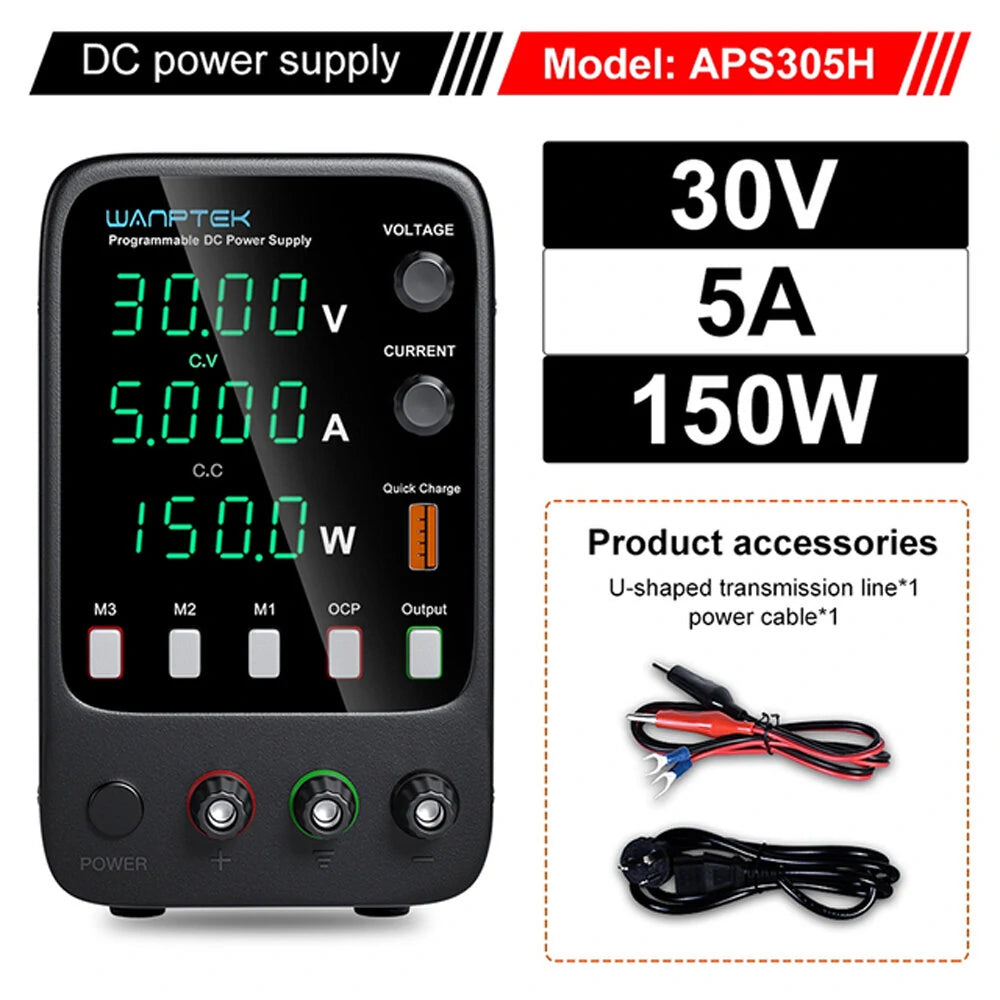

APS305H	30V	5A	150W

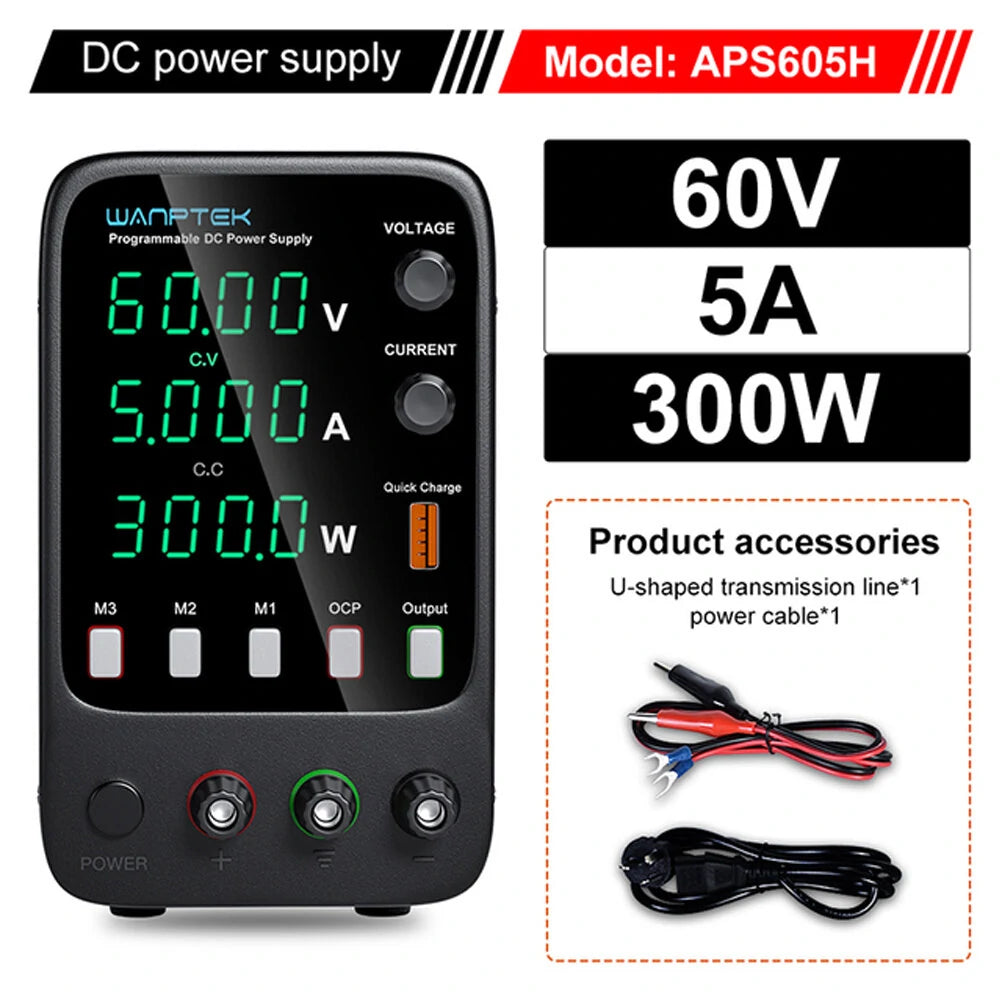

APS605H	60V	5A	300W
APS3010H	30V	10A	300W
APS1203H	120V	3A	360W

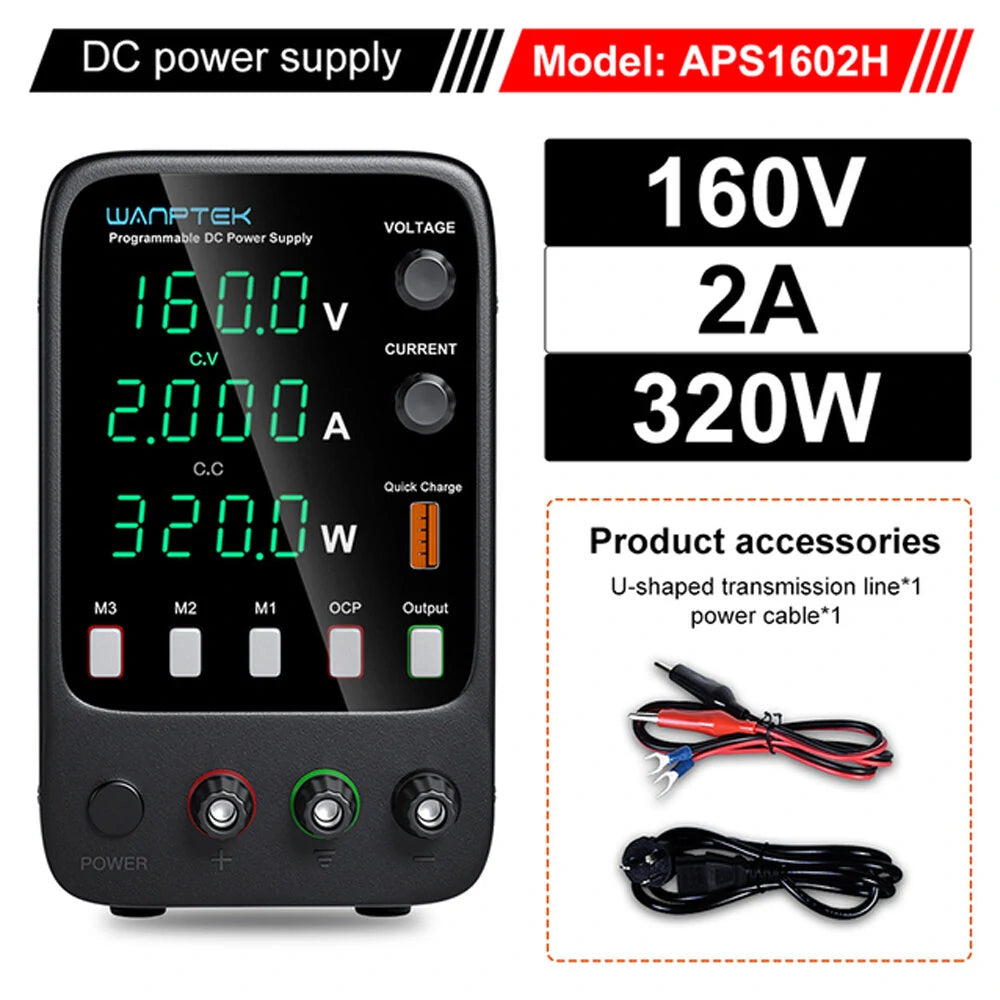

APS1602H	160V	2A	320W

Technical Details

Working Environment: Input voltage: AC 230V/115V ±10%; Frequency: 50Hz/60Hz
Operating Temperature: 0℃ - 40℃; Humidity: Relative
Storage Temperature: -10℃ - 70℃; Humidity: Relative

Constant Voltage (CV): Voltage stability: 0.1% ±3mV
Load stability: 0.2% ±3mV
Ripple voltage: ≤0.5% Vp-p
Adjustable from 0 to max voltage

Constant Current (CC): Current stability: 0.1% ±3mA
Load stability: 0.2% ±3mA
Ripple current: ≤0.5% Vp-p
Recovery time: ≤500μS
Temperature coefficient: ≤100ppm/℃
Adjustable from 0 to max current

Applications

• Production line testing
• Electronic device repair (mobile phones, computers, monitors, etc.)
• Component testing: resistors, capacitors, relays, DC motors, LEDs
• Battery charging
• Laboratories, research centers, educational purposes
• Factories and production line maintenance
• General DC power supply needs

Package Includes

• 1 x DC Power Supply (Model of your choice)
• 1 x Power Cord (EU/US/AU)
• 3 x Test Leads
• 1 x Instruction Manual
