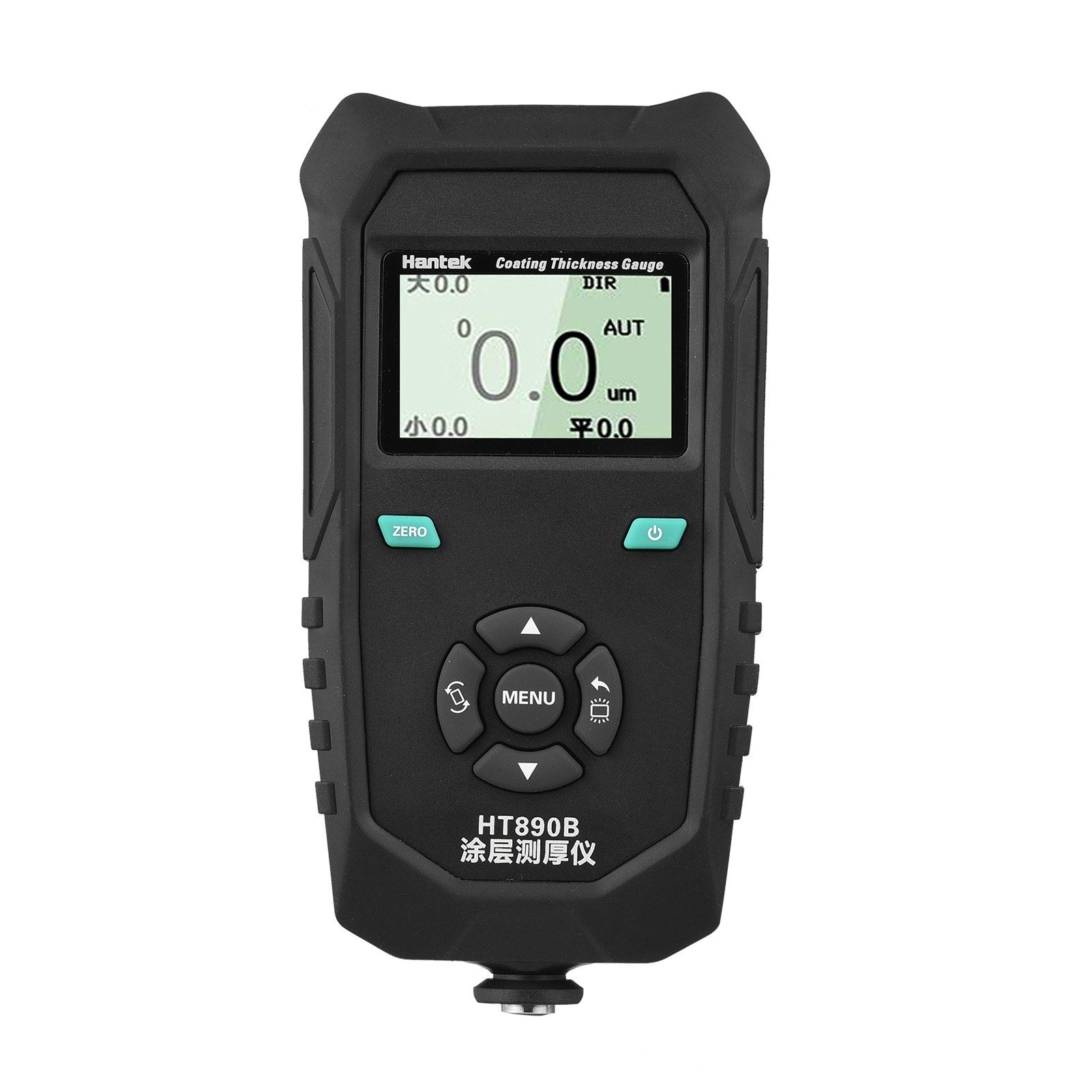

Hantek HT890B Portable Paint Coating Thickness Gauge with Backlit LCD & Alarm for Automotive Use

Hantek HT890B Portable Paint Coating Thickness Gauge with Backlit LCD & Alarm for Automotive Use

Regular price $88.99 USD
Regular price $0.00 USD Sale price $88.99 USD
Sale Sold out
Shipping calculated at checkout.
Color

Shipping Icon Estimated Delivery: -

Quantity
Lock Icon
Guaranteed secure & safe checkout.
Payment Logos
Product Description

Product Features

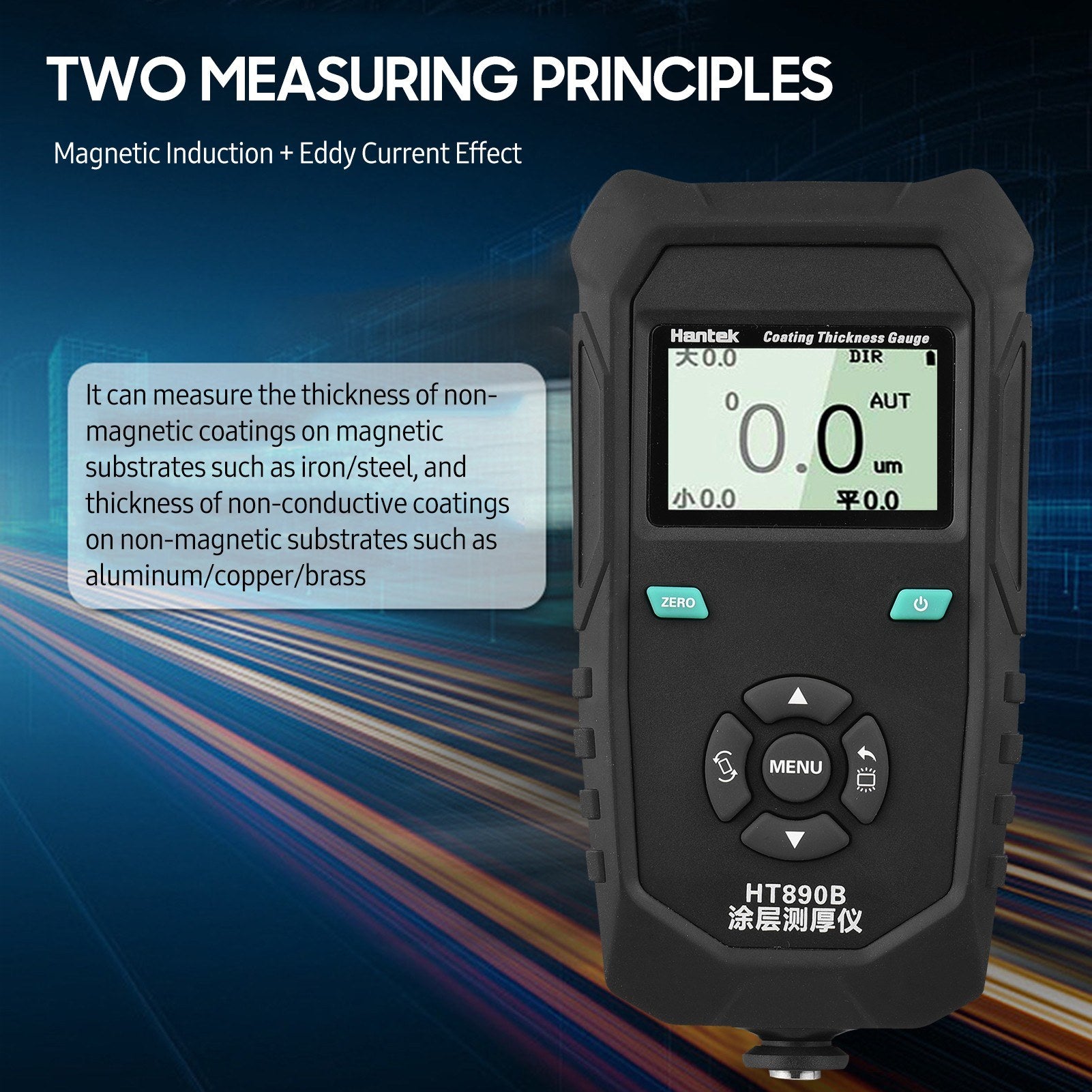

  • Two Measuring Principles: Utilizes Magnetic Induction and Eddy Current Effect to precisely measure the thickness of non-magnetic coatings on magnetic substrates (iron/steel) and non-conductive coatings on non-magnetic substrates (aluminum/copper/brass).

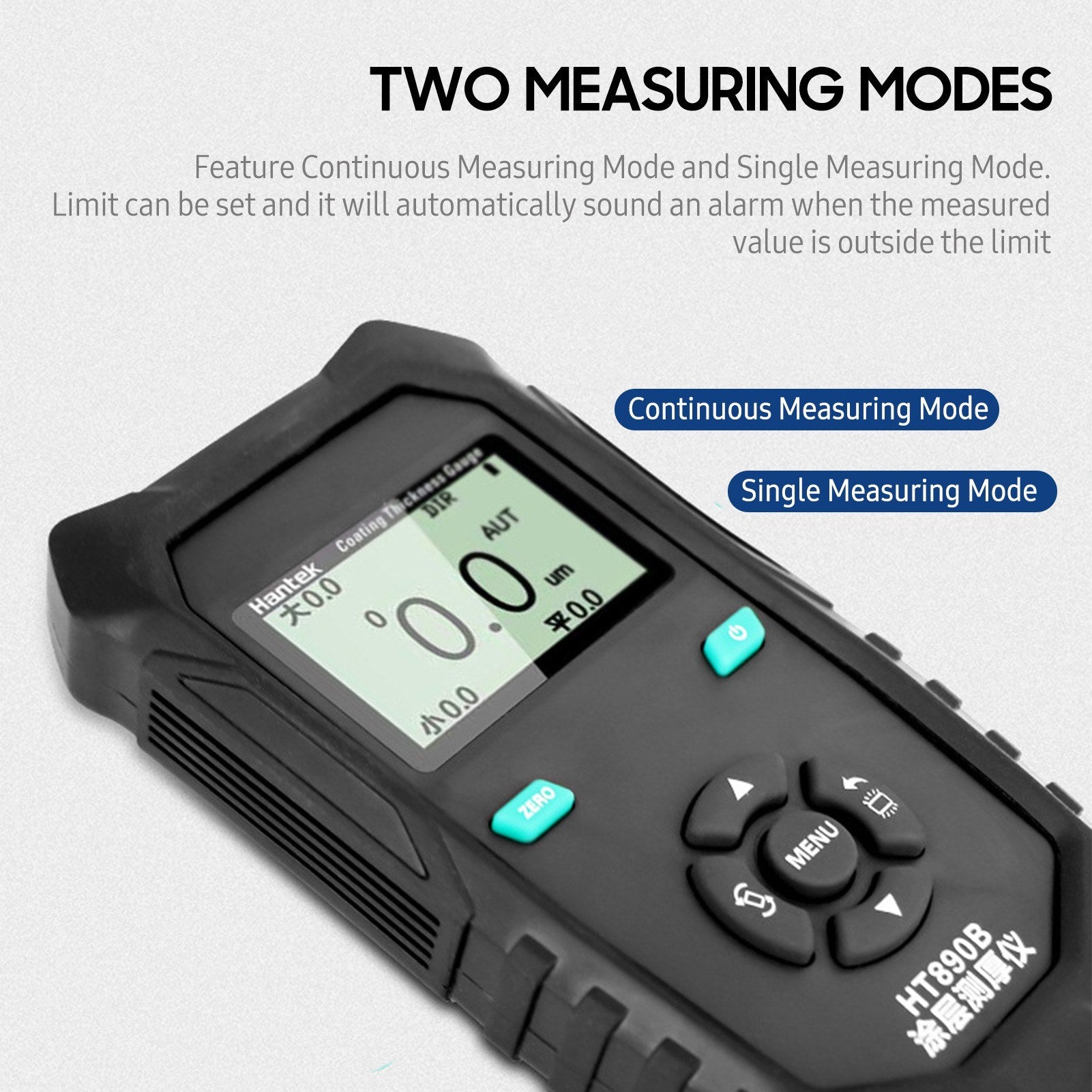

  • Two Measuring Types: Supports Continuous and Single Measuring Modes, with an alert feature for measurements outside set limits.

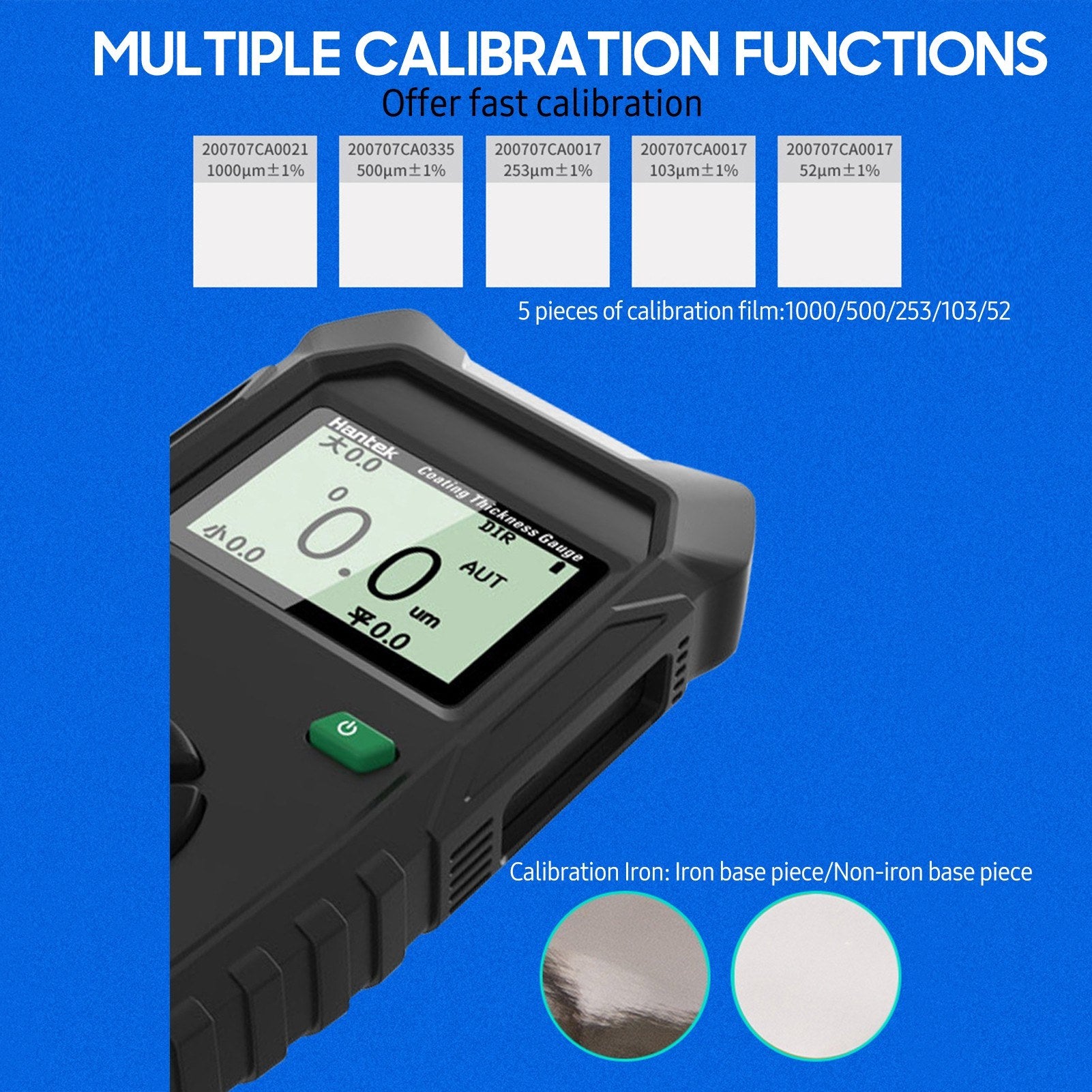

  • Two Calibration Functions: Offers both zero and five-point calibration using 5 calibration films for fast and efficient setup.

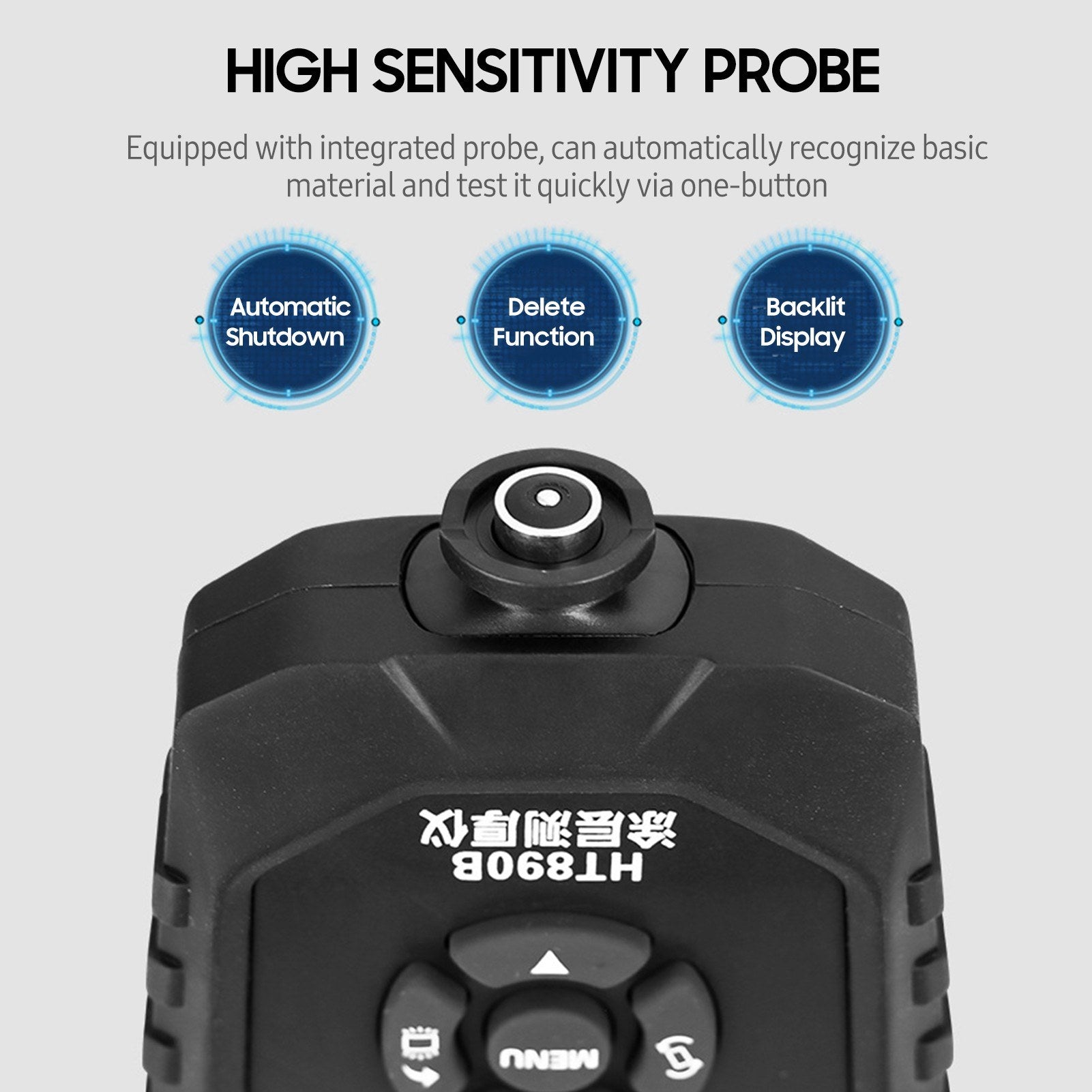

  • High-sensitive Probe: Features an integrated, high-sensitivity probe that automatically identifies the base material for quick testing with a single button.

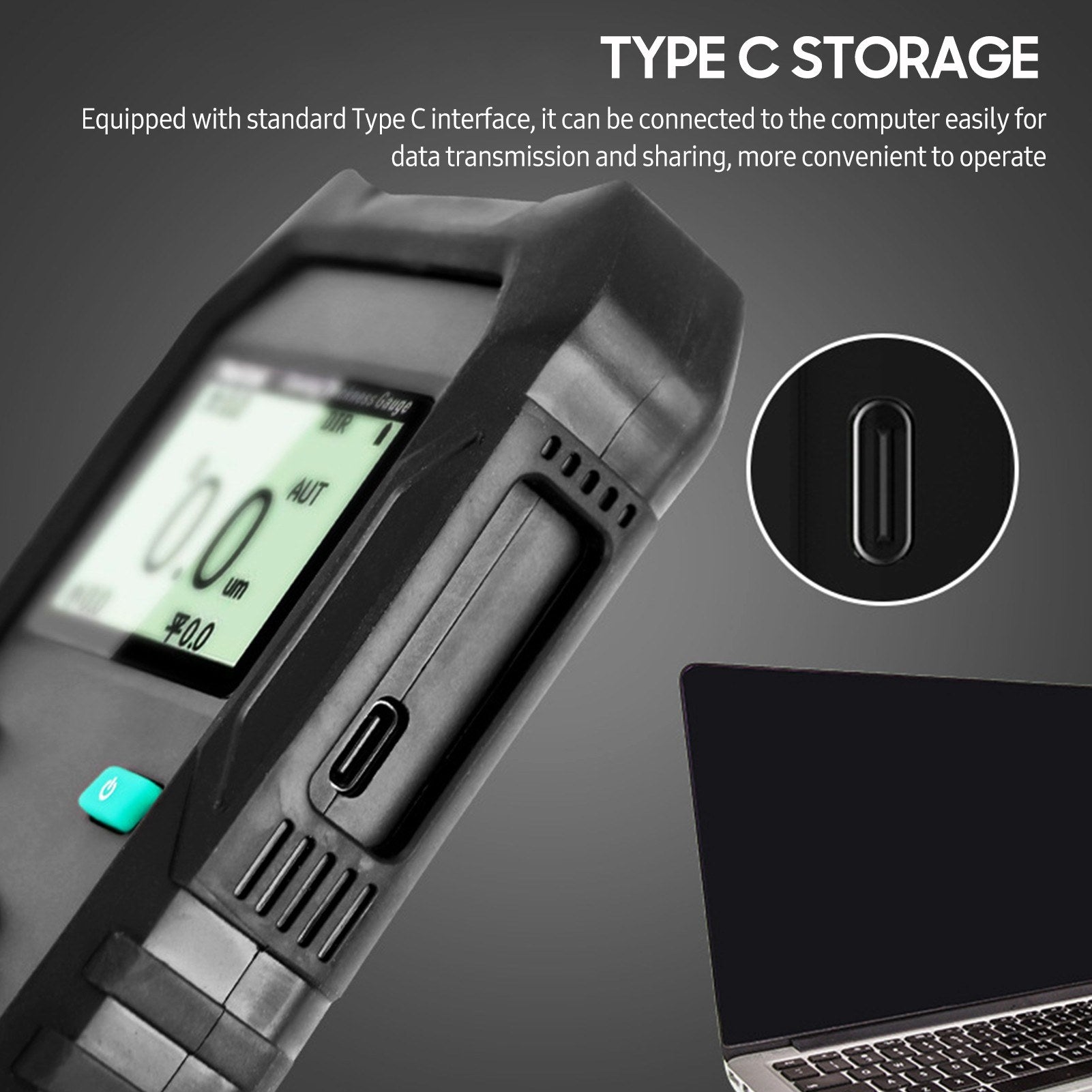

  • Convenient Storage: Connects to a computer via Type C interface for easy data transmission and sharing.

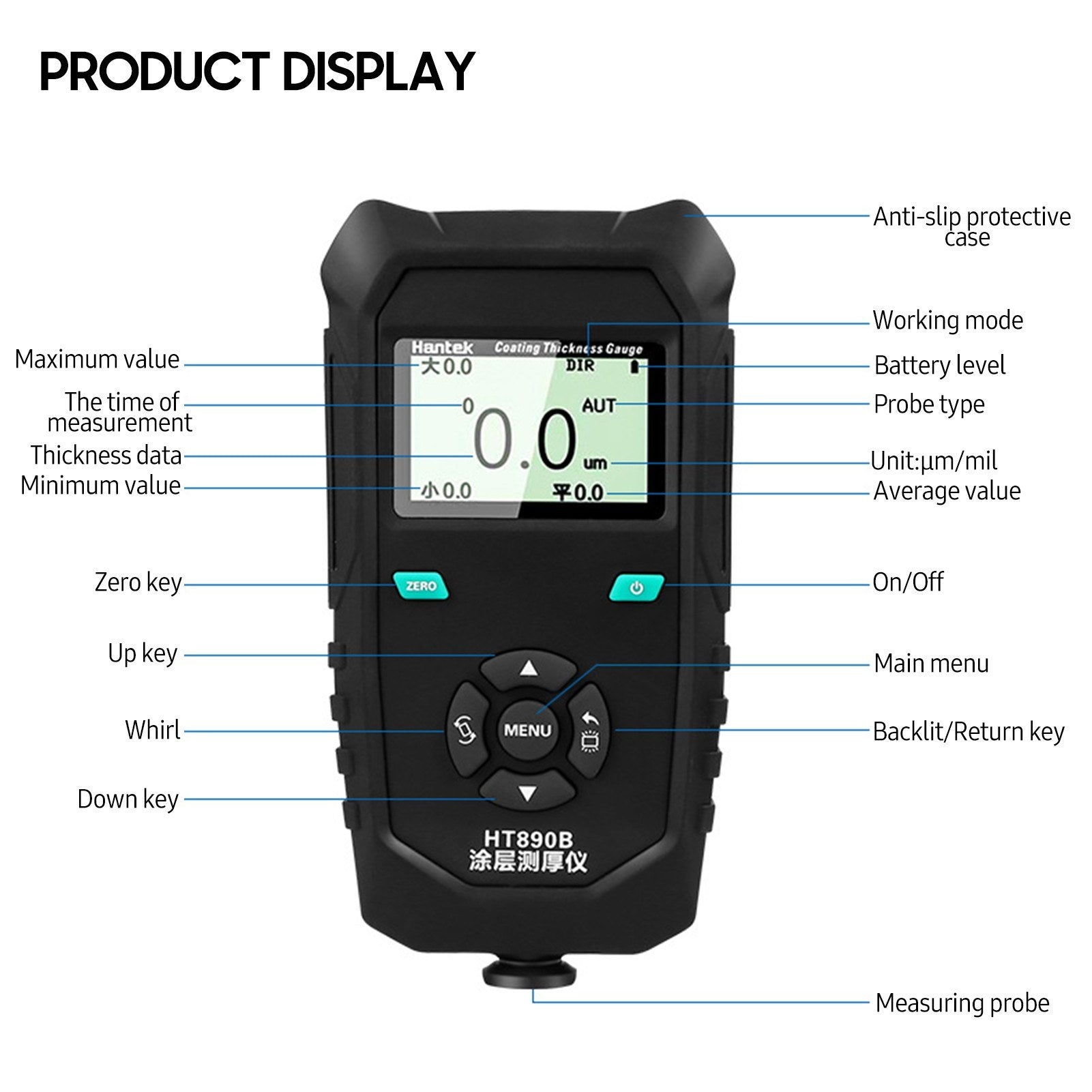

  • Clear Display: Backlit LCD display ensures visibility even in dim light. The rotating screen design facilitates easy operation in various orientations.
  • Wide Application: Lightweight and portable, ideal for use in industries such as painting, plating, automotive, aircraft manufacturing, and more.
  • Additional Functions: Includes five statistics display, automatic shutdown, buzzing alerts, and delete function.

Specifications

  • Brand: Hantek
  • Model: HT890B
  • Material: ABS
  • Color: Black

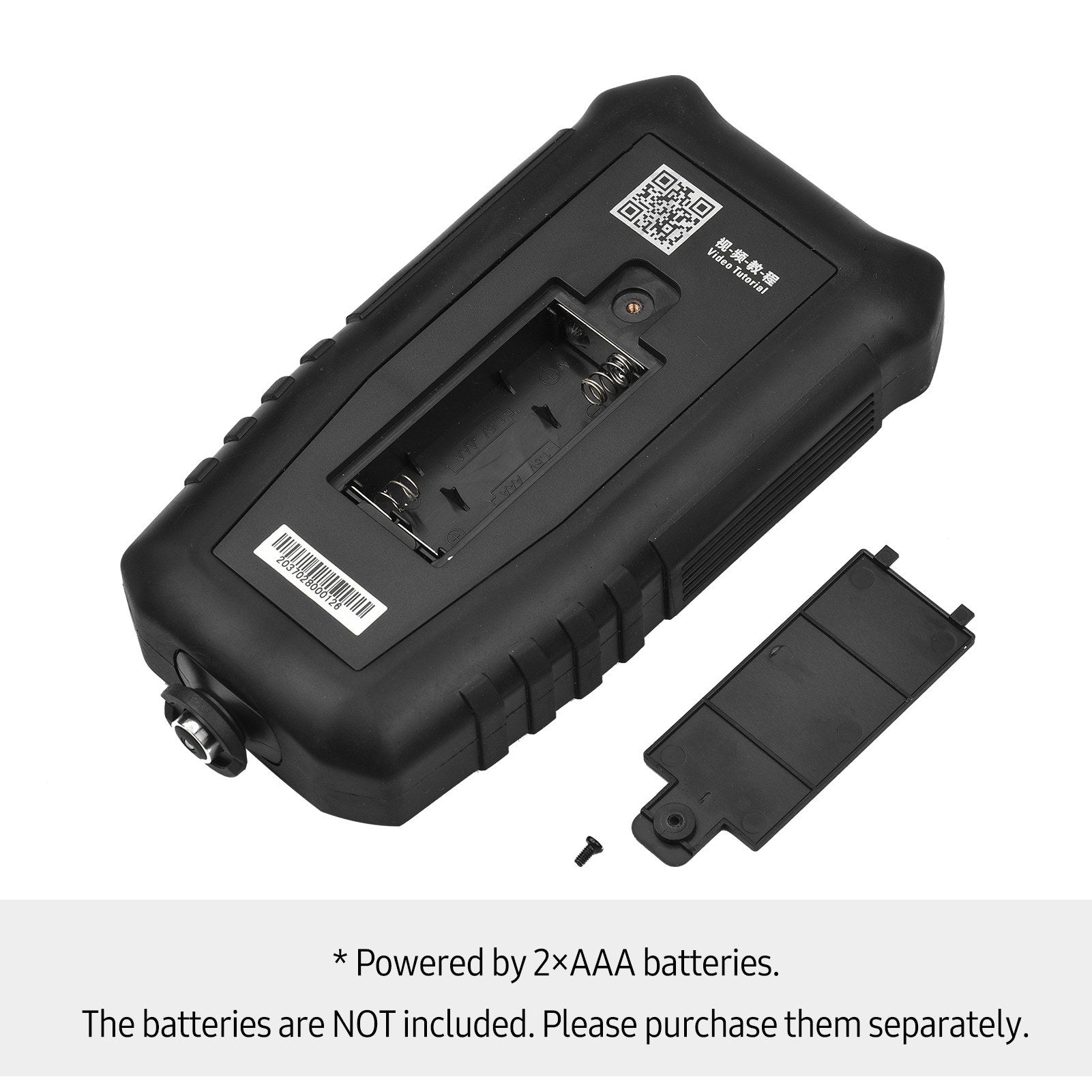

  • Battery: 2×AAA Batteries (not included)

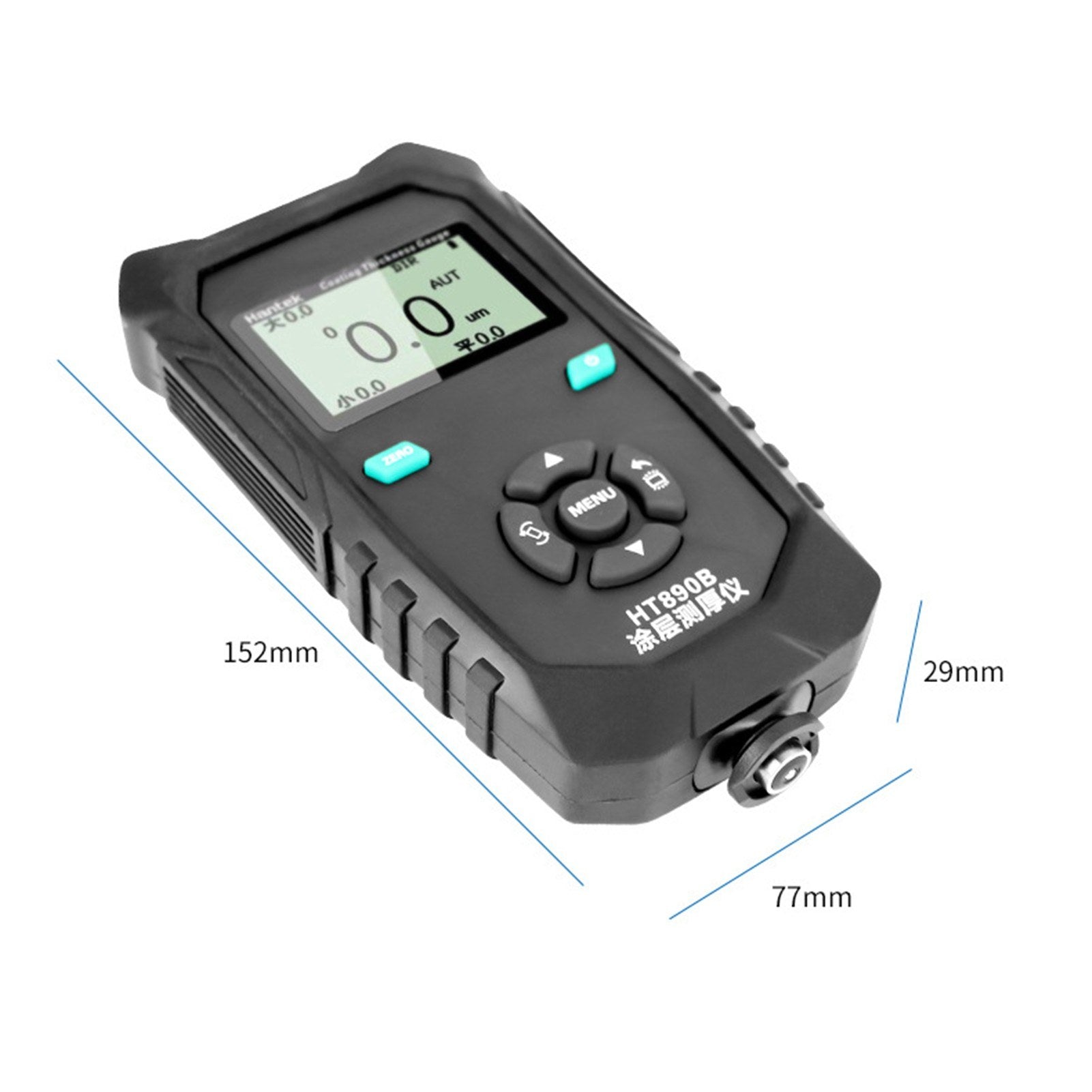

  • Item Size: 152 × 77 × 29mm / 5.98 × 3.03 × 1.14in
  • Item Weight: 156g / 5.5oz
  • Package Size: 25.8 × 19.8 × 5.1cm / 10.16 × 7.8 × 2.01in
  • Package Weight: 531g / 18.73oz
  • Measuring Range: 0–1500μm / 0–50mil
  • Measuring Error: ±(3%+2μm) / ±(3%+0.08mil)
  • Minimum Resolution: 0.1μm / 0.01mil
  • Measuring Unit: μm / mil
  • Minimum Curvature Radius: 1.5mm / 25mm
  • Diameter of Minimum Area: 6mm
  • Minimum Substrate Thickness: 0.5mm (magnetic induction) / 0.3mm (Eddy current effect)
  • Operating Temperature: 0–40℃
  • Humidity: 20%–90% RH

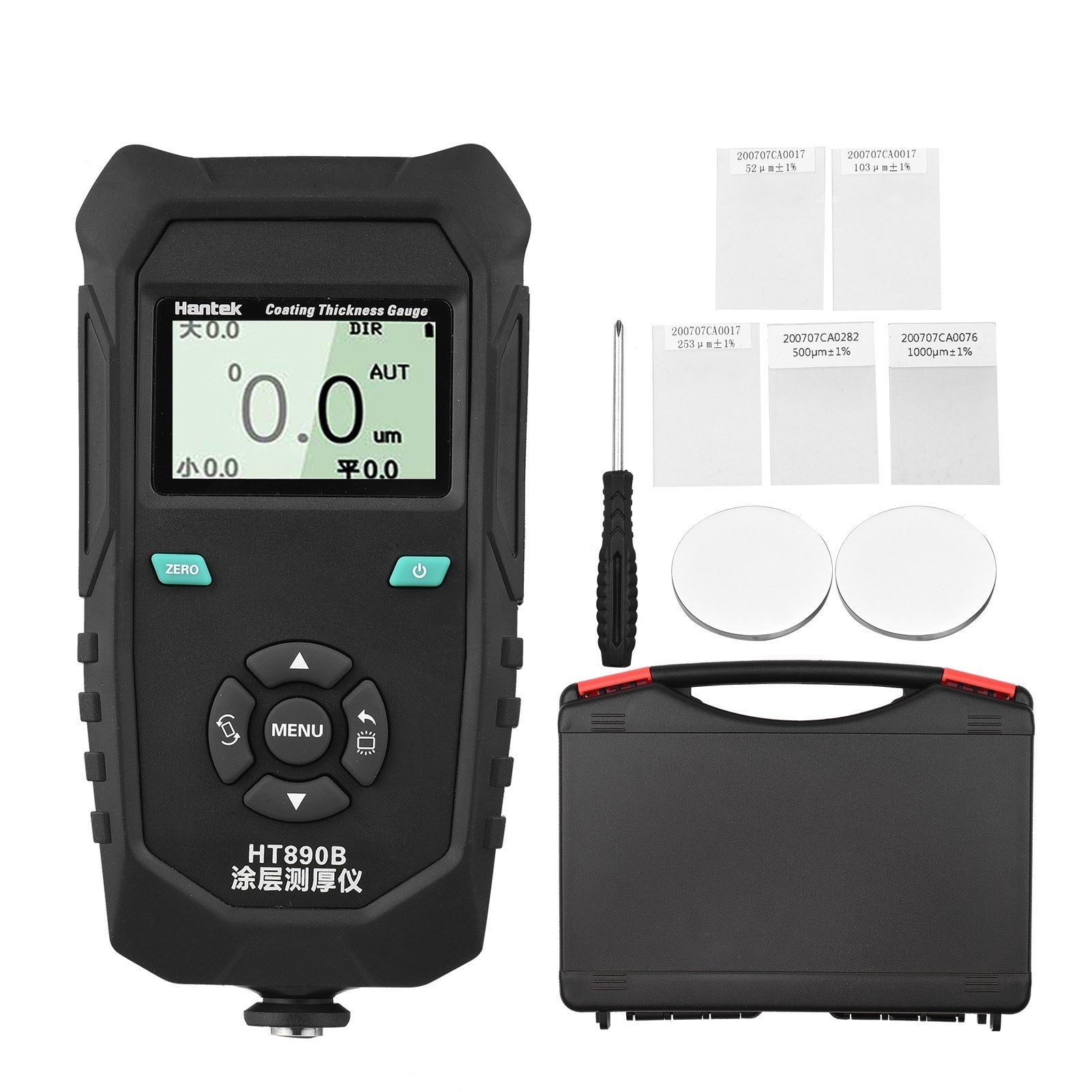

Package List

  • 1 × Thickness Gauge
  • 1 × Screw Driver
  • 1 × Iron Base Piece
  • 1 × Non-Iron Base Piece
  • 5 × Calibration Film
  • 1 × Carrying Case
