Description:
Introducing the Q900 V4, a cutting-edge software-defined radio (SDR) station designed for radio enthusiasts who demand performance and convenience. While software bugs might occasionally occur, rest assured that our dedicated team of engineers is ready to assist you. For support, join our official group to communicate directly with our engineers. If you encounter any issues, please reach out to us before initiating any disputes.
Click here to download the Q900 product manual
Notice:
- Carefully review the technical specifications before purchasing to ensure the product meets your requirements.
- Be aware of local laws prior to purchasing.
- The Q900 is an amateur radio and does not support transmission outside the amateur frequency band. Adhere to local regulations while using it.
- Read the user manual thoroughly before operating the radio.
- Do not disassemble the radio, as disassembly voids the warranty.
- If you experience any software-related issues, contact our official customer service promptly. Once verified, problems will be addressed in future firmware updates.
- Join our official group for the latest information and technical support.
Introduction:
The Q900 introduces an ultra-portable, full-range, full-mode SDR radio with a receiving frequency from 100 kHz to 2 GHz. Our QRadioble phone app allows easy control of the radio, making operation more seamless and quick. Designed with a comprehensive keyboard, built-in Bluetooth, sound card module, and communication serial port, the Q900 supports popular radio control and logging software for enhanced usability.
Features:
- Real-time spectrum display
- Waterfall chart visualization
- Doppler frequency tracking
- Supports DMR (optional), SSB, CW, RTTY, AM, FM modes using SDR technology
- Double frequency conversion circuit structure
- USB keyboard control and CW/RTTY code support
- DSP digital noise reduction
- Built-in 160-6 meters high-speed automatic antenna tuner
- Integrated Bluetooth functionality
- Sound card with IQ and audio output
- 4.9AH battery included
- USB Type-C 3.1 interface for power supply and computer connection
- High precision TXCO ± 0.5ppm (-10-60 ℃)
- Wide working voltage range: 5-32VDC
- Power supply reverse connection protection
- Optional built-in GPS and electronic compass
- GPS time service with optional GPS module
- Integrated UTC clock
- Voltage display feature
- Remote operation via phone app (English supported)
- LAN remote operation capability

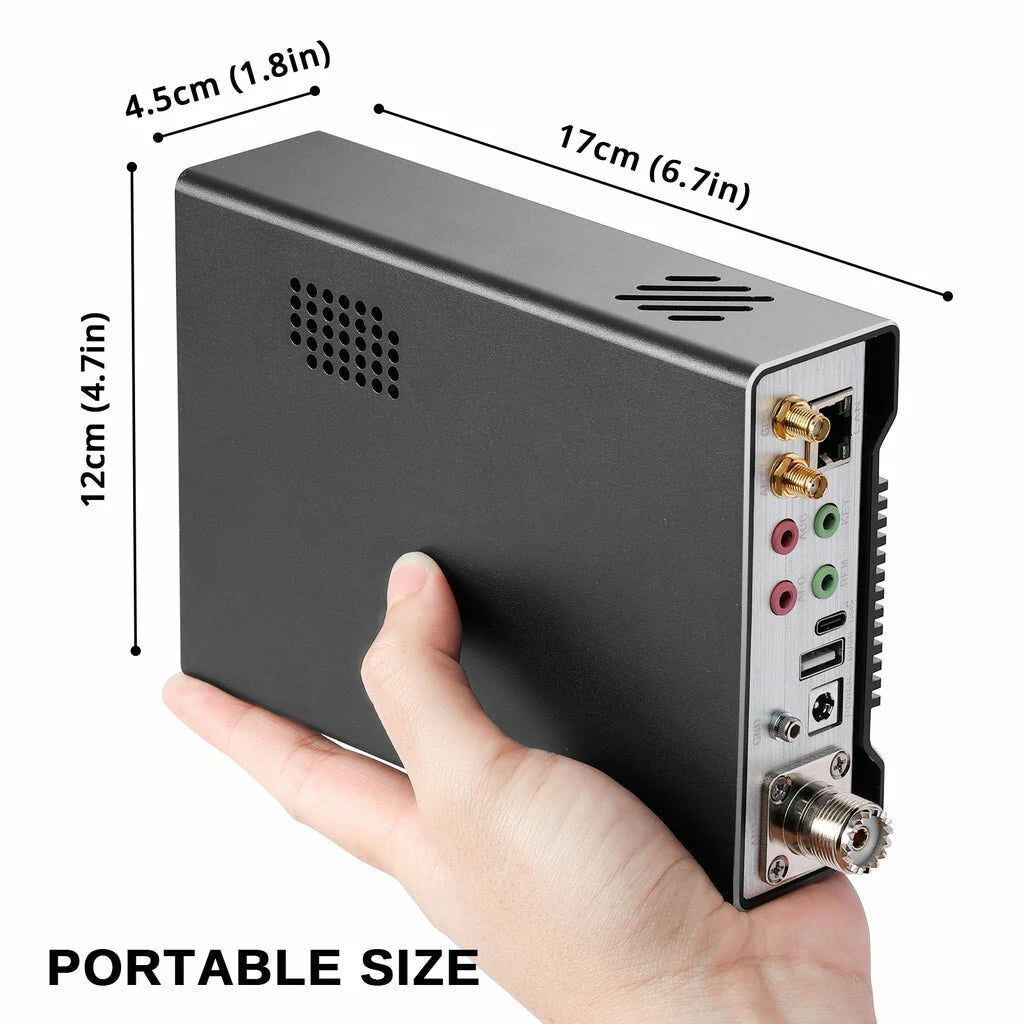

- Ultra-lightweight design: ≤2KG
Package Includes:
- 1 x Q900 V4 Radio (optional)
- 1 x Handheld Mic
- 1 x USB Cable
- 1 x Power Cable
- 1 x Case (packaging may vary by batch, but products remain identical)
Note:
Compass, GPS, DMR module, and antenna are optional. These modules will be installed before shipping if selected.
