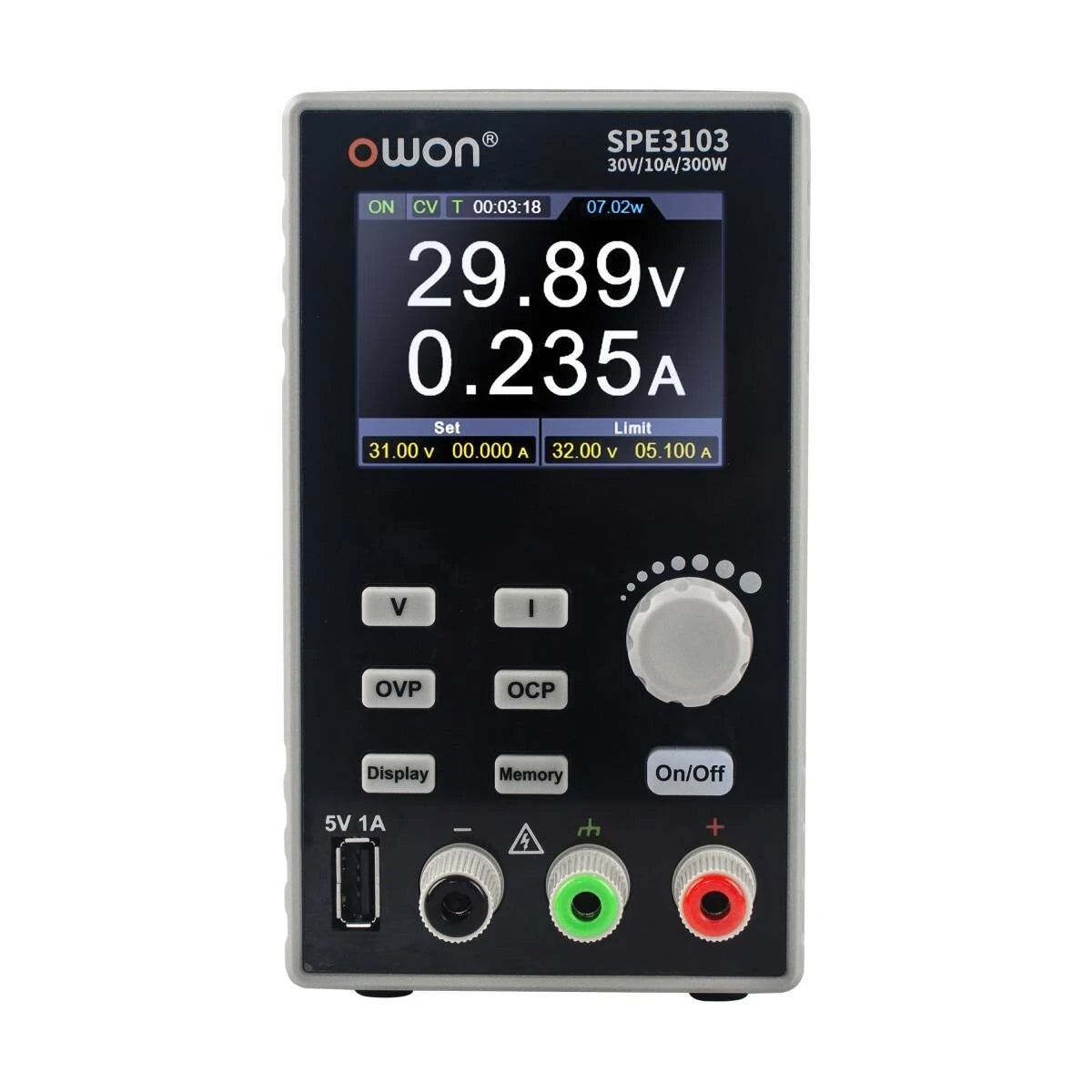

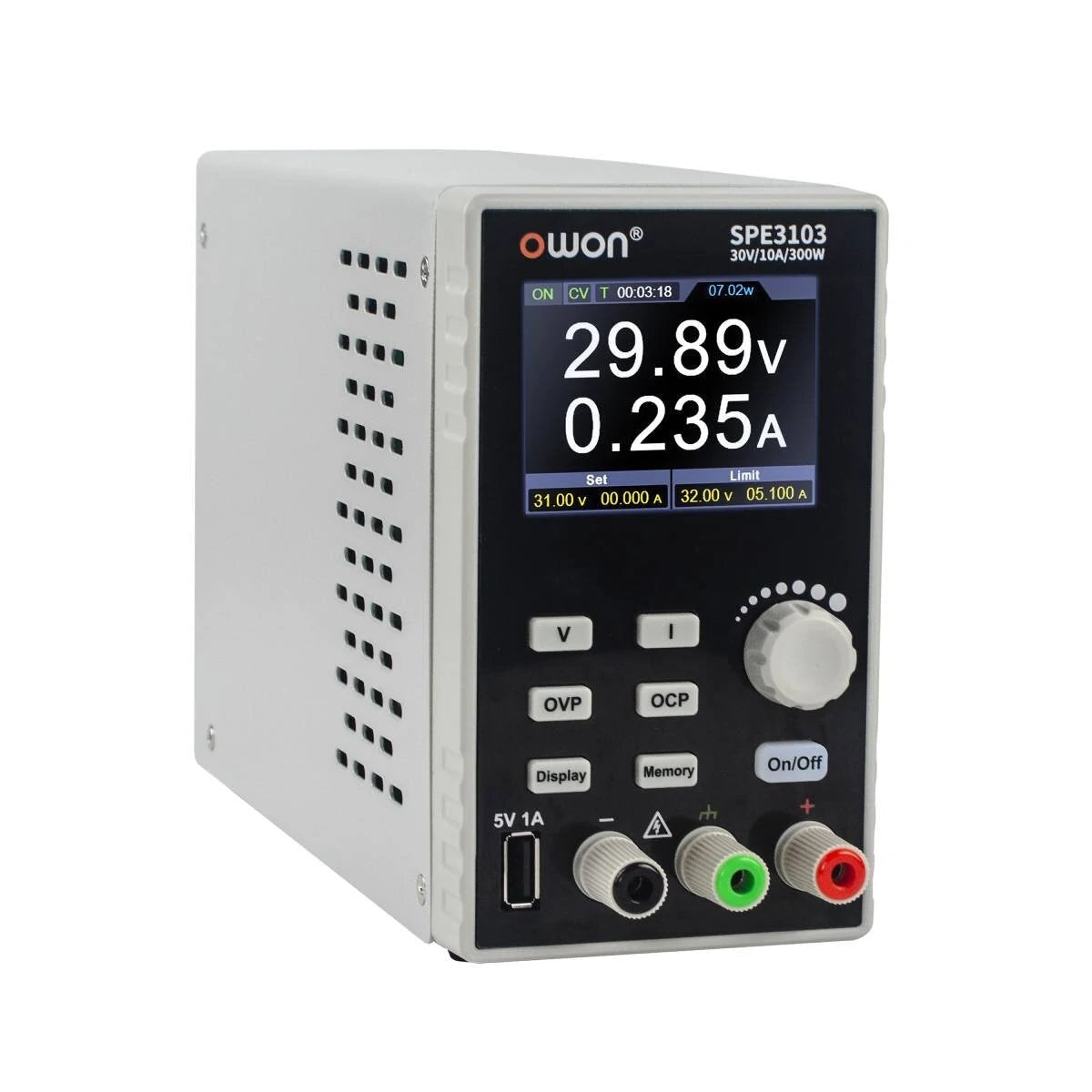

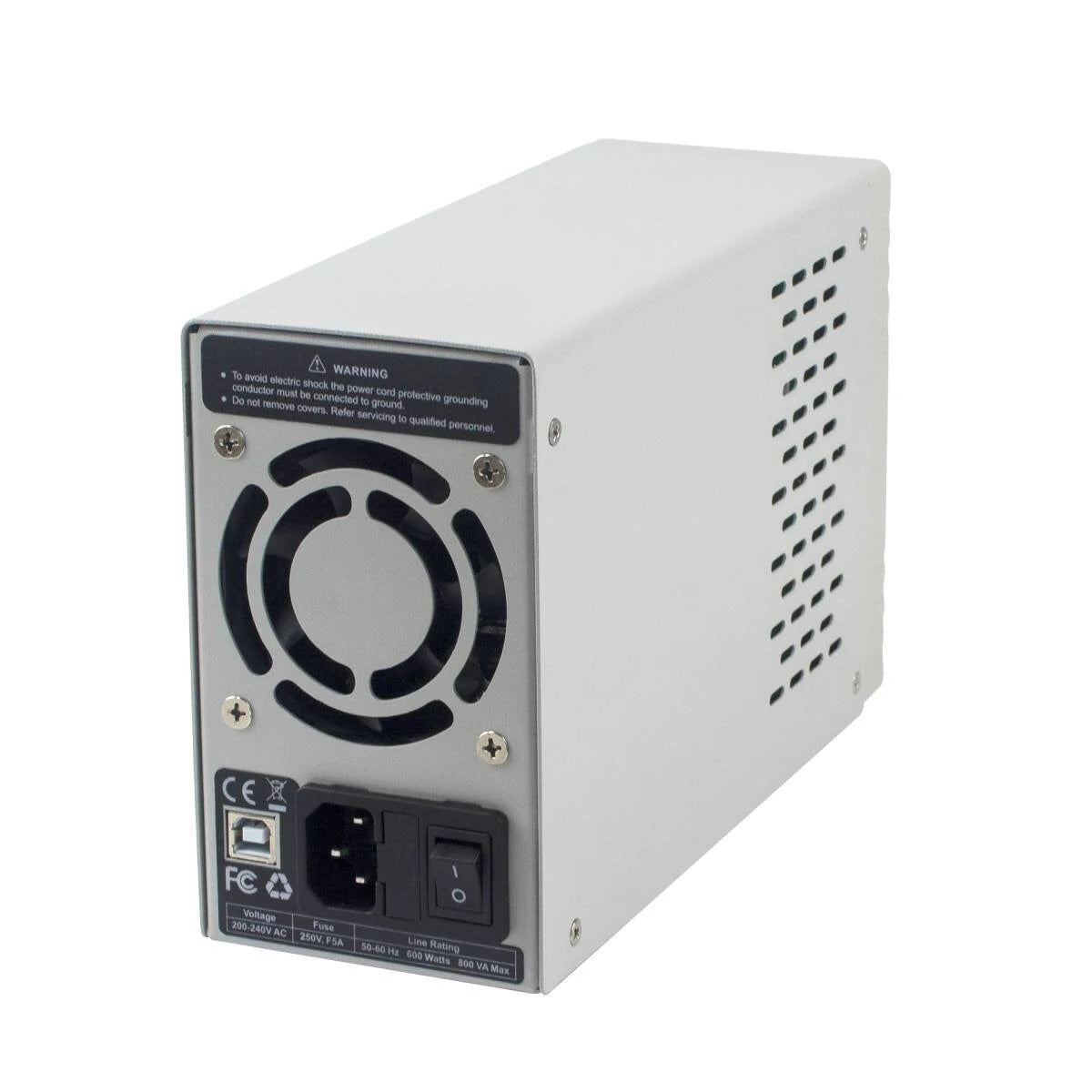

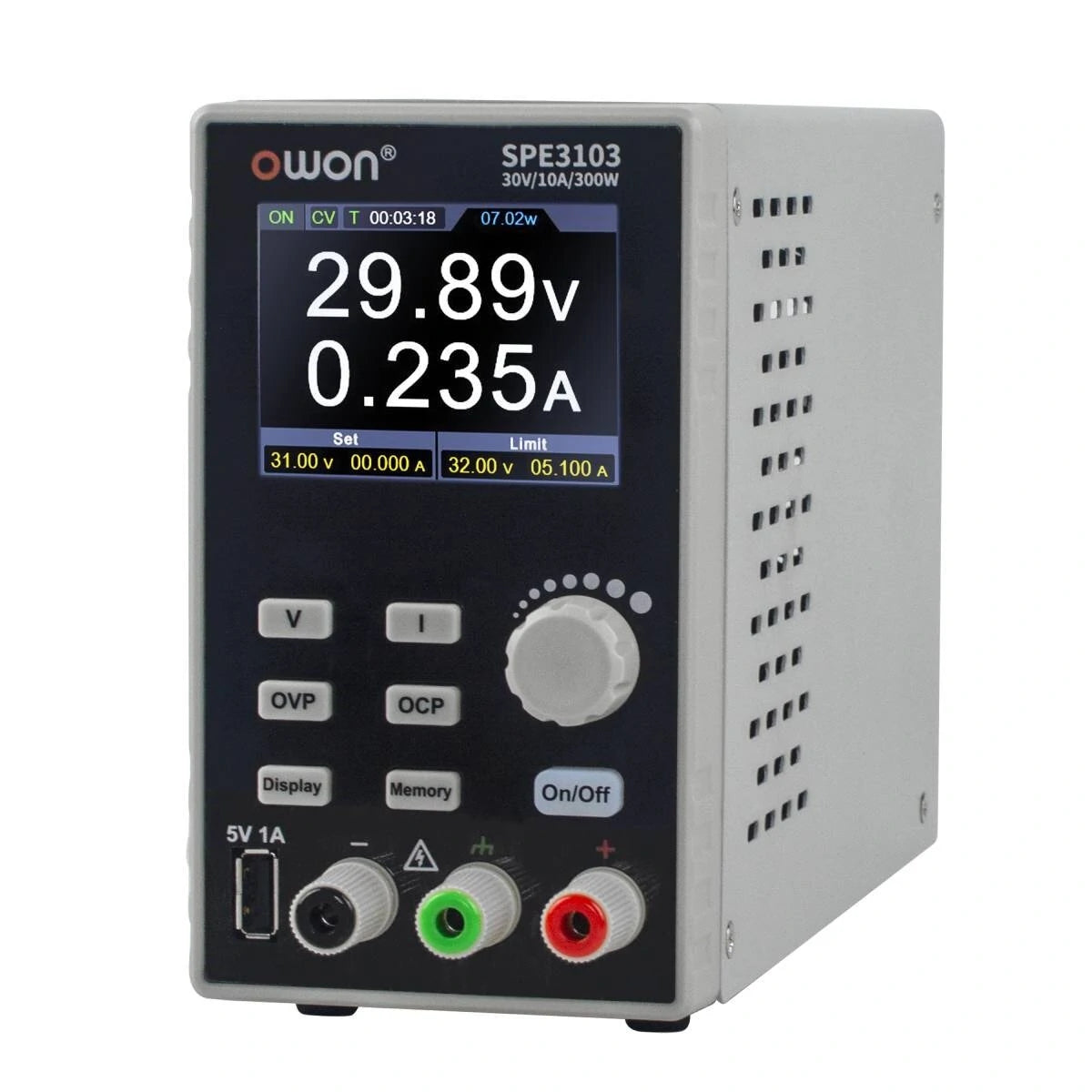

OWON SPE3103/SPE6103 Programmable Single Channel DC Power Supply Voltage Regulator
OWON SPE3103/SPE6103 Programmable Single Channel DC Power Supply Voltage Regulator
Regular price
$119.99 USD
Regular price
$0.00 USD
Sale price
$119.99 USD
Shipping calculated at checkout.
Estimated Delivery: -
Quantity
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Product Features
- Compact design for easy portability
- High resolution performance: 10mV / 1mA
- Edit and output waveforms with up to 10 groups of timing functions
- Low ripple and noise for stable operation
- Over-voltage and over-current protection
- Monitor output voltage and current curves with ease
- Efficient cooling with intelligent temperature control fan
- Clear and vibrant 2.8-inch TFT LCD display
- USB communication interface with SCPI support
Applications
- Military R&D and quality inspection
- Functional testing of automotive circuits
- Educational purposes and technical training
- Testing and aging experiments for electronic components
- Monitoring battery charging curves
Specifications
| Model | SPE3103 | SPE6103 |
|---|---|---|
| Output Range | 30V/10A | 60V/10A |
| Output Power | 300W | 300W |
| Rated Output (0°C-40°C) | ||
| Voltage | 0-30V | 0-60V |
| Current | 10A | 10A |
| Load Regulation | ||
| Voltage | ≤30mV | ≤30mV |
| Current | ≤20mA | ≤20mA |
| Power Regulation | ||
| Voltage | ≤30mV | ≤30mV |
| Current | ≤20mA | ≤20mA |
| Setting Resolution | ||
| Voltage | 10mV | 10mV |
| Current | 1mA | 1mA |
| Readback Resolution | ||
| Voltage | 10mV | 10mV |
| Current | 1mA | 1mA |
| Ripple/Noise(*) | ||
| Voltage(Vp-p) | ≤30mVp-p | ≤50mVp-p |
| Voltage (rms) | ≤3mVrms | ≤5mVrms |
| Current (rms) | ≤30mAp-p | ≤30mAp-p |
| Response Time (50%-100% rated load) | ≤1.0ms | ≤1.0ms |
| Storage | 4 groups of data | |
| Working Temperature | 0~40°C | |
Package Includes
- 1 x Power Supply Main Device
- 1 x Power Cord
- 1 x User Manual
- 1 x Fuse
