MUSTOOL MT108T True RMS Digital Multimeter - 6000 Counts, NCV, Temperature, Backlit, AC/DC, Resistance, Frequency, Capacitance
MUSTOOL MT108T True RMS Digital Multimeter - 6000 Counts, NCV, Temperature, Backlit, AC/DC, Resistance, Frequency, Capacitance
Regular price
$19.99 USD
Regular price
$0.00 USD
Sale price
$19.99 USD
Unit price
per
Shipping calculated at checkout.
Estimated Delivery: -
Couldn't load pickup availability
Guaranteed secure & safe checkout.
Note: From 2022.12.26, old and new versions will be randomly shipped.

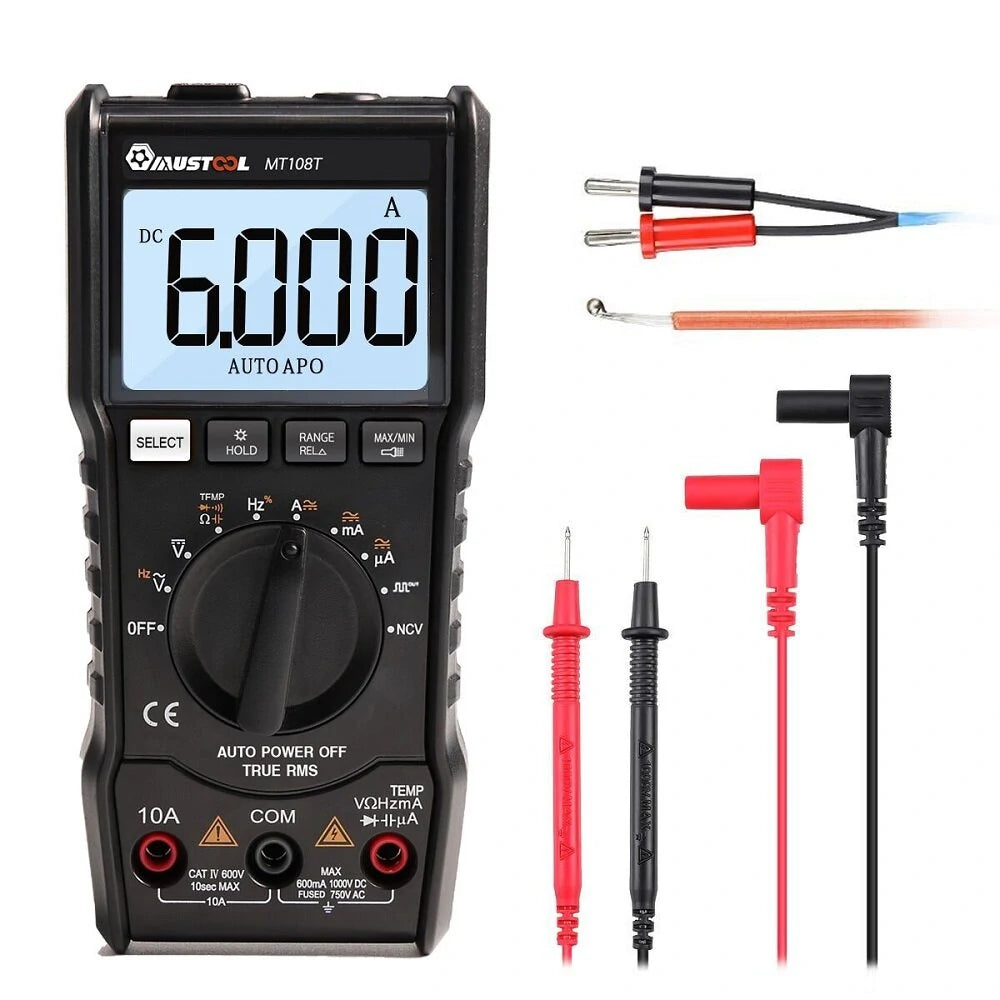

MUSTOOL MT108T True RMS Multimeter
The MUSTOOL MT108T is a compact, pocket-sized multimeter with 6000 counts featuring automatic digital instrumentation. Enjoy stable performance, high precision, clear readings, and reliable overload protection. Its large LCD screen with backlight ensures readability even on low battery, making it a favorite among laboratory, factory, radio enthusiasts, and households.
Key Features:
- Square Waves Output: 50Hz-5000Hz (available in old version only).
- Automatic power-off feature.
- Auto and manual ranging options.
- HD LCD display with adjustable backlight.
- High voltage diode output (4.2V) for easy LCD lighting.
- Wide measurement capabilities: AC/DC voltage, AC/DC current, resistance, capacitance, diode, frequency, duty cycle, continuity, buzzer.
- Special functions: Square waves output, NCV (Non-Contact Voltage), temperature measurement, flashlight, True RMS measurement.
Specifications:
| Function | Range | Accuracy | Resolution |
|---|---|---|---|
| DC Voltage (V) | 6V / 60V / 600V / 1000V | ±(0.5%+3) / ±(0.8%+10) | 0.001V / 0.01V / 0.1V / 1V |
| AC Voltage (V) | 6V / 60V / 600V / 750V | ±(0.8%+3) / ±(1.2%+10) | 0.001V / 0.01V / 0.1V / 1V |
| DC Current (μA, mA, A) | 600μA - 10A | ±(1.2%+10) | 0.1μA - 0.01A |
| AC Current (μA, mA, A) | 600μA - 10A | ±(1.2%+10) | 0.1μA - 0.01A |
| Resistance (Ω) | 600Ω - 40MΩ | ±(0.8%+5) | 0.1Ω - 10kΩ |
| Capacitance | 60nF - 30mF | ±(3.5%+20) | 10pF - 10uF |
| Frequency | 10Hz - 20MHz | ±(0.1%+3) | 0.01Hz - 10kHz |
| Temperature (°C/°F) | -20°C to 1000°C / 0°F to 1832°F | ±(1.0%+5) / ±(0.75%+5) | 1°C / 1°F |
Additional Information:
- Maximum Display: 6000 (3 5/6) digits with automatic polarity display.
- Measurement Method: Double integral A/D conversion.
- Sampling Rate: Approximately 3 times per second.

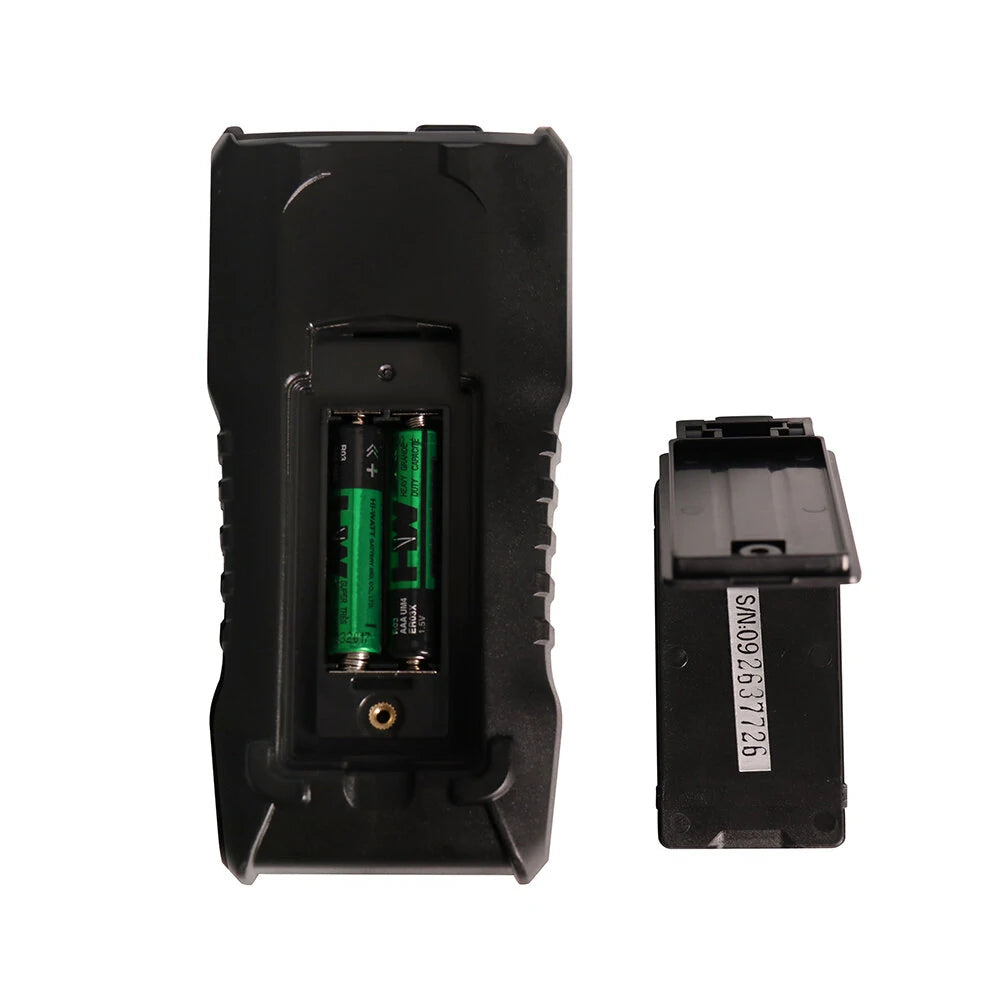

- Power Supply: Requires AAA 1.5V batteries (not included).
- Dimensions: 142 x 70 x 32 mm (L x W x H).
- Weight: Approximately 200g.

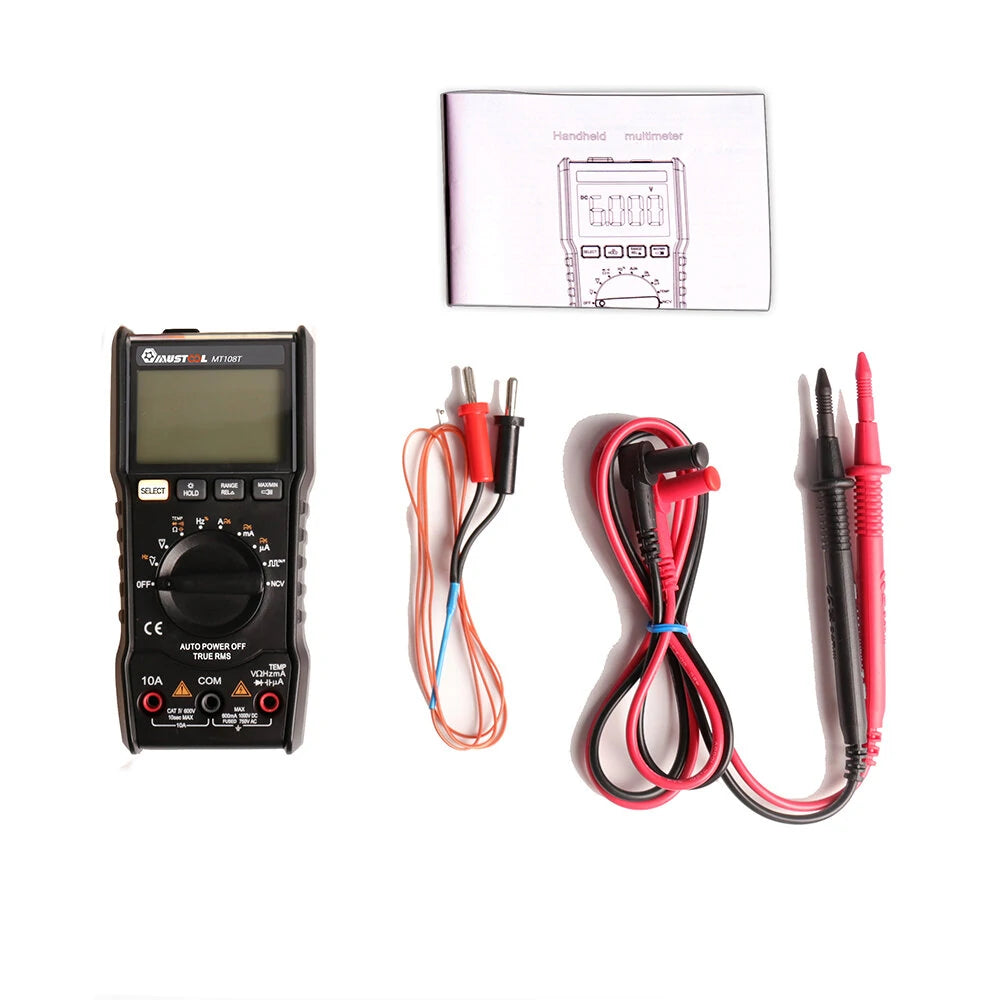

Package Includes:
- 1 x MUSTOOL MT108T True RMS Multimeter
- 2 x Test Lead Sets
- 1 x Temperature Sensing Cable
- 1 x English User Manual
