Handheld Digital Oscilloscope 2.8 TFT Display, 10MHz Bandwidth, 48MSa/S Sampling, Data Storage for DIY & Electronic Testing

With a bandwidth of 10MHz, a real-time sampling rate of 48MSa/s, and a deep storage capacity of 128Kbytes, this oscilloscope delivers precise measurements for various signals. Designed to measure a multitude of electrical parameters or capture waveforms, it offers a multifunctional approach with adjustable time base, amplitude, data storage, and auto-sleep features. It adeptly handles measurements across diverse fields including electronic circuit testing and debugging, electronics repair, communications, and computer troubleshooting.

Features:

• Digital Display: The oscilloscope comes with a 2.8-inch TFT color display, ensuring clear waveform visualization and precise numerical readings. It supports customizable backlight settings and screen brightness adjustments.

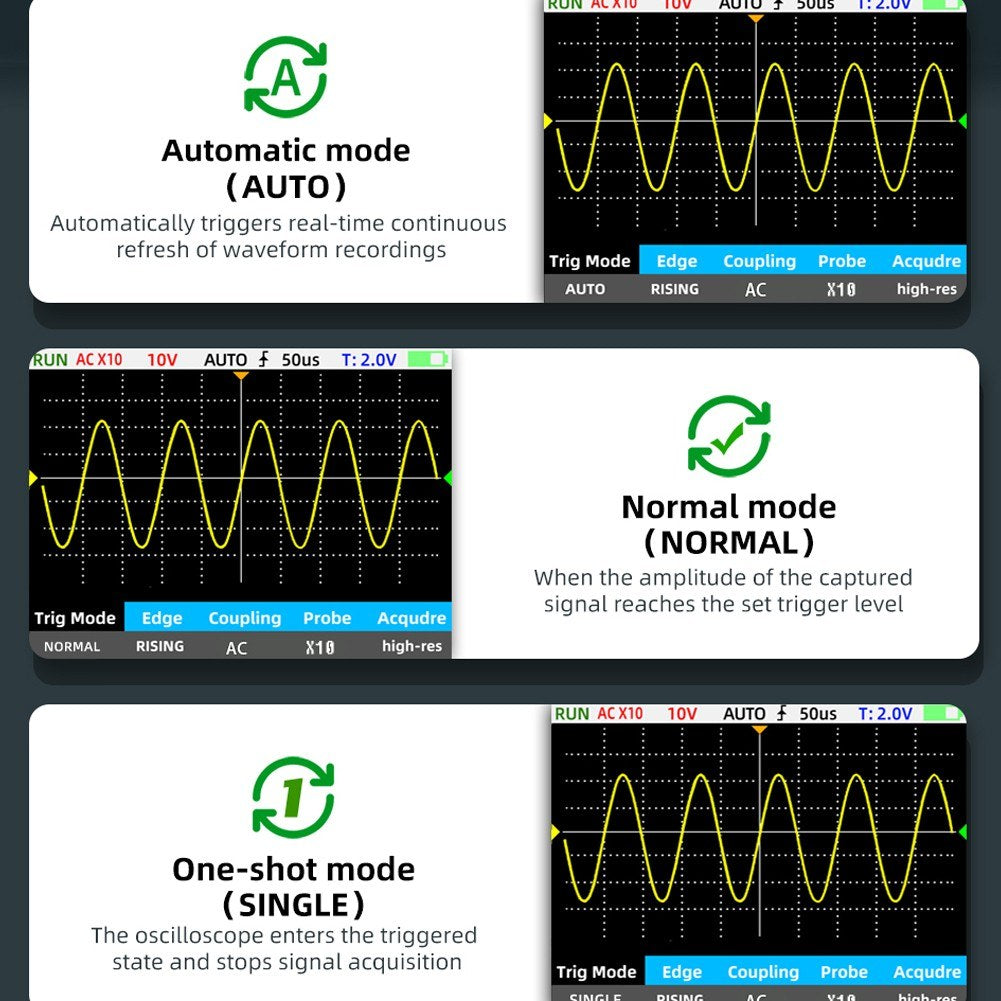

• 3 Trigger Modes & Auto Capture: Choose from AUTO, NORMAL, and SINGLE trigger modes for precise waveform acquisition. The auto-capture function simplifies operations, making it suitable for fast analysis and troubleshooting.

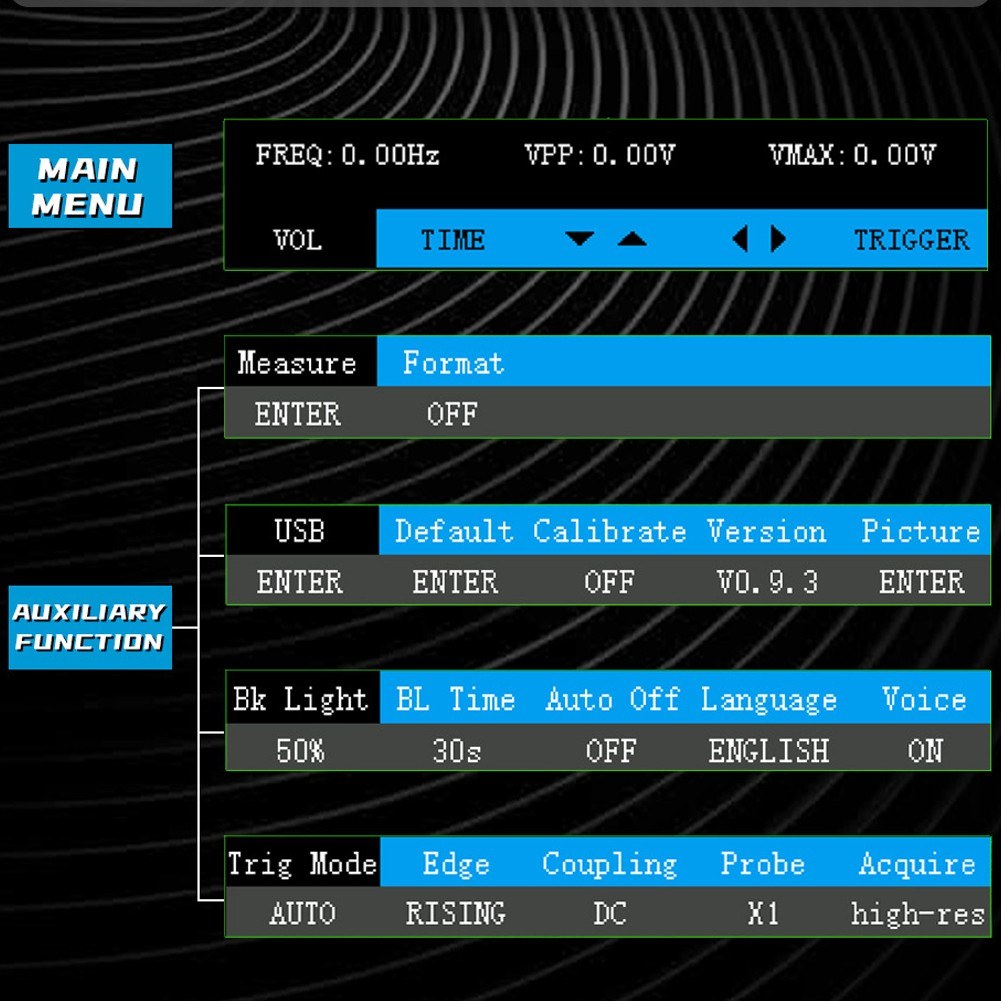

• Enhanced User Experience: Fine-tune voltage amplitude, timebase settings, waveform positions, and cursor placements with an intuitive dial. Features like silent mode, auto-sleep function, and a compact, lightweight design enhance user comfort and portability.

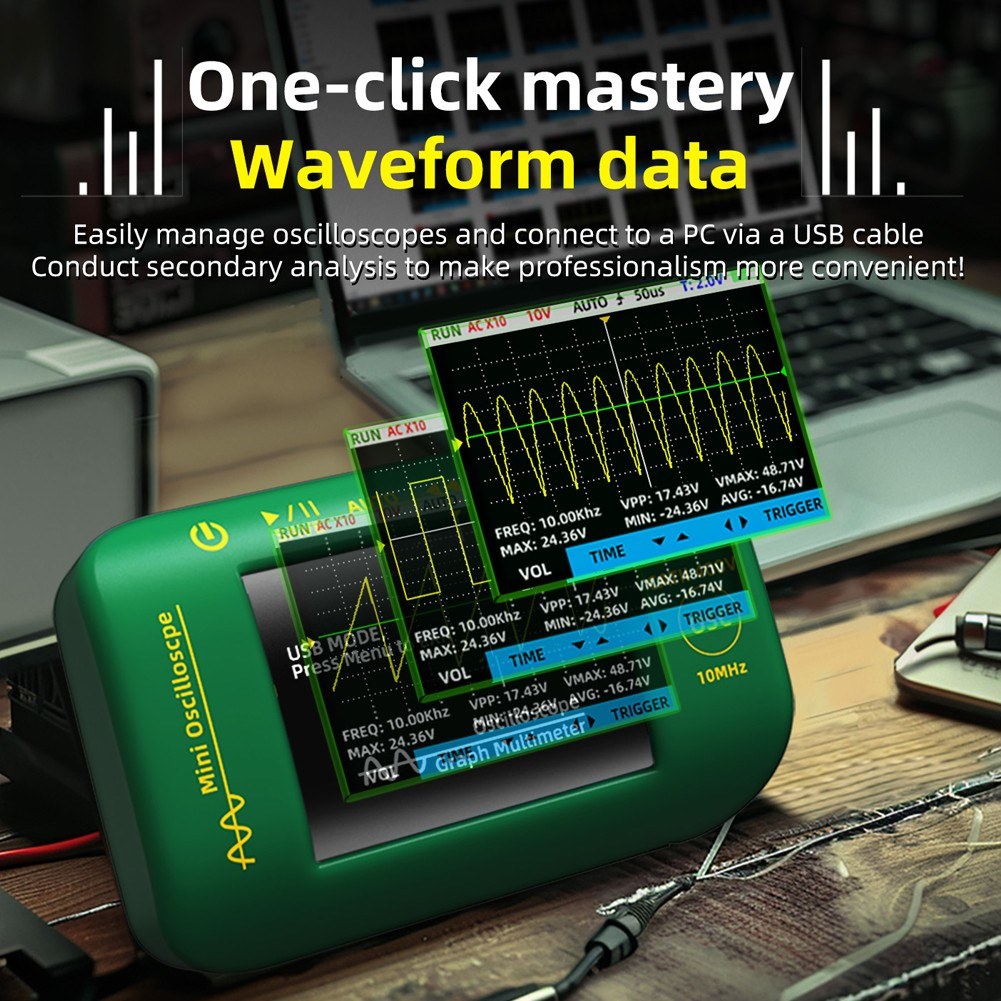

• Versatile Connectivity and Data Management: Type-C connectivity enables users to save, view, and analyze waveform screenshots. Manage stored data efficiently with options that include U-disk storage, picture retrieval, deletion, and formatting.
• Comprehensive Safety & Wide Applications: The oscilloscope serves as a robust diagnostic tool across automotive, electronics, and industrial applications, offering an all-inclusive measurement solution for a variety of scenarios.

Specifications:

• Name: Oscilloscope
• Material: ABS
• Type: Standard configuration, high configuration (optional)
• Battery: 1 * built-in 1800mAh battery (included)
• Display: 2.8-inch TFT display
• Bandwidth: 10MHz
• Sampling mode: Real-time sampling
• Real-time sampling rate: 48MSa/s
• Number of channels: 1, single channel
• Sampling rate: 3 times/sec
• Input impedance: 1ΜΩ @ 16pF
• Probe attenuation: X1, X10
• Maximum input voltage: X1 ±40V, X10 ±400V
• Time base accuracy: 20ppm
• Storage depth: 128Kbyte
• Vertical sensitivity: X1 20mV/Div-10V/Div; X10 200mV/Div-100V/Div
• Working environment: 0-40℃, <75%RH
• Storage environment: -20℃ to 60℃, <80%RH
• Auto power off: Yes

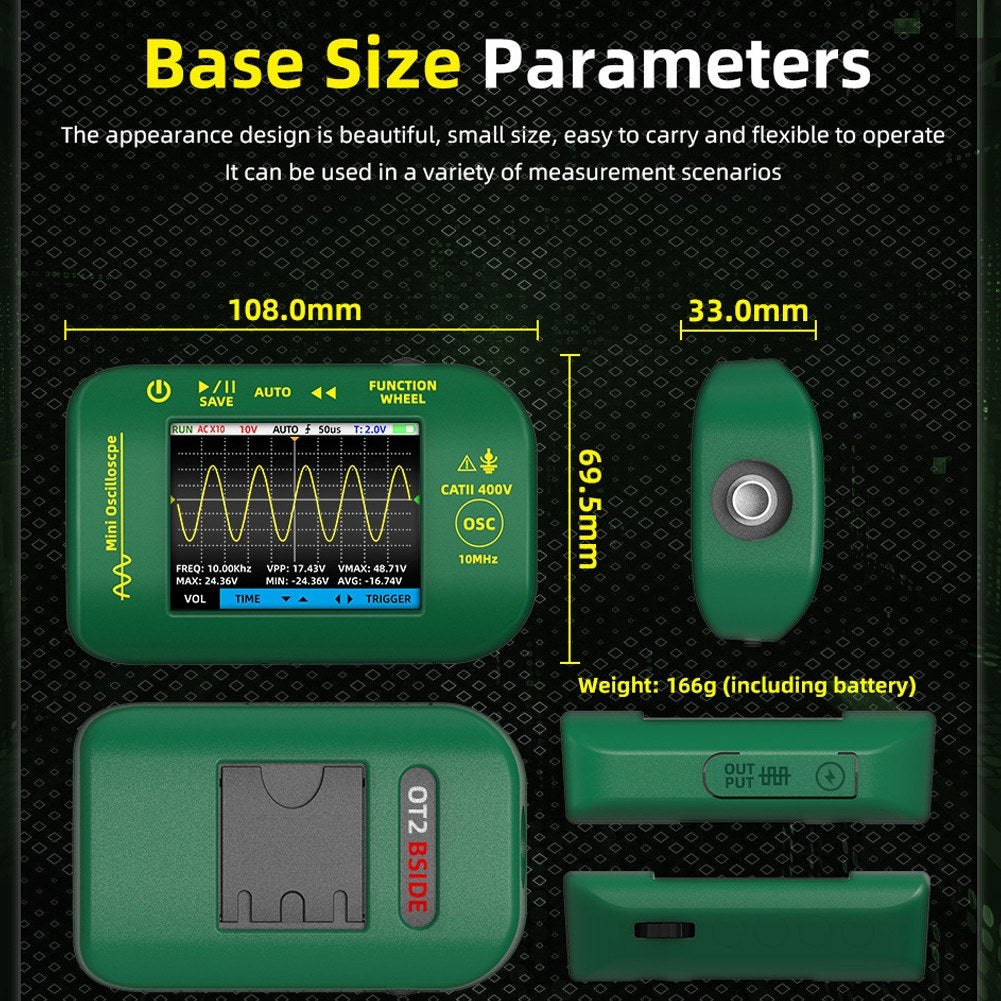

• Item size: 108 * 70 * 33mm / 4.25 * 2.76 * 1.30in
• Item weight: 166g / 5.86ounce
• Package size: 183 * 98 * 48mm / 7.20 * 3.86 * 1.89in
• Package weight:
  • Standard configuration: 314g / 11.08ounce
  • High configuration: 354g / 12.49ounce

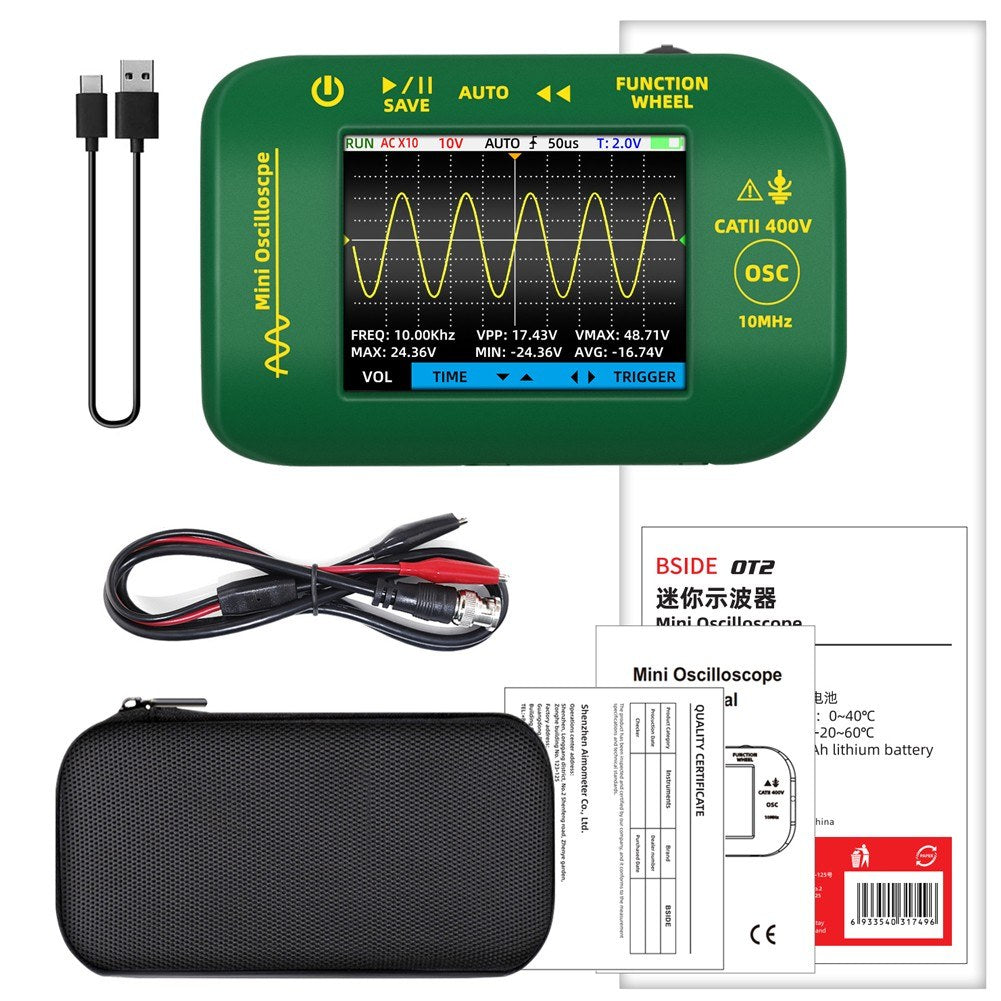

Packing List:

Standard Configuration:

• 1 * Oscilloscope
• 1 * Clip Probe
• 1 * Cable
• 1 * Guideline
• 1 * Storage Bag

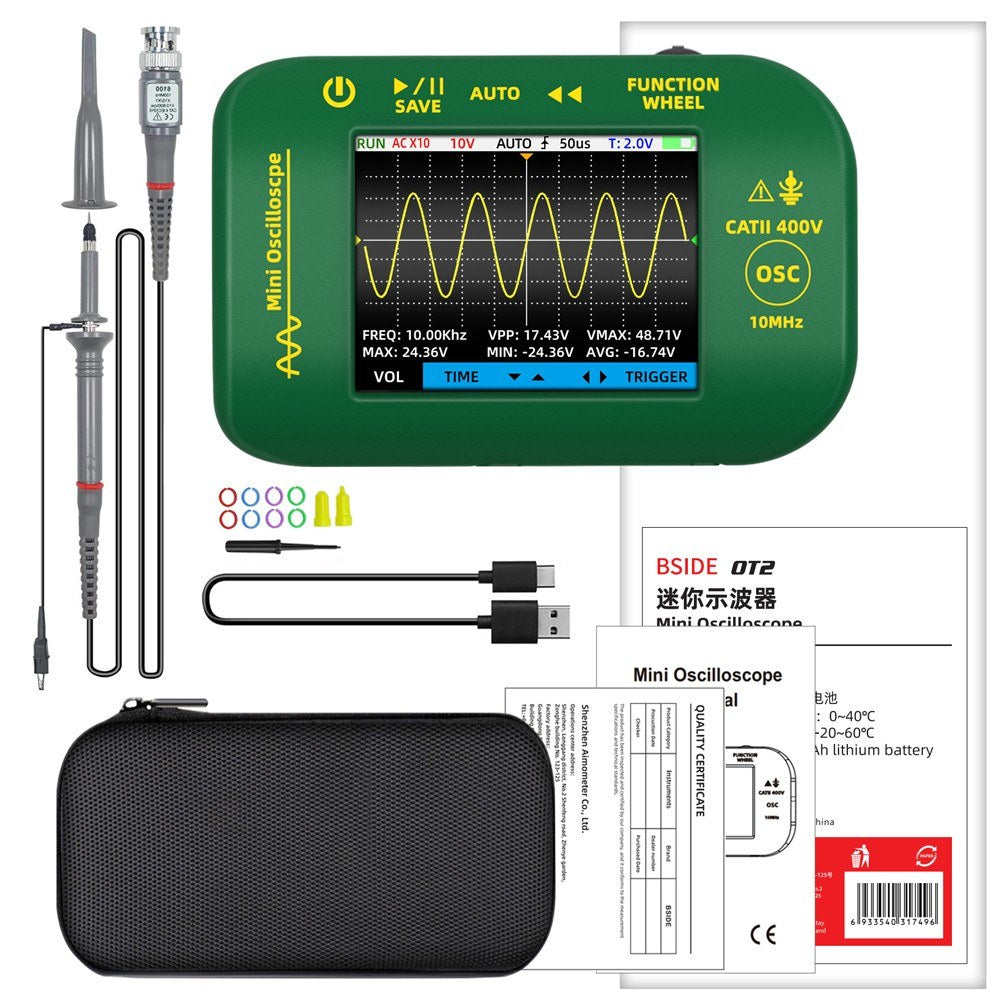

High Configuration:

• 1 * Oscilloscope
• 1 * Test Probe
• 1 * Cable
• 1 * Set of Accessory
• 1 * Guideline
• 1 * Storage Bag
