T-Display-S3 AMOLED

The T-Display-S3 AMOLED is a cutting-edge development board that elevates the original T-Display-S3 model. It marks the debut of the ESP32-S3 paired with an AMOLED display, upgrading from the previous LCD for enhanced color richness.

Key Features & Upgrades

• Transition from an SPI to a QSPI interface for enhanced data speed.
• Improved connectivity with a shift from an onboard antenna to a 3D antenna.
• Features a compact design for greater portability.
• Offers both Basic and Touch versions with added side-mounted BOOT and RESET buttons.

Technical Specifications

Microcontroller Unit (MCU)

• ESP32-S3R8 Dual-core LX7 microprocessor

Memory

• Flash: 16MB
• PSRAM: 8MB

Wireless Connectivity

• 2.4 GHz Wi-Fi 802.11
• Bluetooth 5.0 (LE)

Programming Platforms

• Compatible with ArduinoIDE, PlatformIO-IDE, Micropython

Display

• 1.91 inch RM67162 IPS AMOLED
• Resolution: 240(W) x RGB x 536(H)
• Active Area: 19.8 × 44.22 mm
• Viewing Angle: IPS Full View Angle

Onboard Functions

• Boot + Reset + IO21 Button
• Battery Voltage Detection via IO04

Choose Your Version

The performance of both the new and old versions is identical. Choose the version that best suits your project needs.

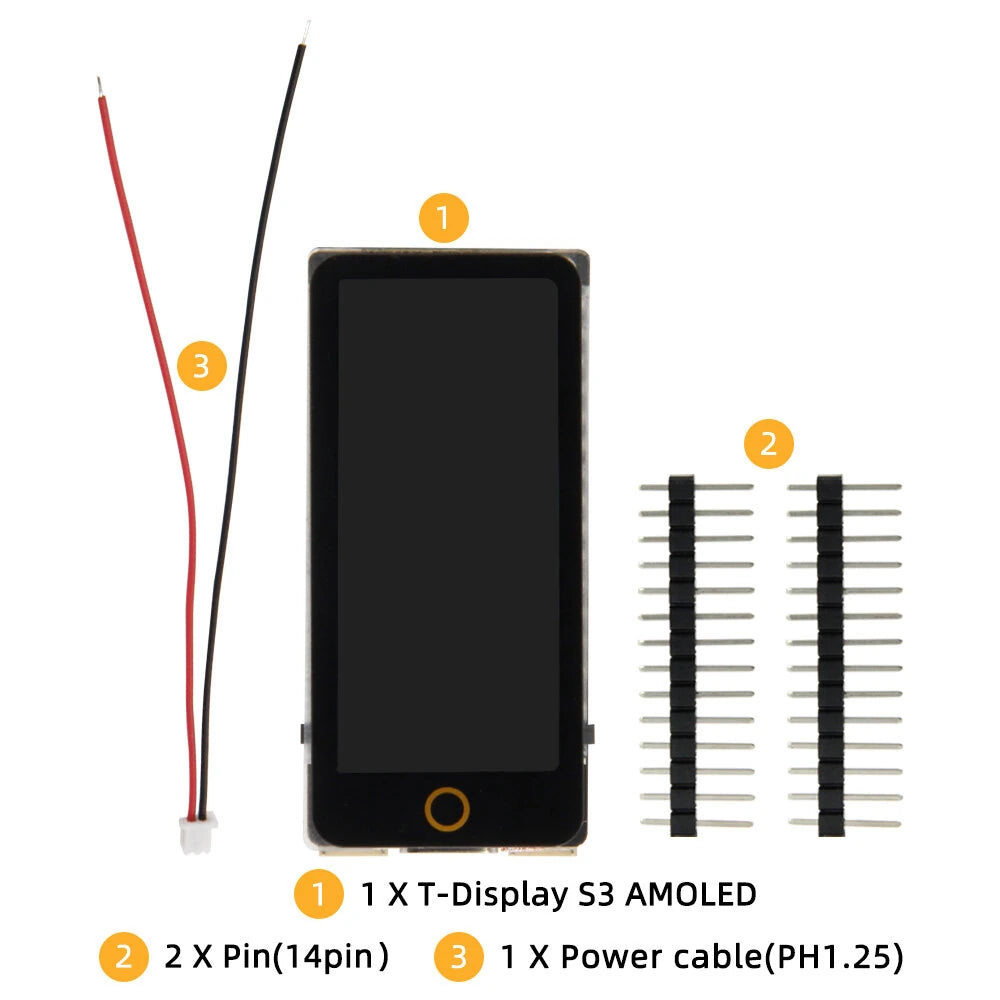

Package Includes

The package includes a comprehensive set of items to get you started with the T-Display-S3 AMOLED immediately.
