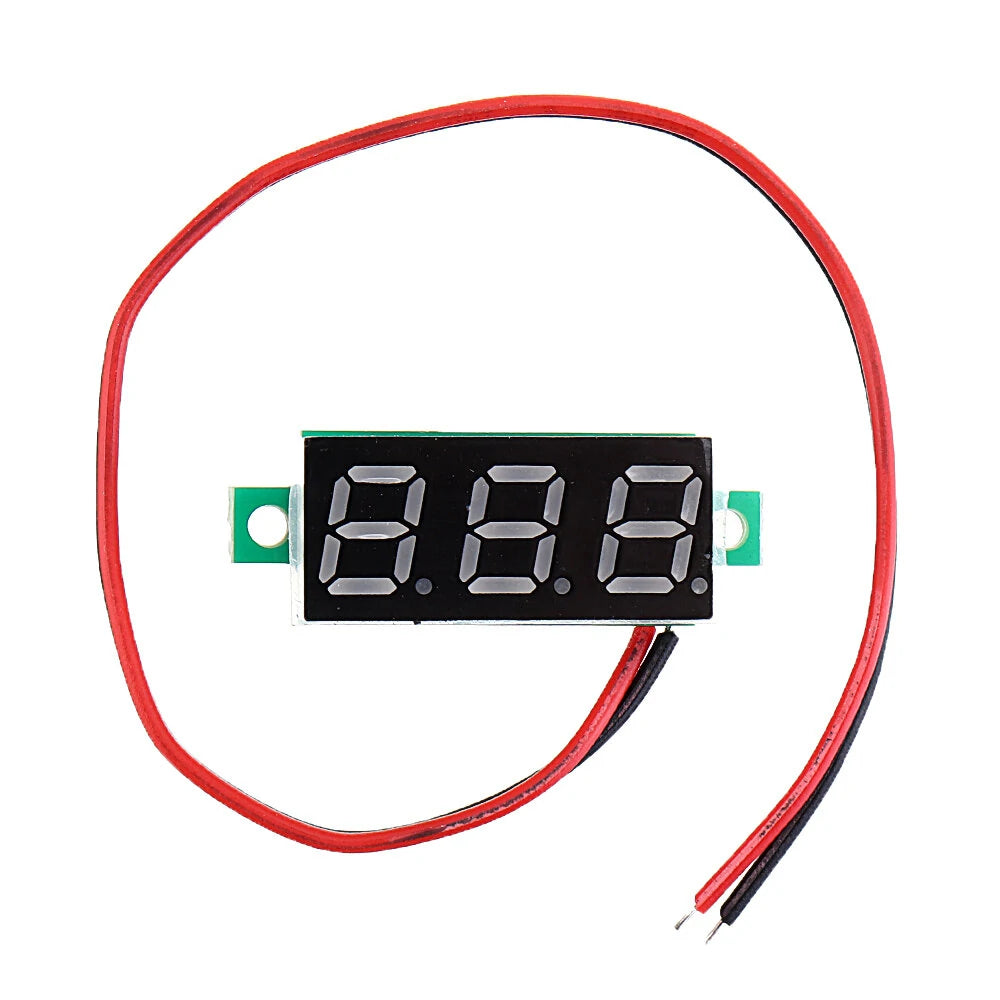

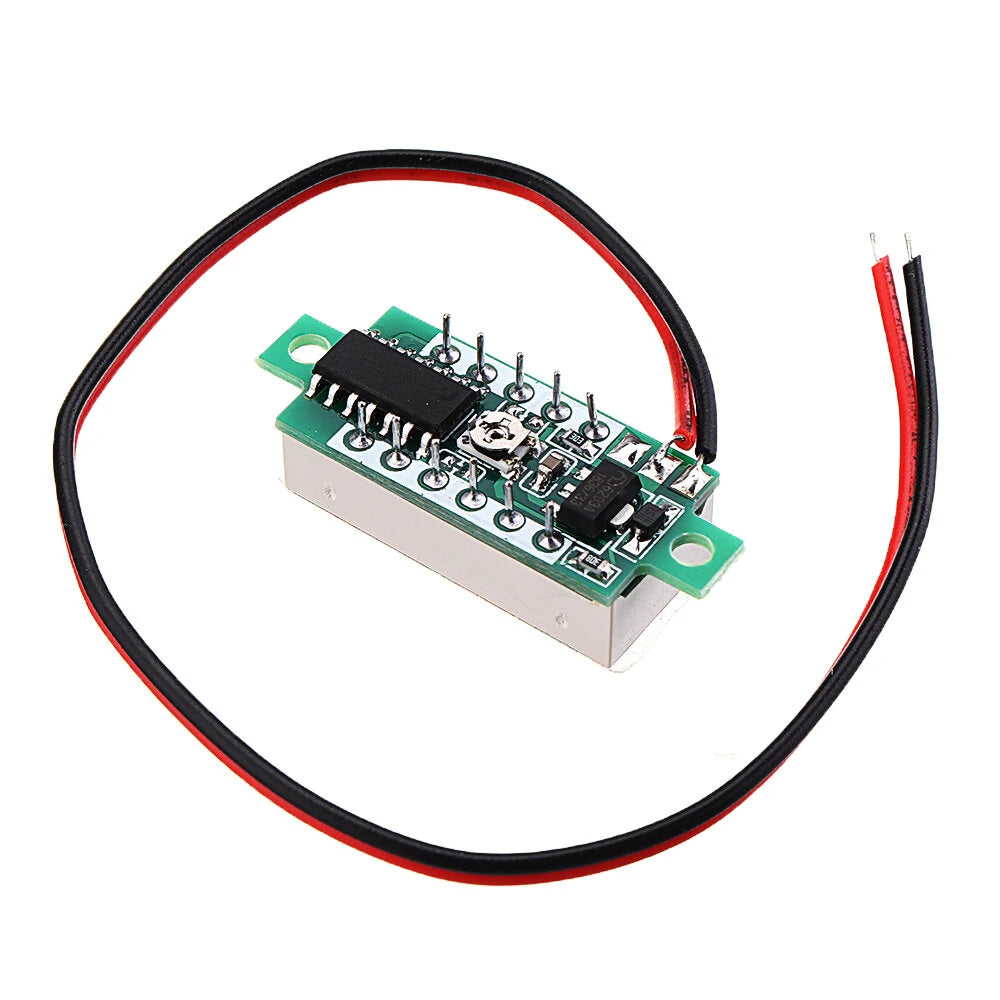

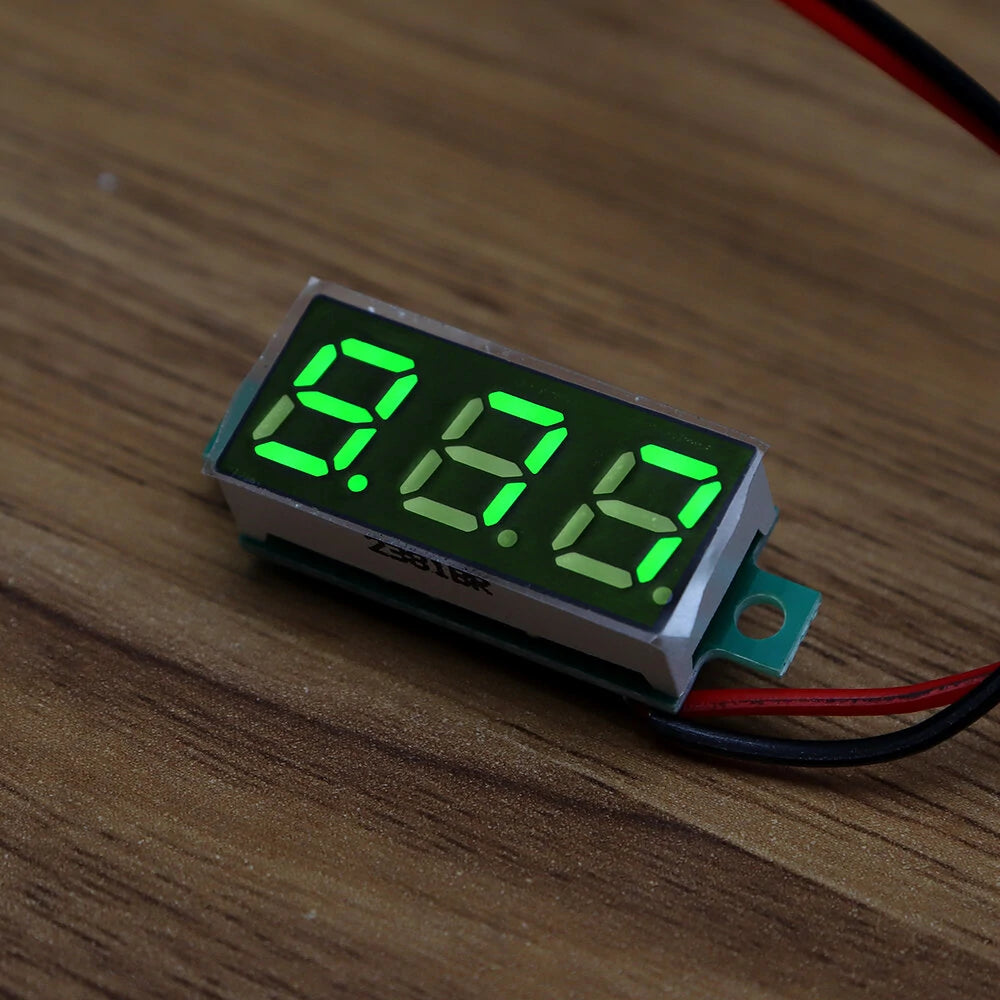

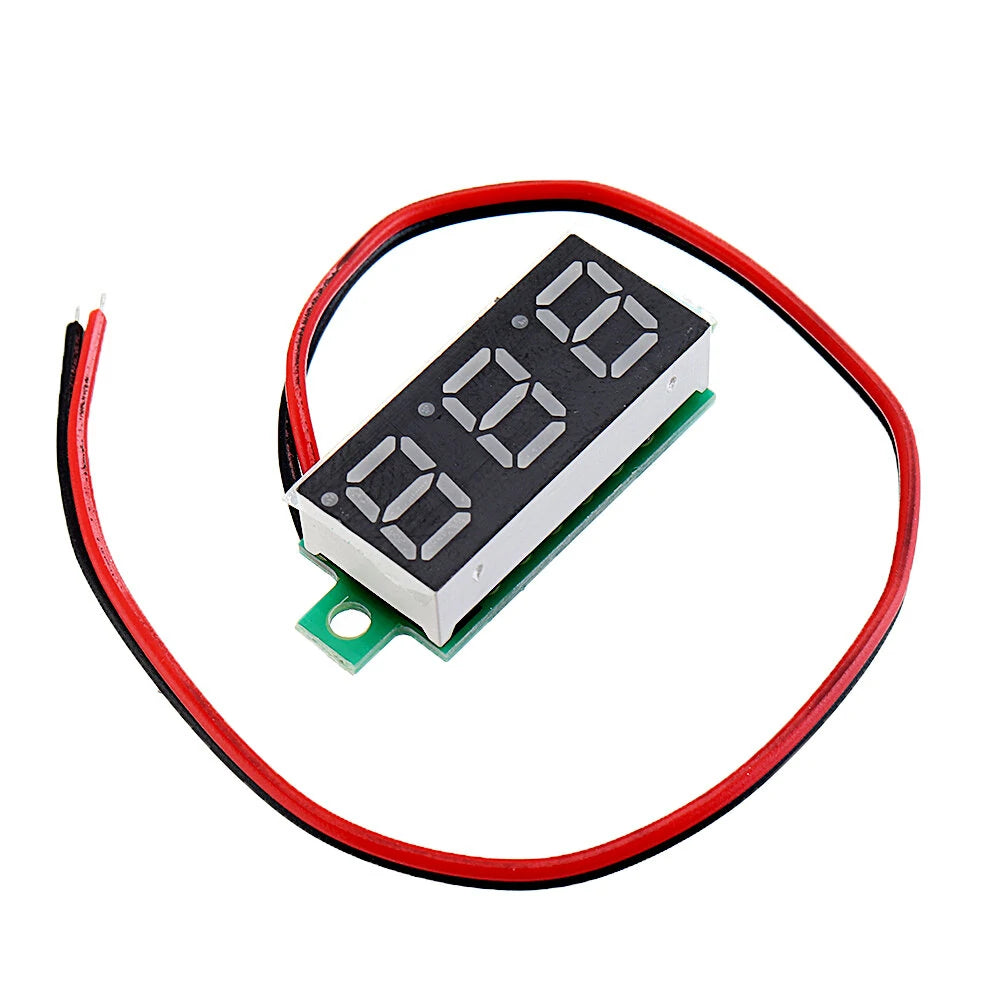

20pcs 0.28-Inch Digital Green Display DC Voltmeter, 2.5-30V Adjustable Voltage Meter

20pcs 0.28-Inch Digital Green Display DC Voltmeter, 2.5-30V Adjustable Voltage Meter

Regular price $22.99 USD
Regular price $0.00 USD Sale price $22.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Voltmeter Product Description

Voltmeter Features

1. Simple wiring: Red wire connects to positive, black wire connects to negative. The device is protected against reverse connections.

2. No external power supply is needed; the voltmeter operates directly from the measuring voltage (2.50-30V).

3. Supports wide voltage operation ranging from a low 2.50V up to a safe maximum of 40V. Voltages above 40V could cause damage.

4. Displays voltage readings with two decimal points for values below 10V, and one decimal point for values above 10V.

Specifications

  • Measuring Range: DC 2.50~32.0V (two-wire)
  • Power Supply: No separate power supply needed
  • Test Accuracy: ±1% (error of ±0.1V for readings >10V)
  • Input Resistance: Greater than 50KΩ
  • Working Current: Approx. 100mS refresh rate
  • Display: Three-digit 0.28" LED tubes
  • Lead Length: Default 20cm

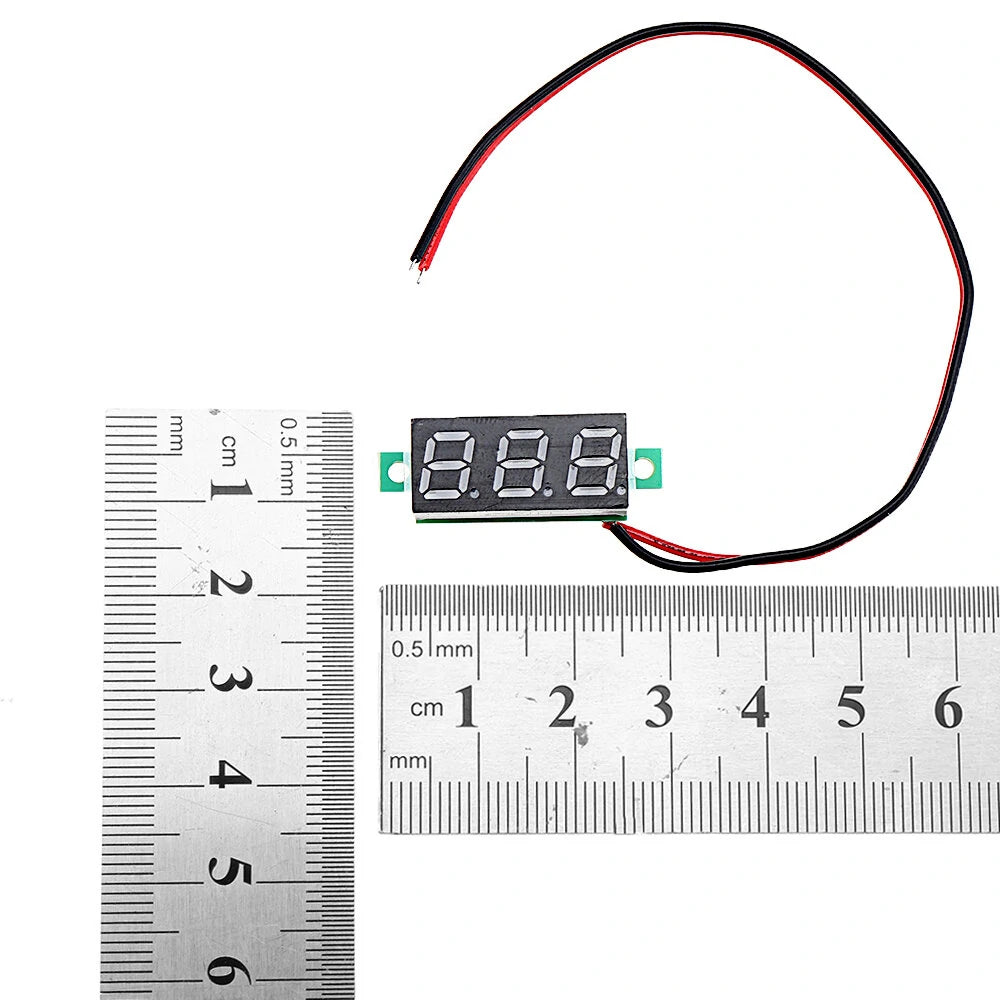

  • Dimensions: 30 x 11.5 x 9 mm
  • Hole Size: Pitch 26mm, Aperture 2.4mm
  • Net Weight: 4g
  • Operating Temperature: -10 to +80 °C
  • Working Humidity: 10% to 80%
  • Working Pressure: 80 to 106 kPa

Package Includes: 20 x Voltage Meters
