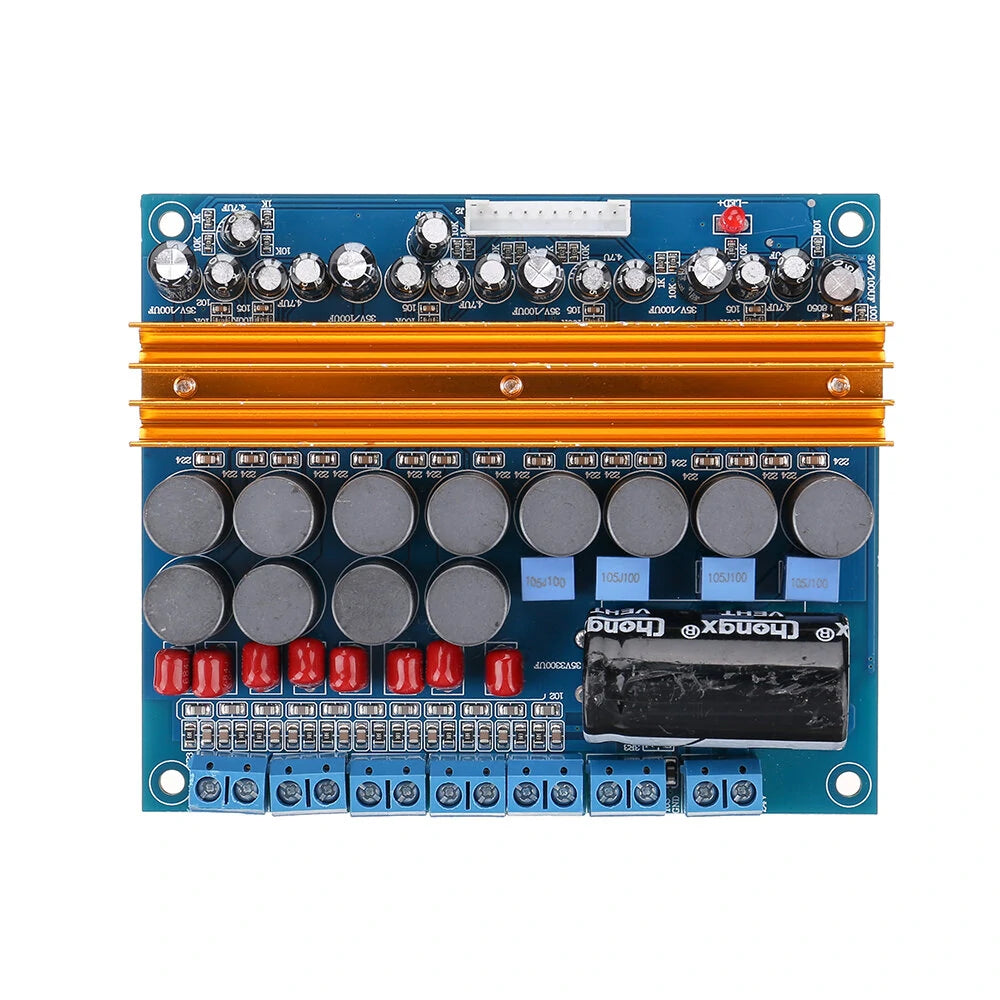

5.1 Channel TPA3116 Class D Audio Amplifier, 50Wx4 & 100Wx2, Home Theater/PC/DVD/Car Surround Sound

Product Name: TPA3116 5.1 Channel Class D Power Amplifier

Model Number: TPA3116-5.1AMP

Specifications:

• Input Sensitivity: 1.1V (high impedance)
• Input Compatibility: Compatible with computer sound cards, decoders, DVD players, car navigation, etc.
• Output Power:
• Main and Surround Channels: 50W x 4
• Center and Bass Channels: 100W x 2
• Power Supply: DC19-24V (10A recommended), not compatible with AC power
• Dimensions: 100mm (L) x 80mm (W) x 30mm (H)
• Speaker Matching:
• Subwoofer: 3-4 ohms recommended
• Other Channels: 6-8 ohms recommended

Features:

1. 6-Input, 6-Output Design: Independent 6 input and 6 output channels deliver a pure and robust audio signal to each speaker.
2. High Sensitivity Input: The 1.1V high input sensitivity allows direct connection to various devices like computer sound cards and DVD players without additional amplification.
3. Advanced Core and Components: Built with 4 TPA3116 core amplifiers, ruuby electrolysis for optimal signal transmission, TDK inductors, and Philiips CBB capacitors for exceptional sound quality.
4. Accurate Control and Start-up Features: Equipped with ACC-controllable delay start and GM circuit control to eliminate sound distortion during power-on. Includes an external control switch and LED indicator interface for convenience.
5. Efficient and Reliable Design: Features large-hole pure copper terminals for secure wiring connections. Its compact size, high efficiency, and power-saving design make it ideal for home theaters and car audio.

Package Includes:

• 1x Digital Power Amplifier Board
