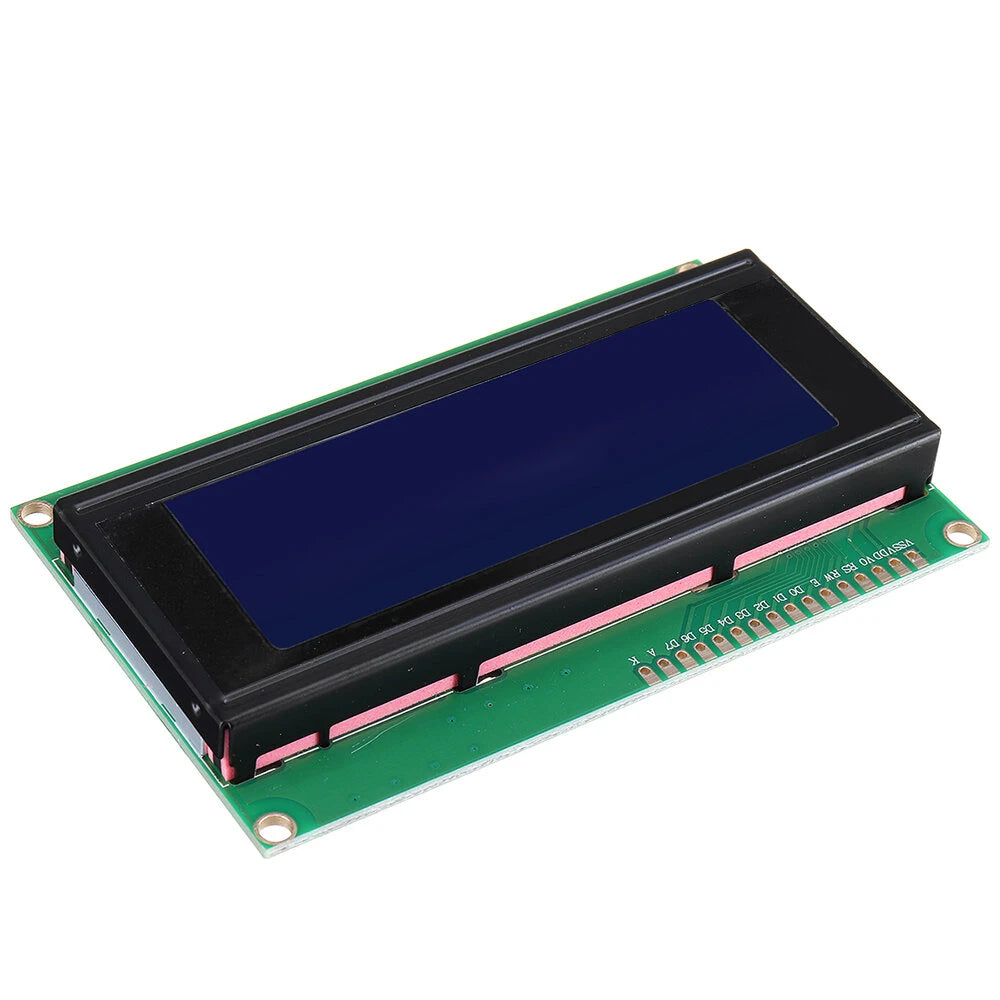

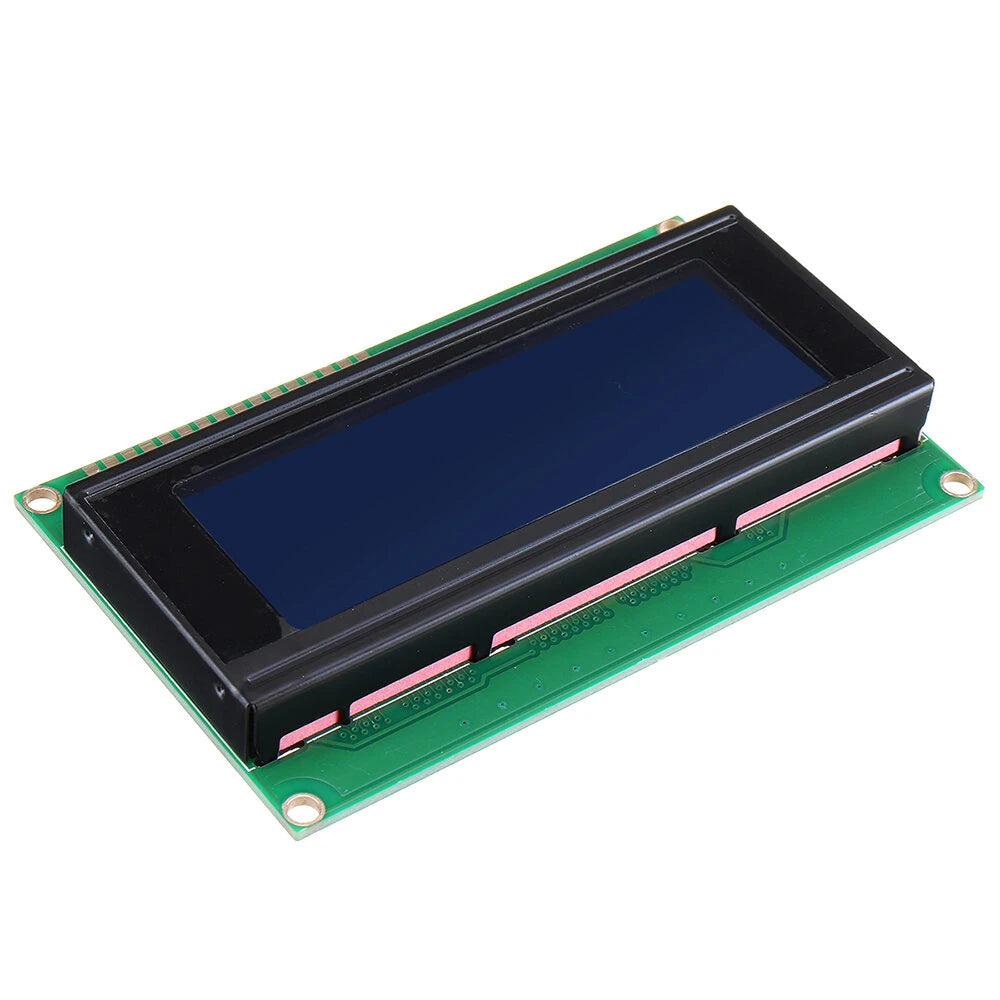

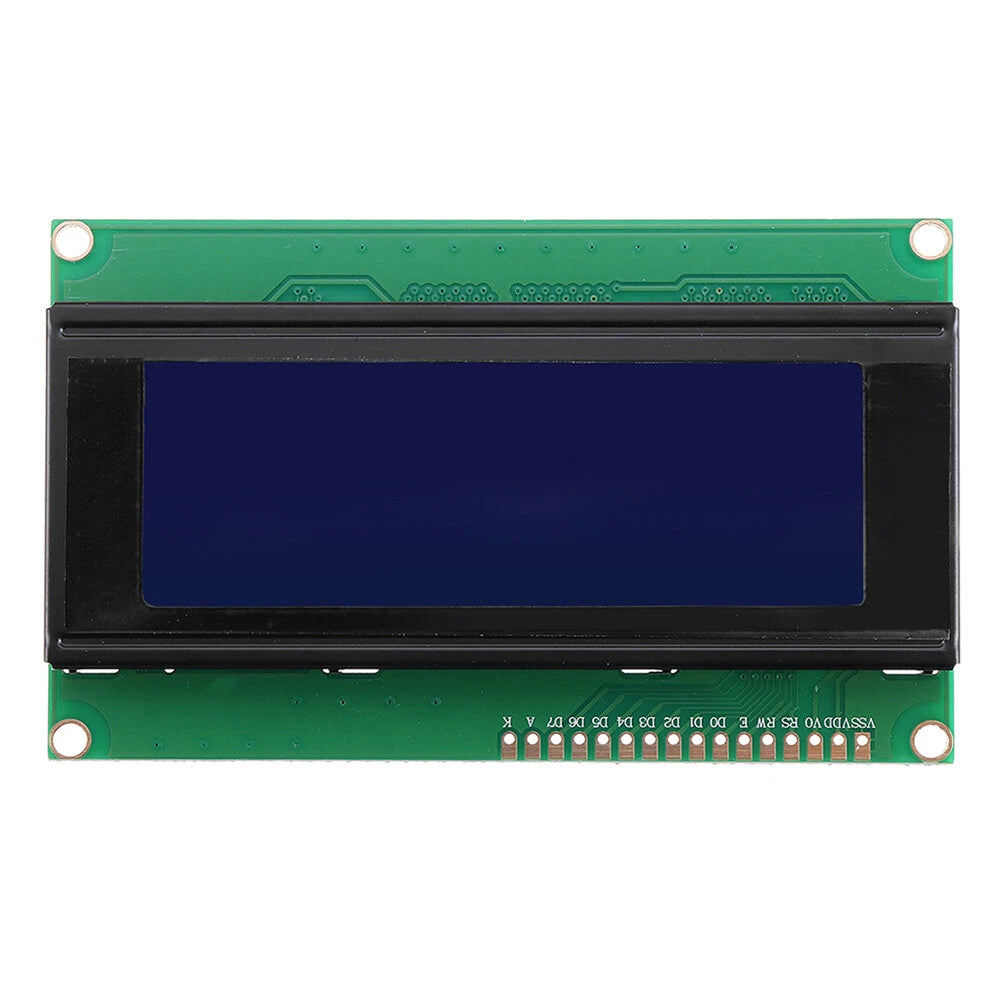

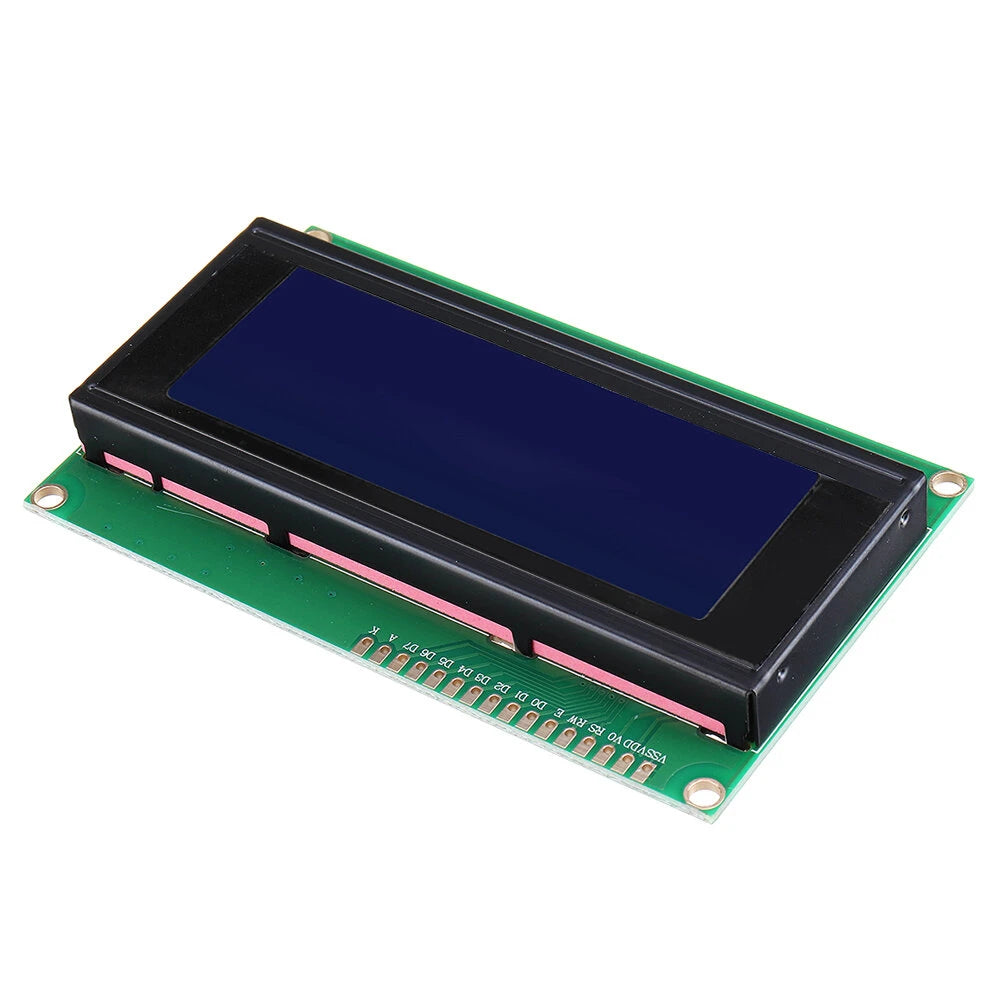

Geekcreit 3-Pack 5V 20x4 LCD Display Module with Blue Screen

Description

The 2004A character LCD module is expertly crafted to display letters, numbers, symbols, and dot matrix characters. It features the capability to show 4 lines of 20 characters each. The module supports both 4-bit and 8-bit data transfer modes and offers a 5x7 matrix cursor display mode.

It includes a display data buffer DDRAM, a character generator CGROM, and CGRAM. The CGRAM allows for storing up to eight 5x8 dot matrix character fonts with custom graphic definitions, enhancing your display options.

The module provides a comprehensive instruction set, including clear display, cursor return to origin, display on/off, cursor on/off, character blink, cursor shift, and display shift, among others.

Specifications

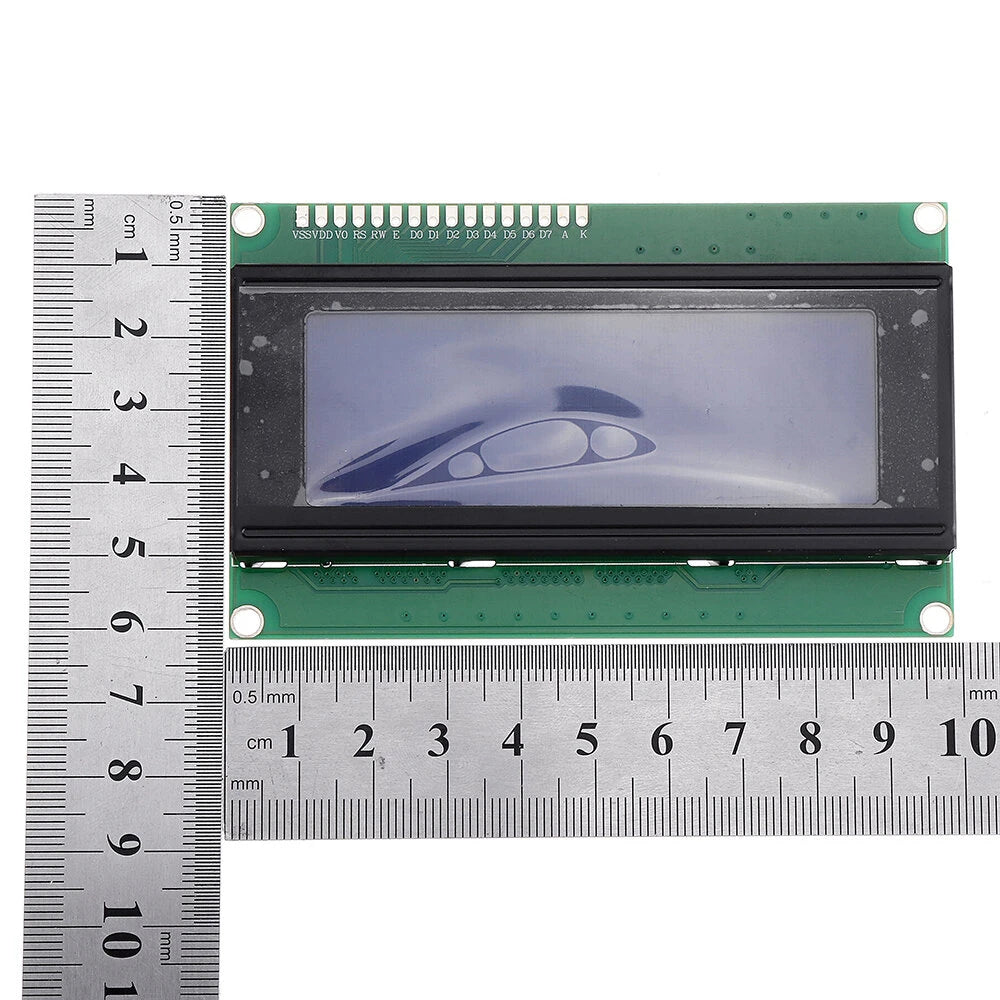

• Module Size (W x H x T): 98.0 x 60.0 x 14.0 mm
• Viewing Area (W x H): 76.0 x 26.0 mm
• Character Size (W x H): 2.94 x 4.74 mm
• Dot Size (W x H): 0.54 x 0.54 mm
• LCD Type & Color: STN(Blue), FSTN
• View Angle: 6 O'clock
• Display Type: Positive / Negative
• Control IC & Package: KS0073 or EQV, COB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -30°C to +80°C

Package Includes

• 3 x 5V 2004A LCD Display Module
