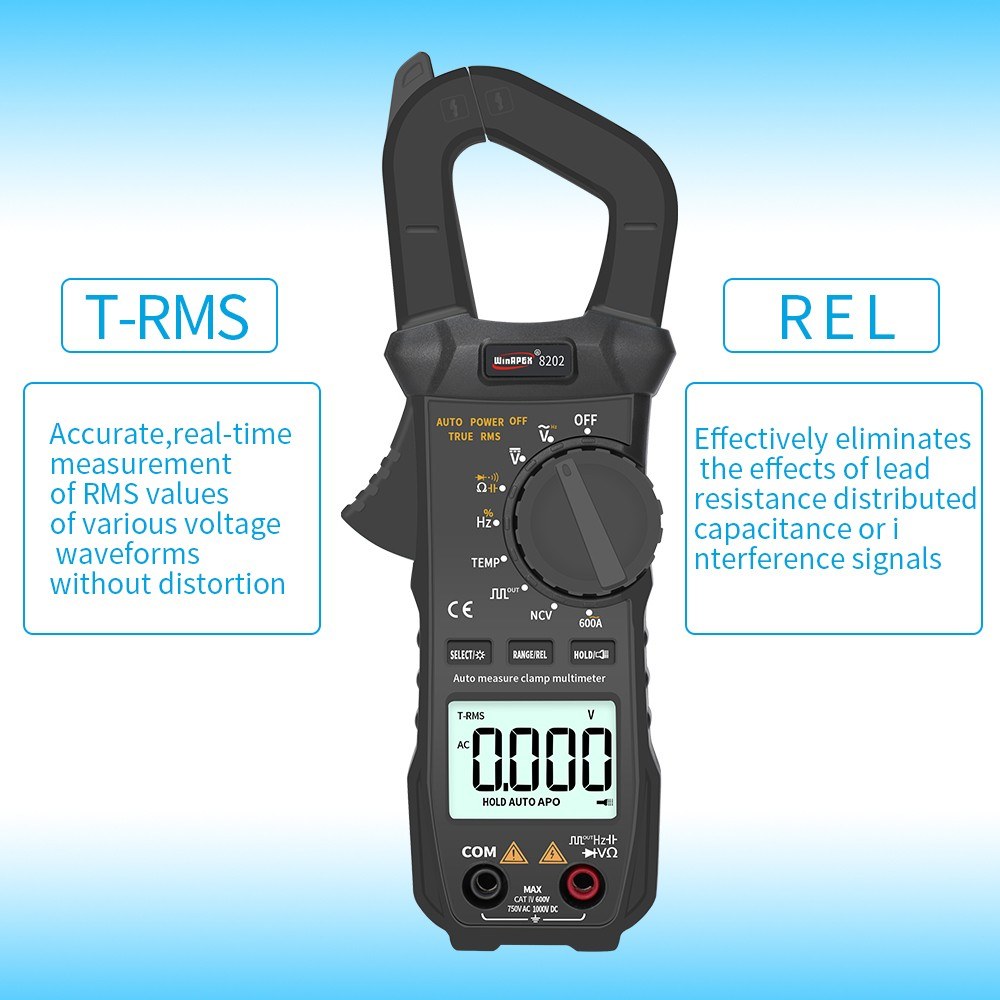

WinAPEX 6000 Counts True RMS Digital Clamp Multimeter with Square Wave Output

Pocket-Sized 3 5/6-Digit Automatic Digital Meter

Experience stable performance and high accuracy with our pocket-sized digital meter, perfect for laboratories, factories, radio enthusiasts, and families. Its clear readings and overload protection ensure reliability in every usage.

Features:

• Compact and portable design, easy to use and operate.
• Accurate and real-time measurement of RMS values across various voltage waveforms without distortion.
• Eliminates the effects of lead resistance, distributed capacitance, and interference signals.

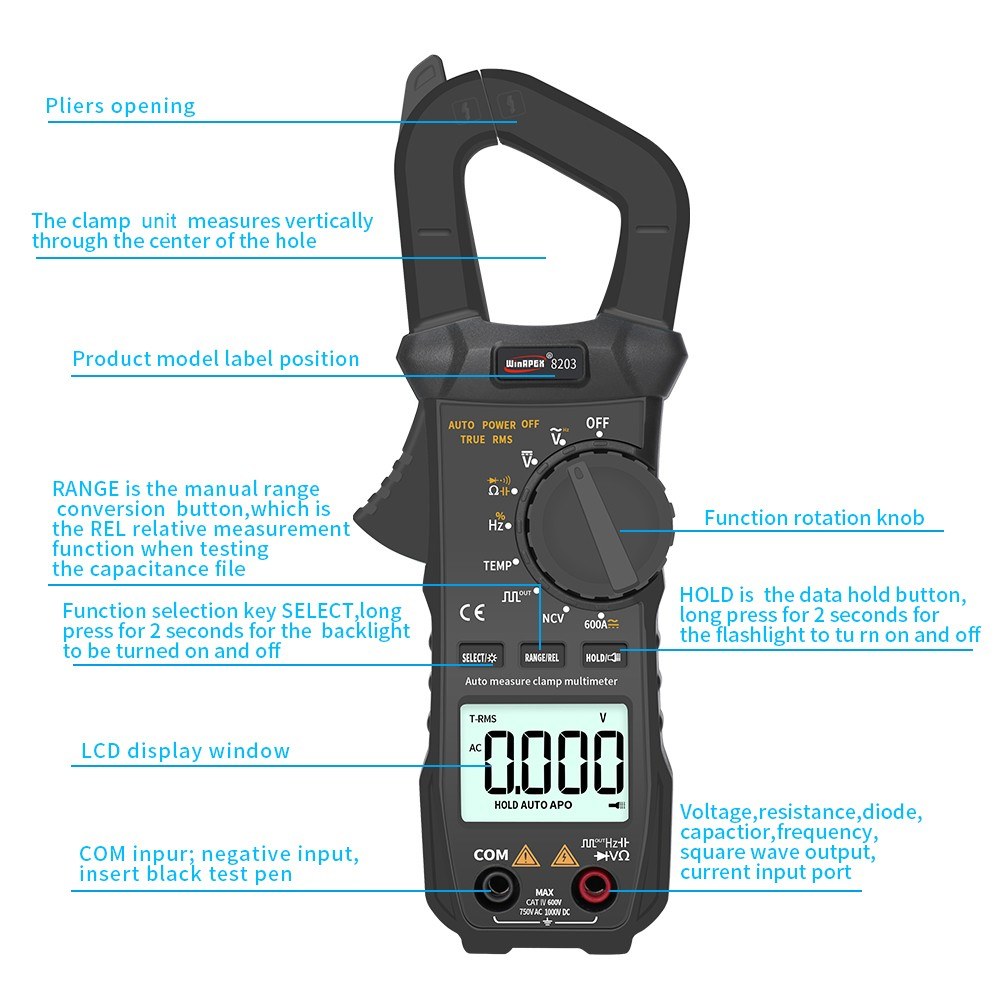

• Clamp unit measures vertically through the center of the hole.
• Powered by two AAA 1.5V batteries (not included). The large LCD display and boost power source maintain high brightness for the backlight and flashlight, even with a low battery.
• Automatic backlight feature switches off after 15 seconds to conserve battery.

Functions:

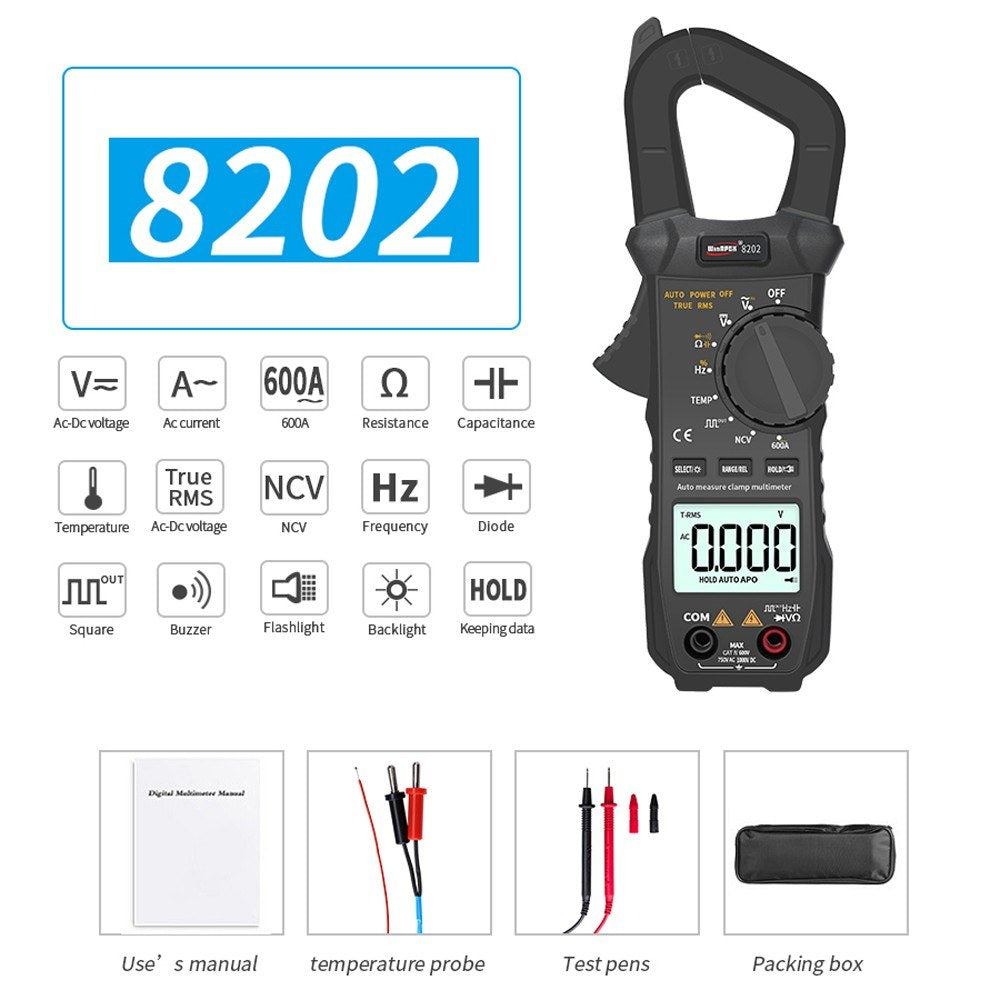

AC-DC voltage, AC current (AC current 8202/AC-DC current 8203), resistance, capacitance, frequency, diode, buzzer, true RMS, NCV, square, TEMP, flashlight.

Specifications:

• Material: ABS
• Color: Black

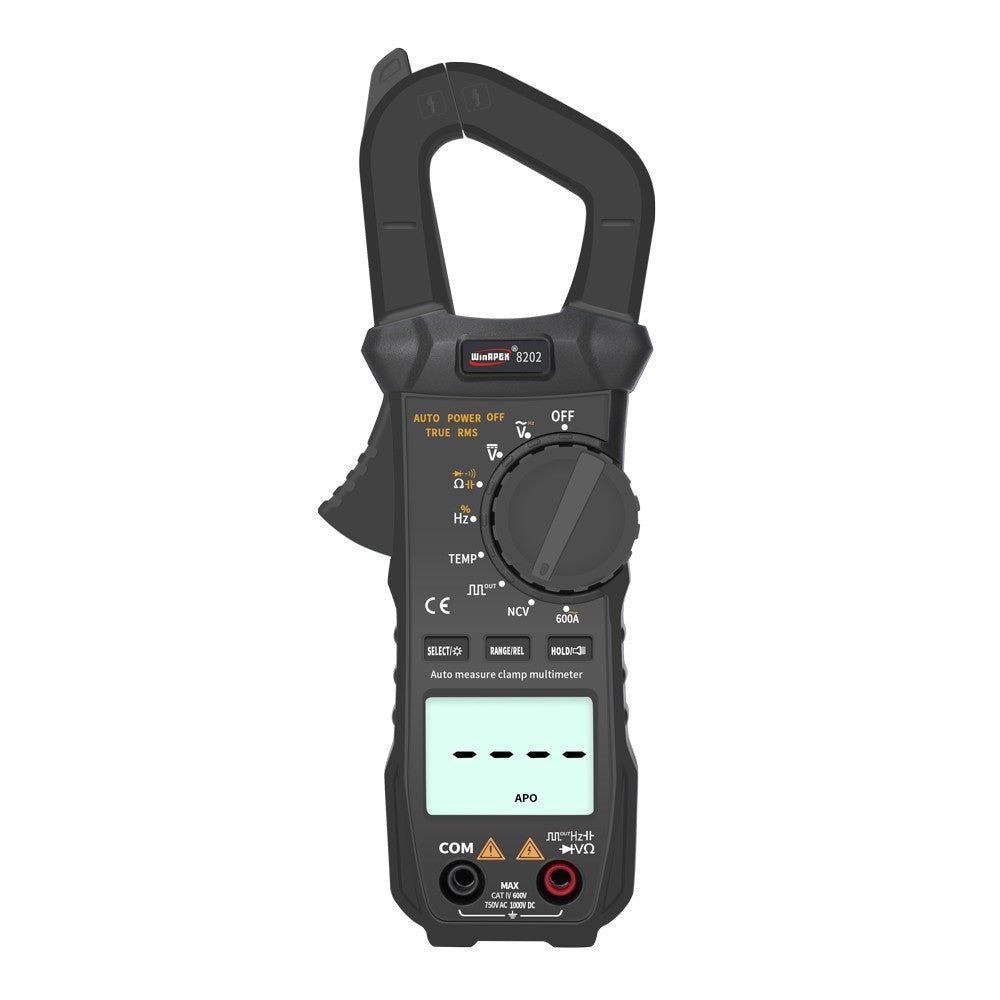

• Model: 8202, 8203 (optional)
• Display: LCD
• Maximum Display: 5999 (3 5/6) bit automatic polarity display
• Measurement Method: Double integral A/D conversion
• Sampling Rate: Approximately 3 times per second
• Over Range Display: Shows "OL" at highest position
• Working Environment: 0～40℃, Relative Humidity ＜80%
• Battery: 2 * AAA battery (not included)

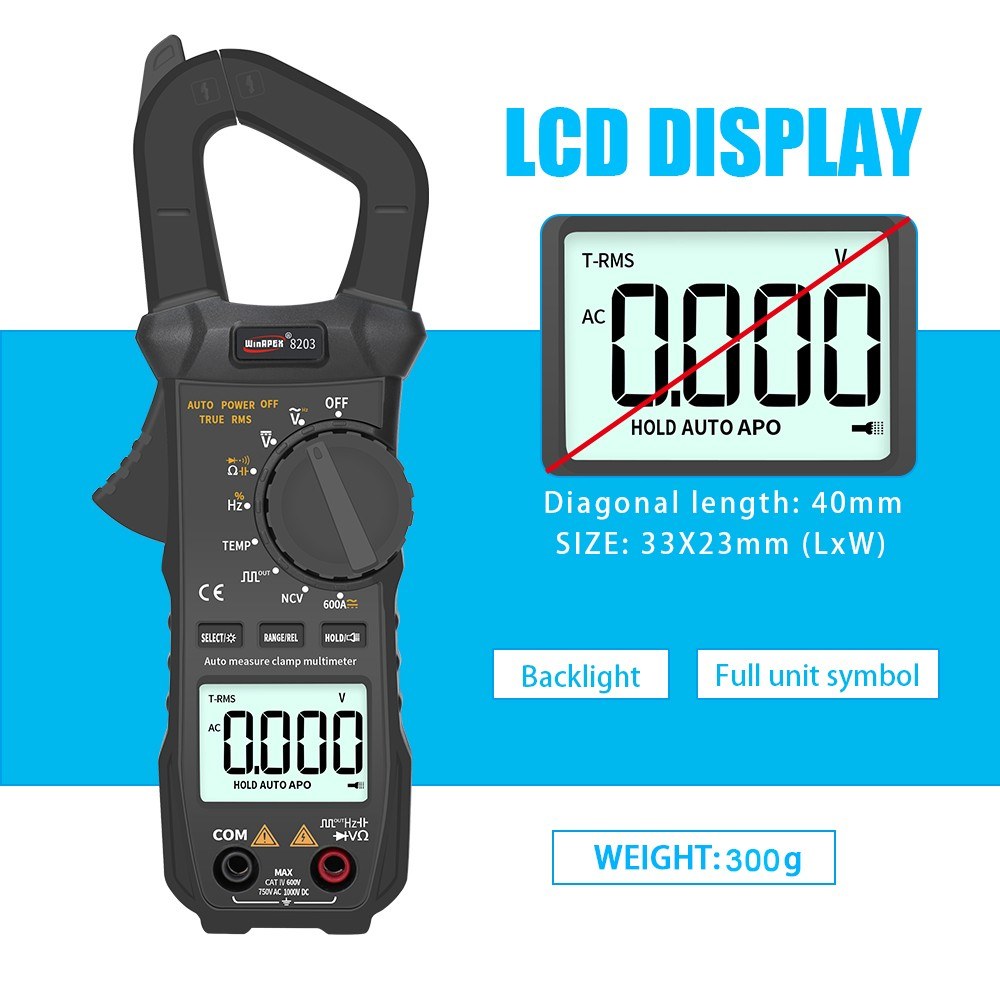

• LCD Size: 33 * 23mm / 1.3 * 0.9in

Measurement Ranges:

• DC Voltage: 6V/60V/600V/1000V
• AC Voltage: 6V/60V/600V/750V
• AC Current: 6A/60A/600A
• DC Current (8203 only): 60A/600A
• Resistance: 600Ω to 40MΩ
• Capacitance: 60nF to 30mF
• Frequency: 10Hz to 10MHz

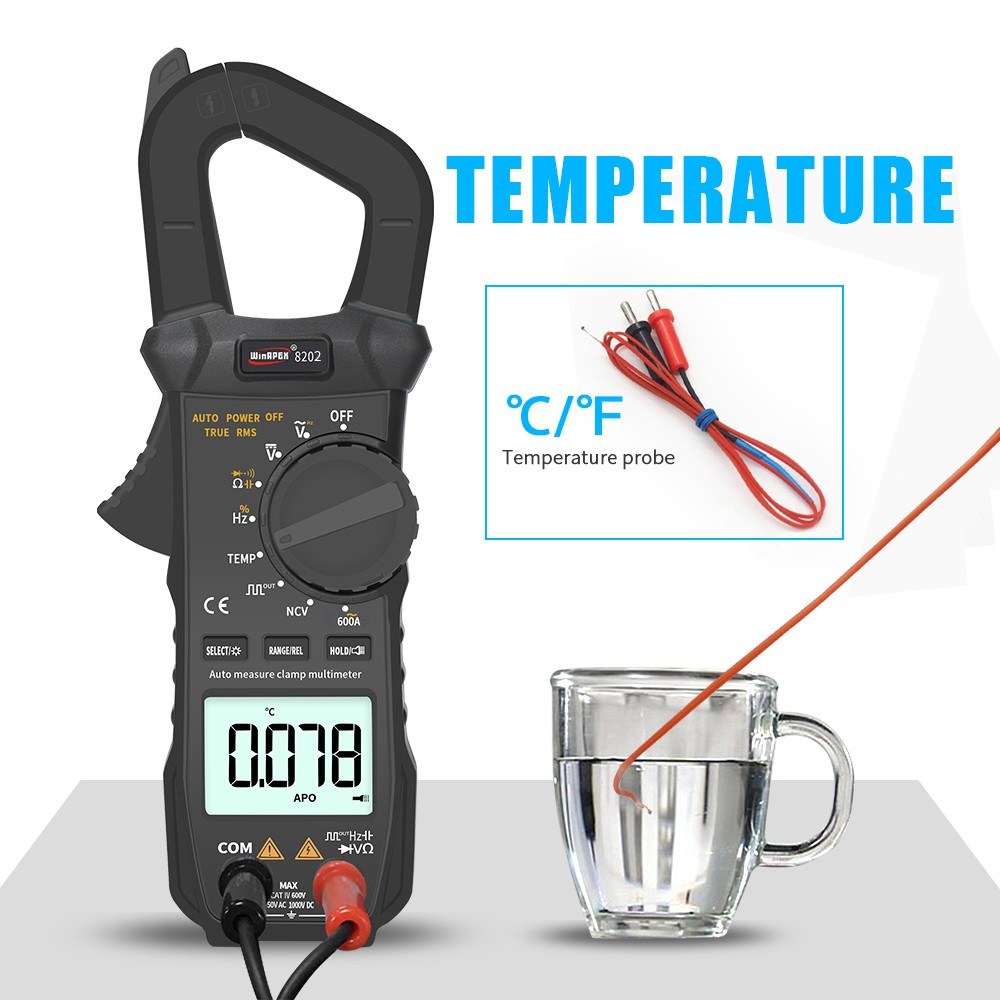

• Temperature: -20 to 1000℃ / 0 to 1832℉

Precision:

• DC Voltage: ±(0.5%+3) for 6V to 600V, ±(0.8%+10) for 1000V
• AC Voltage: ±(0.8%+3) for 6V to 600V, ±(1.2%+10) for 750V
• AC Current: ±(2%+30)
• DC Current: ±(2%+30)
• Resistance: ±(0.8%+5) to ±(2.5%+3)
• Capacitance: ±(3.5%+20) to ±(5%+3)
• Frequency: ±(0.1%+3)
• Temperature: ±(1.0%+5) < 400℃, ±(1.5%+15) ≥ 400℃

Additional Features:

• True RMS Measurement: Yes
• NCV (Non-Contact Voltage): Yes
• Full Unit Symbol Display: Yes
• Manual and Auto Backlight Off: Yes
• Square Wave Output: Yes
• Flashlight Lighting: Yes

Dimensions:

• Item Size: 176 * 67mm / 6.9 * 2.6in
• Item Weight: 300g / 10.6oz
• Package Size: 205 * 115 * 42mm / 8.1 * 4.5 * 1.7in
• Package Weight: 330g / 11.6oz

Package Includes:

• 1 Digital Clamp Meter
• 1 Temperature Probe
• 1 Pair of Test Pens
• 1 Carrying Bag
• 1 User Manual
