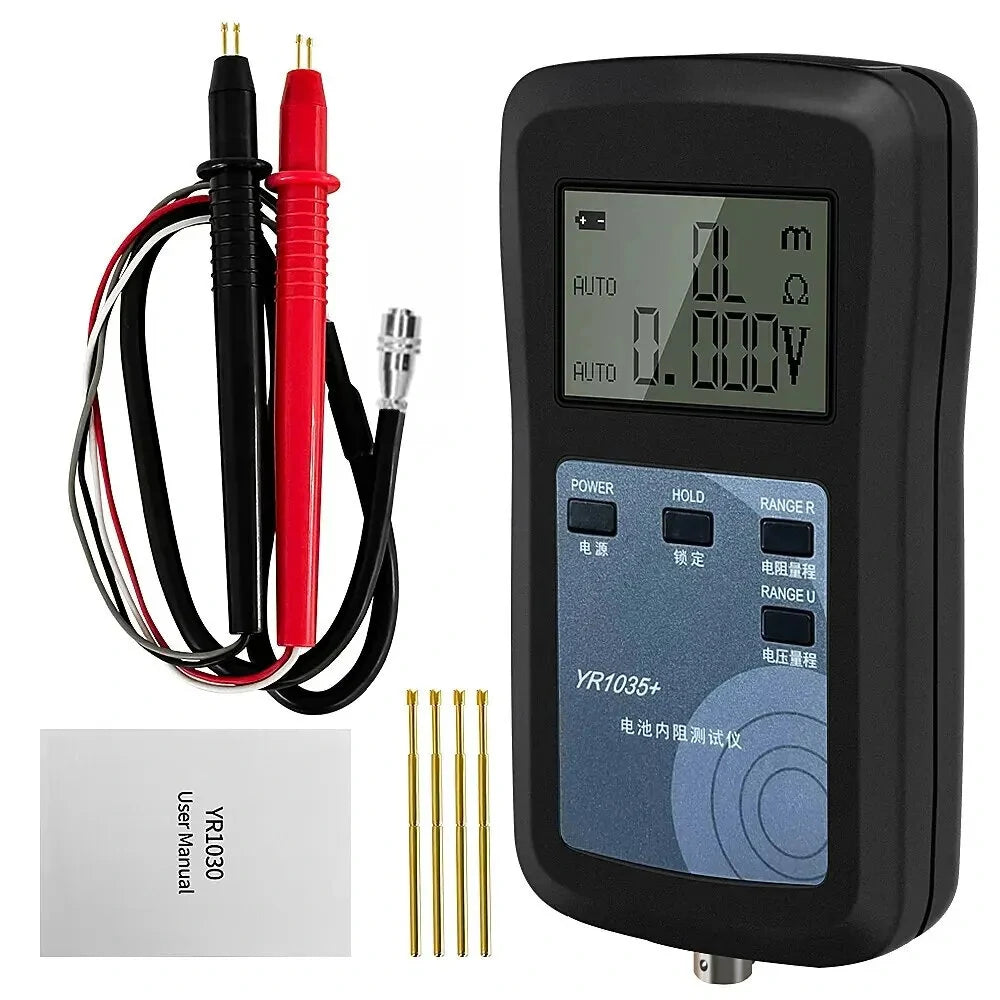

YR1030+/YR1035+ Precision Battery Resistance Tester 100V 2000mAh LCD for Electric Vehicles 18650

YR1030+/YR1035+ Precision Battery Resistance Tester 100V 2000mAh LCD for Electric Vehicles 18650

Regular price $38.99 USD
Regular price $0.00 USD Sale price $38.99 USD
Sale Sold out
Shipping calculated at checkout.
Model

Shipping Icon Estimated Delivery: -

Product Description

Product Features

  • High Precision and Fast Testing: The YR1030+/YR1035+ Battery Internal Resistance Test Instrument provides high-precision measurement for various battery types, including electric vehicle battery groups and 18650 batteries. It features resistance measurement ranges of 20 mΩ to 200 Ω with maximum resolutions as fine as 0.01 mΩ, ensuring precise and fast testing to optimize battery performance and longevity.
  • Wide Measurement Range and High Accuracy: Measure voltages efficiently across ranges of 1V, 10V, and 100V with resolutions up to 0.00001V, delivering reliability with accuracy ranging from ±0.15% to ±0.6%. Ideal for both professionals and hobbyists in battery diagnostics and maintenance.
  • Versatile Display and User Interface: The clear numerical display updates measurement results four times per second, making it easy to interpret data quickly. Supports multiple measurement formats and presentation modes for versatile use.
  • Robust and Safe Design: Constructed from high-quality ABS plastic to withstand various conditions, the device operates efficiently within 10℃-40℃ and has storage capabilities from -20℃ to 60℃. A temperature drift coefficient of 100ppm/℃ ensures consistent performance and adherence to safety standards.
  • Efficient Power Consumption: Equipped with a 2000mAh lithium battery for extended use on a single charge, featuring low-power and no-power modes to maximize battery life. It's cost-effective and environmentally friendly, with easy rechargeability.

Specifications

  • Optional Model: YR1030+ / YR1035+
  • Material: ABS Plastic
  • Color: Black
  • Battery: 1 x Lithium Battery, 2000mAh (Included)
  • Precision Format: ±([Precision Percentage] [Least Significant Digit])
  • Resistance Range: 20 mΩ/200 mΩ/2 Ω/20 Ω/200 Ω
  • Maximum Resolution: 20 mΩ: 0.01 mΩ; 200 mΩ: 0.1 mΩ; 2 Ω: 1 mΩ; 20 Ω: 10 mΩ; 200 Ω: 0.1 Ω
  • Accuracy: 20 mΩ: 0.7%; 200 mΩ: 0.5%; 2 Ω: 0.5%; 20 Ω: 0.5%; 200 Ω: 0.6%
  • Voltage Measurement Range: 1V/10V/100V
  • Maximum Resolution: 0.00001V/0.0001V/0.001V
  • Voltage Accuracy: 0.15%
  • Display Modes: Resistance: 2000 counts; Voltage: 99999 counts
  • Temperature Range: Operating: 10℃-40℃; Storage: -20℃-60℃
  • Temperature Coefficient: 0.1 * (Stated Accuracy)/℃ (28℃)
  • Power Consumption: 0 mA (off)
  • Package Dimensions: 1206040 mm / 4.72.41.6 inches
  • Package Weight: 320 g / 11.3 ounces
  • Package Included: 1 x Tester (Model as your choice); 1 x Pair of Probes
