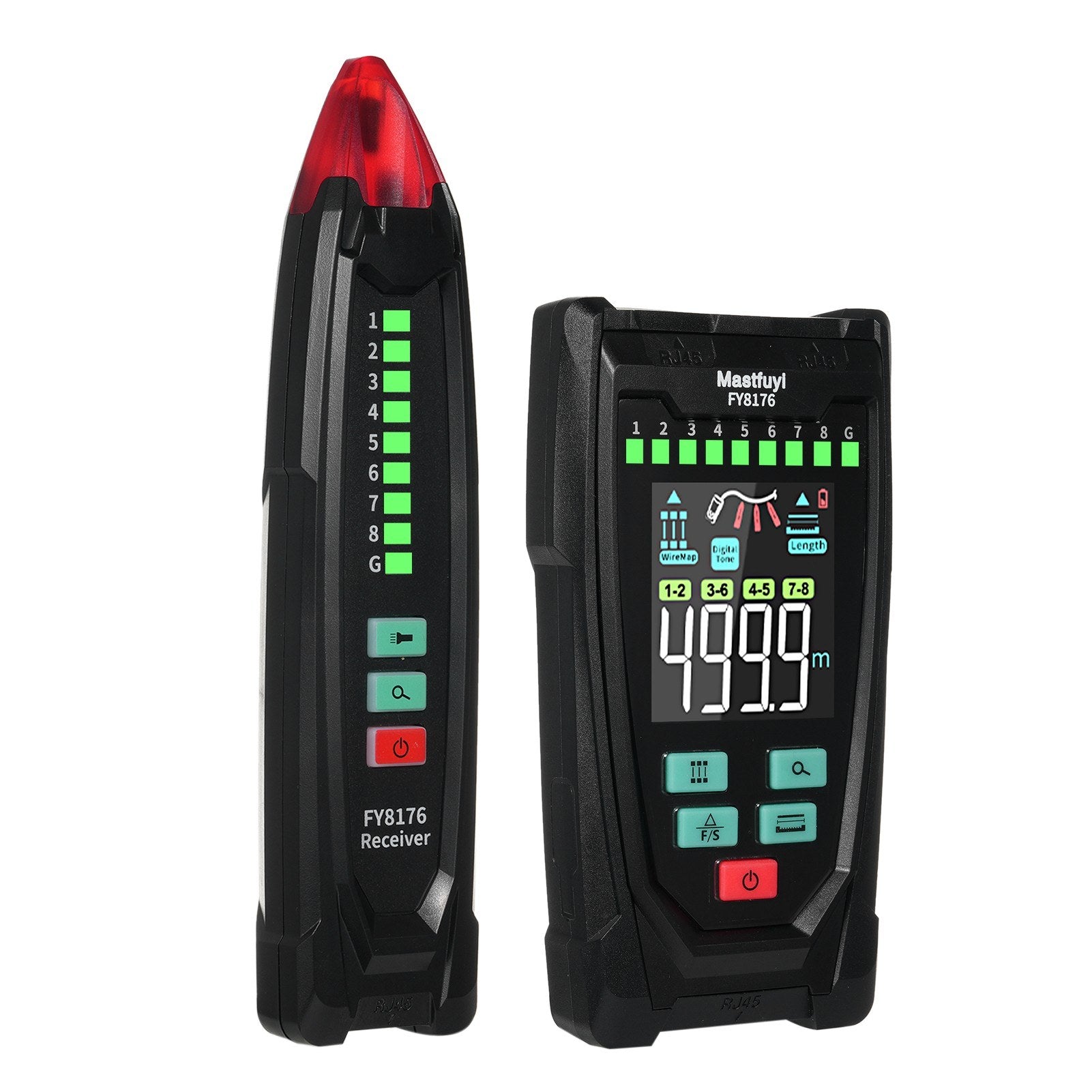

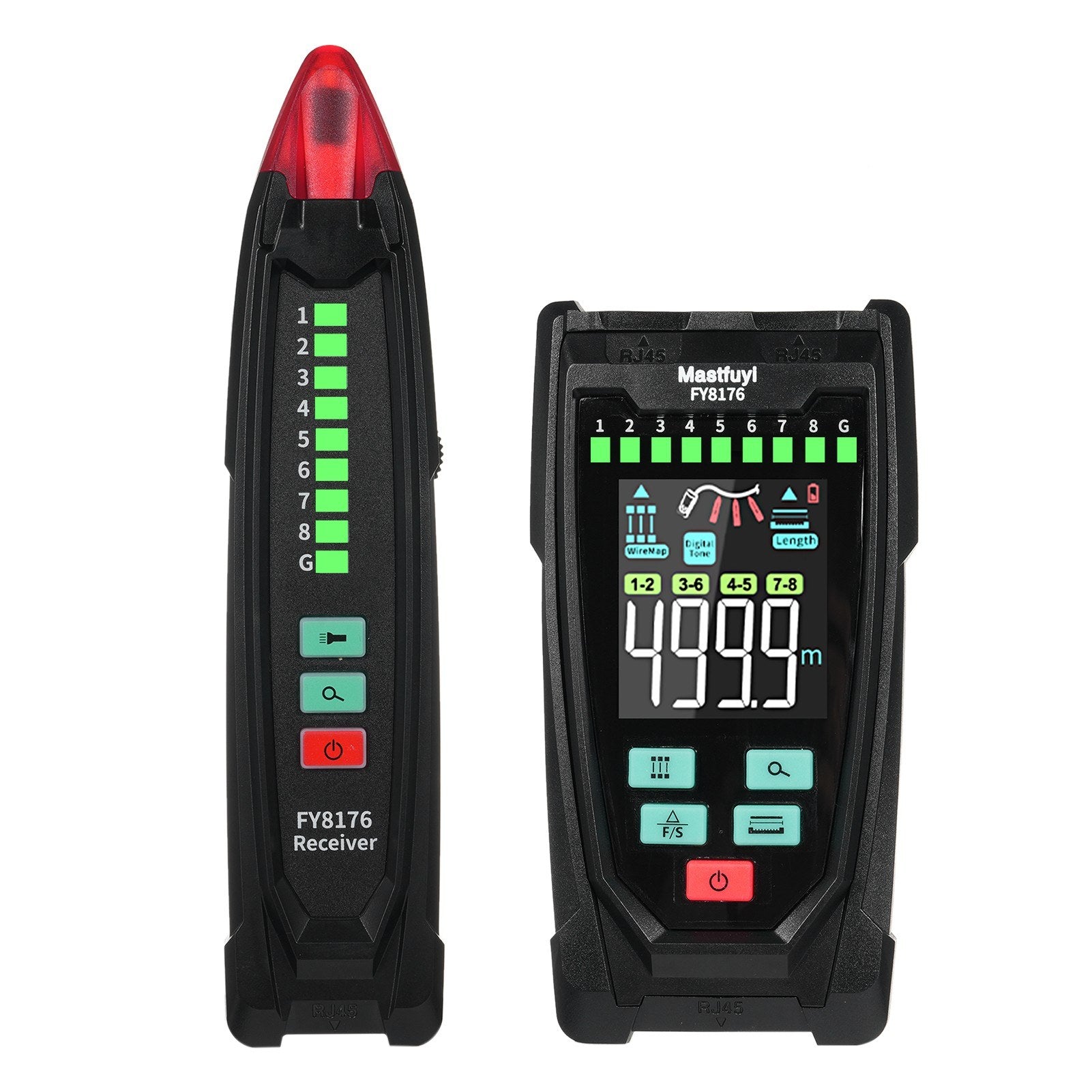

Mastfuyi FY8176 Portable Ethernet Cable Tester with 2.5 Color Screen

This instrument is a handheld cable test tool, enhanced with features that make it applicable to a wider range of cable types. It is an essential tool for telecommunications engineers, cabling engineers, network maintenance personnel, and more.

Features:

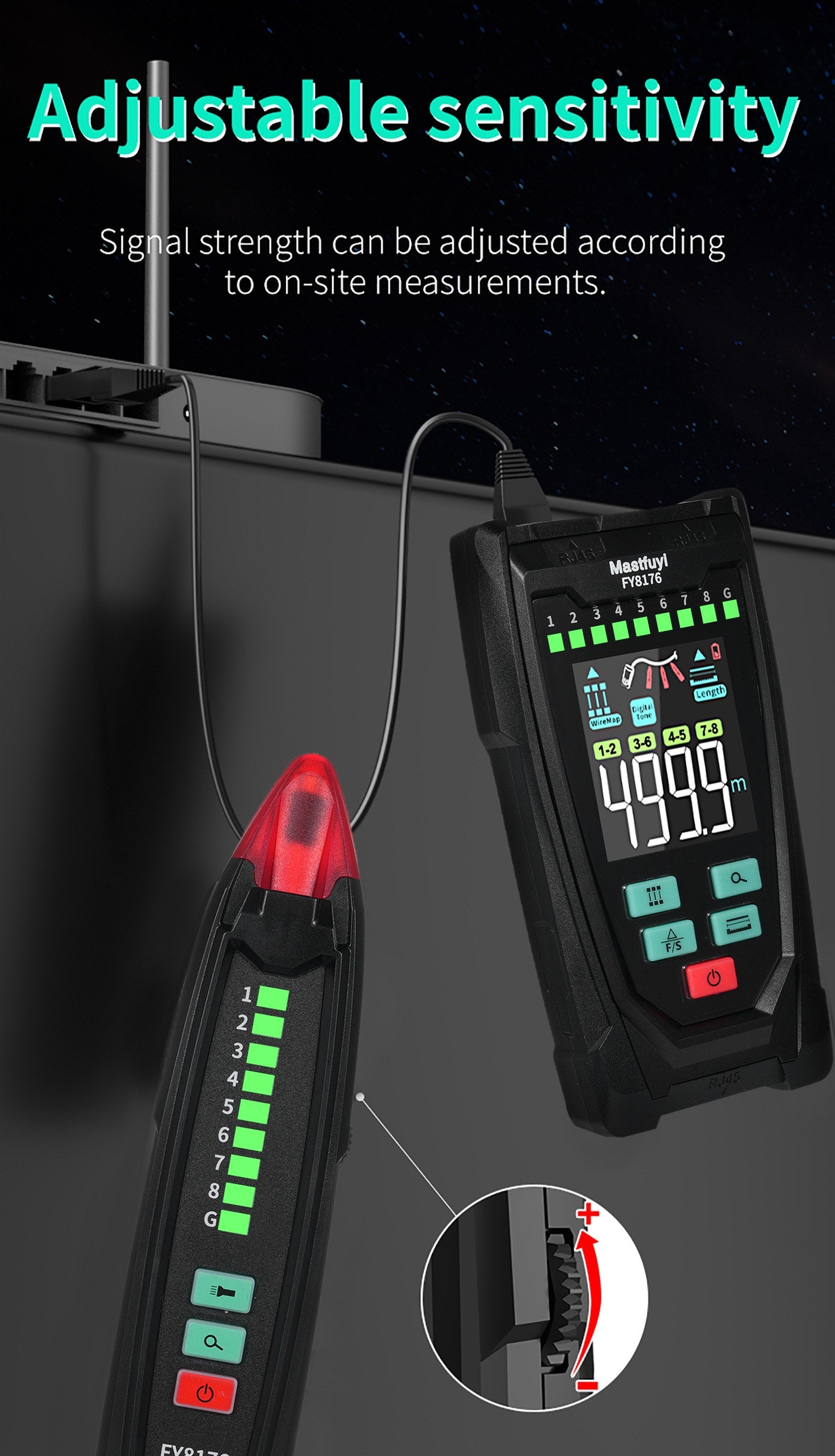

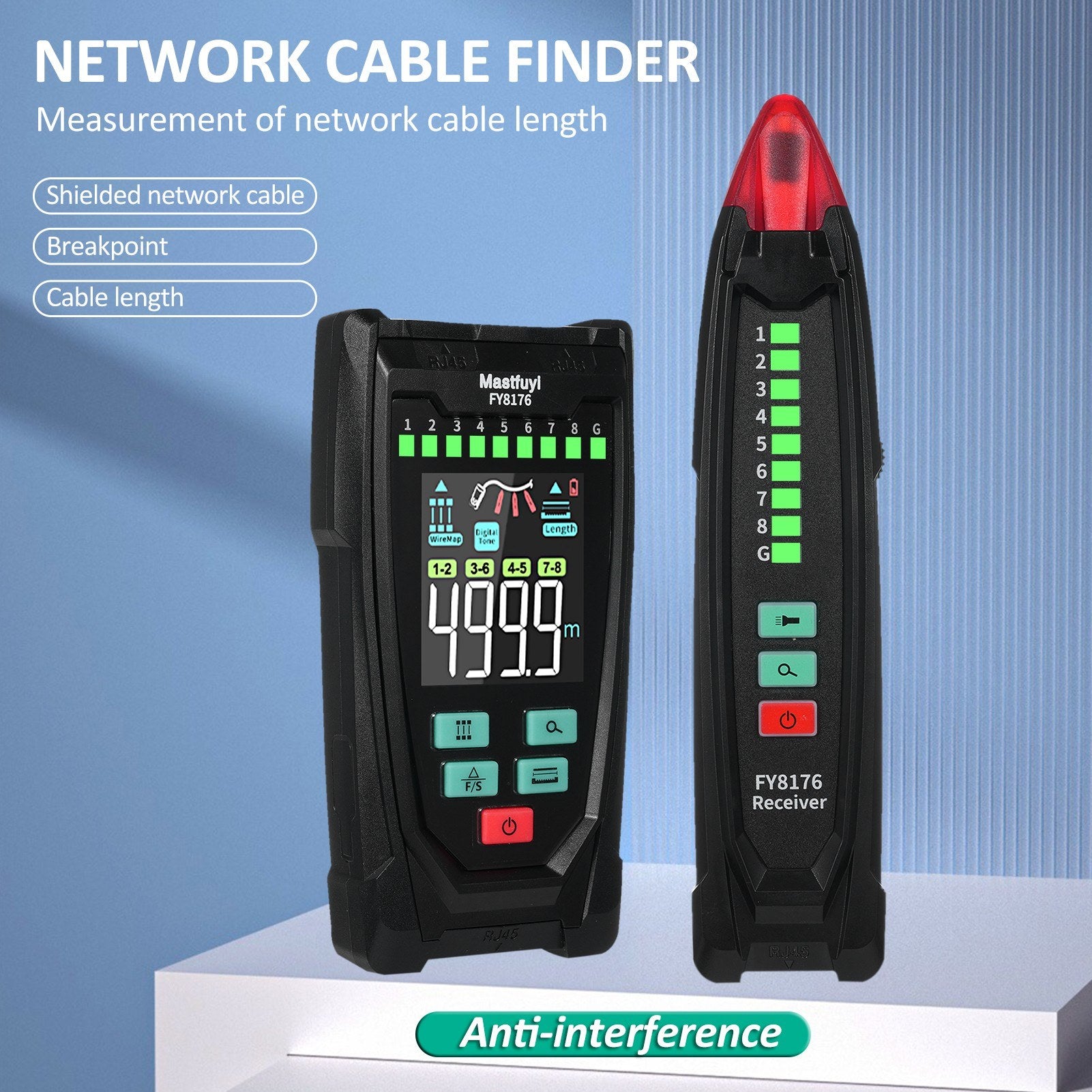

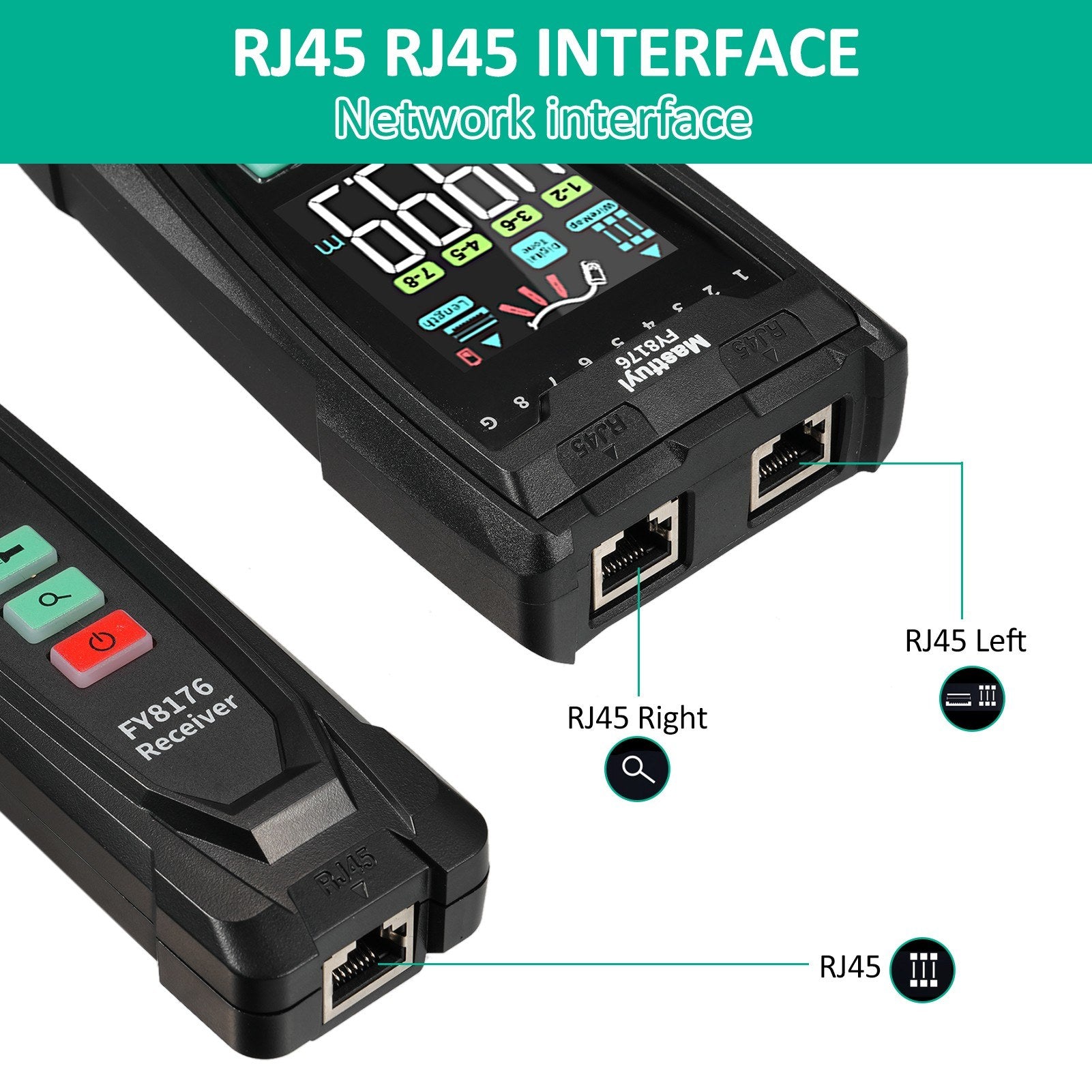

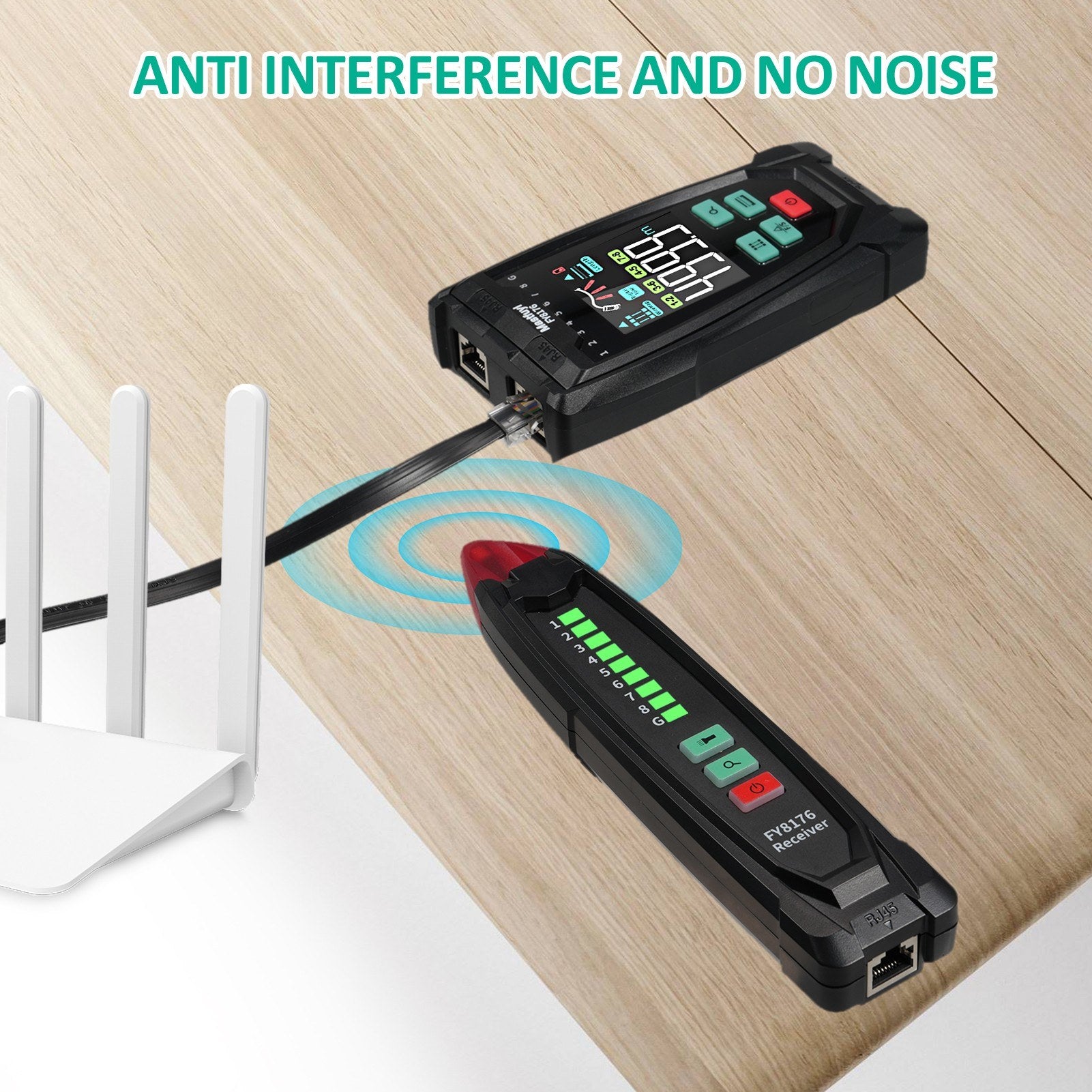

• Anti-interference Digital Cable Scanning: Utilizes advanced digital cable scanning technology for anti-interference, noiseless function, high sensitivity, and stability. Suitable for all kinds of POE switches with 60V withstand voltage. Compatible with RJ45 interface network cables, with adjustable receiver sensitivity.

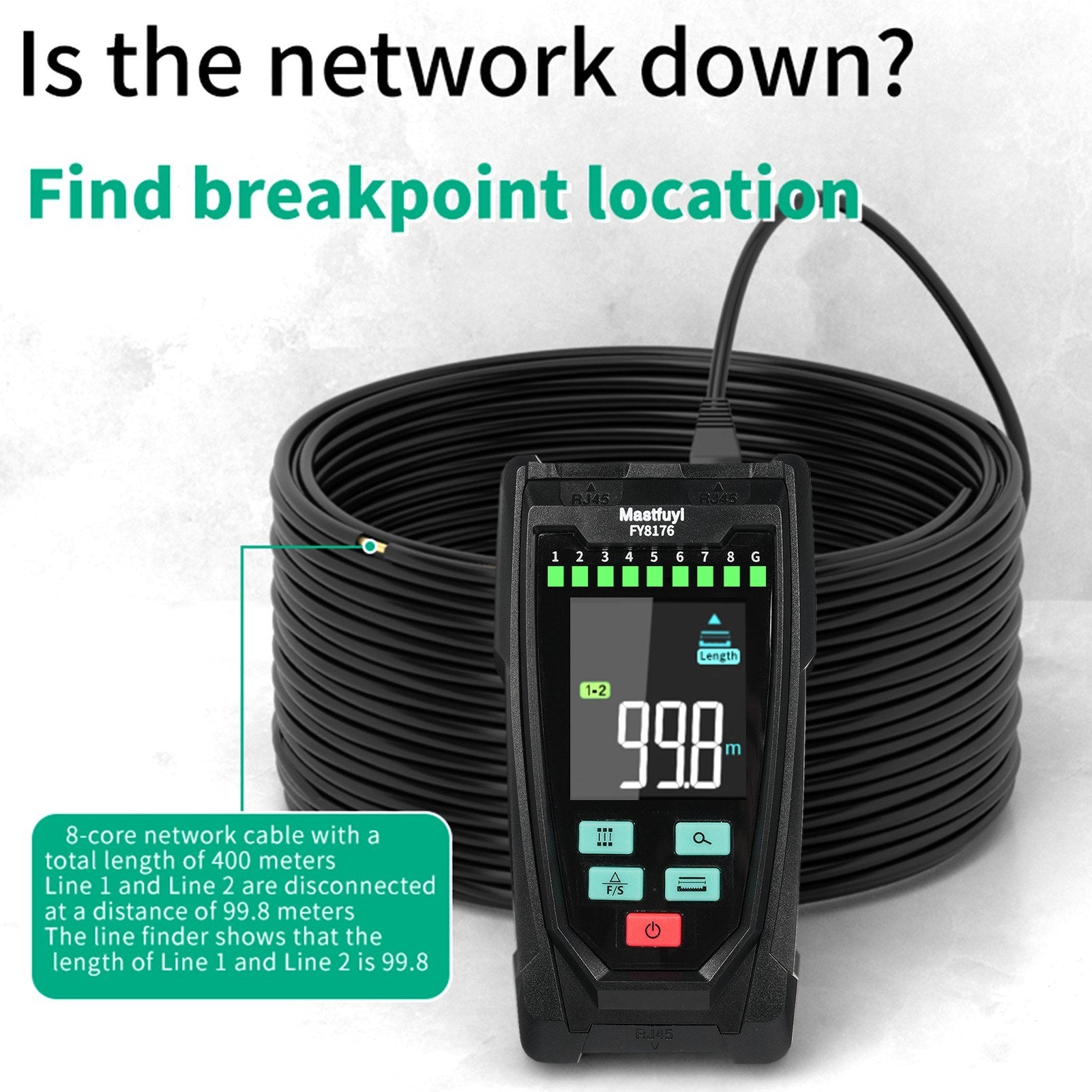

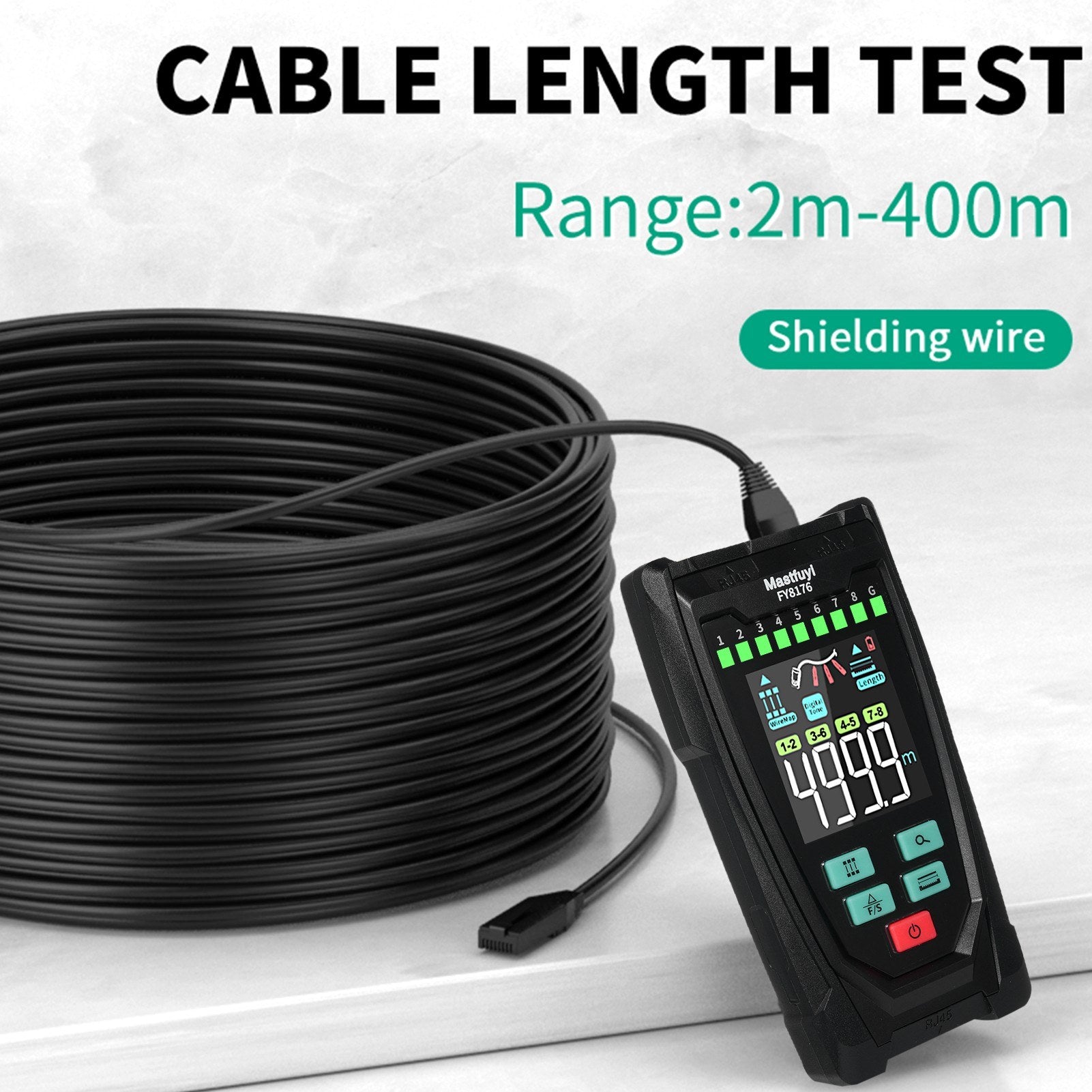

• Length Measurement/Fault Distance Location: Employs TDR (Time Domain Reflectometry) technology to accurately measure the length and fault points of network cables/telephone cables/BNC coaxial cables without calibration. Offers fast response and high accuracy, with a measuring distance up to 400m/1312ft. Supports ft/m unit switching. Note: Must be measured in an open circuit.

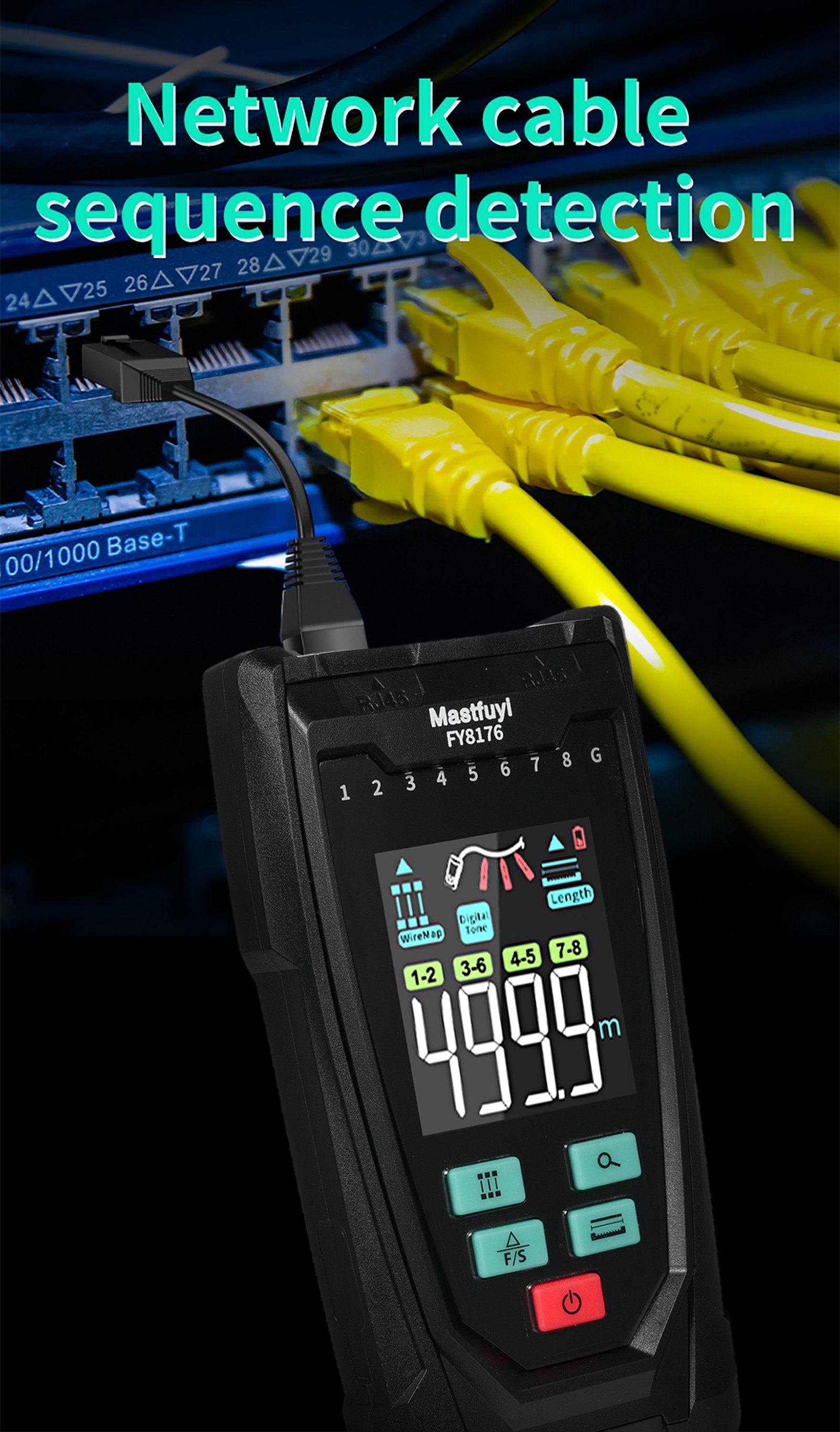

• Wire Map Function: Tests the physical connection status of network cables, identifying issues such as line sequence errors, open circuits, shorts, wrong pairs, and reverse connections.

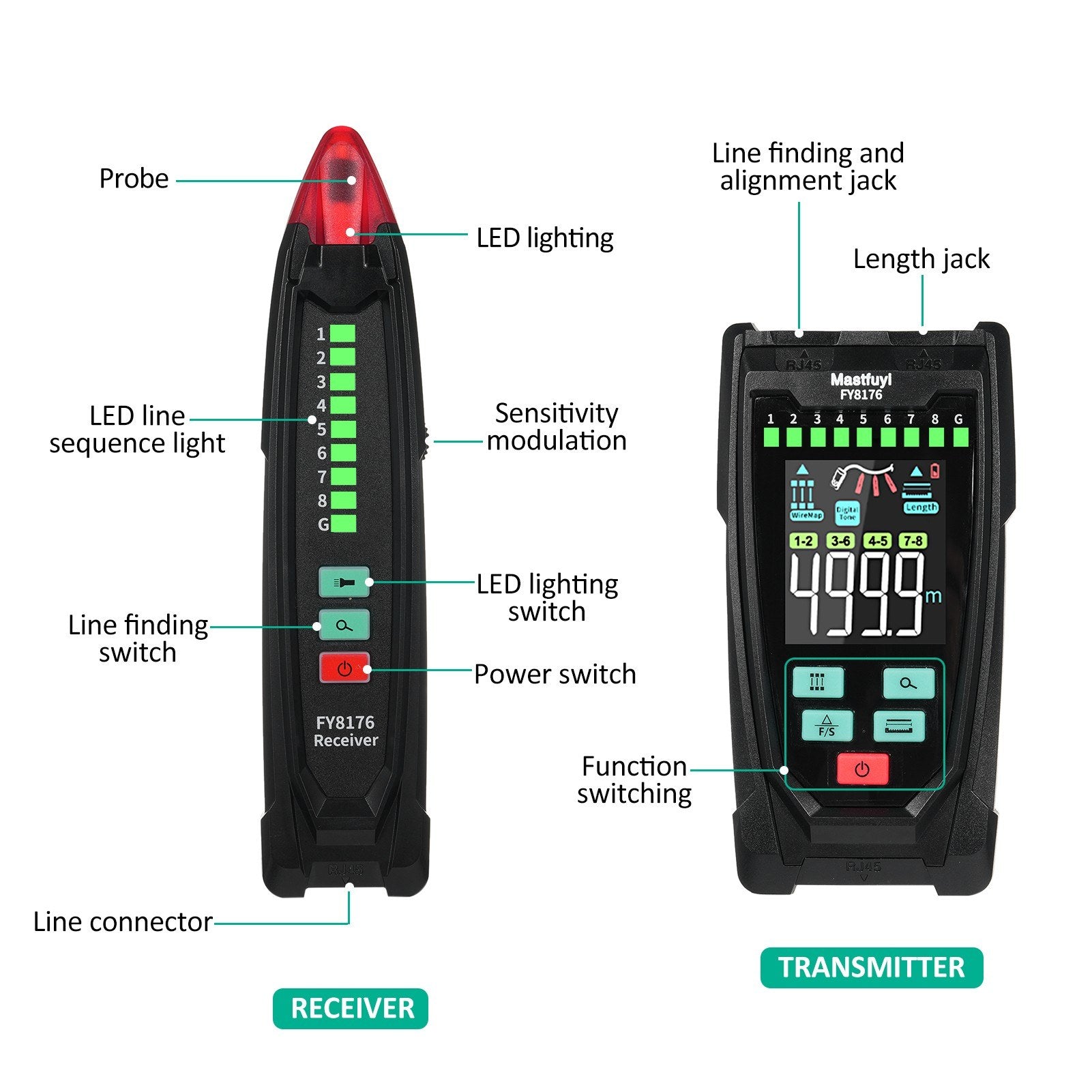

• Humanized Design: Features a full-view 2.5-inch color screen on the transmitter, providing clear readings even in dark environments. The transmitter is protected with soft rubber for a comfortable grip and 2m drop protection. Includes a receiver with a built-in flashlight for dark conditions. Comes with a cloth pouch for easy storage and portability.
• Battery Undervoltage Alert: Notifies you when the transmitter battery voltage is low with a display symbol. For the receiver, a dim light or reduced sound during cable searching indicates a low battery. Please replace the batteries promptly.

Specifications:

• Model: FY8176
• Operating Temperature: 0~40℃, maximum 80% relative humidity (non-condensing)
• Storage Temperature: -10~50℃, maximum 80% relative humidity (non-condensing, without battery)
• Altitude: <2000m
• Explosion-proof Type: IP40
• Line Finding Function: Network cable
• Wire Map Test Function: Detects the physical connection of the network cable.
• Anti Drop Sheath: ✓
• Cable Length Test: 2m-400m
• Network Cable Breakpoint: ✓
• Sensitivity Modulation: ✓
• Transmit Signal: > 300m
• POE: 60V voltage
• Flashlight: ✓
• Battery: Transmitter: 3 * 1.5V AAA Battery (not included); Receiver: 3 * 1.5V AAA Battery (not included)
• Material: ABS

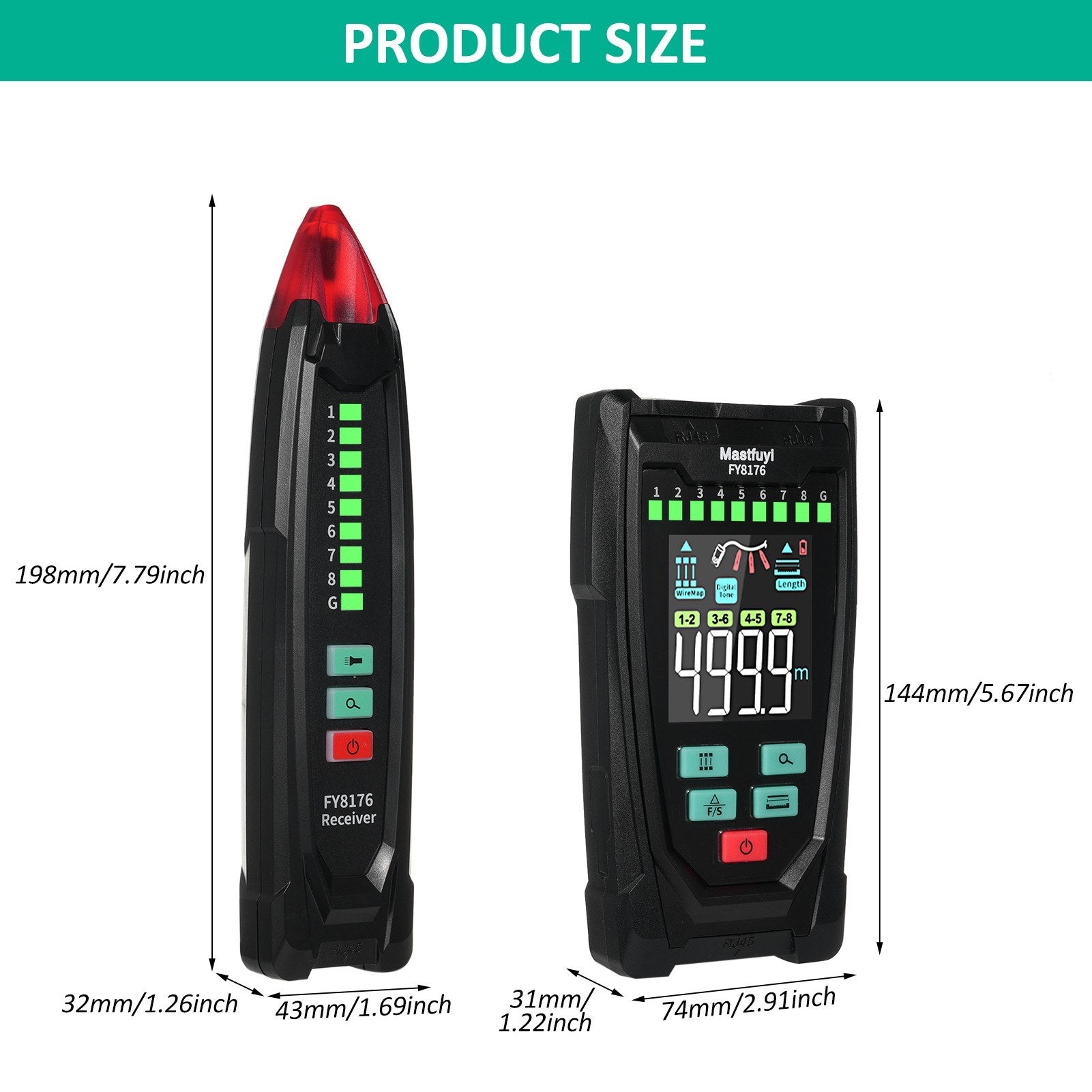

• Transmitter Size: 144 * 74 * 31 mm / 5.67 * 2.91 * 1.22 inch
• Receiver Size: 198 * 43 * 32 mm / 7.79 * 1.69 * 1.26 inch
• Transmitter Weight: 167g / 5.89oz
• Receiver Weight: 110g / 3.88oz
• Package Size: 22.8 * 14.3 * 5.4 cm / 8.98 * 5.63 * 2.12 inch
• Package Weight: 477g / 16.82oz

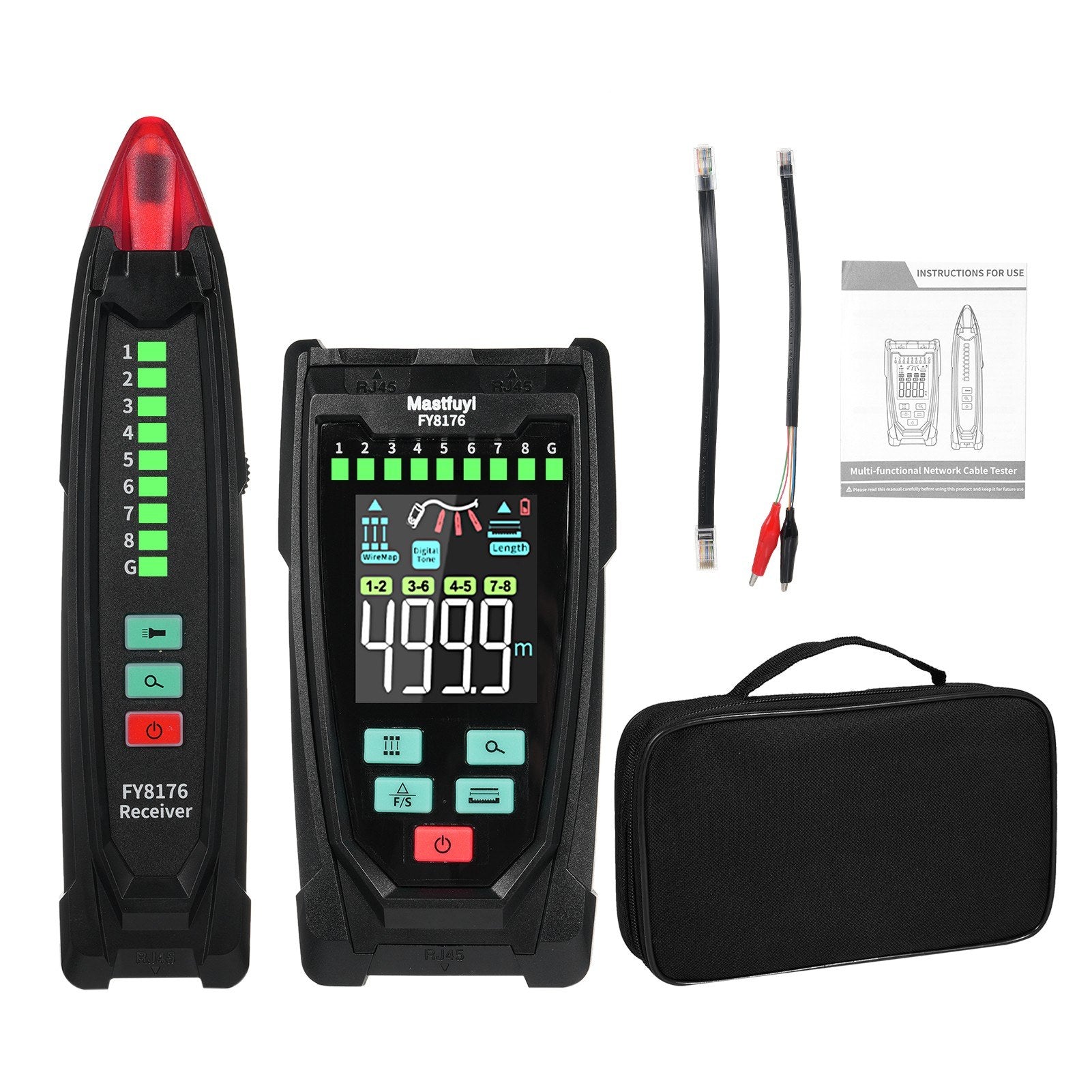

Package List:

• 1 * Transmitter
• 1 * Receiver
• 1 * RJ45 Adapter Cable
• 1 * Cloth Bag
• 1 * User Manual (English)
