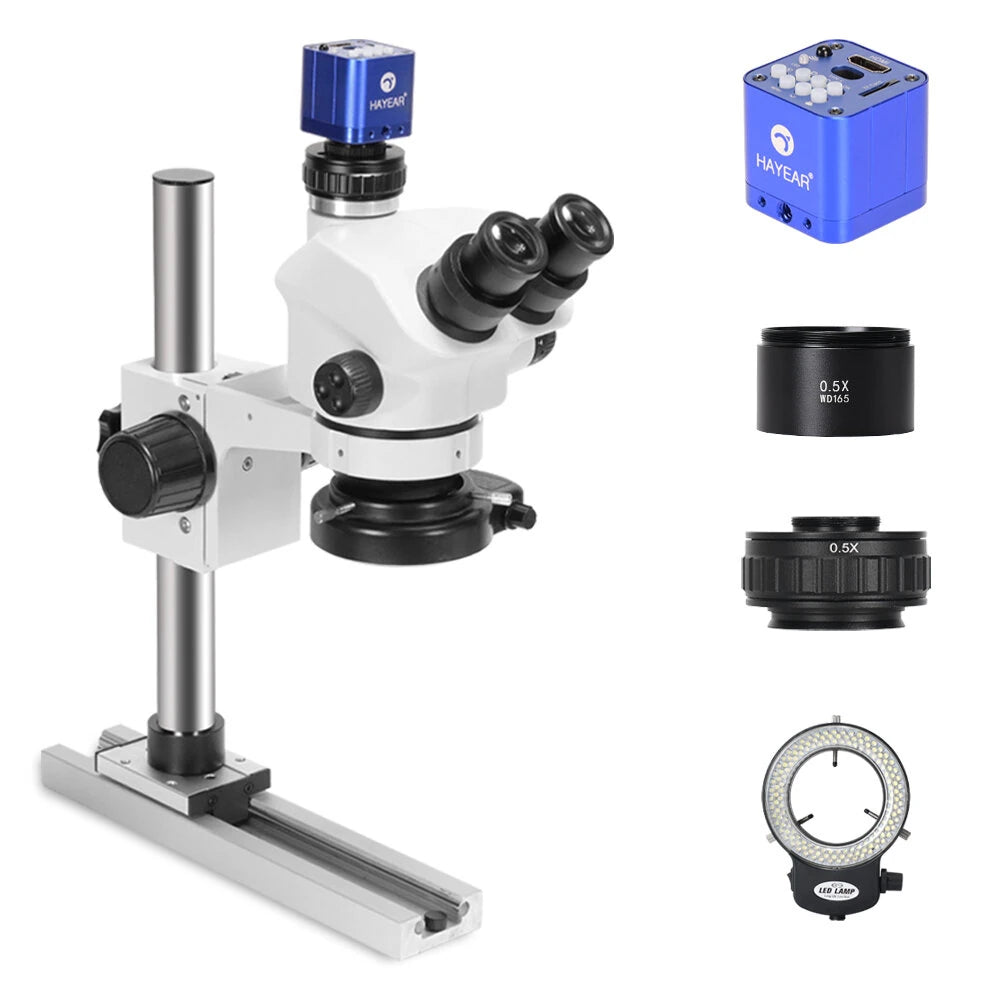

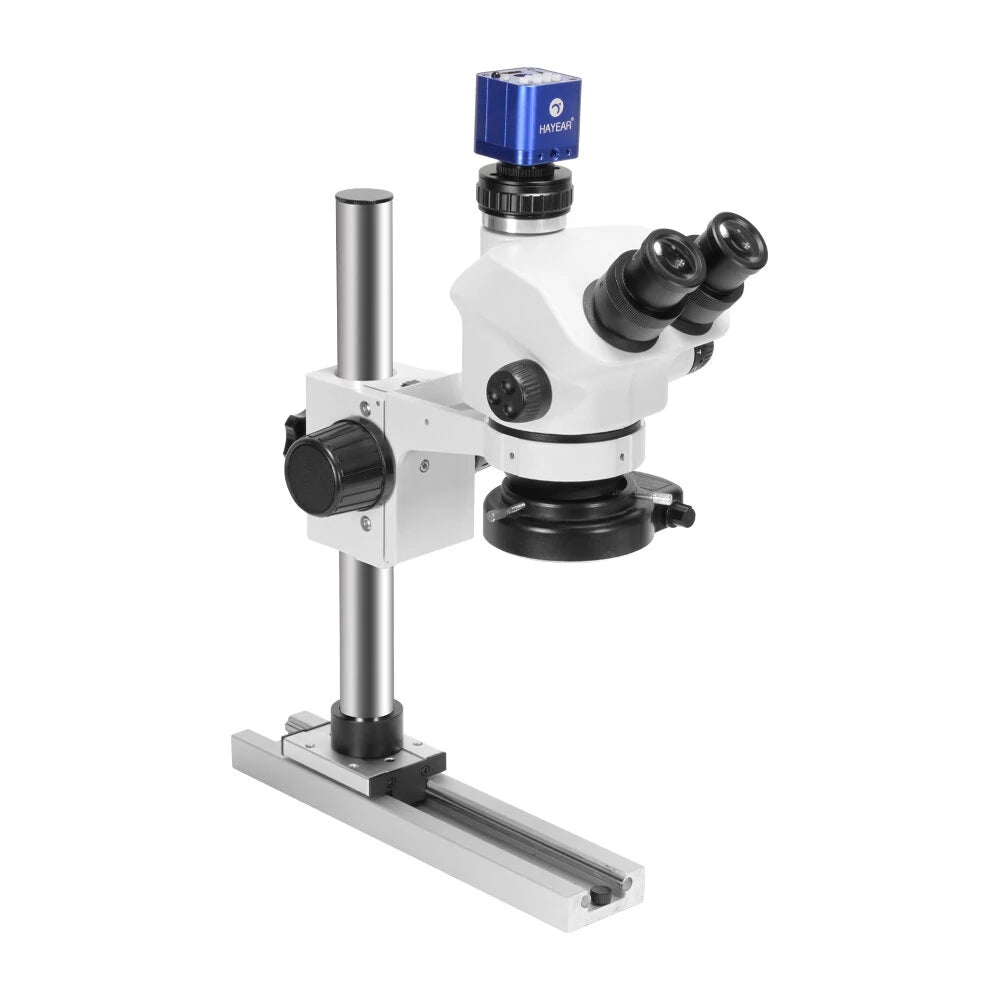

7-50x Slide Rail Base Microscope Stand Pillar

This versatile microscope stand is perfect for digital camera enthusiasts and those in the mobile phone repair and soldering fields. Enhance your precision with our high-quality trinocular stereo lens.

Key Features

• Magnification Power: Continuous zoom from 7X to 50X
• Viewing Angle: 45-degree inclined trinocular simul-focal head
• Eyepieces: SUPER WIDEFIELD high-eyepoint WF10X eyepieces with a 22mm field of view
• Objective Lens: 0.7-5X with a zoom range of 6.5:1
• Image Quality: High resolution, sharp stereo erect images over a wide field view, crystal clear original true color images
• Working Distance: 100mm
• Lens: Full optical glass elements with precise ground glass lens
• Photo/Video Capability: Trinocular port compatible with a 25mm photo port
• Illumination: Equipped with a 144 bright LED with variable lighting direction and power control

Technical Specifications

• Interpupillary Distance: 54-76mm (2-1/8" to 3")
• Field of View: 33mm (1-1/4")
• Head Mounting Size: 76mm (3") diameter
• Bracket Hole: 76mm
• Spin Angle: Horizontal ±15°

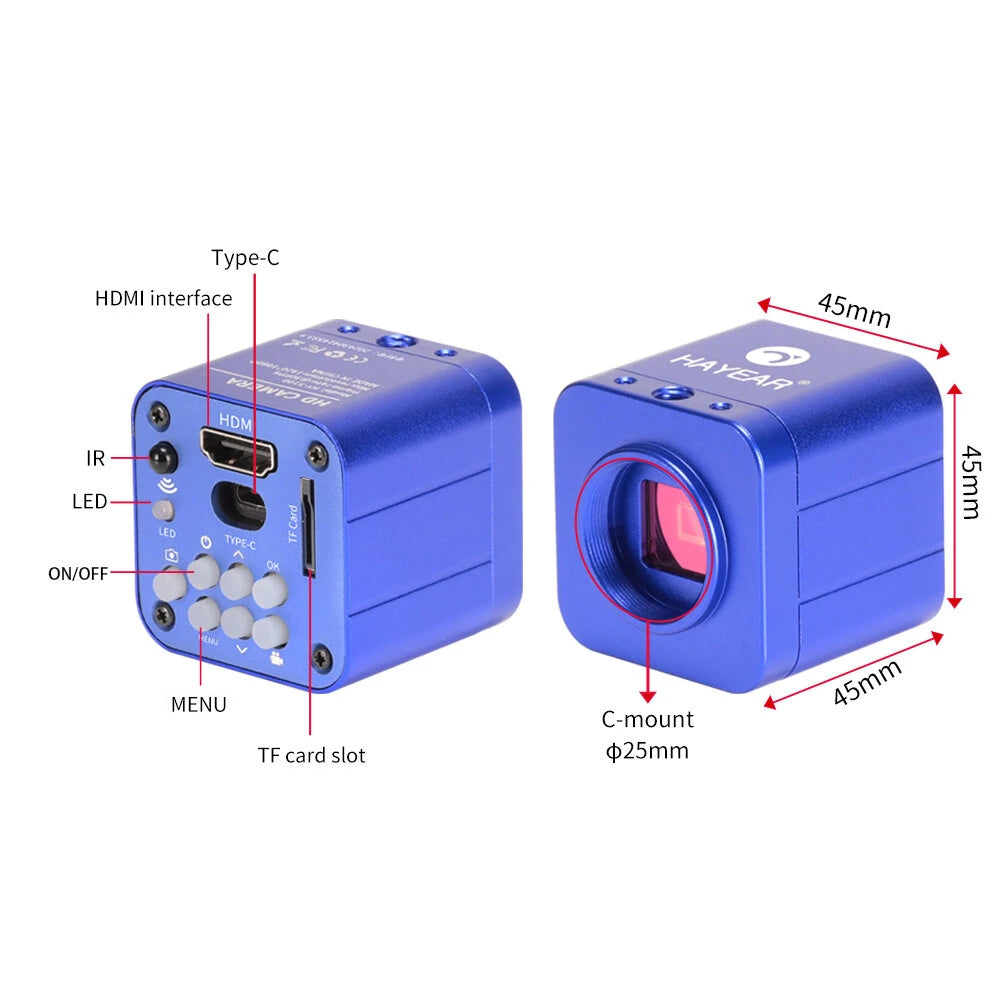

Microscope Camera Module: HY-5100

• Sensor: 24MP CMOS
• Optical Format: 1/2.9-inch
• Interface: HDMI (Type A), USB (Type B), small memory card support
• Image Resolution: 16MP (4K: 4680X3456), HDMI: 1920 x 1080P
• USB2.0: Supports 1920 x 1080 at 30FPS, 1280 x 720 at 30FPS, 640 x 480 at 30FPS
• Storage: Up to 128GB (card not included)
• Remote Control: Infrared remote control support (requires 1 x CR2025 button battery, not included)

Additional Features

• AWB color correction with automatic and manual settings
• RGB value setting independent
• Automatic and manual exposure settings
• Cross line and scale line adjustments
• Support for sharpness, contrast, and color gain adjustments
• Mono negative film support
• Language options include English, Simplified Chinese, French, Spanish, Japanese, German, and more
• DC 12V voltage input with power supply voltage input of AC100-240V
• Lens interface: C/CS port

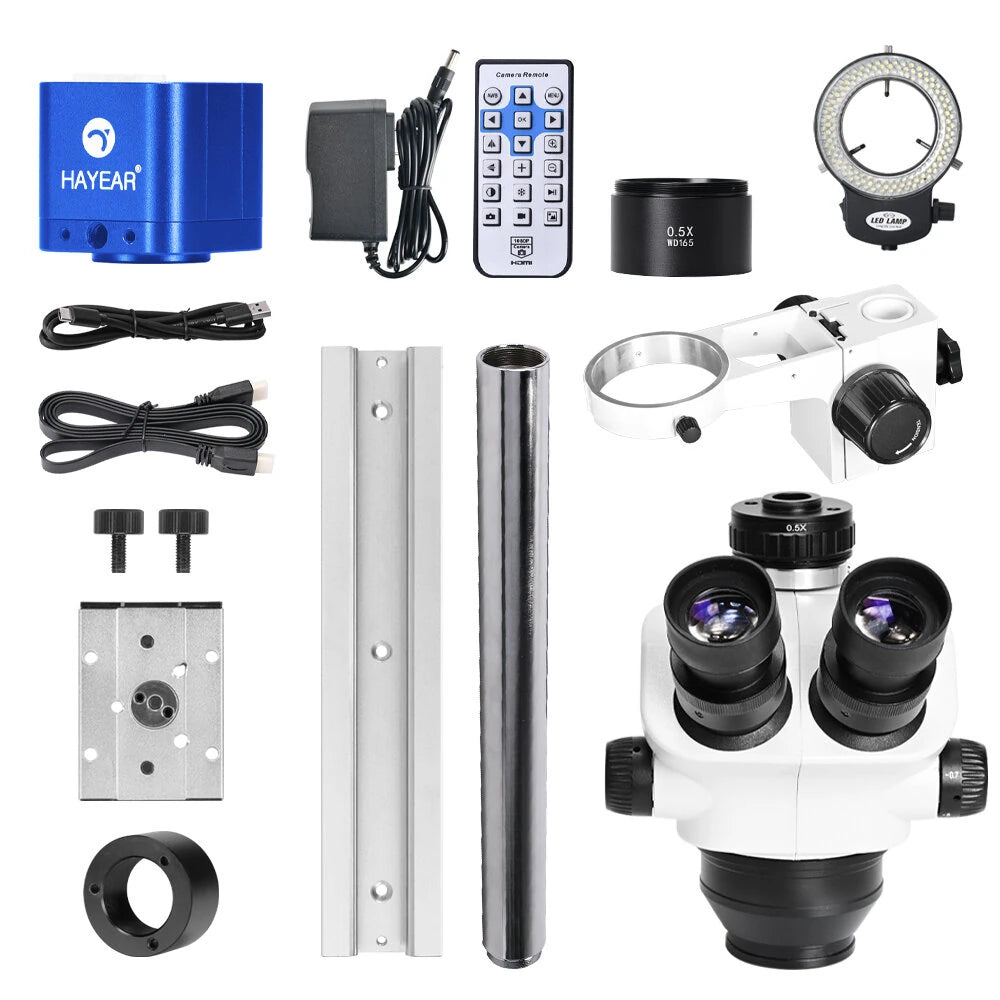

Package Includes

• 1 x Microscope Camera
• 1 x IR Remote Control
• 2 x Power Adapter

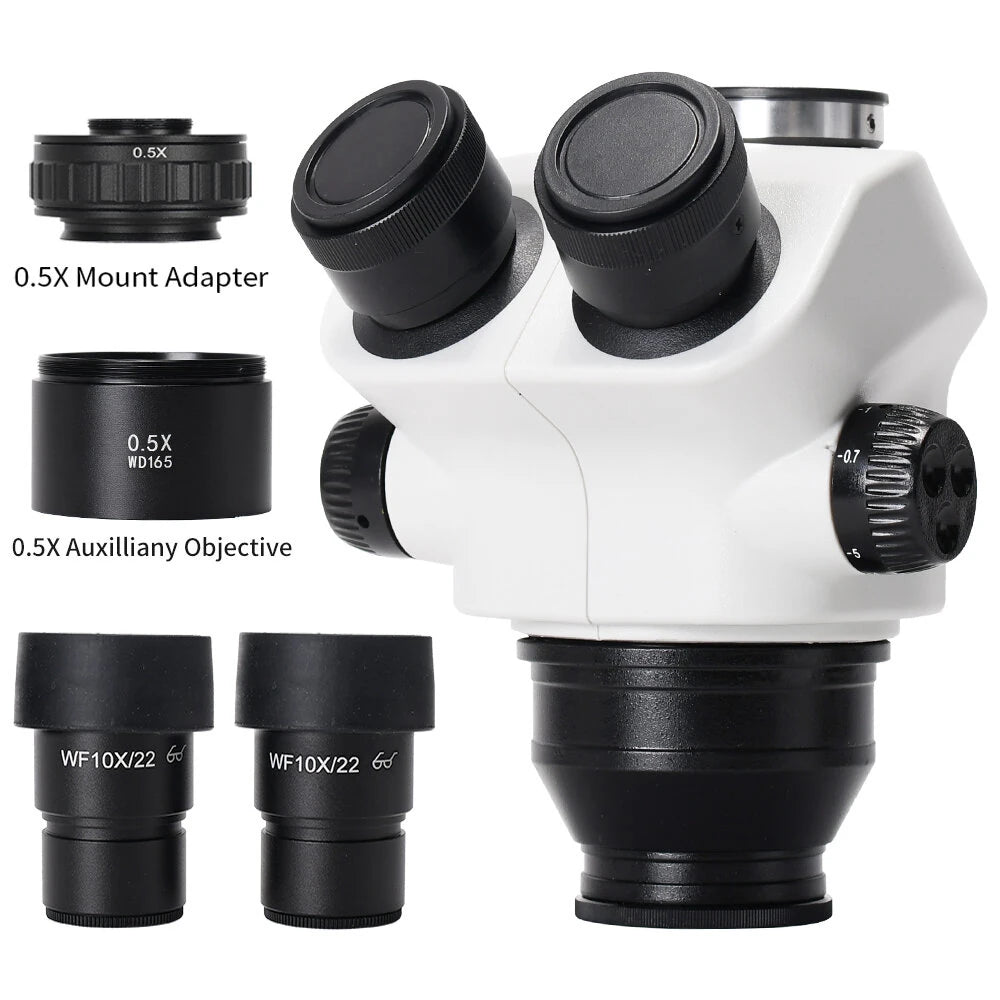

• 1 x Trinocular Stereo Zoom Head
• 1 x Pair of Super Widefield 10X22MM Eyepieces
• 1 x 144-LED Ring Light

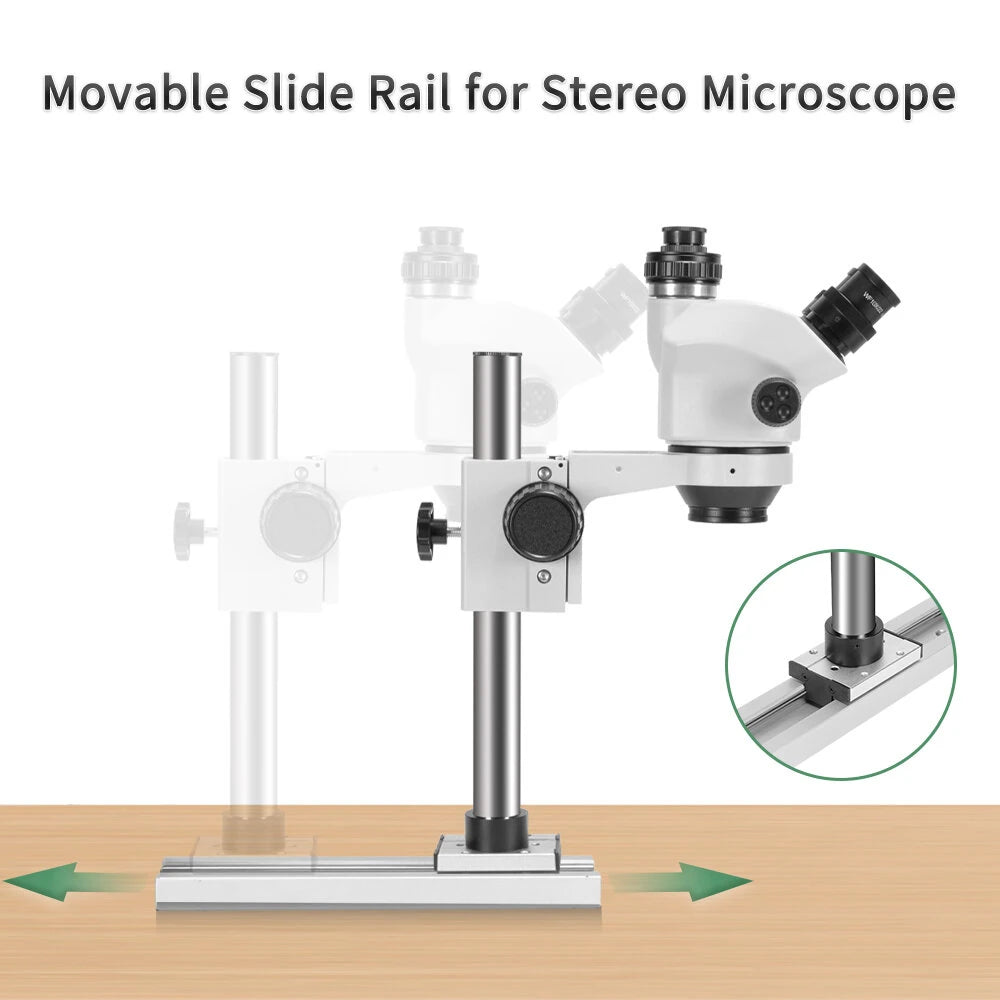

• 1 x 76mm Slide Rail Base Bracket
• 1 x Simul-Focal Adapter
• 1 x Pair of Eye-Guards
• 1 x Dust Cover
• 1 x Paper Manual
