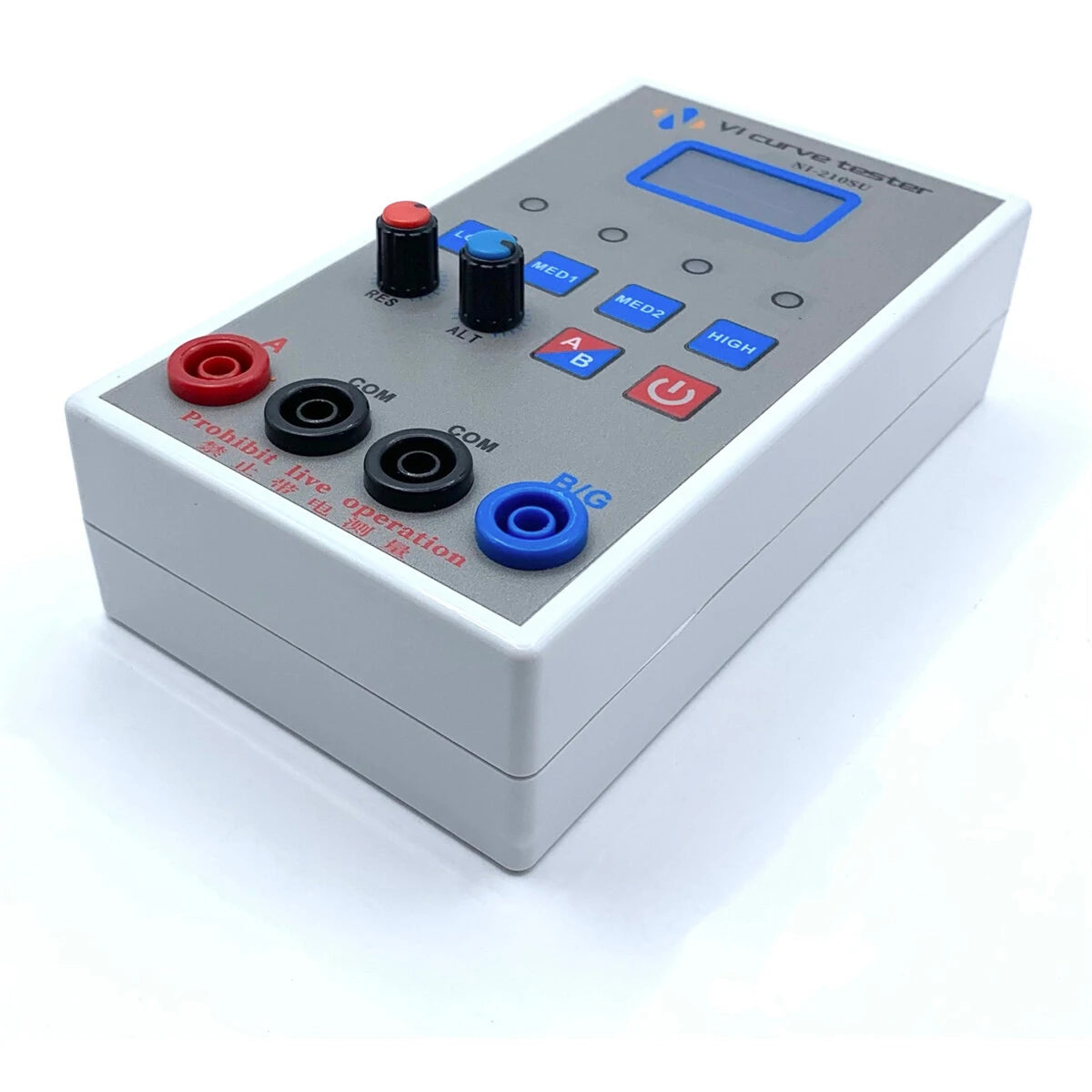

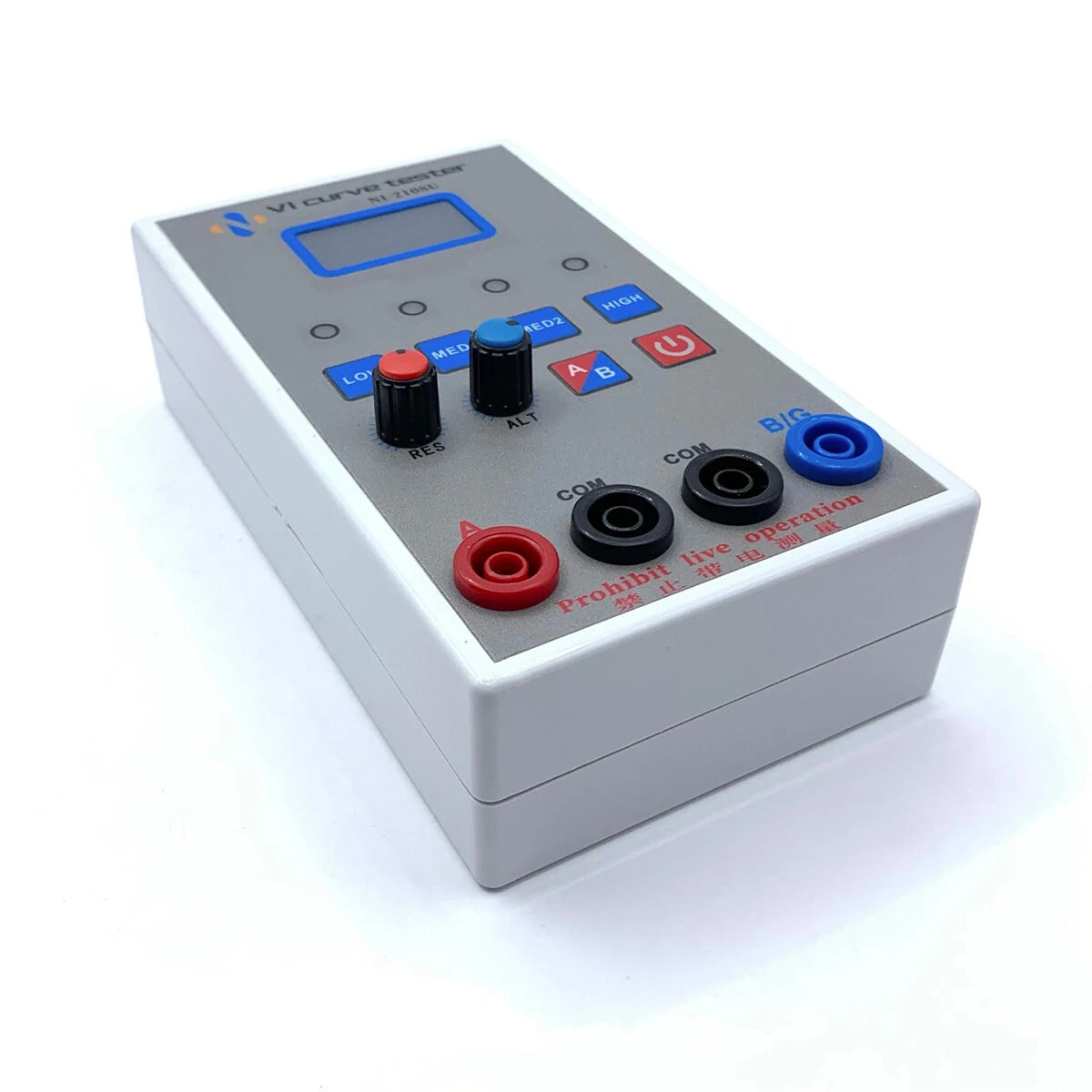

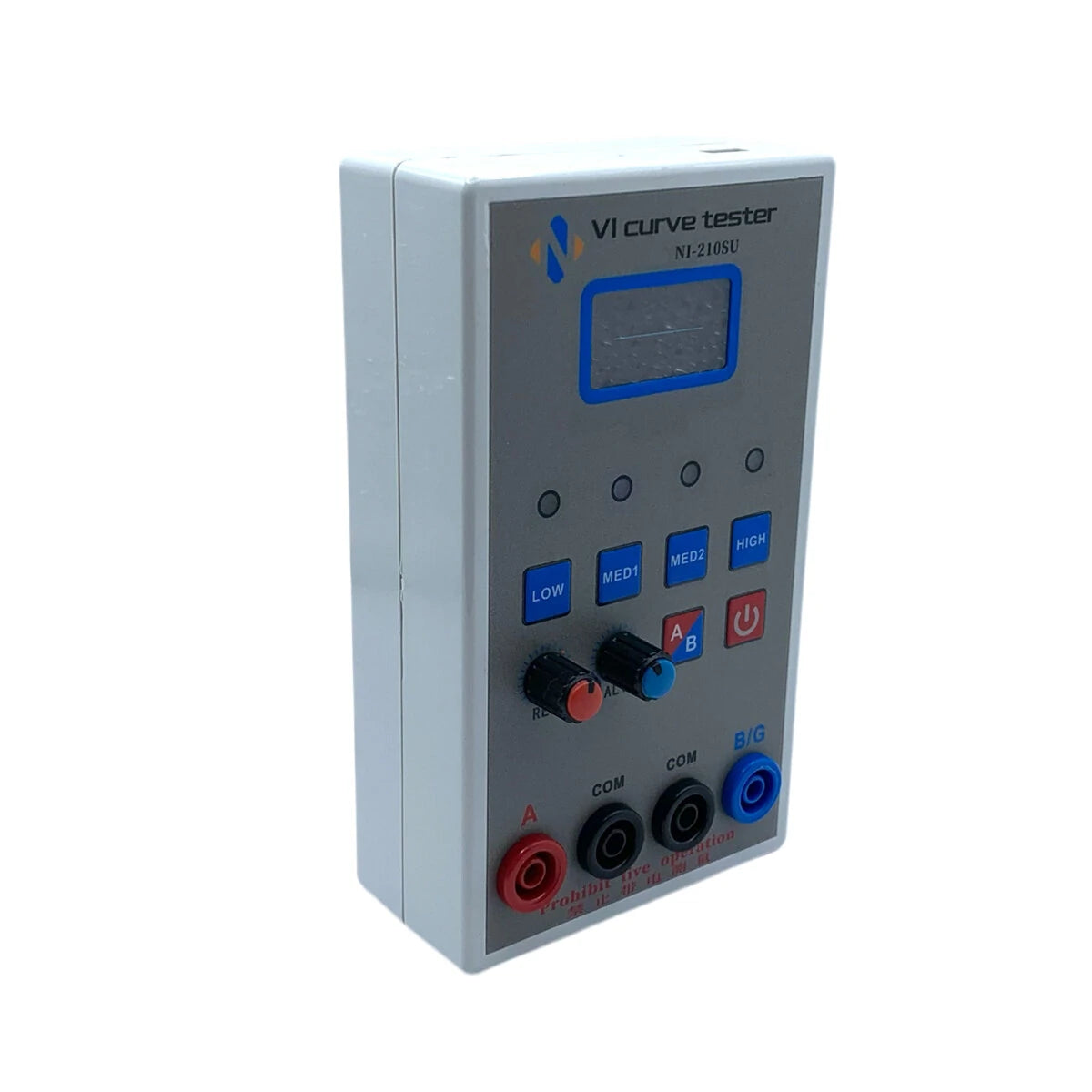

Handheld OLED Display VI Curve Tester: 2 Channel, ASA Circuit Board Repair, 4 Voltage & Frequency Options

Features:

• VI Curve Analysis (ASA): No need for circuit principles or a powered state, allowing for fault detection on separated circuit boards without requiring data. It is vital not to proceed if the capacitance is undischarged to prevent damage.
• Safety: Testing does not require power to the circuit board, ensuring safety. It is compatible with any types of circuit devices, whether digital, analog, or mixed.
• Versatile Testing: Tests are executed via circuit nodes (device pins), unrestricted by component packaging. It's ideal for large-scale, complex devices and known or unknown integrated devices.
• User-Friendly: ASA is the preferred method under restrictive conditions for inspecting device quality and offers an intuitive assessment of discrete components' functions.
• Advanced Fault Detection: Utilizes an AC signal to engage circuit nodes, providing adjustable amplitude and frequency close to working voltage for realistic graphs and fault comparisons, without harming components.
• Proven Technology: ASA is fast and efficient in diagnosing faults.

Specifications:

• 1.3 inch OLED display
• Built-in 3000mAh battery
• Adjustable voltage in four gears: 0.6V, 4V, 8V, 16V
• Four test frequencies: 60Hz, 400Hz, 2000Hz
• Curve movement: Supported
• Scan function: Supported
• True dual channel: Supported
• Simultaneous display: Supported
• Program control: Supported

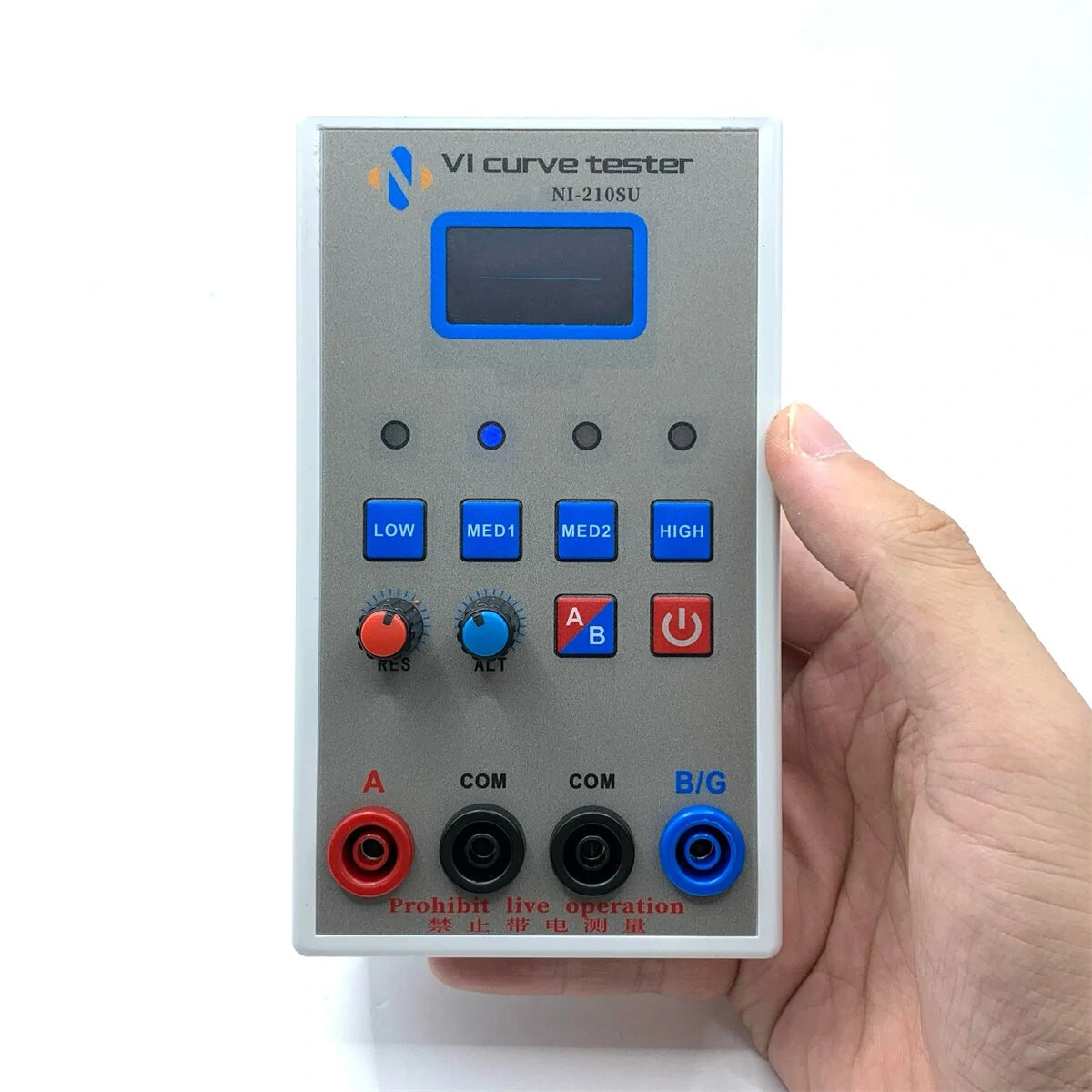

• Host size: 14.5 x 8.2 x 4 cm
• Host weight: 218g

Note: Ensure proper discharge before measurement to avoid equipment damage.

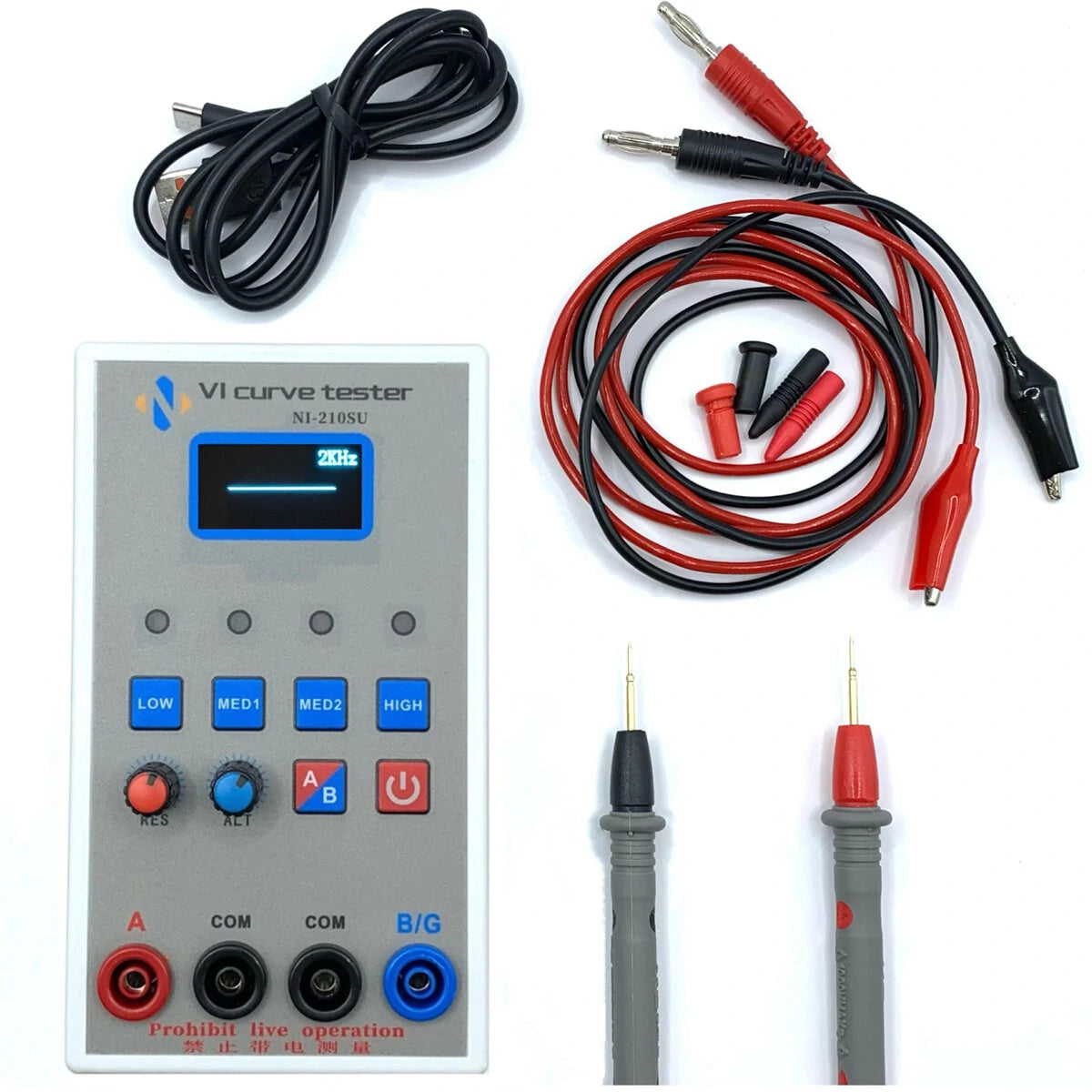

Package includes:

• 1 x VI Curve Tester
• 2 x BNC cable
• 2 x Test leads
• 1 x Power cable
