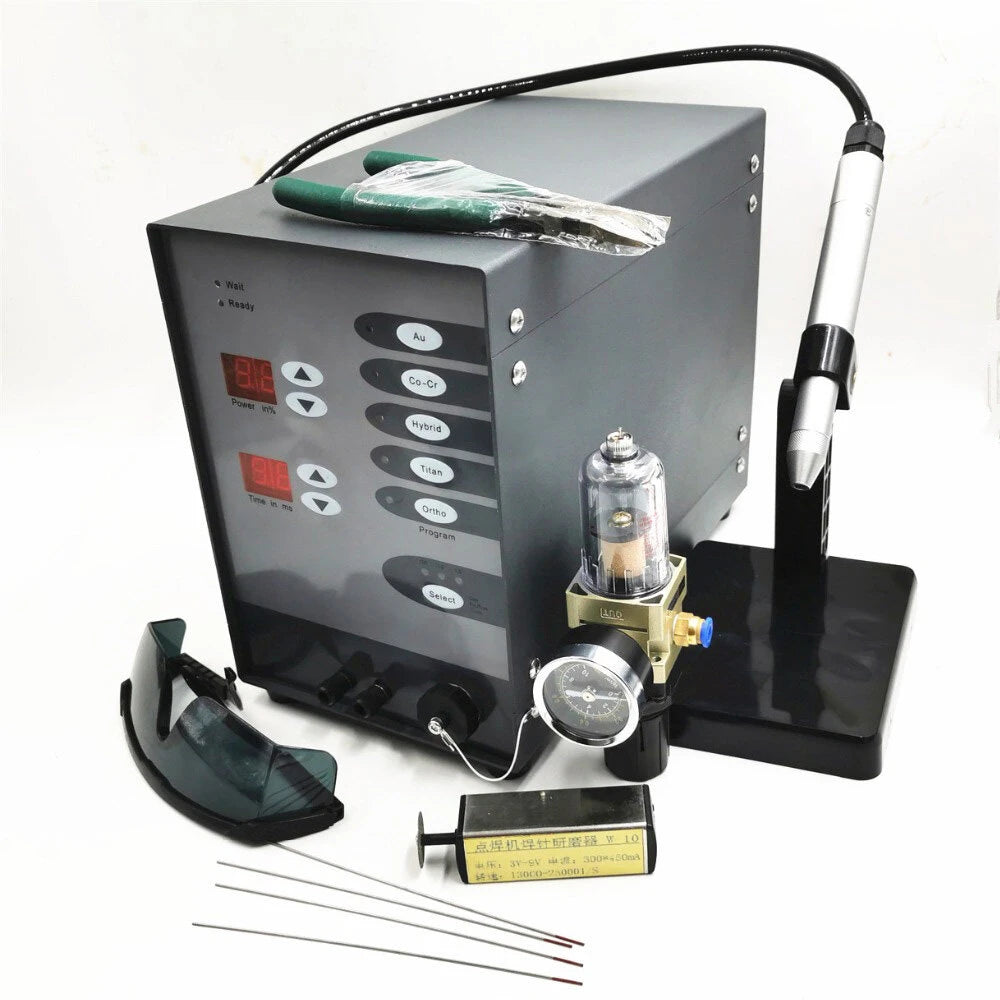

Stainless Steel Automatic Spot Welding Machine 110V/220V - Pulse Argon Arc Jewelry Welder

Argon Arc Spot Welder

This versatile Argon Arc Spot Welder is perfect for stainless steel hardware accessories, jewelry crafting, and dental applications. It is designed for a wide range of welding tasks, from creating new pieces to repairing existing items.

• Preset Programs: Choose from five basic programs tailored for gold (Au), cobalt chrome (Co-Cr), compound welding, titanium (Ti), and orthodontics.
• Space-Efficient: Its compact size requires minimal workspace, making it ideal for small workshops.
• Customizable Settings: Adjustable power and pulse parameters enable precise control over penetration depth and welding spot diameter.
• Auto-Ortho Mode: Automatically switches to Ortho mode after 5 minutes of inactivity to protect the workpiece.
• Quiet and Low Maintenance: Operates with minimal noise and requires little maintenance.

• Power Supply: 220V/110V 50/60Hz
• Power Consumption: 100W
• Degree of Protection: IP21
• Gas Supply Pressure: ≥0.1Mpa
• Welding Voltage: 40V
• Welding Current: 5A-600A
• Welding Time: 3ms - 30ms
• Max. Welding Frequency: 1Hz
• Max. Argon Consumption: 5L/min
• Dimensions: 280mm x 160mm x 230mm
• Weight: Approx. 8.5kg

• Read the user manual thoroughly before operation and keep it nearby for reference.
• Keep the unit away from children and prevent them from accessing the machine and its components.
• Ensure adequate ventilation and lighting, and avoid operating in humid or dusty environments.
• Prevent liquids from entering the unit.
• Avoid looking directly at the arc light, and keep onlookers at a safe distance.
• Handle cables carefully; avoid dragging them or exposing them to heat, oil, or sharp edges.
• Disconnect the power before cleaning or opening the machine.
• Regularly clean the unit, especially the microscope (if used), to ensure clear observation.
• Cover the machine with a dust cover when not in use.
• Always use the correct fittings for safe operation.

Note: The microscope is not included, but the machine can operate without one.

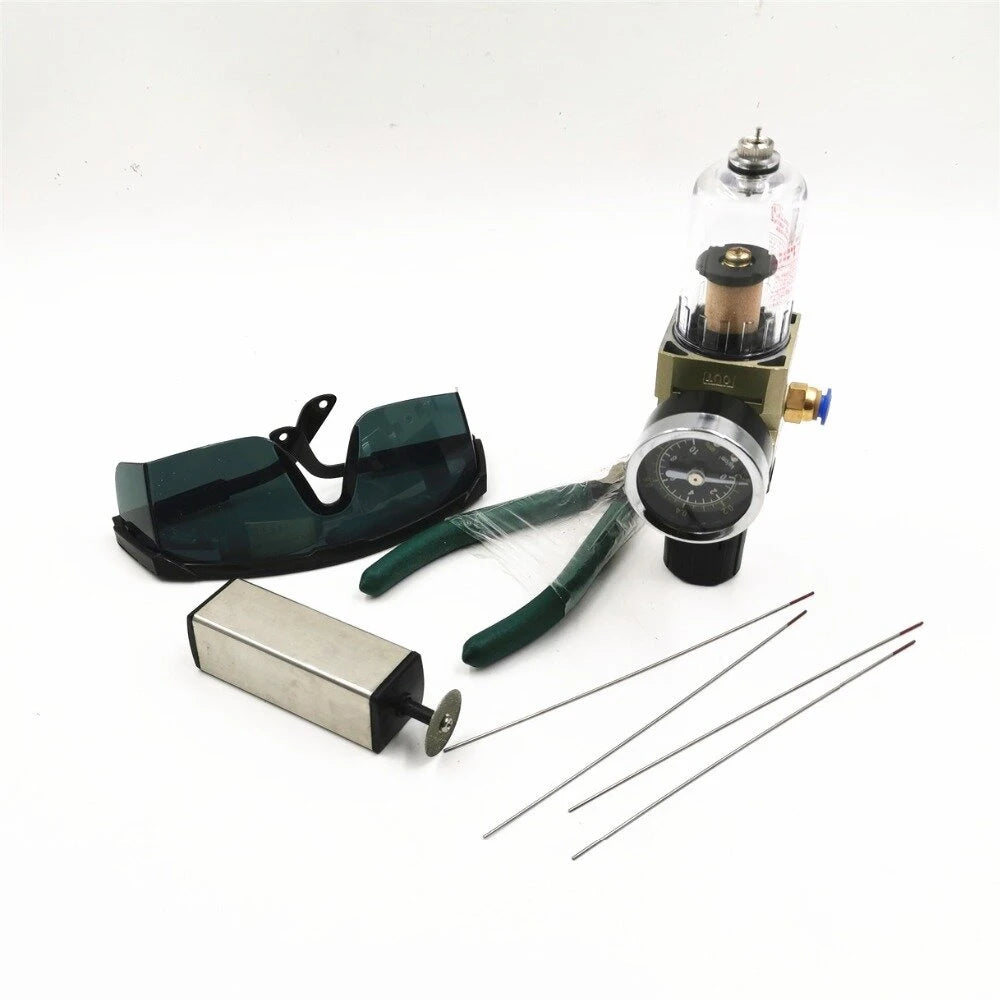

• Spot Welder x 1
• Welding Handle x 1

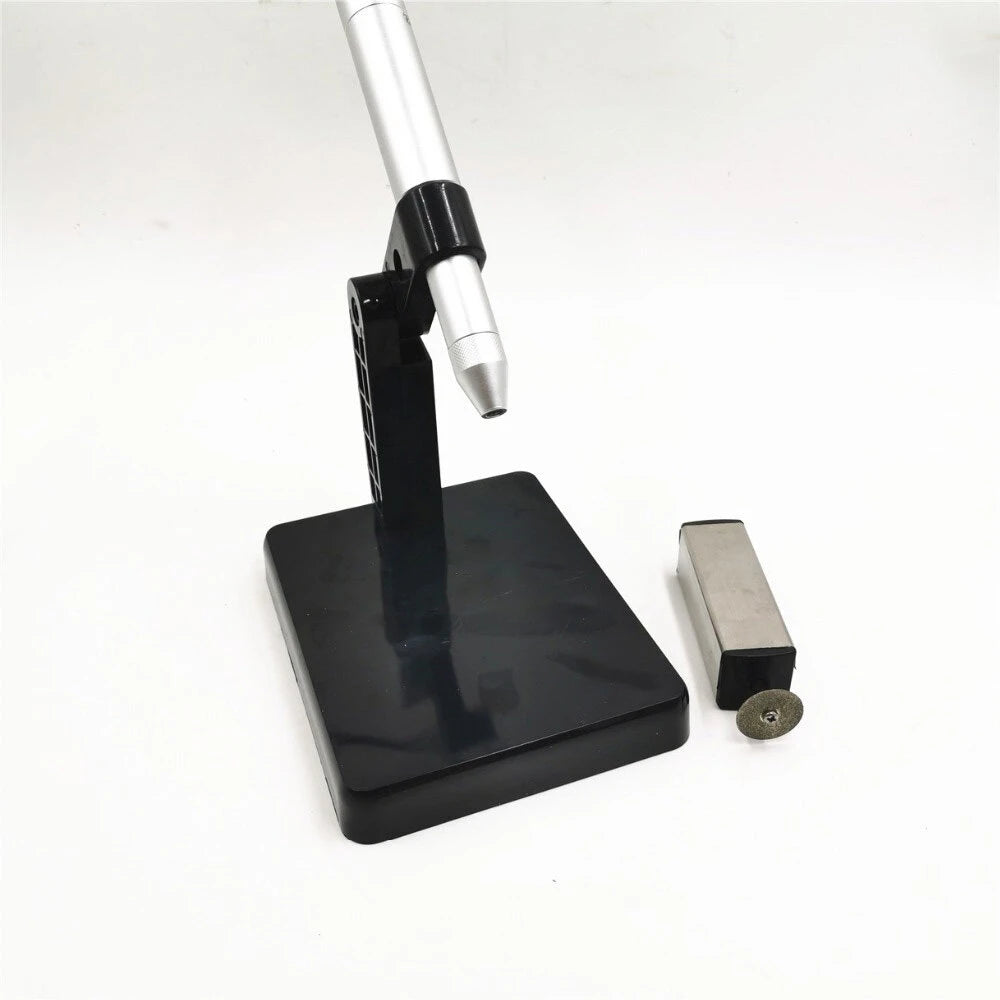

• Bracket x 1
• USB Needle x 1

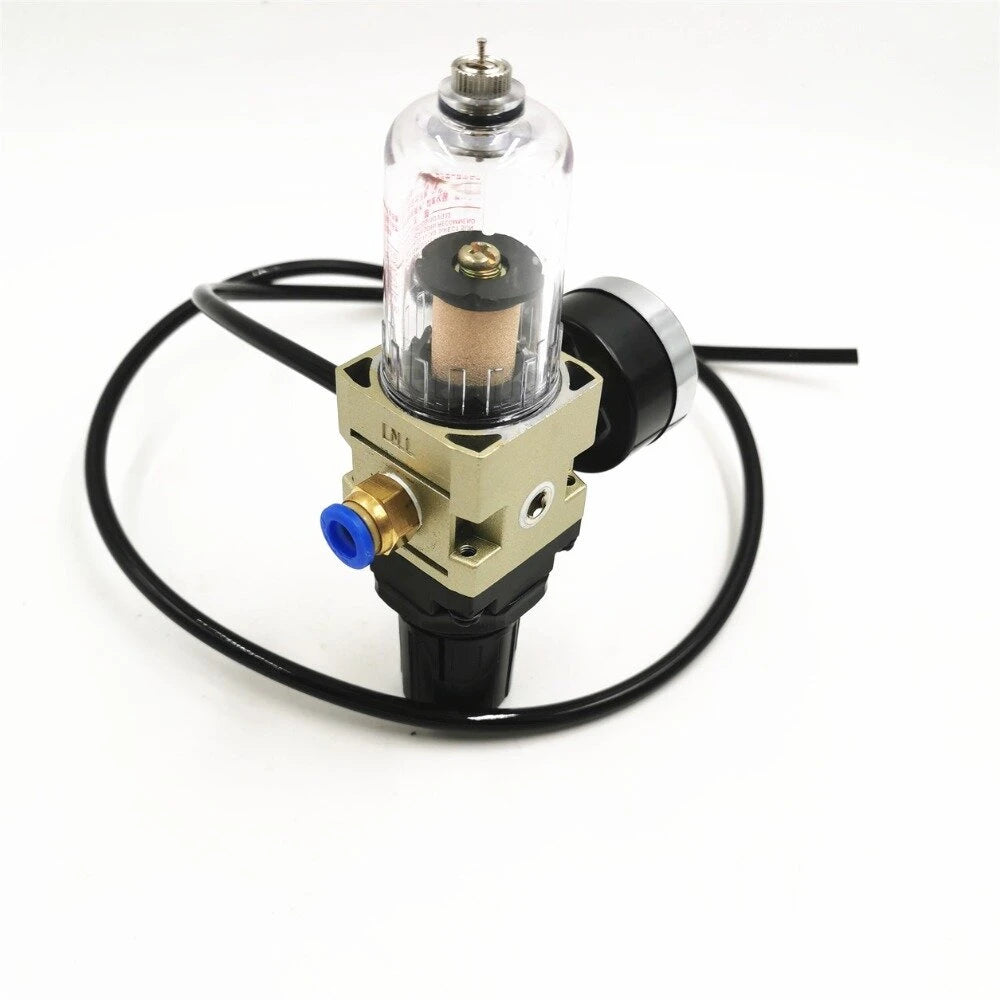

• Pressure Gauge x 1
• Spot Welding Pins x 4
• Stainless Steel Pliers x 1
• Safety Glasses x 1
