Product Features

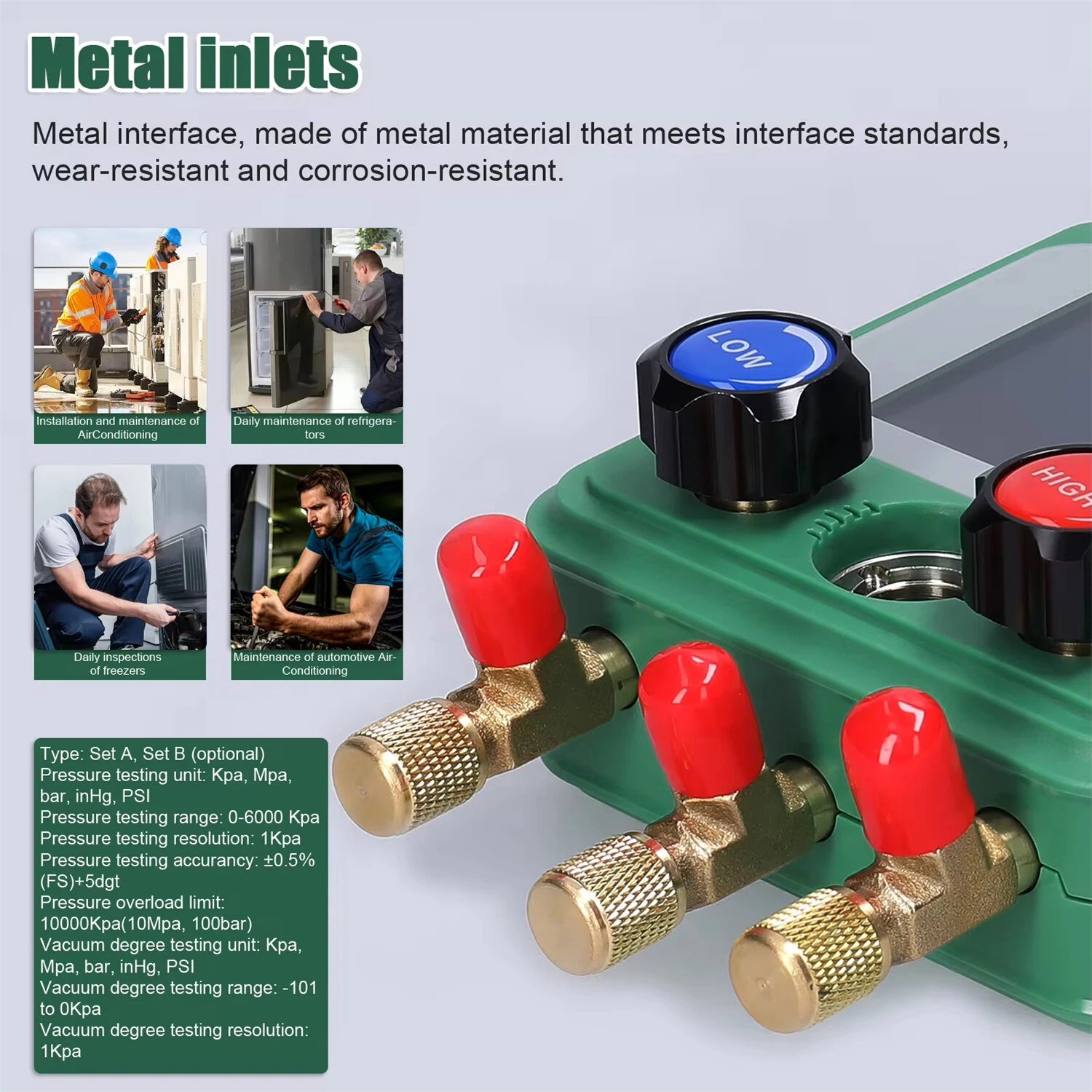

• Metal Interface: Crafted from high-quality metal materials adhering to interface standards, ensuring superb wear and corrosion resistance.
• High Stability Chip: Includes a 32-bit digital processing unit and high-precision data acquisition unit for more stable and accurate pressure measurements.

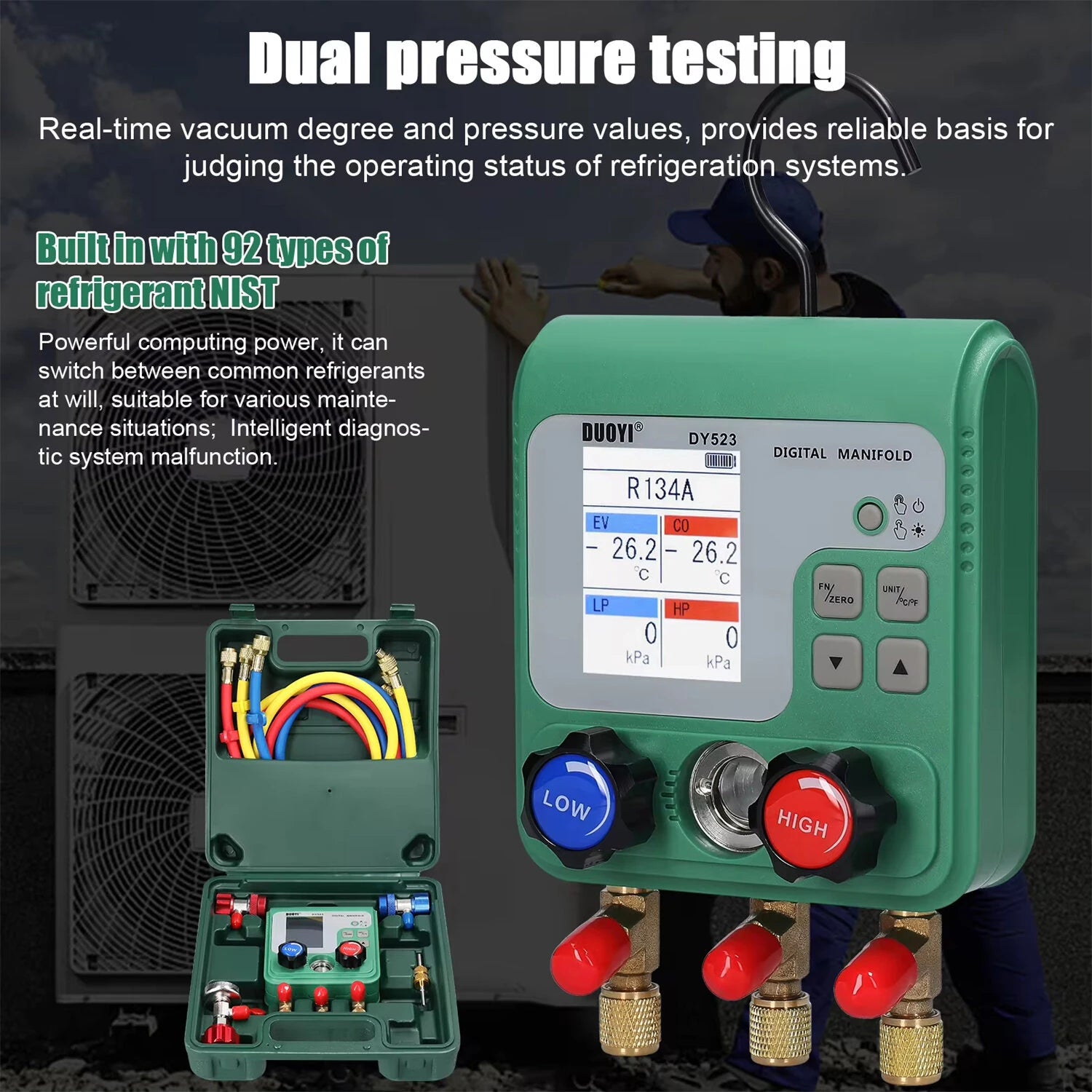

• Dual Pressure Testing: Provides real-time vacuum level and pressure measurements, offering a reliable assessment of refrigeration systems' operational state.
• 92 Refrigerant Types: Features a built-in database of 92 NIST-standard refrigerants. Easily switch among common refrigerants to meet diverse maintenance requirements using a smart diagnostic system.

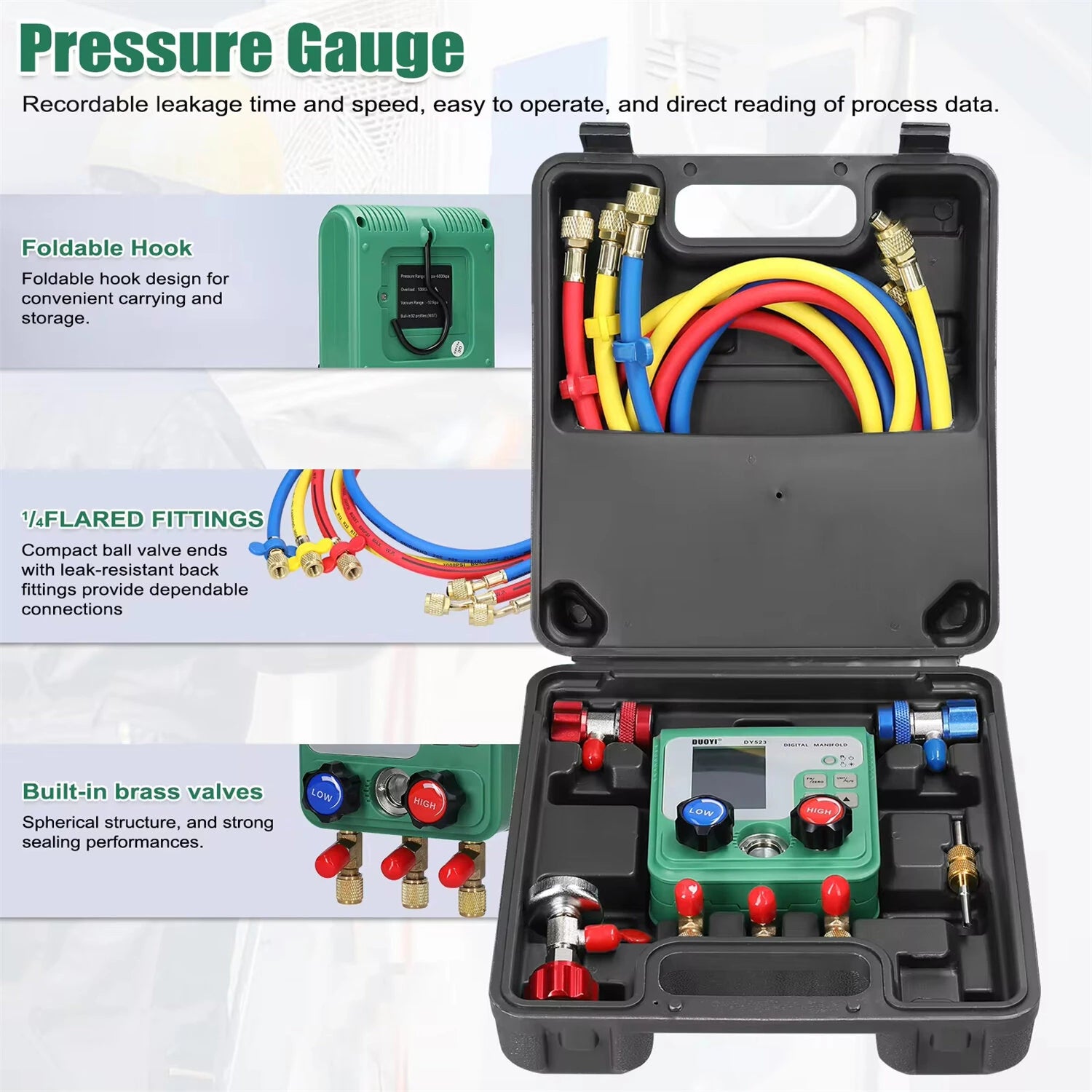

• Recordable Leak Time and Speed: User-friendly with direct data readings. Displays evaporation and condensation temperatures, assisting in determining system cooling capacity and valve adjustments.

Specifications

• Type: Set A, Set B (optional)
• Pressure Test Units: Kpa, MPA, bar, inHg, PSI
• Pressure Test Range: 0-6000 Kpa
• Pressure Test Resolution: 1Kpa
• Pressure Test Accuracy: ± 0.5%(FS)+ 5dgt
• Pressure Overload Limit: 10000Kpa (10Mpa, 100bar)
• Vacuum Degree Test Units: Kpa, MPA, bar, inHg, PSI
• Vacuum Degree Test Range: -101 to 0Kpa
• Vacuum Degree Test Resolution: 1Kpa
• Battery: 3 AA batteries (not included)
• Item Size: 165x110x60mm / 6.5x4.3x2.4in

Package Size and Weight

Set A:

• Package Size: 190x160x80mm / 7.5x6.3x3.1in
• Package Weight: 900g / 2.0lb

Set B:

• Package Size: 278x250x100mm / 10.9x9.8x3.9in
• Package Weight: 2800g / 6.2lb

Package Included

Set A:

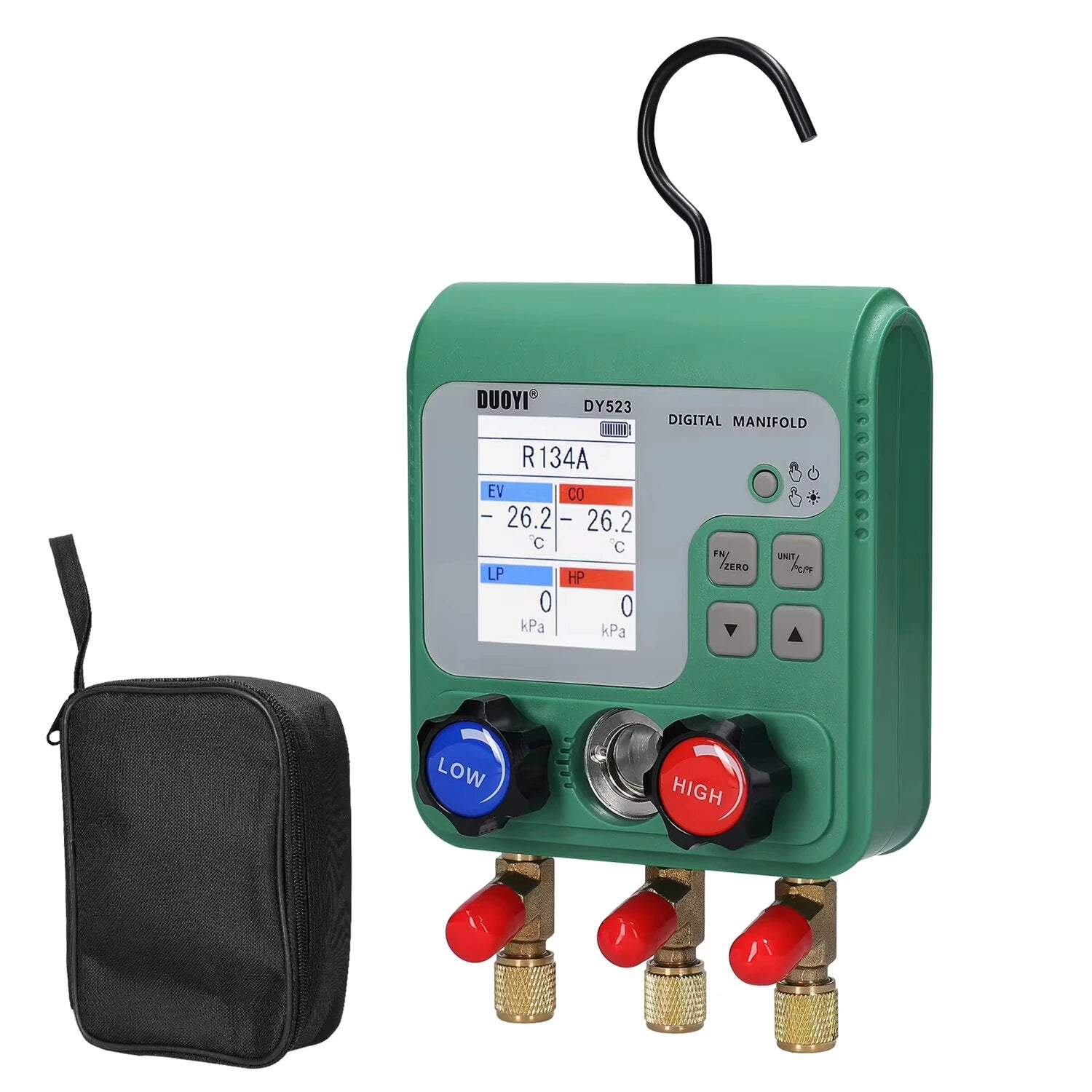

• 1 x Pressure Gauge

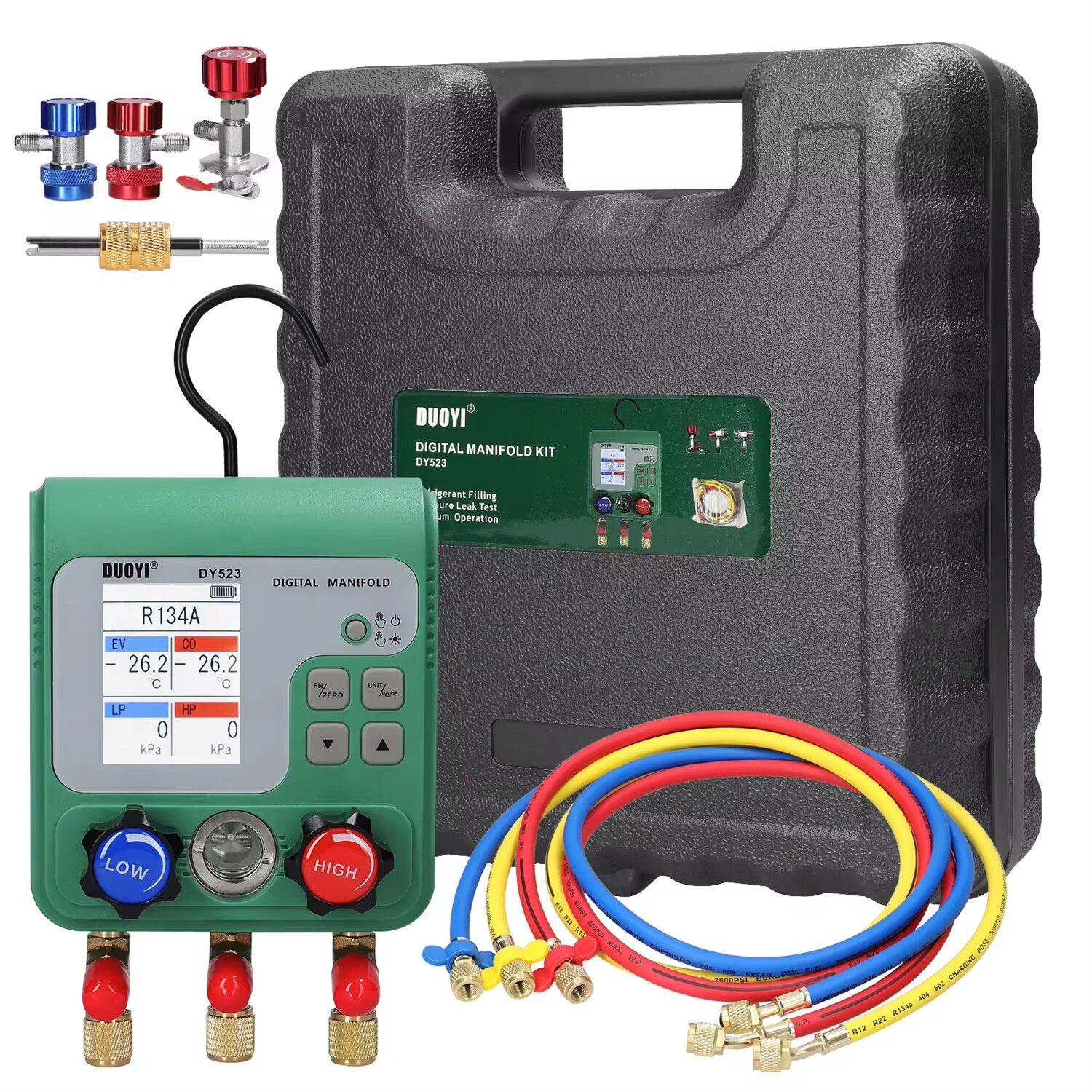

Set B:

• 1 x Pressure Gauge
• 2 x Connector
• 1 x Bottle Opener
• 1 x Tube
• 1 x Wrench
• 1 x Storage Box
