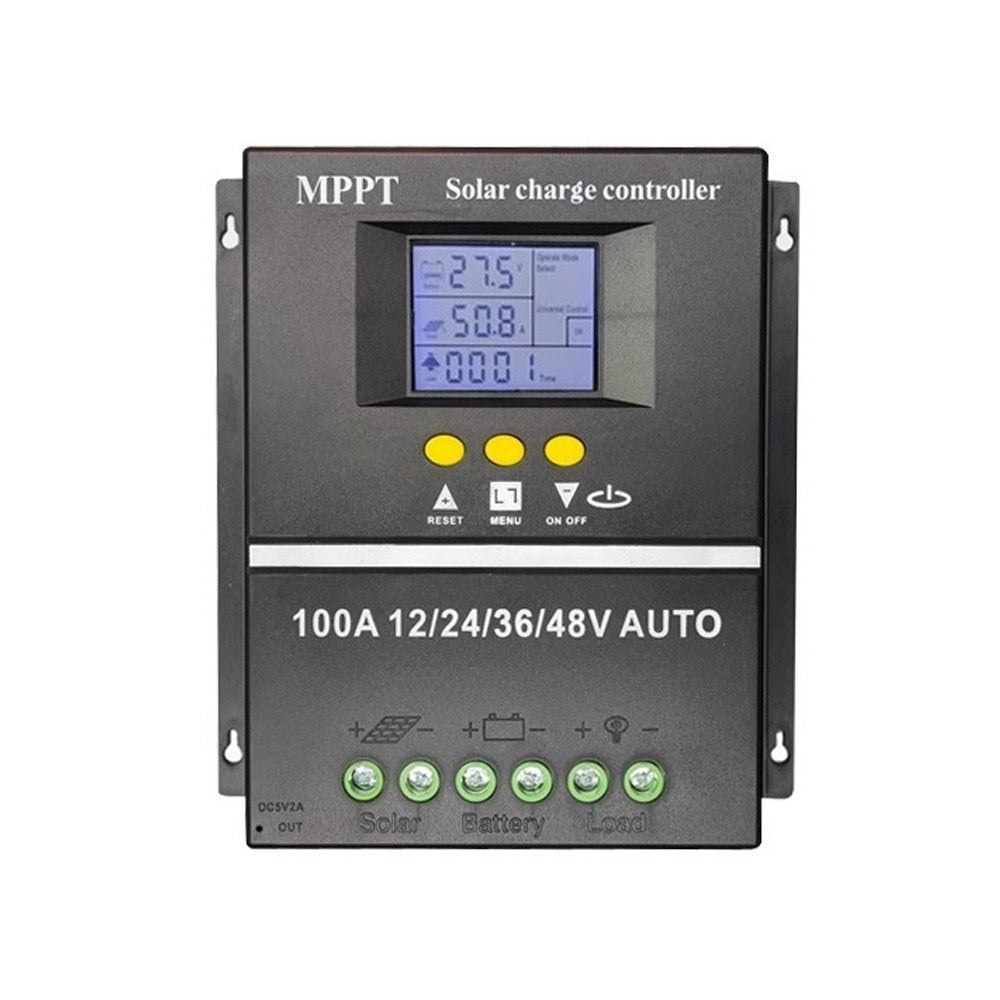

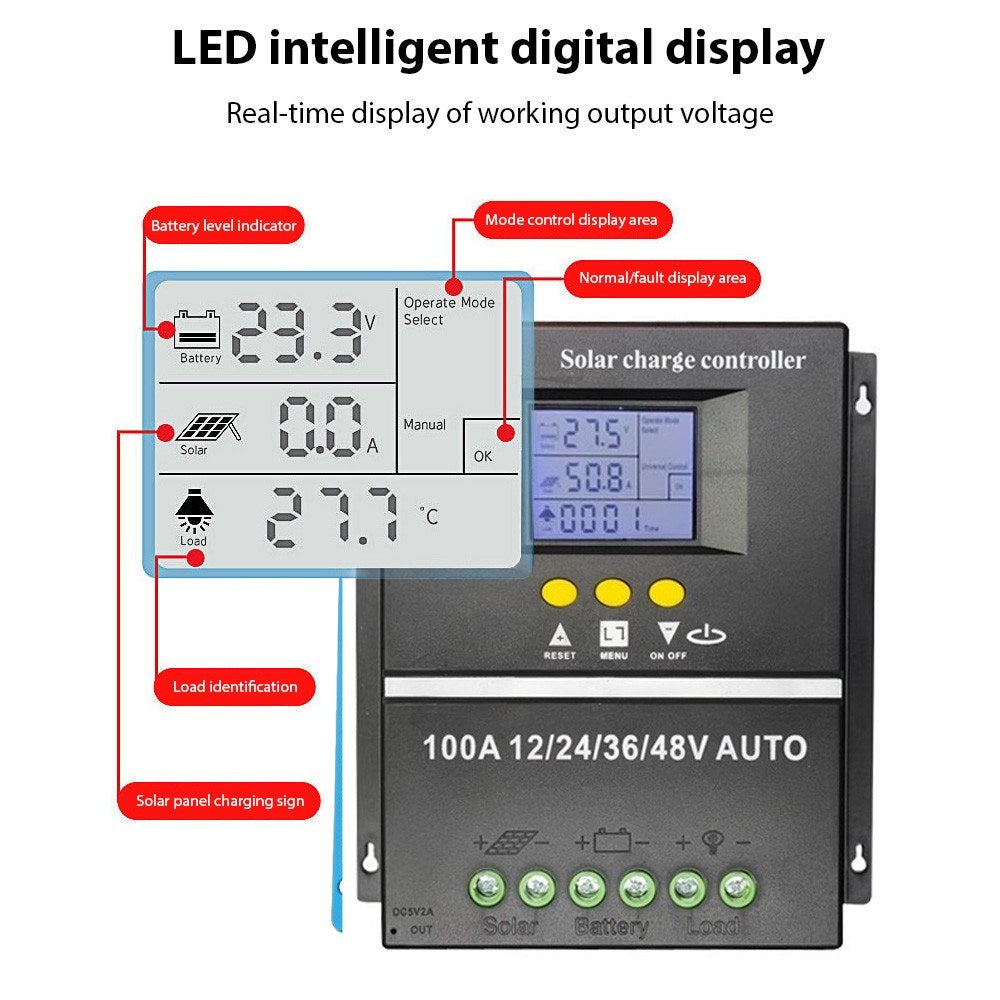

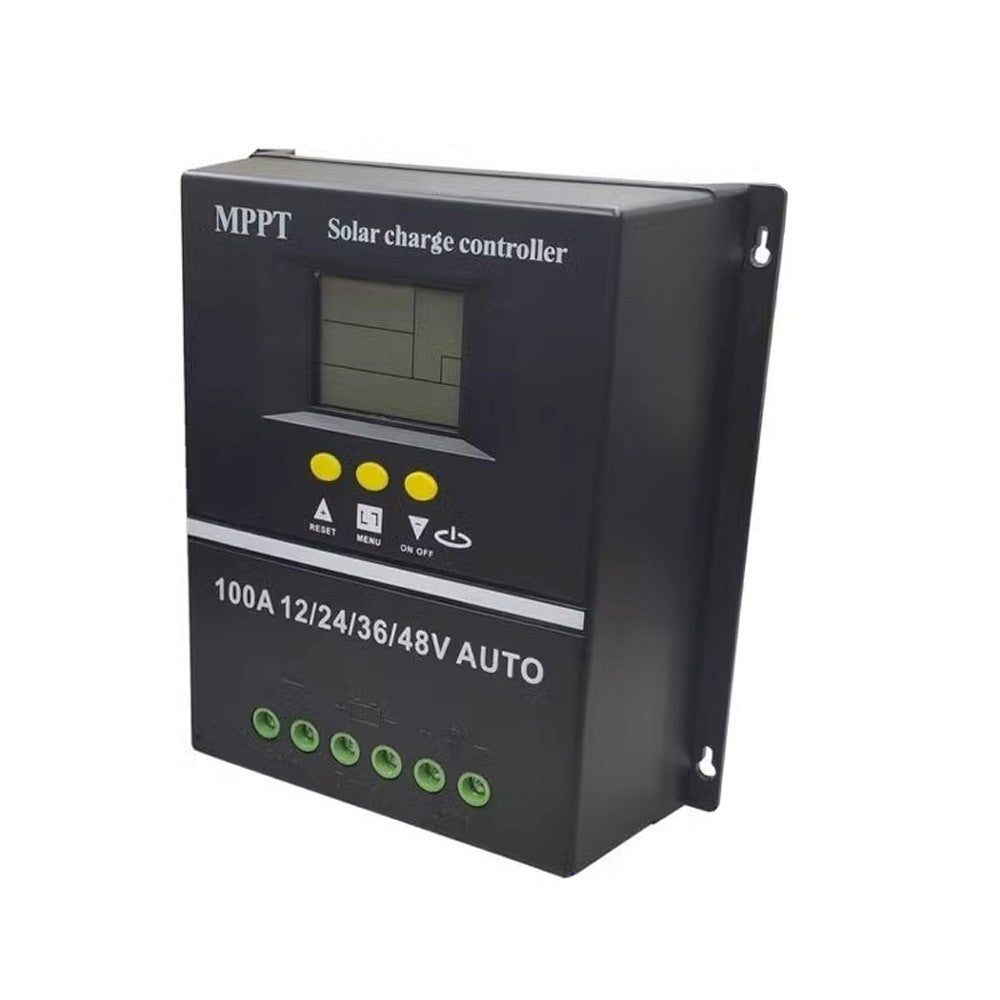

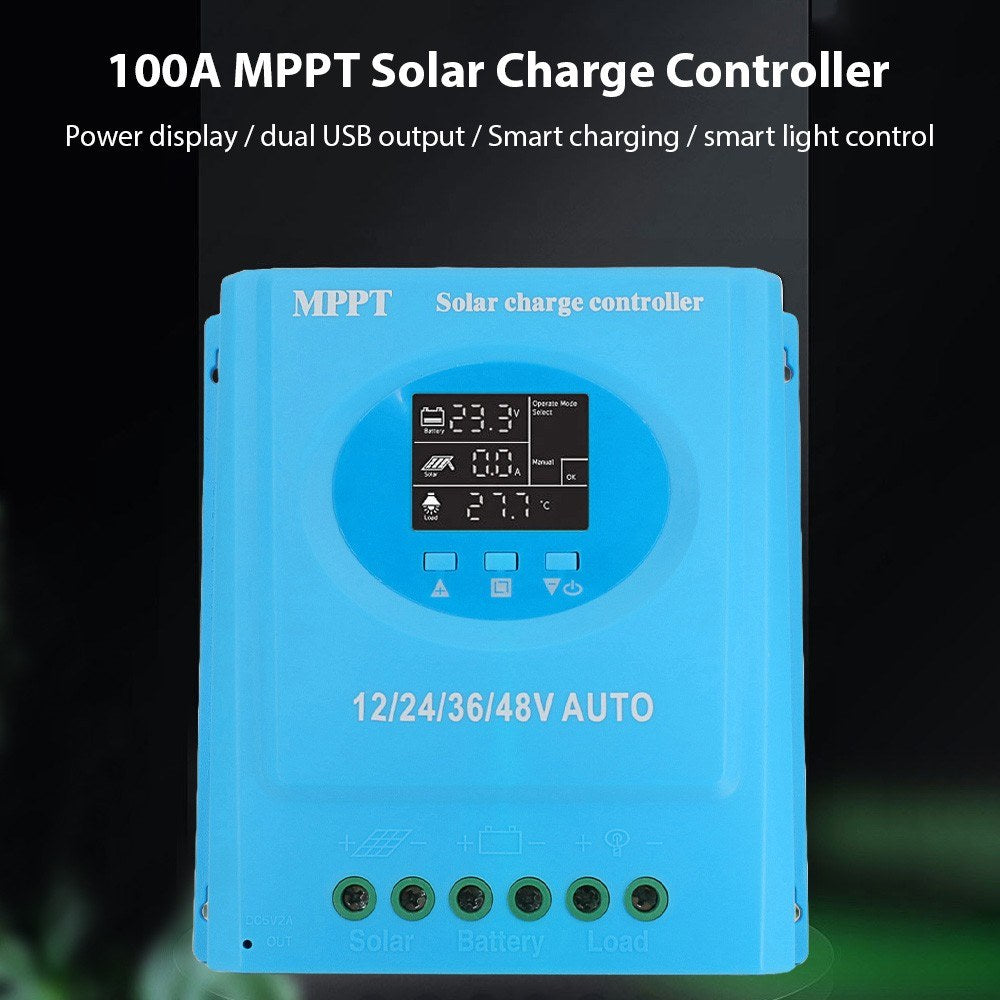

High-definition LCD Display: Our 100A Focused MPPT Solar Charge Controller features an LCD screen with backlight, ensuring clear and intuitive visibility of the system operation. Stay informed about the charging process even at night.
Intelligent Control for Versatile Compatibility: The solar controller is designed with a panel-style keypad for easy one-touch operation. It includes several adjustable parameters such as float charge voltage, boost charge voltage, light control, and time delay, offering intelligent control and compatibility with various battery types.

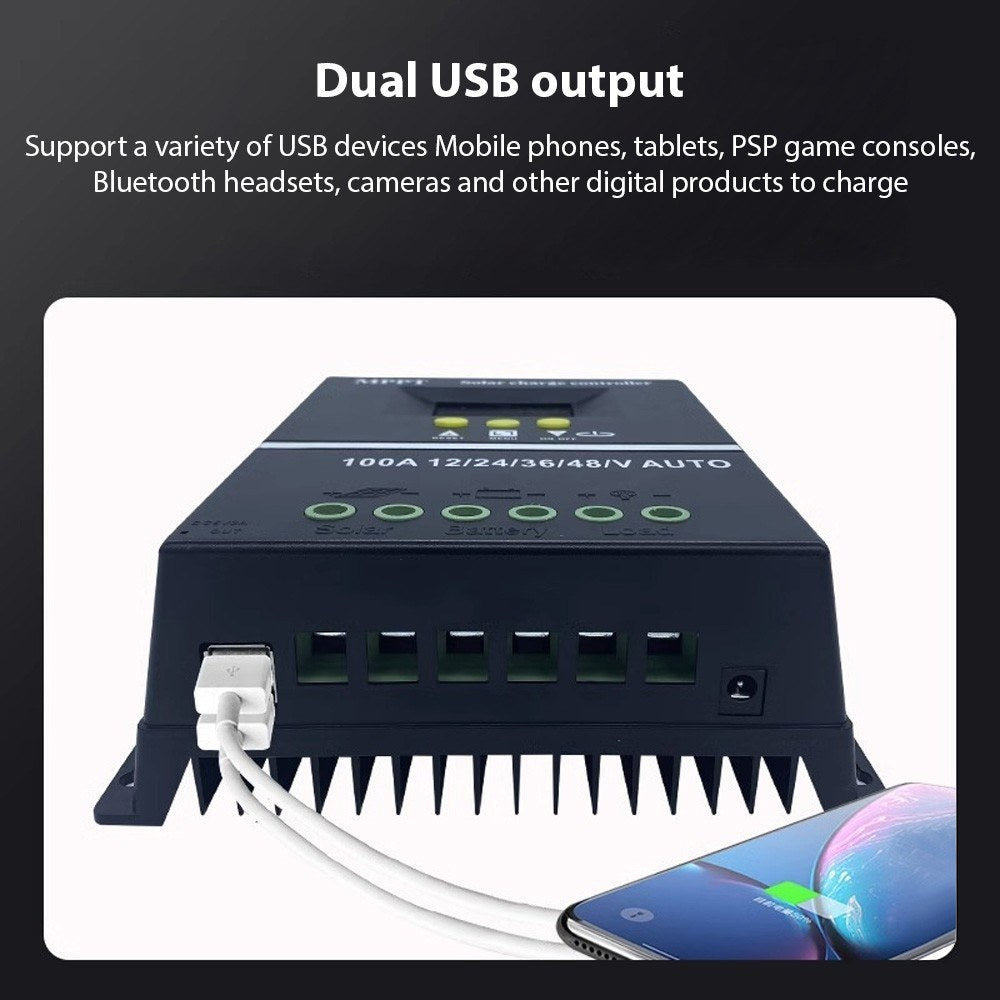

Convenient USB Ports: Dual USB ports support most USB devices including smartphones, tablets, and PSP game consoles, ensuring your devices stay powered up wherever you are.

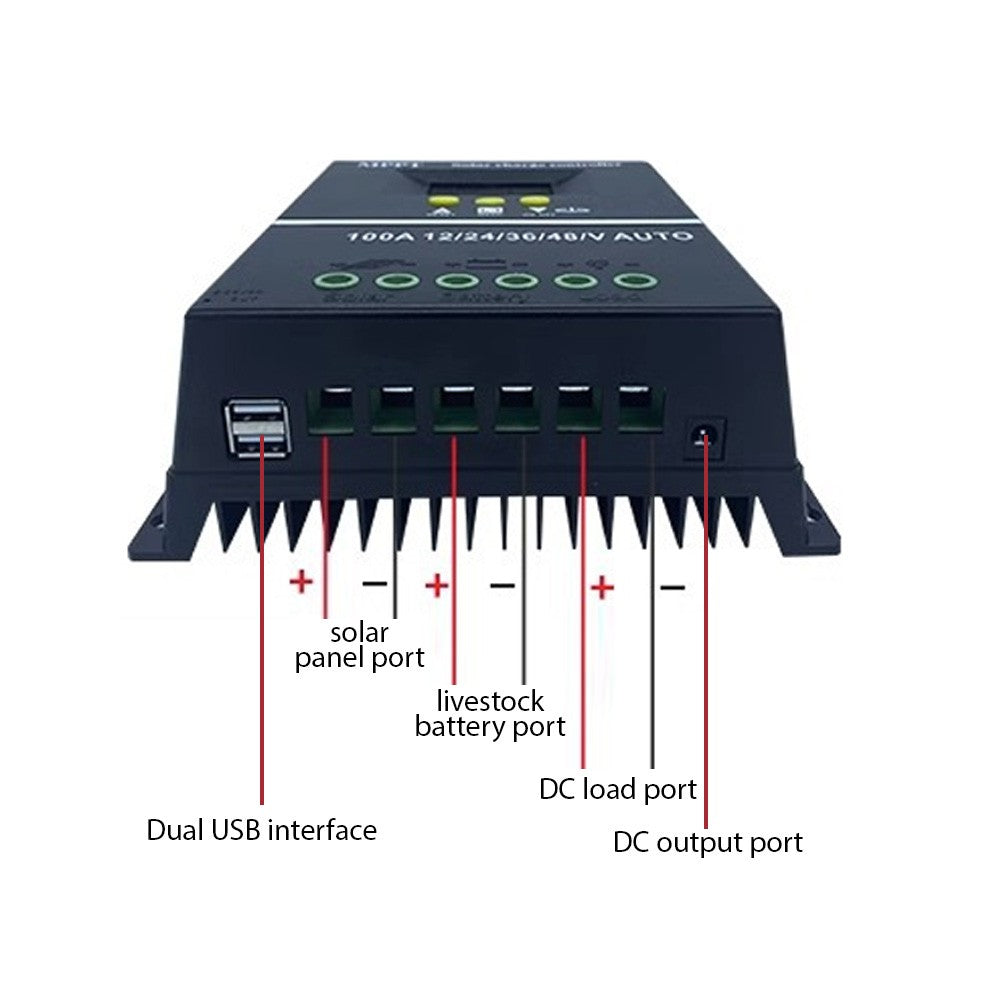

Enhanced Wiring Capabilities: The enlarged wiring interface accommodates Φ16MM wires, providing a larger cross-sectional area and increased spacing (7MM) between wires. This enhances insulation performance, installation reliability, and reduces current voltage drop, minimizing power loss.

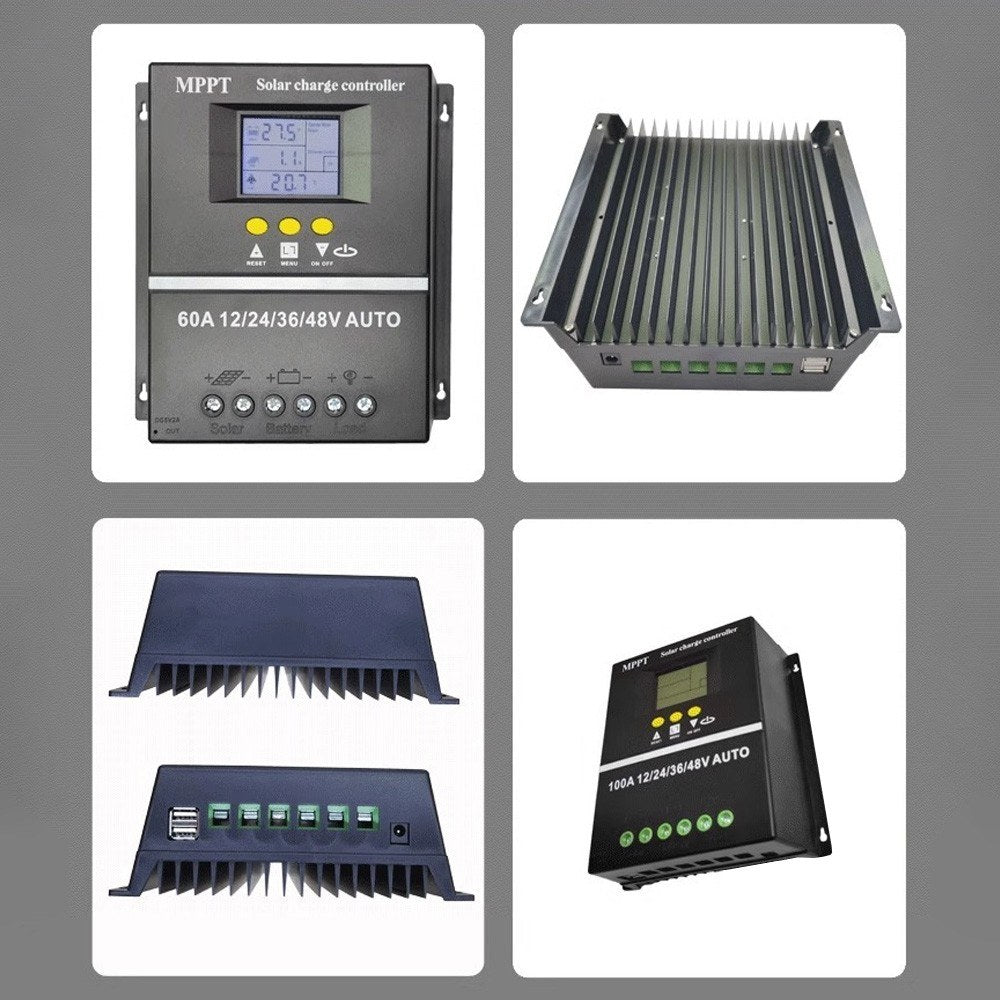

Efficient Heat Dissipation: Equipped with thickened aluminum alloy heat sinks and tightly locked heat dissipation plates made of M0S silicone film and MQ5 tube lock design, this controller ensures uniform heat dissipation and normal operation even at high ambient temperatures up to 60°C.

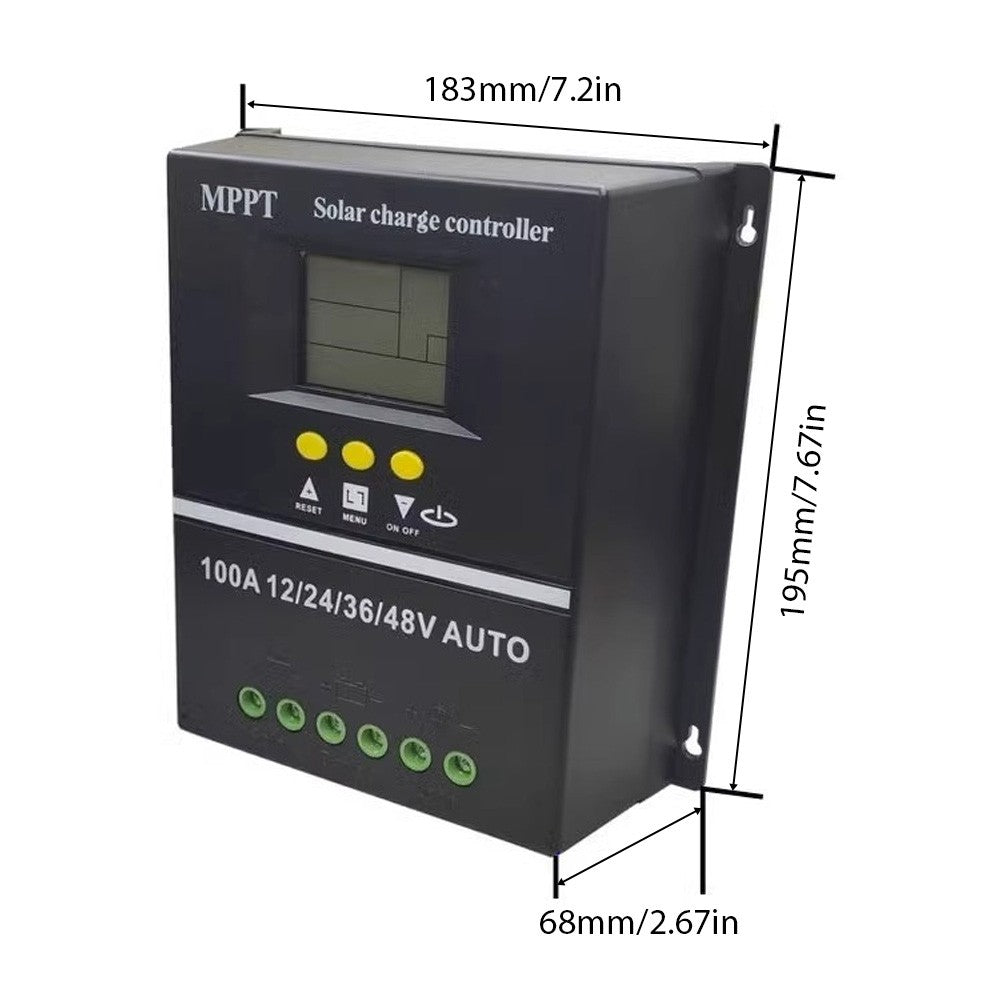

Specifications:
Solar Panel Photovoltaic Input Peak Power (W):
12V battery: <1200W
24V battery: <2400W
36V battery: <3600W
48V battery: <4800W
Rated Charging Current (A): 100A
Photovoltaic Panel Input Voltage Range (VDC):
12V batteries: 15V-23V solar panels
24V batteries: 30V-45V solar panels
36V batteries: 45V-69V solar panels
48V batteries: 60V-90V solar panels
DC Output:
Rated Output Current (A): 50A
Low Voltage Protection Voltage (V): 10.7V * 2/3/4
High Voltage Protection Voltage (V): 15.5V * 2/3/4
USB Output Interface (V): 5V1A * 2
DC Output Interface (V): 2A * 1 (output voltage follows battery voltage)
Do not use solar panels that charge 24V/36V/48V to charge 12V batteries; excessive pressure difference may cause overheating and damage to the controller.
Wiring Instructions: To correctly identify the battery voltage, first ensure:
12V battery voltage higher than 10V
24V battery voltage higher than 20V
36V battery voltage higher than 30V
48V battery voltage higher than 40V

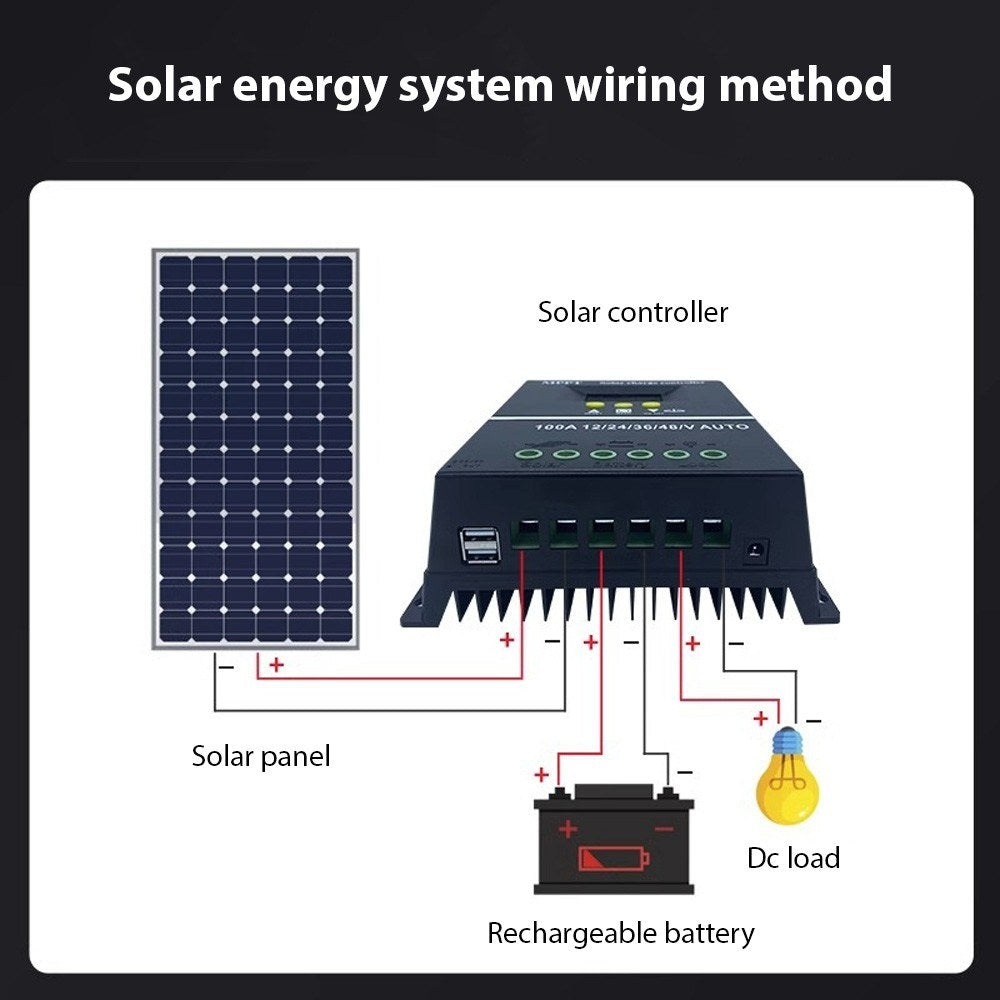

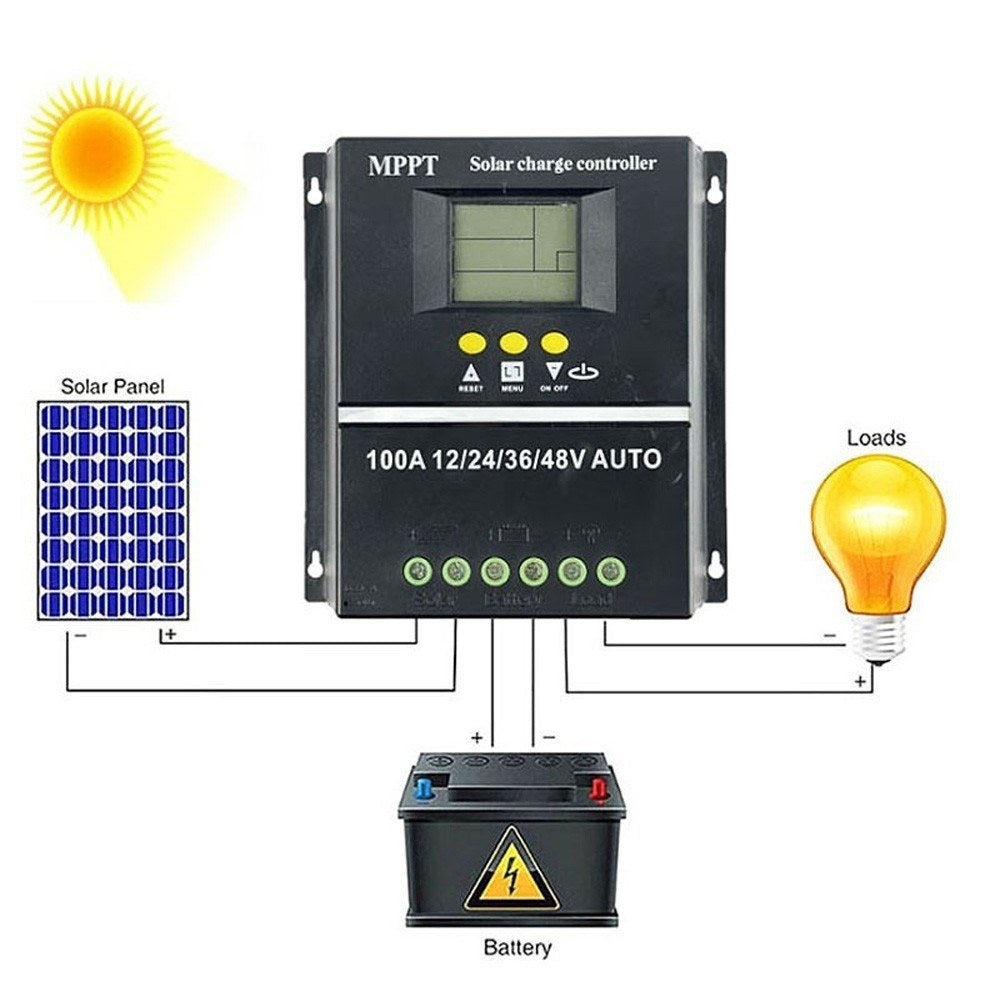

Connect the controller wiring to the battery first, followed by the photovoltaic panel, and finally to the DC load.
Note:
Due to different monitor and lighting conditions, the item's actual color may differ slightly from the photos.
Please allow a 1-2 cm measuring deviation due to manual measurement.
