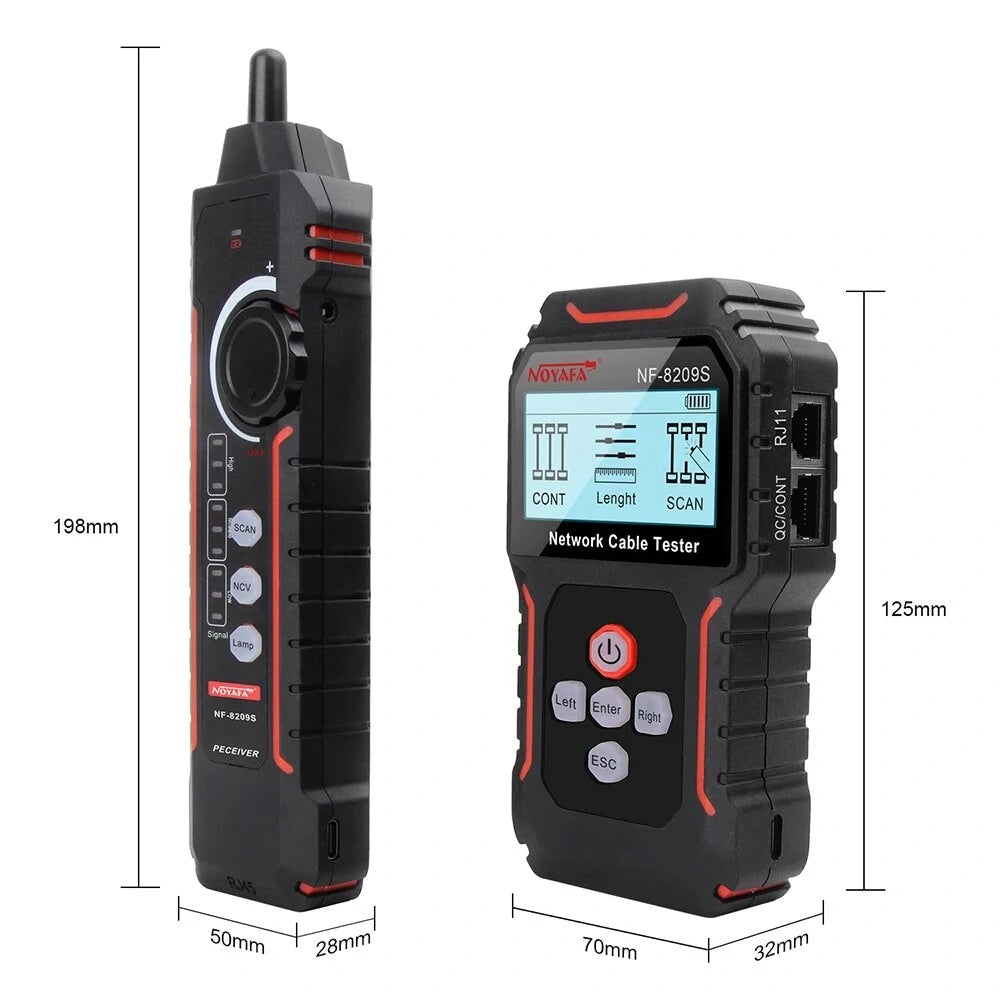

NF-8209S LCD Network Cable Tester & PoE Wire Tracker RJ45 Tool

NF-8209S LCD Network Cable Tester & PoE Wire Tracker RJ45 Tool

Regular price $57.99 USD
Regular price $0.00 USD Sale price $57.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos

Model: NF-8209S

Product Features

  • Hunting Test: Normal mode, anti-jamming mode

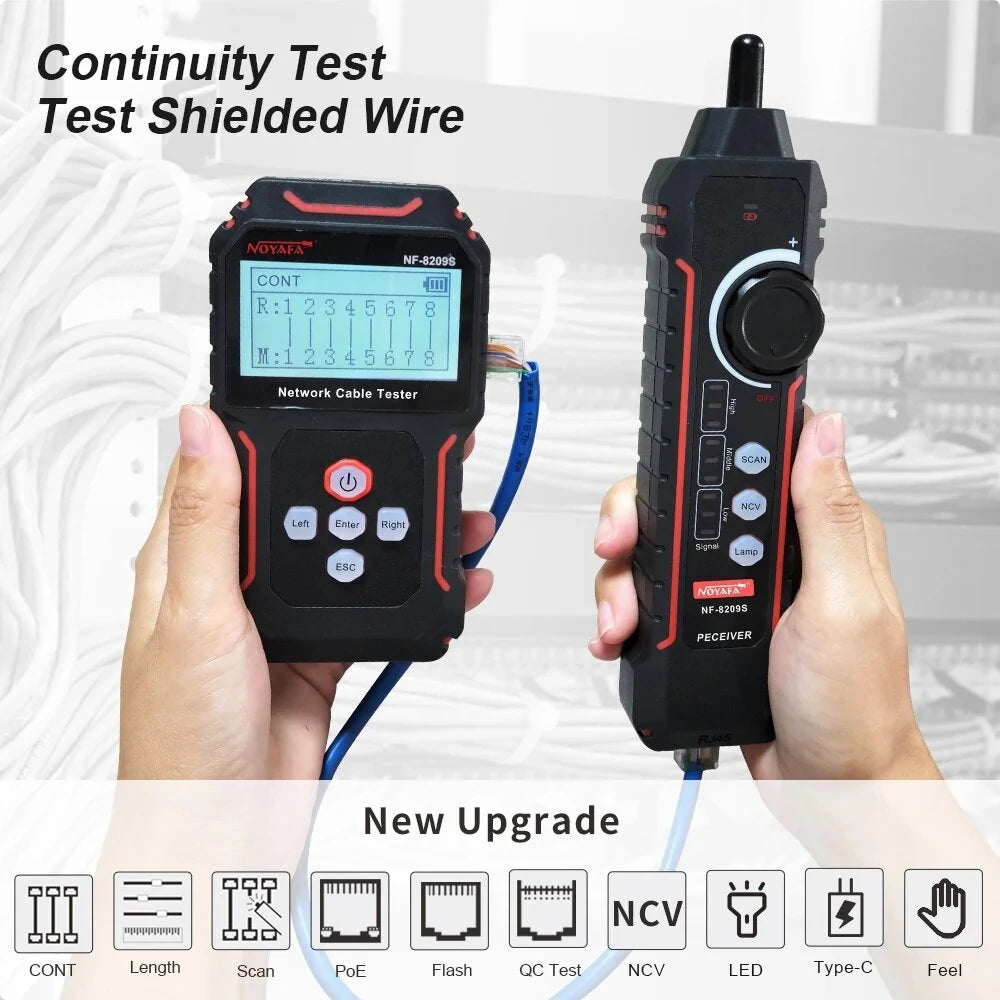

  • Wire Test: Cross, open circuit, short circuit, normal condition
  • Length Test: Network cable length breakpoint test, no calibration required
  • Pressing Test: Check the crystal head's press quality
  • PoE Test: Detect power supply core and voltage
  • External Interface: USB interface for charging and data copying
  • Software: Standard analysis software for offline analysis
  • Image Format: JPEG/MP4
  • Upgrade: Pending firmware/software upgrade
  • Offline Upgrade: Download upgrade package via computer
  • Supports testing for both standard and non-standard PoE
  • Durable two-color injection molding with long-lasting lithium battery
  • Anti-interference and low noise operation
  • Comprehensive tests including wire hunting, PoE, and length/crimping tests
  • Includes NCV induction pen with lighting function

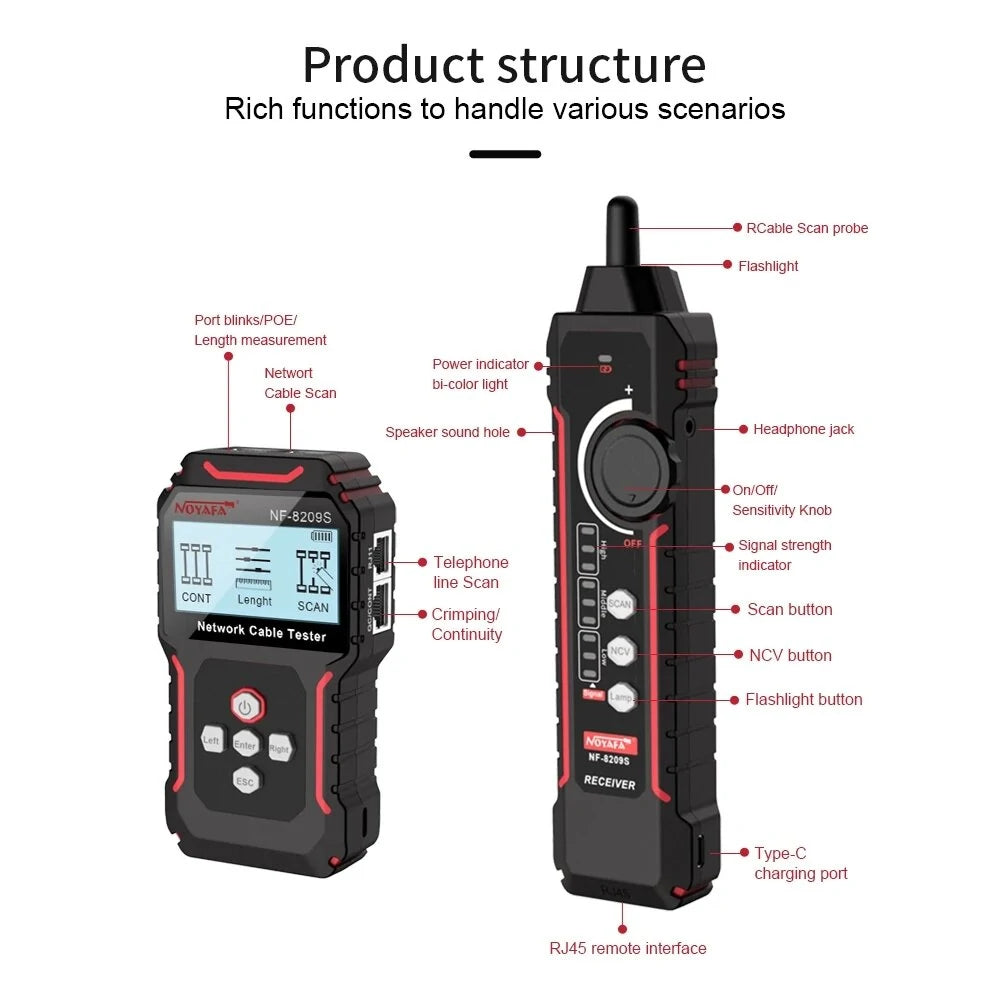

Transmitter Parameters

  • Hunting Test: Normal and anti-jamming modes
  • Wire-to-Wire Test: Detect short circuit, open circuit, and crossover
  • Length Test: 2.5 meters to 200 meters range
  • PoE Test: Standard/non-standard detection, polarity, voltage, and jumper connection
  • Port Flashing: Yes
  • Crimping Test: Yes
  • Interface Description: 3 RJ45, 1 RJ11
  • Power Supply Mode: 3.7V 1400mAh polymer lithium battery (Type-C charging)
  • Input Voltage Protection: Provided

Receiver Parameters

  • Hunting Reception: Anti-interference and ordinary modes
  • NCV Pen Function: Yes
  • Lighting: LED lighting
  • Line Interface: RJ45
  • Power Supply Mode: 3.7V 1400mAh polymer lithium battery (Type-C charging)
  • Input Voltage Protection: DC60V

Advantages

  • All-in-one network toner and probe with digital and analog signaling
  • Detect and identify type of PSE in PoE
  • Accurately measure cable length and fault distance using TDR theory
  • Built-in NCV in receiver

Main Features

  • Comprehensive wire testing for cross, open, short circuits, etc.
  • Network cable length breakpoint test without calibration
  • Analog/Digital mode scanning to locate LAN cables
  • Supports PoE for standard and non-standard PoE switch (5~60V), identifies AT or AF standard PSE type
  • Locate network ports using port flashing feature

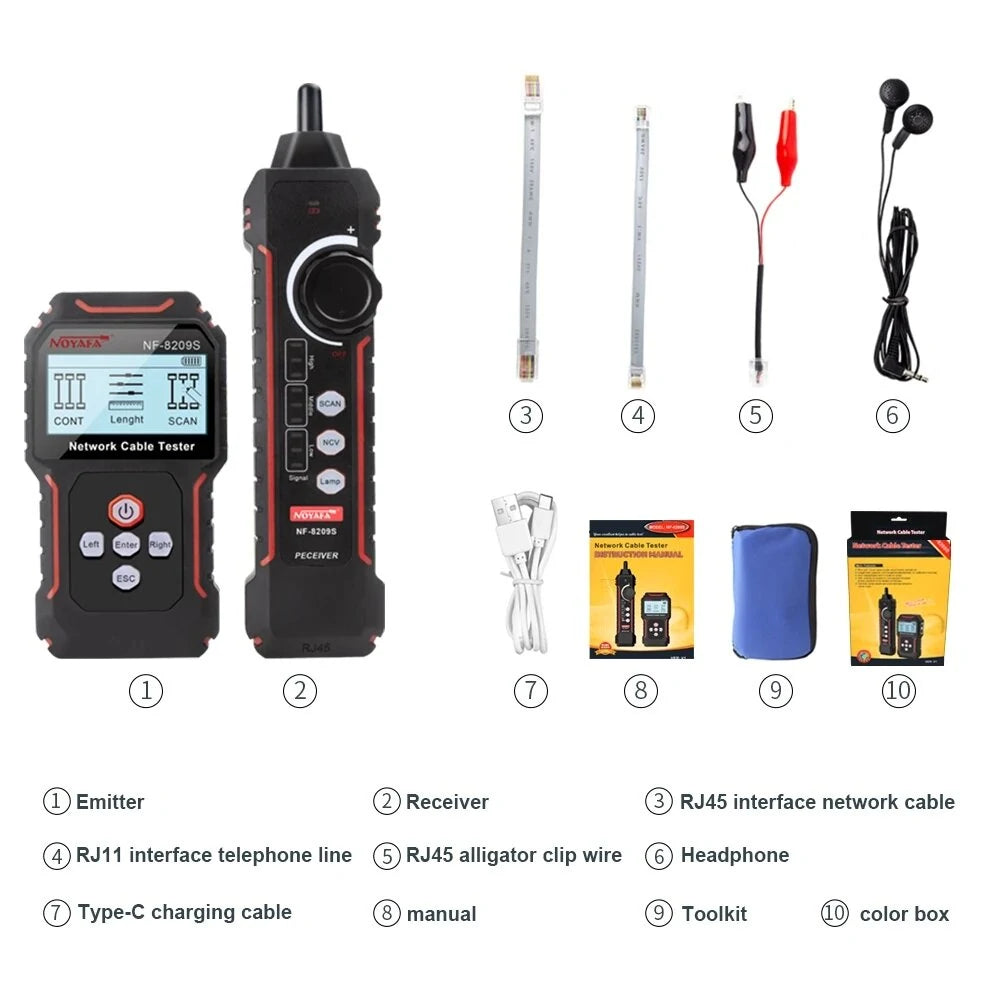

Package Includes

  • 1 x NF-8209S LCD Network Cable Tester
  • 1 x Emitter
  • 1 x Receiver
  • 1 x Earphone
  • 1 set of cable adaptors
  • 1 x Carry bag
  • 1 x User manual
  • 1 x Quality certificate
