7 Touch Screen 50KHz-4400MHz Vector Network Analyzer SV4401A, 100dB Dynamic NanoVNA

7 Touch Screen 50KHz-4400MHz Vector Network Analyzer SV4401A, 100dB Dynamic NanoVNA

Regular price $315.99 USD
Regular price $0.00 USD Sale price $315.99 USD
Sale Sold out
Shipping calculated at checkout.

Shipping Icon Estimated Delivery: -

Lock Icon
Guaranteed secure & safe checkout.
Payment Logos

Product Performance Features

  • Measurement Frequency Range: 50KHz-4400MHz
  • RF Output Power: Adjustable from -12dbm to -42dbm (step: 1db; error: ±1db across the frequency band)
  • Frequency Accuracy: ±1ppm, ±5KHz >140MHz

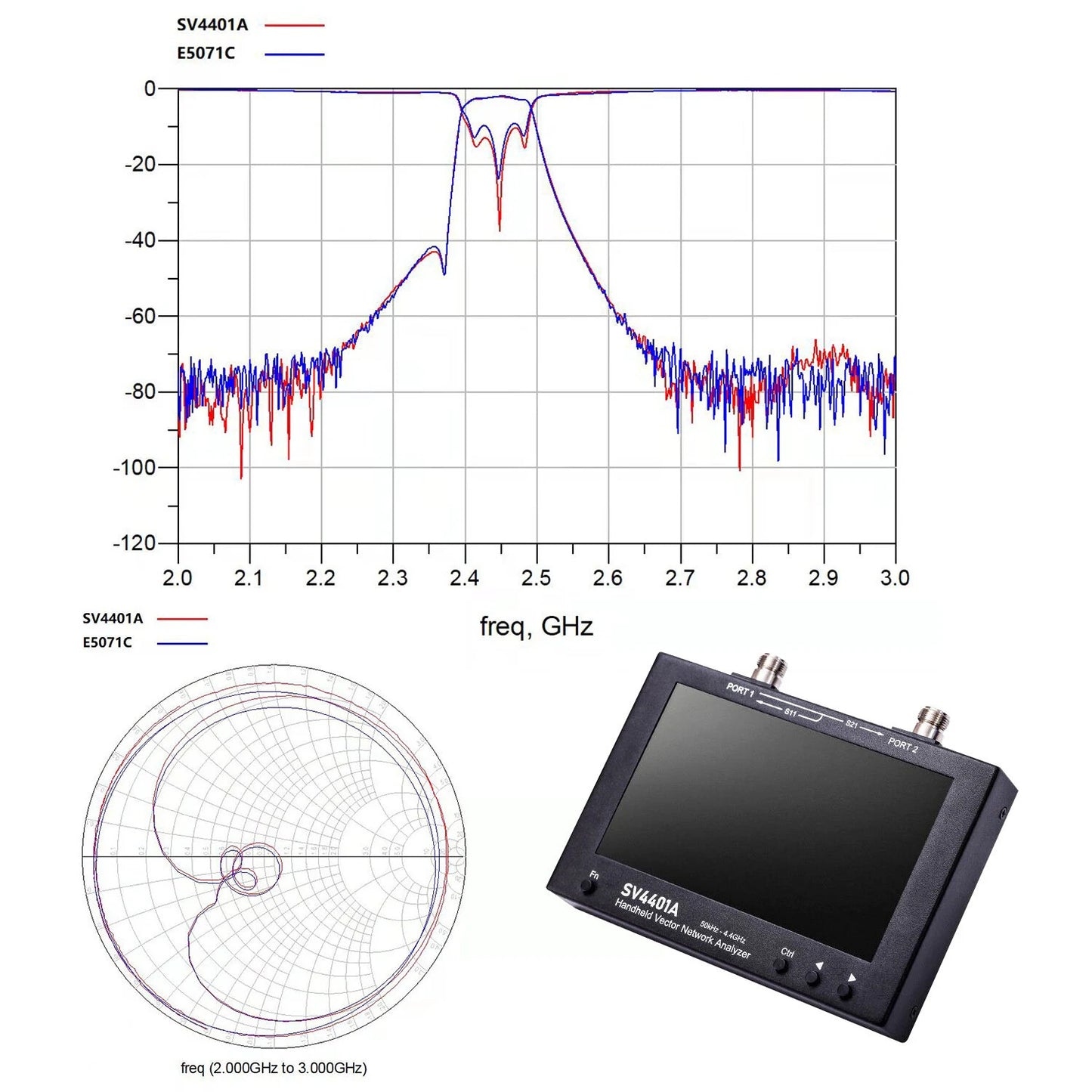

  • S21 Dynamic Range: 90dB (<2GHz), 75dB (4.4GHz), 100dB achievable below 1.3GHz with specific settings
  • S11 Dynamic Range: Better than 50dB
  • 2-Port Return Loss: 30dB typical at 1.5GHz, 20dB minimum at 4.4GHz
  • USB Interface: USB Type-C, CDC (Serial) Communication Mode
  • Calibration Points: 101-1001 points
  • Scanning Points: 101-1001 points
  • Display Trace: 7 traces
  • Mark Points: 8 mark points, movable on the screen
  • Save Settings: 12 quick menu settings, automatic recall of previous settings
  • Scanning Speed: Approximately 400 points/second
  • Measurement Capabilities: S parameters, VSWR, SWR, Smith chart, phase, group delay, TDR

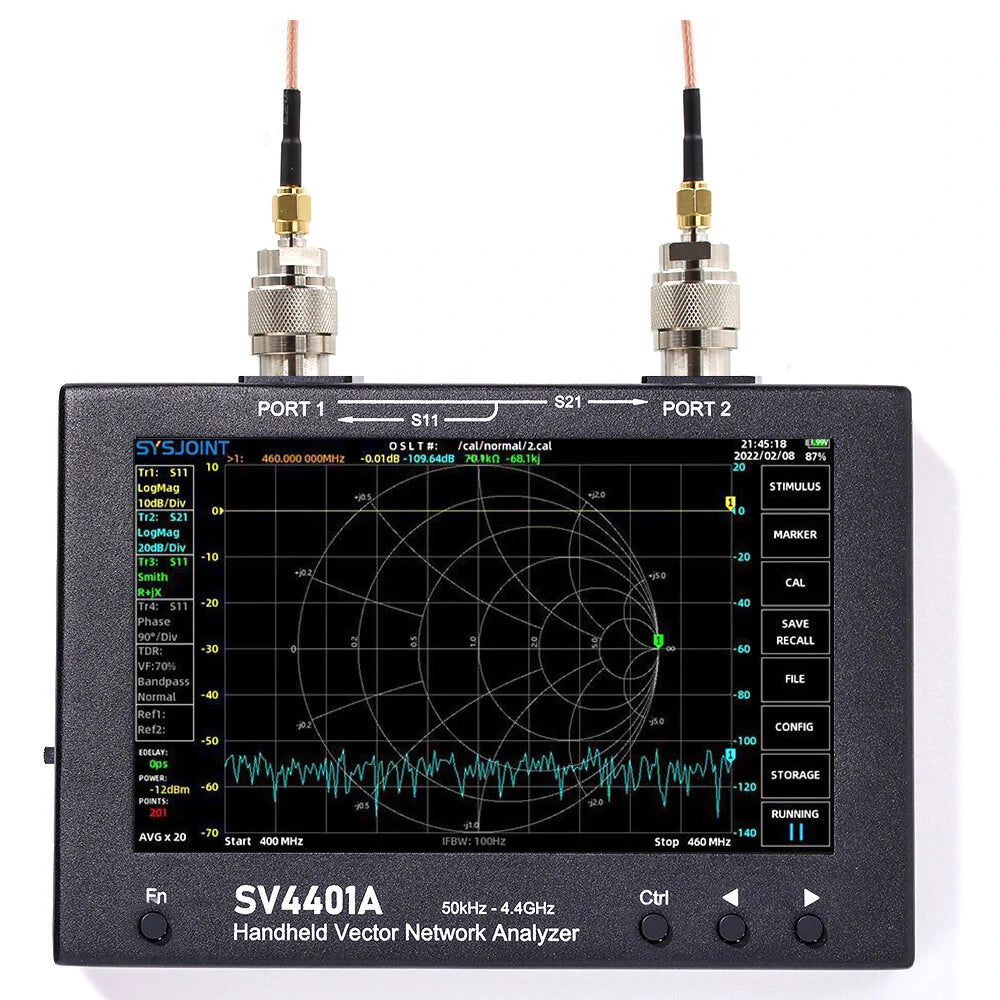

  • Screen: 7-inch high-brightness IPS capacitive touch screen, 1024x600 resolution, with wide viewing angle
  • Build: Metal case for electromagnetic shielding, improving S21 dynamic range within 2GHz
  • Design: Compact and portable (195mm x 150mm x 35mm), outer packaging size 25x20x7cm
  • RF Interface: L16-F (N female base) for easy connection with DUTs
  • Power: Two 18650 batteries (6600mAh), or optional two 21700 batteries (10000mAh) for longer life
  • User Interface: Full touch screen with 4 front panel buttons, supports Chinese and English menus, adjustable screen brightness
  • Firmware Upgrade: Use a virtual U disk with a USB cable, without needing a programmer
  • USB Power Output: 5V/1A, can function as a power bank
  • Charging: High-current 2A charging IC for shorter charging times
  • PC Compatibility: Use as a display operation interface with a computer
  • Weight: Net weight: 1160 grams; Total outer package weight: 1590 grams
  • Screenshot Capability: Supports taking and uploading screenshots to the computer
Firmware Upgrade Method
  1. Connect to the computer with a data cable.
  2. Press and hold Ctrl, then turn on the device.
  3. Click the Yawang Udisk, copy the upgrade file and overwrite the original.
  4. Turn off, press Ctrl to turn on again, click Upgrade in the popup dialog.
  5. Shut down upon completion, then restart.

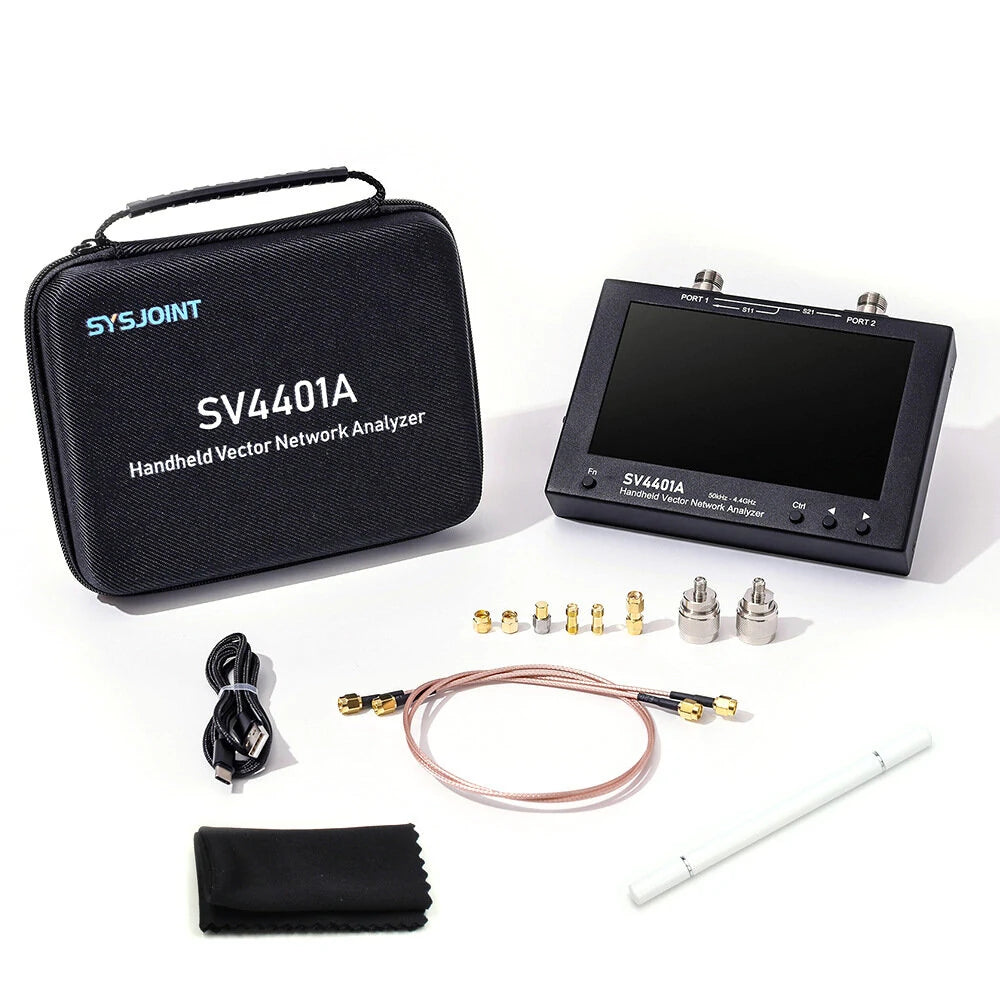

Packing List

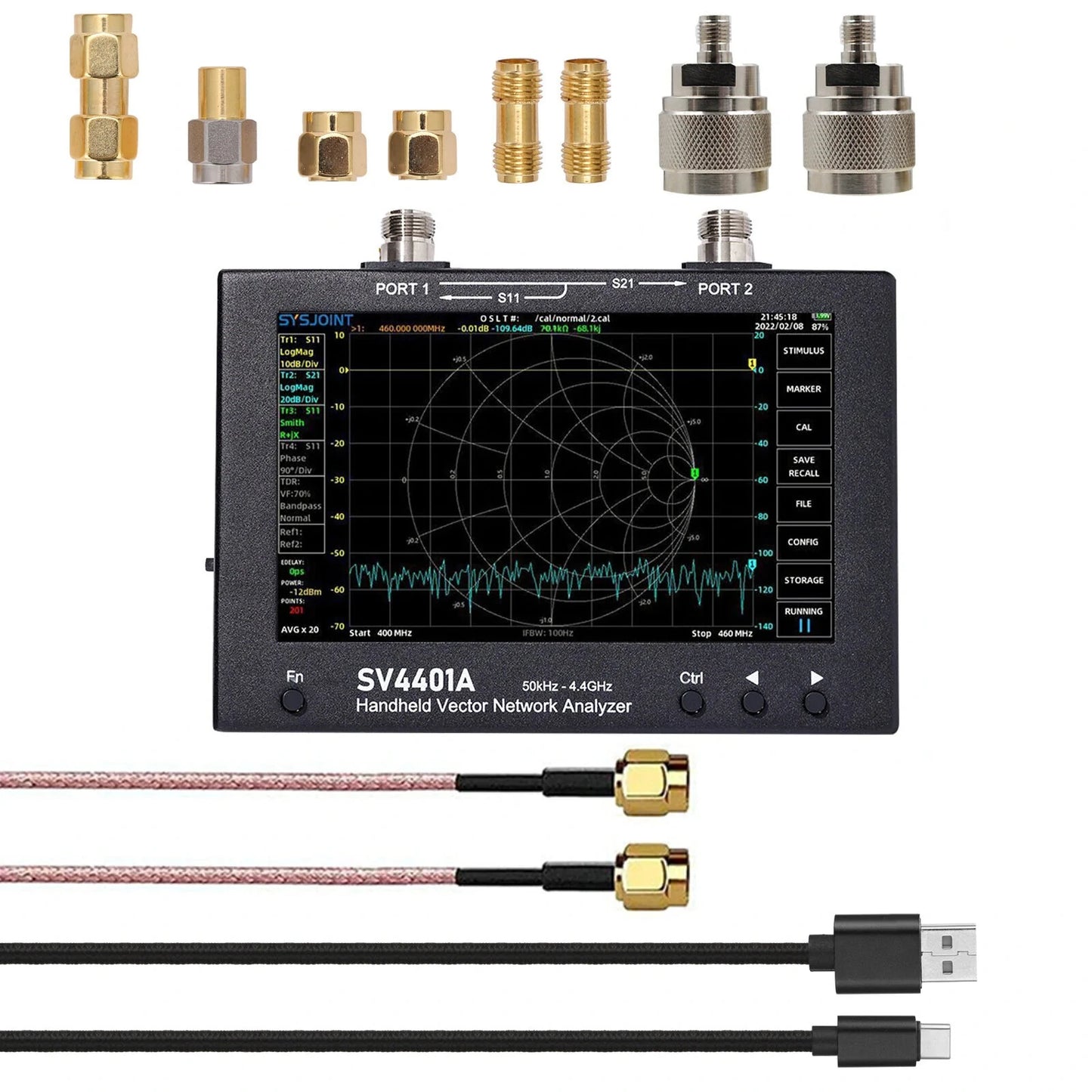

  • SV4401A Host x1
  • N to SMA Adapter x2
  • SMA Open/Short/Load Calibration Kit x1
  • SMA Double Female Straight Adapter x3
  • 50cm RG316 Cable x2
  • USB Type-C Data Cable x1
View full details
