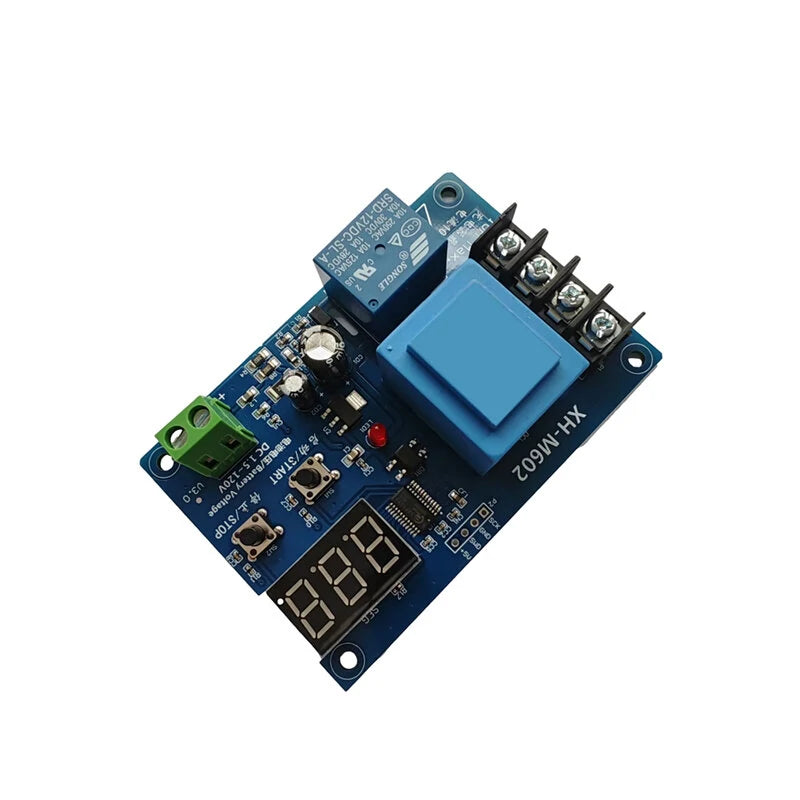

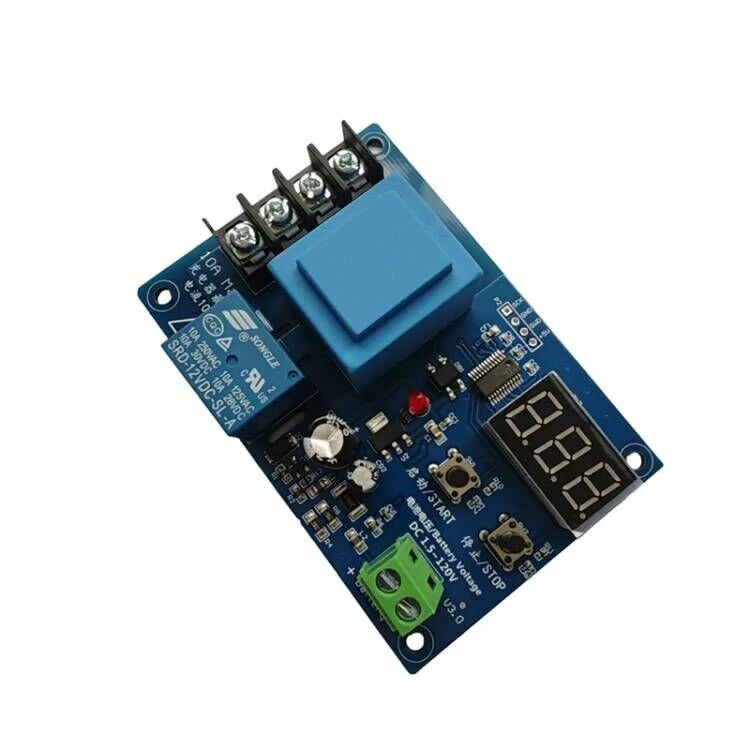

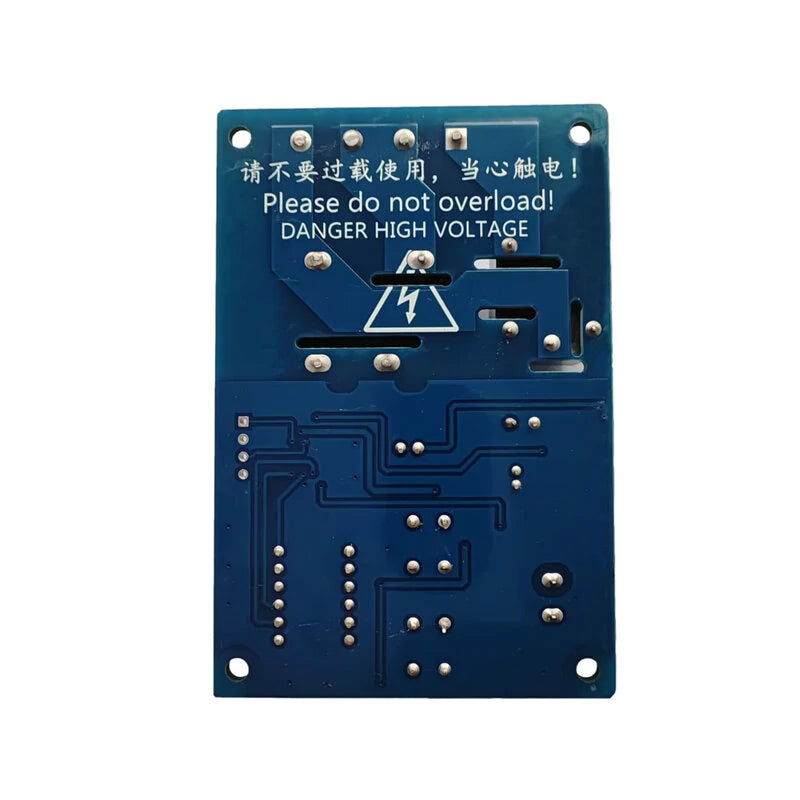

220V Digital Battery Charger Control Module - XH-M602 Lithium Protection Board

Battery Charging Control Module

Features:

• Automatically manages battery charging by measuring low and high current, ensuring optimal charge levels.
• Prevents overcharging and excessive discharge by setting customizable start and stop voltage values.
• Easy-to-read digital display allows real-time voltage monitoring.
• Stabilizes voltage during charging, which extends battery life and conserves energy.
• Designed for safe use—no risk of electric shock with reverse polarity protection and automatic shutdown during short-circuits.
• Compatible with lithium batteries and storage batteries with a voltage range of 3.7-120V.

Specifications:

• Model: XH-M602
• Material: Fiber glass board, electronic components
• Input Voltage: AC 220V
• Display Accuracy: 0.1V
• Control Accuracy: 0.1V
• Voltage Error: ±0.1V
• Output Type: Output switch
• Application: Suitable for 3.7-120V batteries (Lithium and storage batteries)
• Size: Approximately 86 x 58 x 24 mm (3.39 x 2.28 x 0.94 inches)

Setting Instructions:

1. Starting Voltage Setting:
   • Press the button once to display the starting voltage.
   • Press and hold until the light flashes, then adjust using the start and stop buttons.
2. Stopping Voltage Setting:
   • Press the button once to display the stopping voltage.
   • Press and hold until the light flashes, then adjust using the start and stop buttons.
3. Power ON/OFF Indicator:
   • The light is on when charging (voltage under the starting value) and off during discharging (voltage above the stopping value).

Instructions:

When setting voltage values, use the start button as "+" and the stop button as "-".

1. Starting Voltage Setting:
   • Under normal voltage display, press the starting voltage button once to show the charging voltage.
   • Hold the button to flash the light, then set the charging voltage using start and stop buttons.
2. Stopping Voltage Setting:
   • Same steps as starting voltage; adjust to set stopping voltage.
3. Factory Reset:
   • Press both starting and stopping buttons while powering up to reset to factory settings (888 will display).

Package Includes:

• 1 x Digital Battery Charging Control Module
