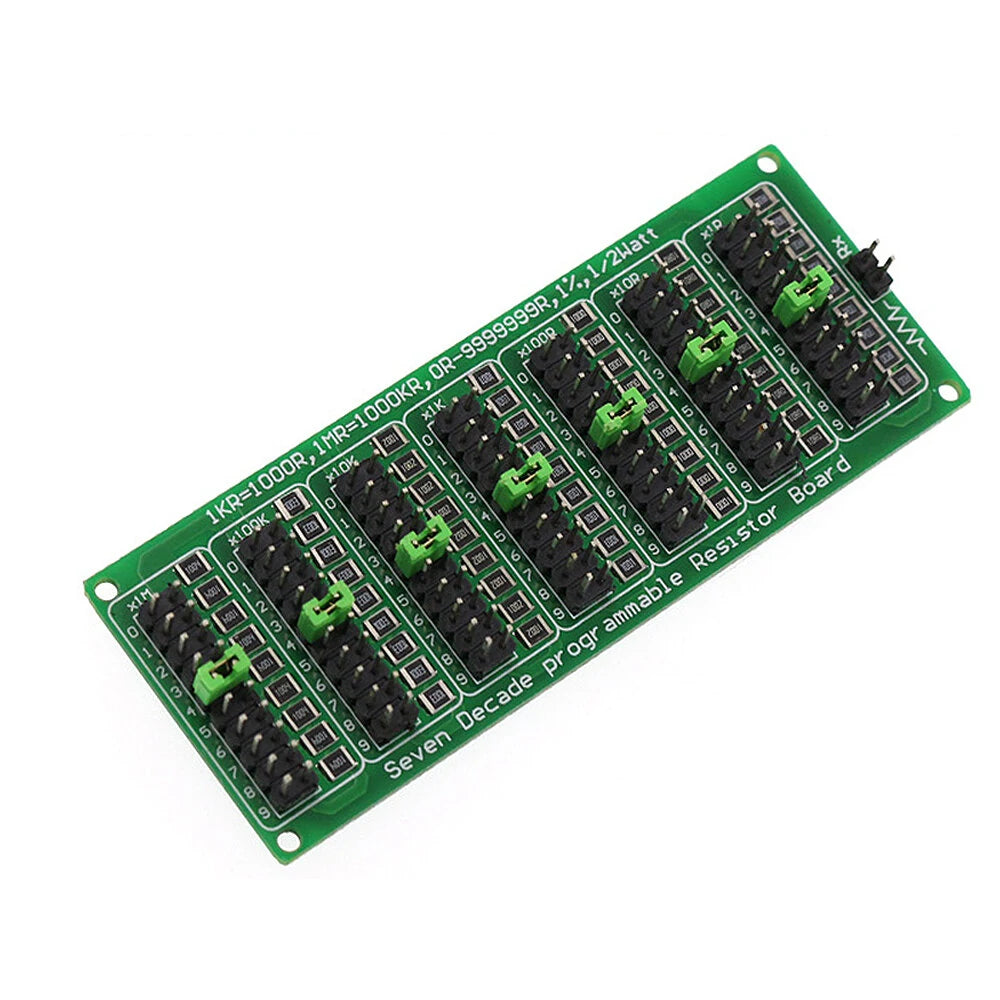

Programmable 1R-9999999R Resistance Board Module, 1/2W, 1% Accuracy, Seven Decade Resistor Board

Description

Introducing the Resistance Substitution Box, an affordable and versatile solution for your resistance needs. This product allows for a flexible and quick setting of resistance ranging from 1Ω to 9,999,999Ω, with a precise 1Ω step accuracy. Ideal for educational experiments, electronic engineering design, and test trimming, this box is a must-have for professionals and students alike.

Specifications

• Product Name: Programmable Resistance Board
• Programmable Resistance: 0 to 9,999,999 ohm, adjustable in 1 ohm increments
• Resistance Tolerance: ±1%
• Rated Power: 1/2 Watt
• Max. Working Voltage: 200V

Features

• Designed based on the "resistors series" theorem
• 1/2 Watt tolerance with ±1% SMD resistors
• High-quality FR4 glass fiber PCB for enhanced durability
• Comes with 7 spare jumper caps for convenience

Package Includes

1× Seven Decade Programmable Resistance Board (1R - 9,999,999R)
