RIDEN® DPS5020 50V 20A Digital Power Supply Buck Converter with LCD Voltmeter

Product Details

The DPS5020 is an advanced digital control power supply module featuring both constant voltage and constant current functionalities. It seamlessly integrates analog and digital control for highly efficient power management. With an adjustable output voltage range of 0-50.00V (increments of 0.01V) and current range of 0-20.00A (increments of 0.01A), it offers precision and convenience.

Key Features

• Power-down storage capability with 10 preset values.
• Quickly retrieve two stored value sets for voltage or current.
• Comprehensive LCD display showing preset and real-time voltage, current, power, and status indicators.
• Full customization options including overvoltage, overcurrent, over-power protection values, and adjustable LCD brightness.
• Compact size and high operability for independent or integrated device use.

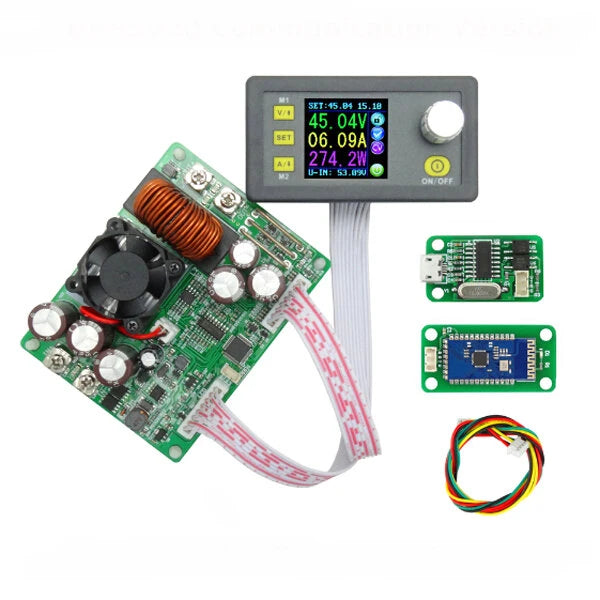

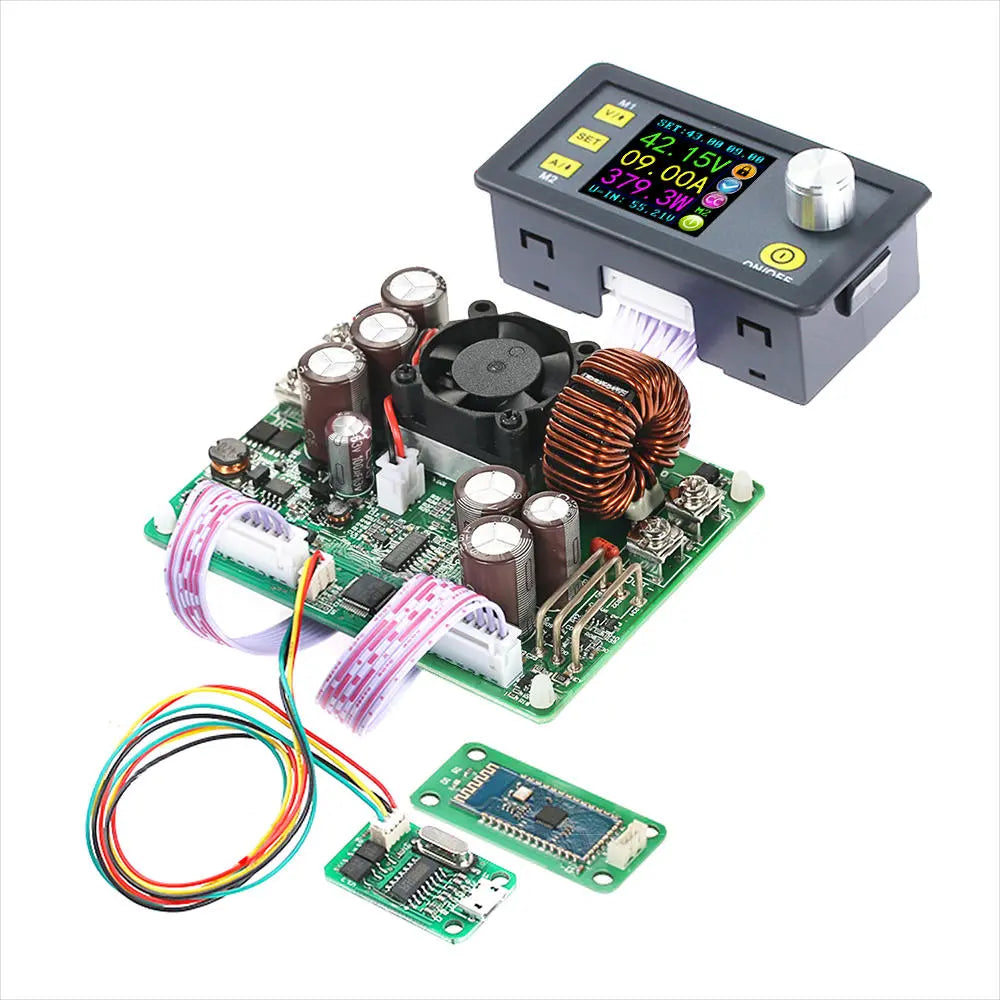

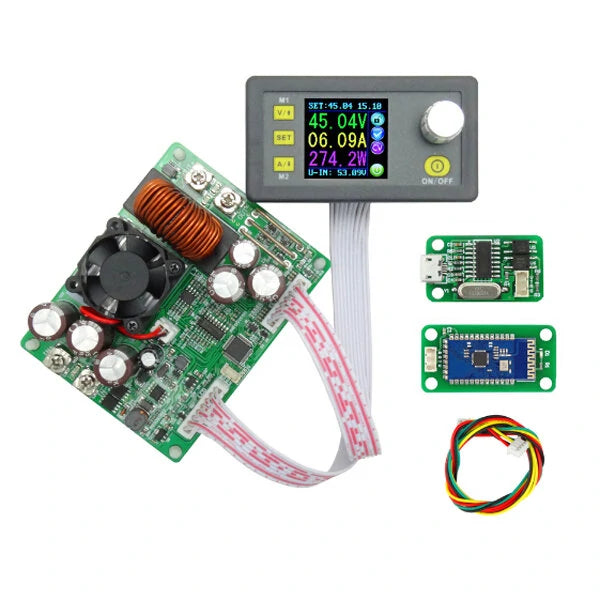

Available Versions

• Type A: DPS5020 - No Communication Version
• Type B: DPS5020 - Communication Version with USB & Bluetooth

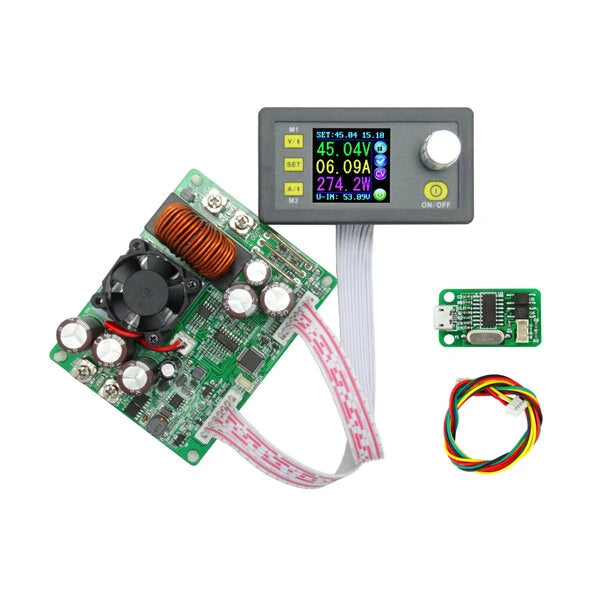

• Type C: DPS5020 - USB Communication Version

Compatibility Information

• Ensure compatibility with your computer using the test software before purchasing.
• The upper computer software supports Windows 7 and above. Download from here.

Technical Specifications

• Input Voltage Range: 6.00-60.00V
• Output Voltage Range: 0V-50.00V
• Output Current: 0-20.00A
• Output Power Range: 0-1000W
• Display Module Size: 79x43x41mm (L*W*H)
• Power Module Size: 93x71x41mm (L*W*H)

Important Notes

• Ensure input voltage is at least 1.1 times greater than the output voltage.
• Properly connect display and power components to avoid malfunction.

Additional Resources

• Explore other products in the series: DPS3005, DPS5005, DPS5015, DPH5005, DPS8005, and more.
• For further details and setup assistance, refer to this video.
