Rechargeable BSIDE Coating Thickness Gauge - Car Paint Film Tester 0.1 Micron / 0-1500µm Fe/NFe MAX/MIN Measurement Tool

BSIDE Rechargeable Coating Thickness Gauge

Features:

• Rechargeable and Convenient: Comes with a rechargeable battery and a charging cable, ensuring uninterrupted power for all your measurements.
• NFe-Probe/Current: Measures the thickness of nonconductive coatings on nonferrous substrates, such as enamel, rubber, paint, varnish, and plastic anodic-oxide layers on materials like aluminum, brass, zinc, tin, and nonmagnetic stainless steel.
• Fe-Probe/Magnetic Induction: Measures the thickness of non-magnetic coatings on magnetic substrates. Suitable for coatings like aluminum, chrome, copper, enamel, rubber, and paint on steel, iron, alloy, and magnetic stainless steel.
• High Precision: Measuring range: 0-1500µm (0-59.1 mils). Resolution: 0.1µm/0.01 mils. Accuracy: Fe-probe ±(3%+2µm), NFe-probe ±(3%+2µm). Units can be switched between µm and mil.

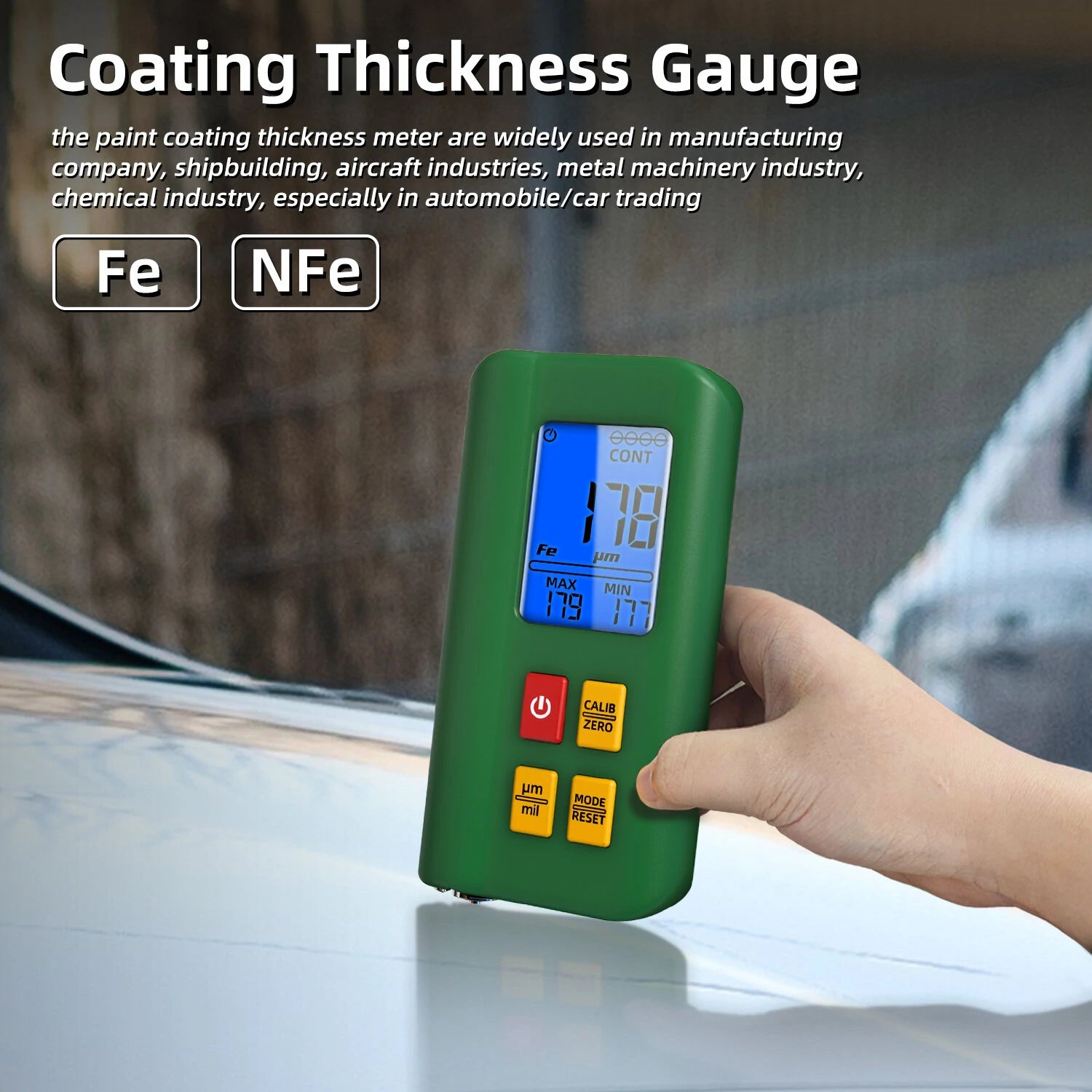

• Wide Application: Perfect for manufacturing, shipbuilding, aircraft industries, metal machinery, chemical industry, and especially beneficial in the automobile/car trading sector.

Specifications:

• Non-ferrous Probe: Suitable for aluminum, copper, etc., based on the non-magnetic substrate.
• Ferroprobe: Designed for iron-based materials using electromagnetic induction.
• Testing Range: 0~1500μm
• Precision: ±(3%+2μm)
• Resolution Ratio: 0.1µm
• Minimum Substrate Thickness: 0.5mm
• Calibration: Zero calibration and multi-point calibration available.
• Units: µm, mil
• Minimum Convex of Concave: 1.5mm
• Minimum Curvature of Concave Surface: 25mm
• Minimum Measuring Area Diameter: 6mm
• Operating Environment: Temperature: 0~40°C (32~104°F), Humidity: 20%~90%RH, avoid strong magnetic fields.

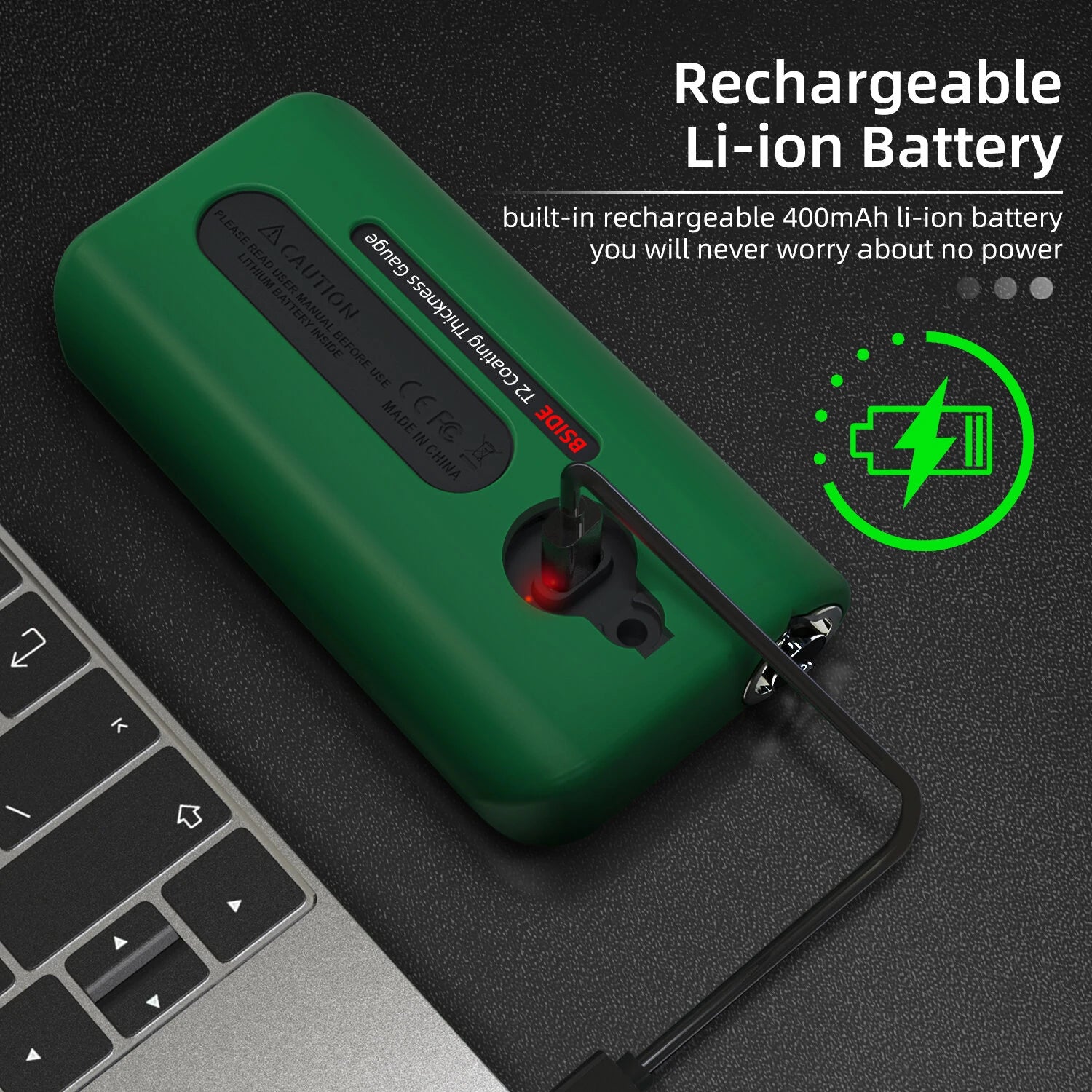

• Battery: 3.7V 400mA
• Operating Altitude: ≤2000m

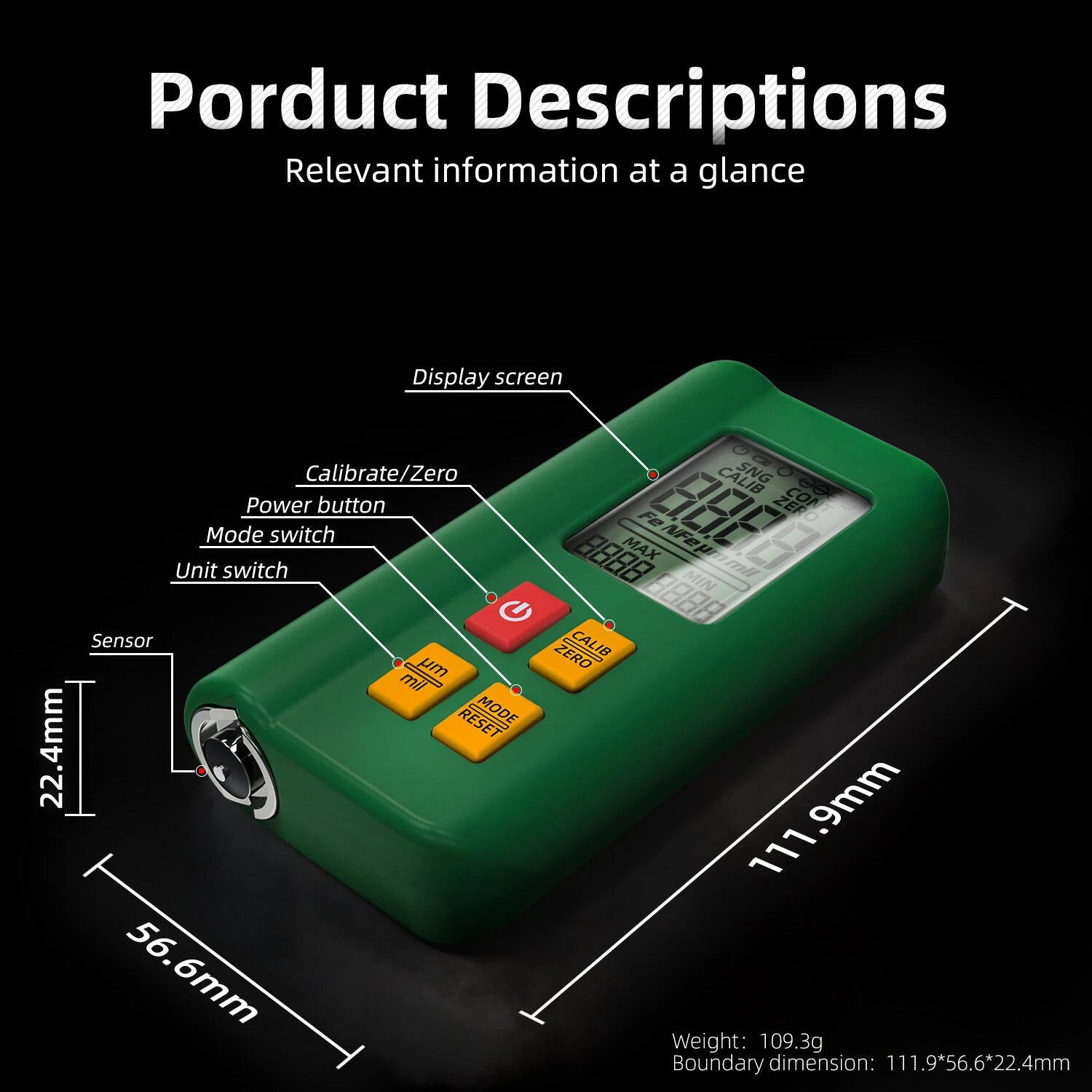

• Boundary Dimensions: 111.9 x 56.6 x 22.4mm
• Weight: 109.3g

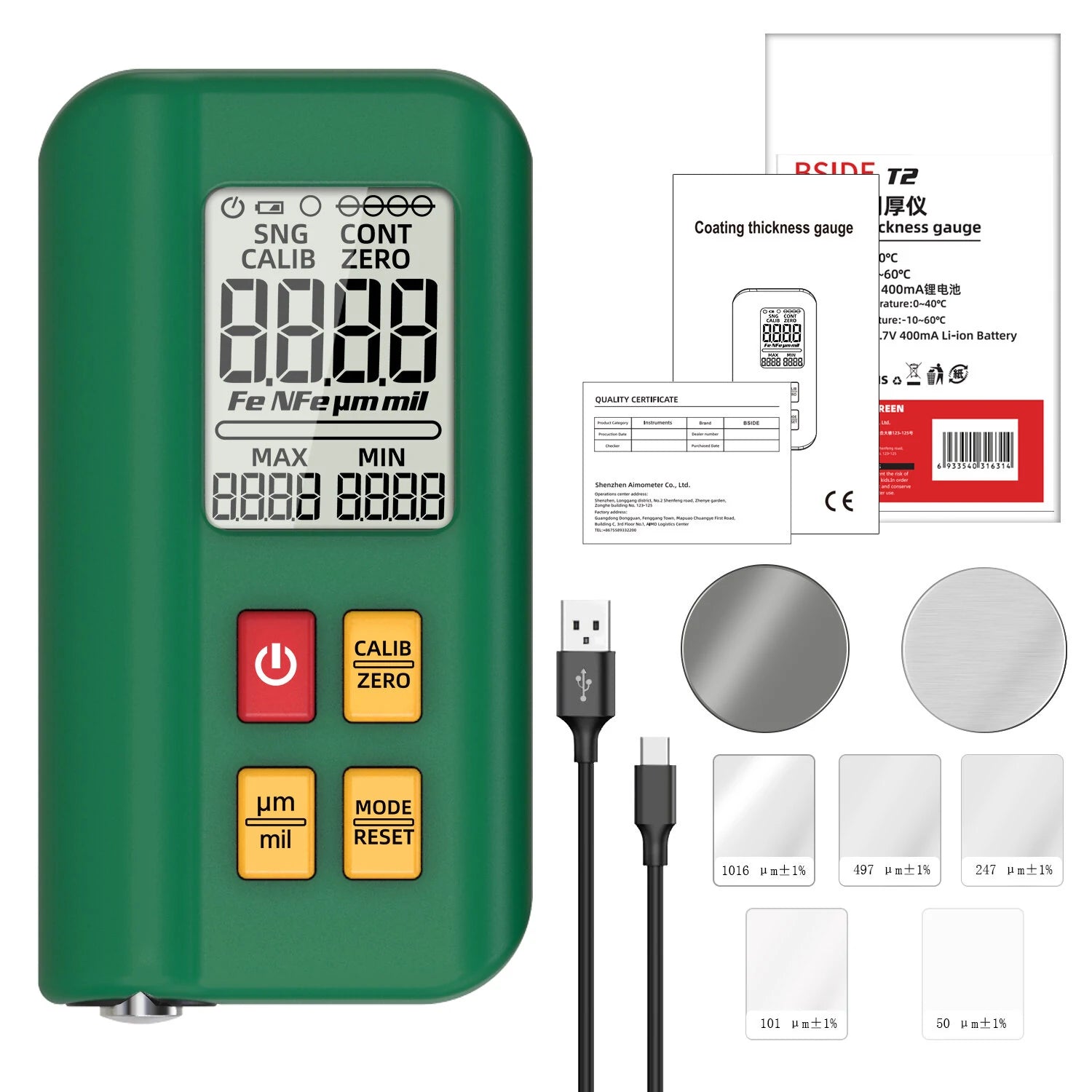

Package Includes:

• 1 x Thickness Gauge
• 2 x Calibrated Substrates
• 5 x Calibrated Thickness Sheets
• 1 x Charging Cable
