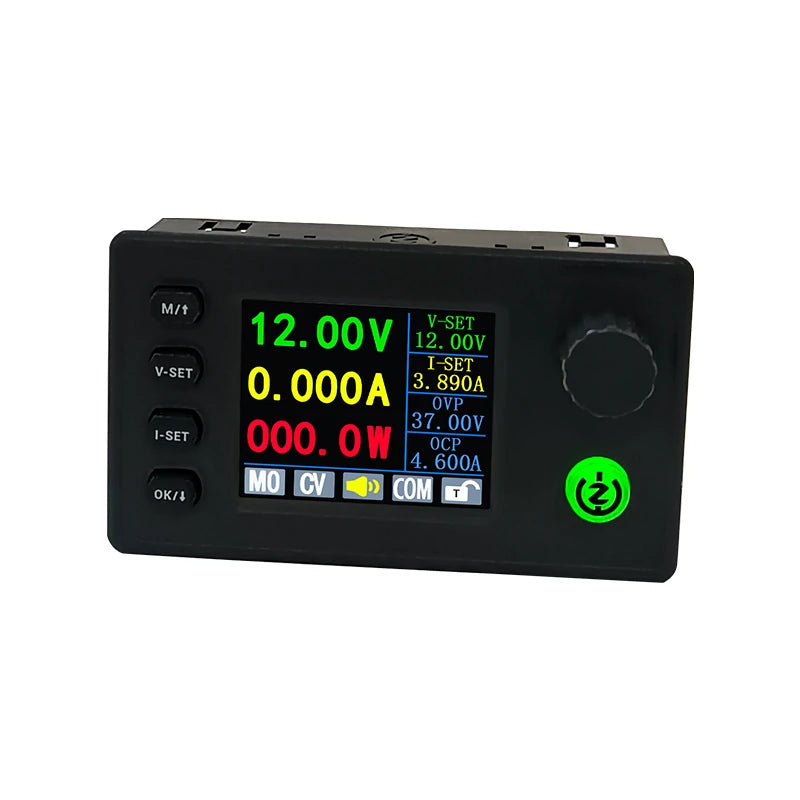

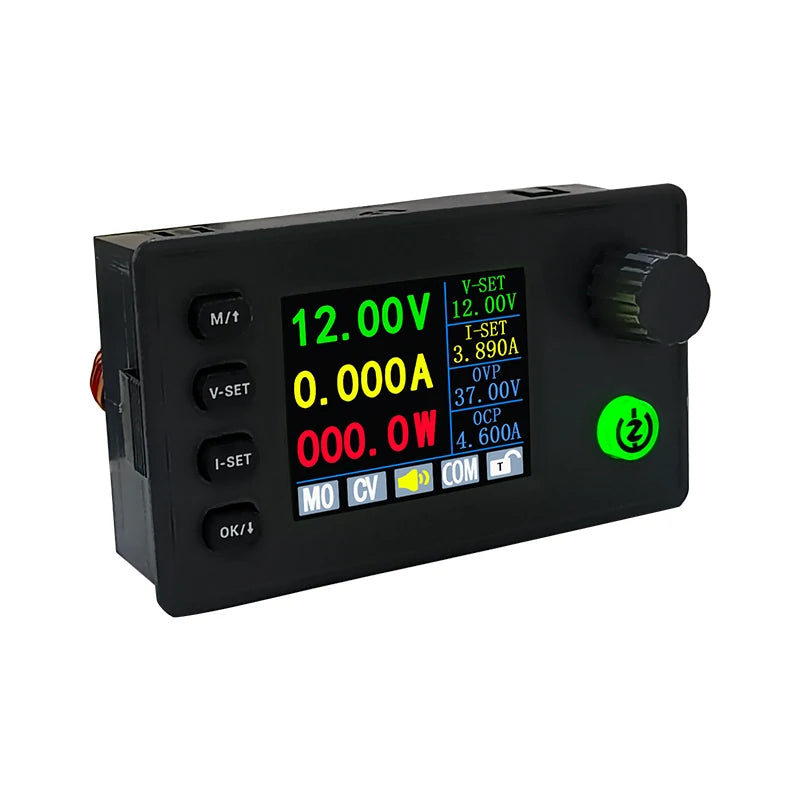

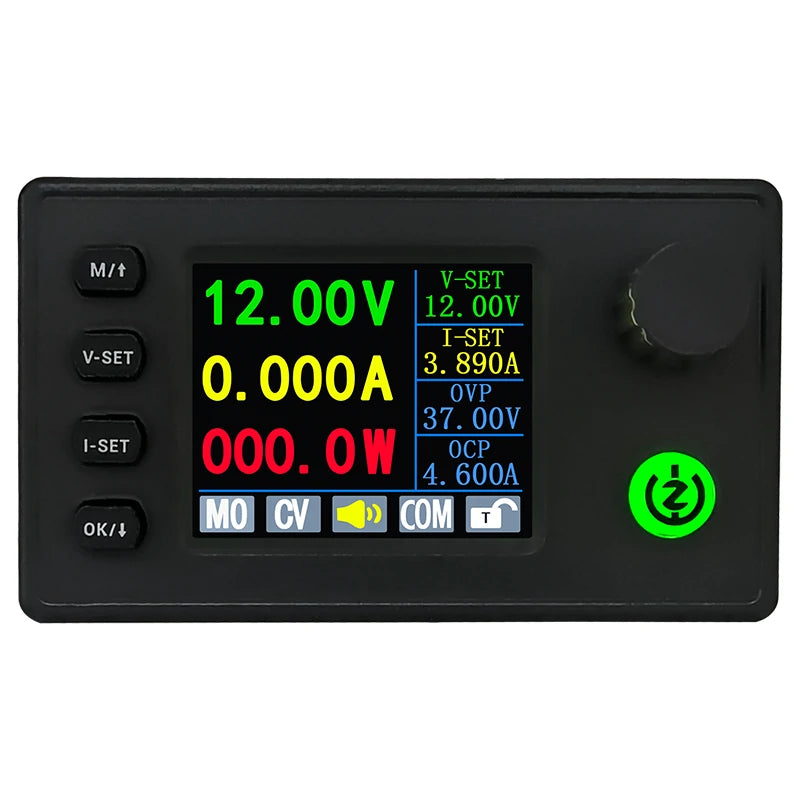

SK40C Digital Adjustable Buck-Boost Converter with Color LCD, CC CV Step-Down Module for Regulated Voltage Power Supply

$13.99 USD

~~$0.00 USD~~ $13.99 USD

Sale Sold out

Shipping calculated at checkout.

Model SK40C

Estimated Delivery: -

Quantity

Product Features:

Advanced LCD Display: Utilizing gold immersion technology to prevent oxidation and poor contact, ensuring a complete display even after long-term use.
Easy-to-Use Controls: Includes independent silicone buttons for quick voltage or current setup with simple one-key operations.
Modular Design: Features independent architecture for the upper and lower boards, allowing for versatile LCD or color screen replacements. The power supply board can operate independently.
Durable Silicone Buttons: Upgraded material provides a soft and comfortable touch, extending the lifespan of the buttons.
Customizable Cooling Options: Designed with a reserved 5V fan interface, allowing users to add their fans for additional cooling support.

Product Model	SK40C (This item)	SK90C
Product Name	CNC DC Voltage Buck-Boost Power Supply
Input Voltage	6-36.00V
Output Voltage	0.5-36.00V
Output Current	0-4.5A	0-5A
Output Power	40W	90W
Voltage Resolution	0.01V
Voltage Accuracy	±0.3%+3 words (Calibratable)
Current Resolution	0.001 A
Data Group Storage	11 groups
Buzzer	Yes	Soft
Screen Size	Upgraded 1.8-inch large screen, 36 × 29mm visible range
Conversion Efficiency	About 88%
Product Size	83 x 48 x 29.4mm (Height does not include rotary encoder)
Product Weight	Net weight: 103g; Weight with packaging: 123g

Under Voltage Protect (LUP): Adjustable between 5.5-35V, default is 5.5V.
Output Overvoltage Protection (OUP): Adjustable between 0.5-37V, default is 37V.
Output Overcurrent Protection (OCP): Adjustable range and default values: 0.001 -4.6A (4.6A) for SK40C; 0.001 -5.2A (5.2A) for SK90C.
Output Overpower Protection (OPP): Adjustable range and default values: 0.01-41 W (41W) for SK40C; 0.01-91 W (91W) for SK90C.
Over Temperature Protection (OTP): Adjustable between 30-99 ℃, default is 90 ℃.
Timeout Protection (OHP): Adjustable from 1 -99 hours and 59 minutes, default setting is off.
Overcapacity Protection (OAH): Adjustable from 0.001-9999Ah, factory default is off.
Superenergy Protection (OPH): Adjustable from 0.001-4000KWh, factory default is off.
Output Anti Backflow: Yes
Input Anti Reverse Connection: Yes
